Touring

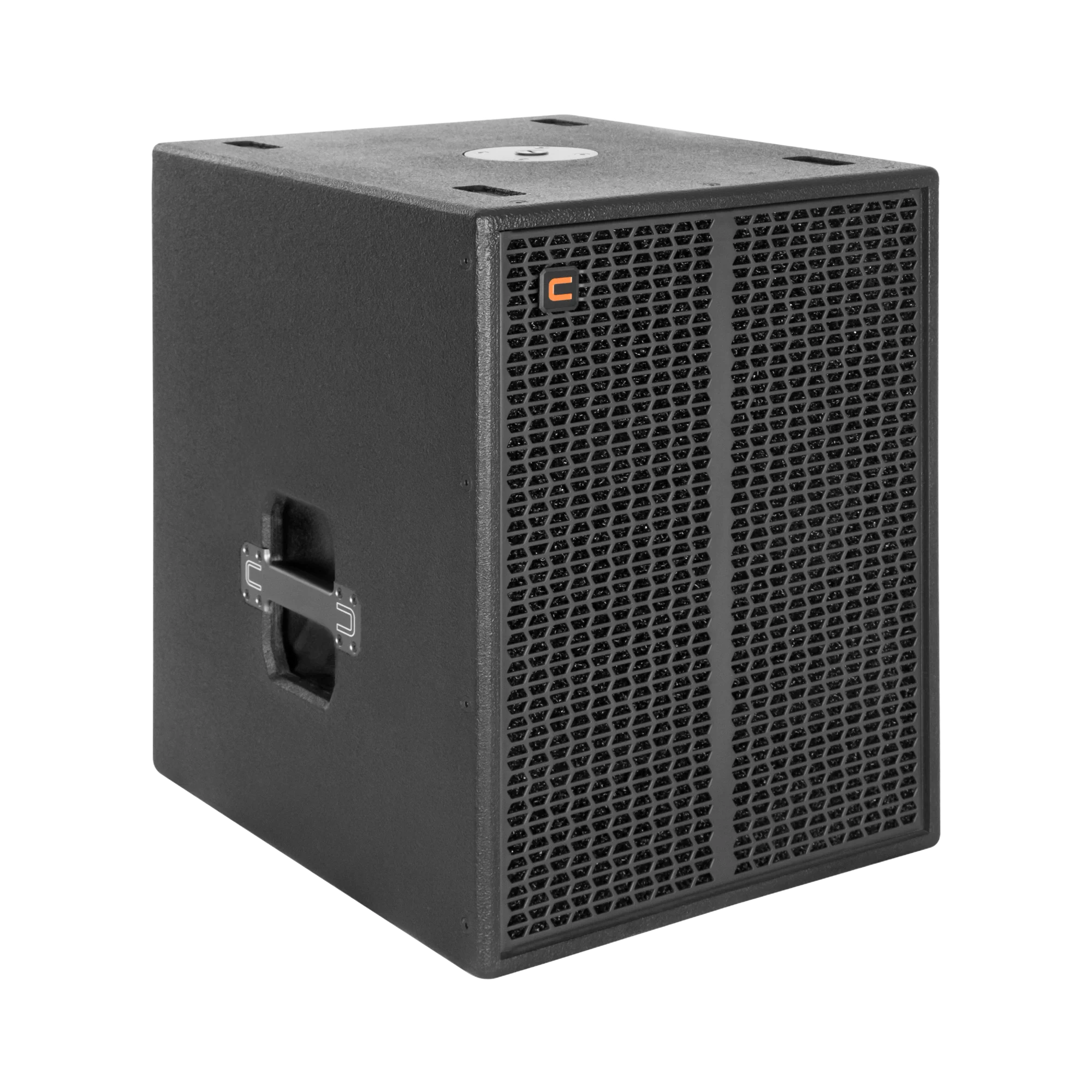

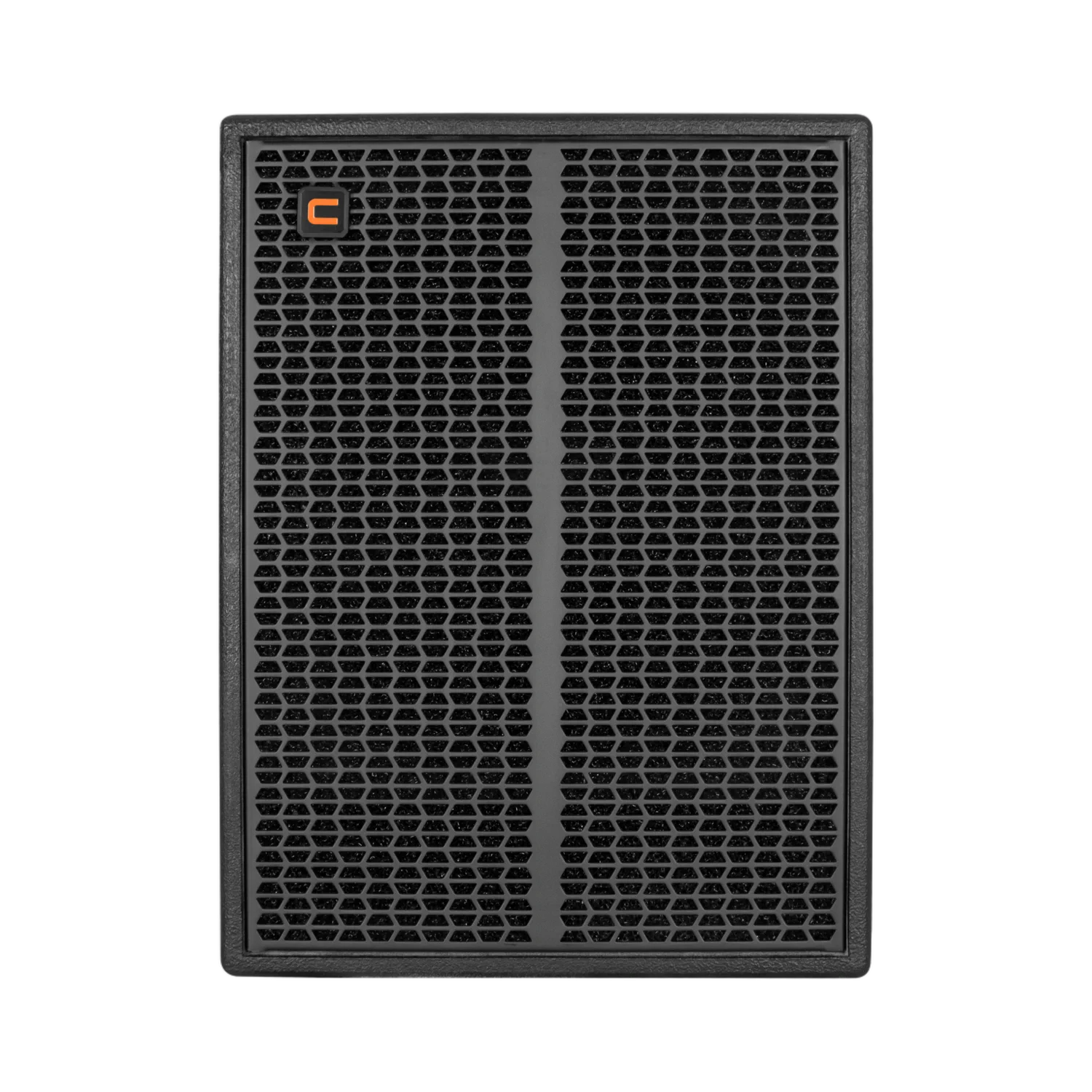

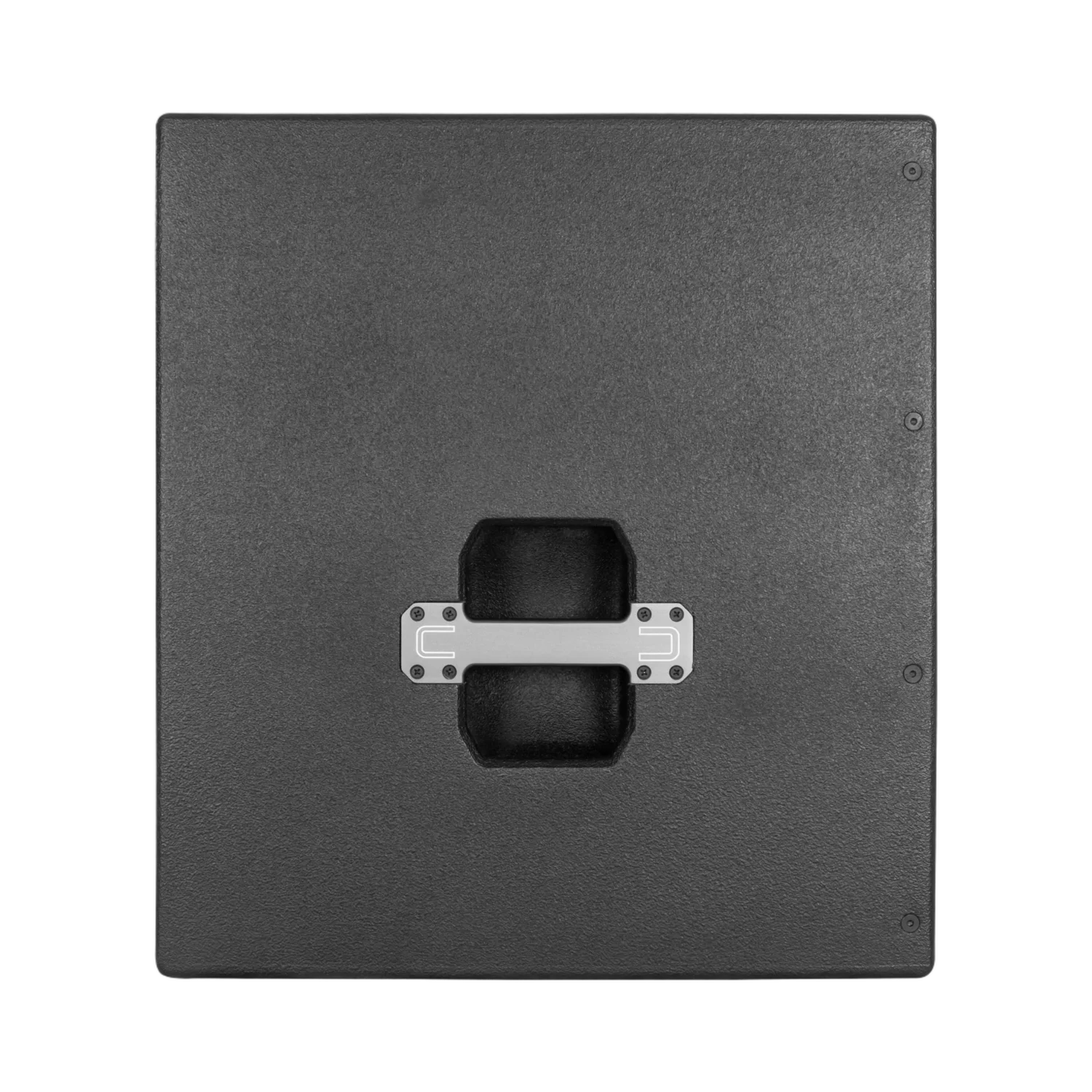

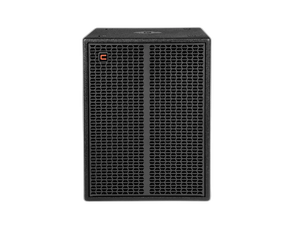

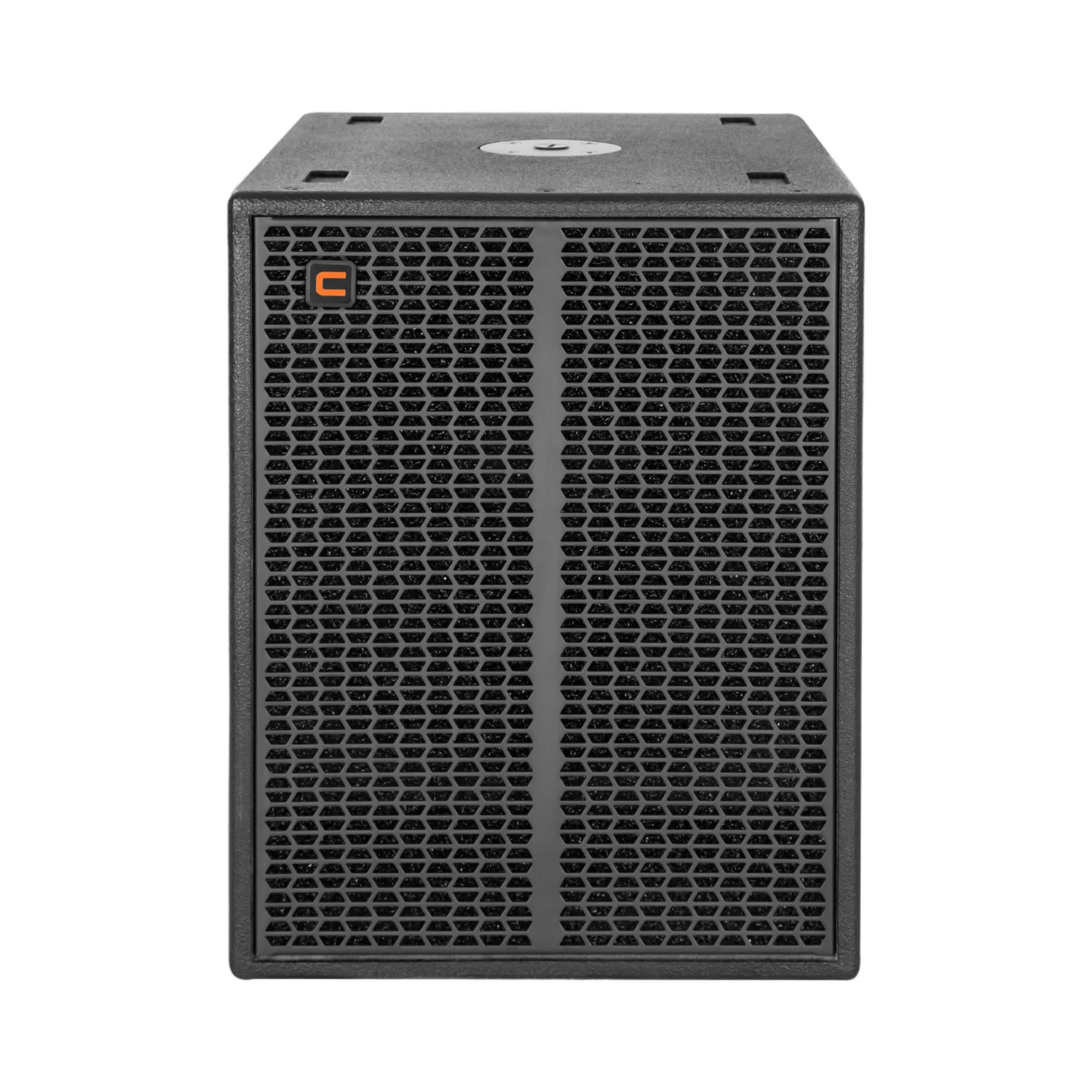

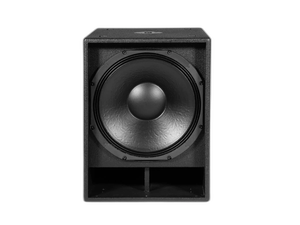

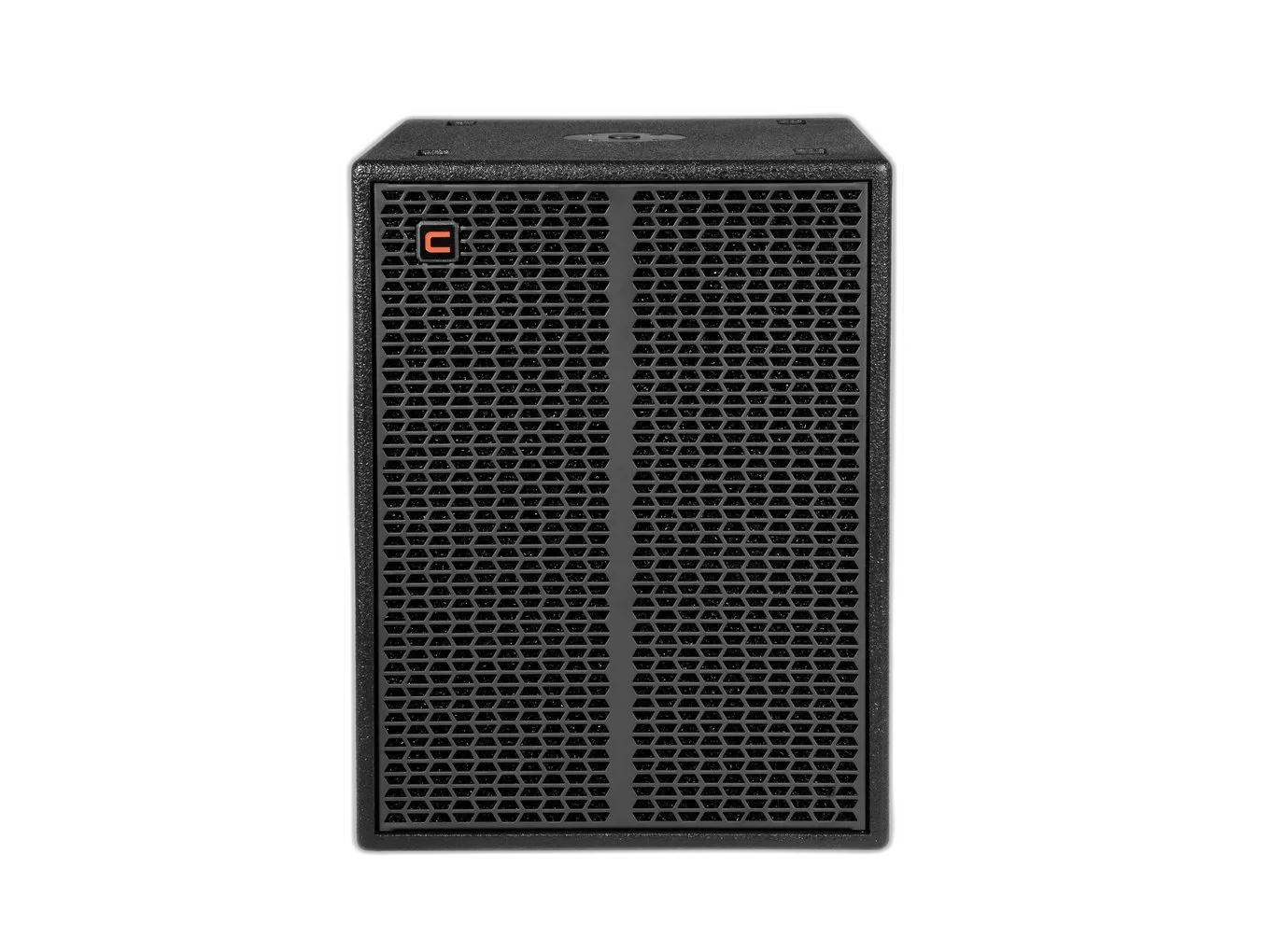

The SU113 G2 is a Touring subwoofers.
- Real 800W RMS power capacity
- Clean and deep low frequency reproduction
- Premium custom CELTO Acoustique Driver
- Heavy braced vibration free outdoor grade Baltic birch cabinet
- Touring grade Rubberized PolyUrea black textured finish
SU113 subwoofer is suitable for bass reinforcement for main PA systems, touring or permanent installations for small to large stages, indoor or outdoor live performances.
View
View
View
View
View
Technical specifications
| Speaker type | Compact vented sub woofer |
| Power Handling (AES standard) | 800 W RMS / 3200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 126 dB RMS / 132 dB Peak |
| Frequency response (-6 dB no preset) | 50~1500 Hz |
| Nominal directivity (-6 dB) | Omni in usable range |
| Cabinet |
Exterior grade Baltic Birch Plywood Heavily braced with Tongue & Groove |
| Cabinet finish |
Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | Does not apply |
| Flying hardware | No |
| Mounting hardware | 1pc M20 thread socket |
| LF |
15" CELTO ACOUSTIQUE 15PF800-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 3.6" / 91 mm |
| HF | Does not apply |
| HF RMS power (AES standard) | Does not apply |
| HF Exit | Does not apply |
| HF Voice coil diameter | Does not apply |
| HF Diaphragm | Does not apply |
| Crossover | No, active mode only |

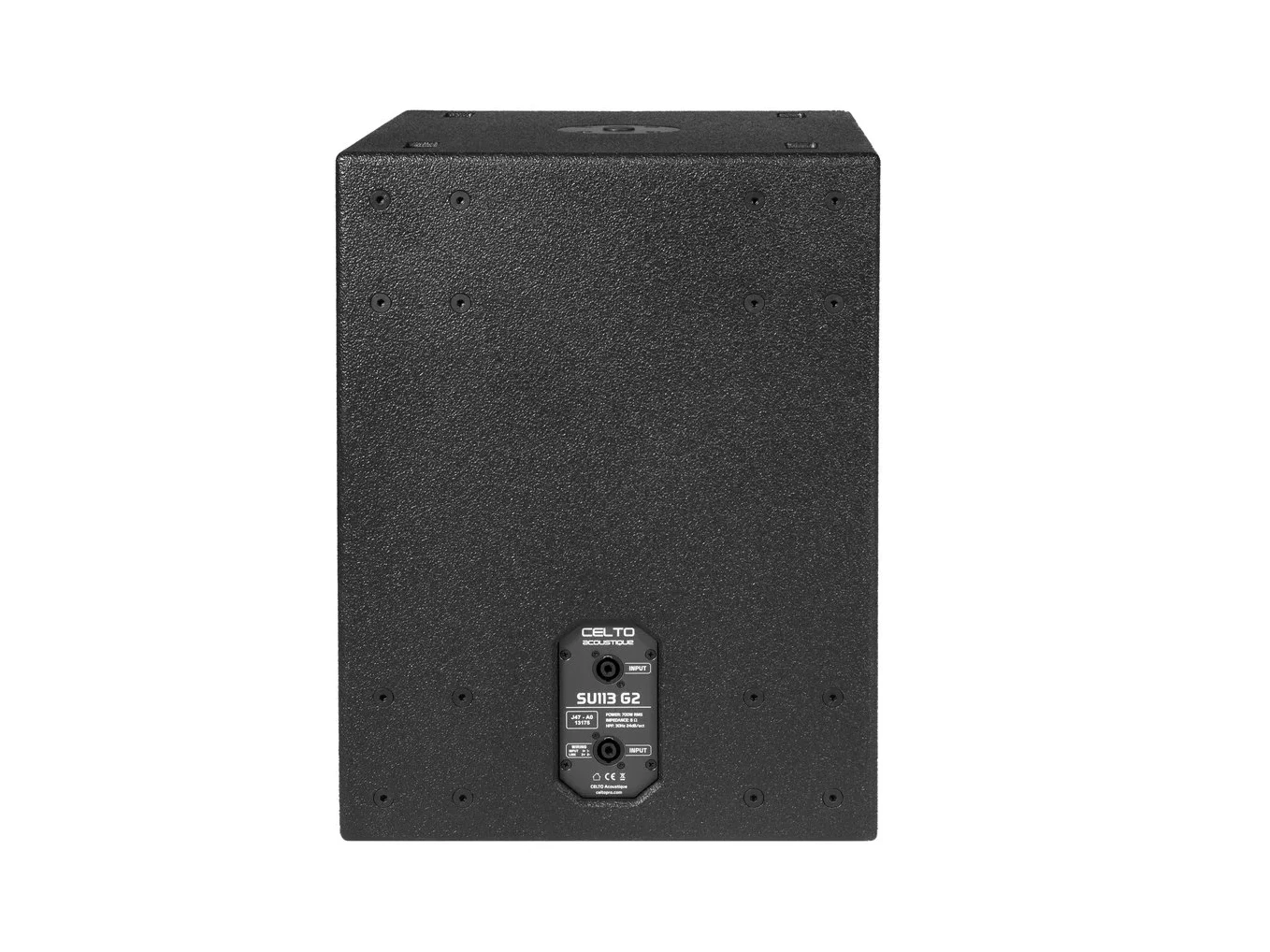

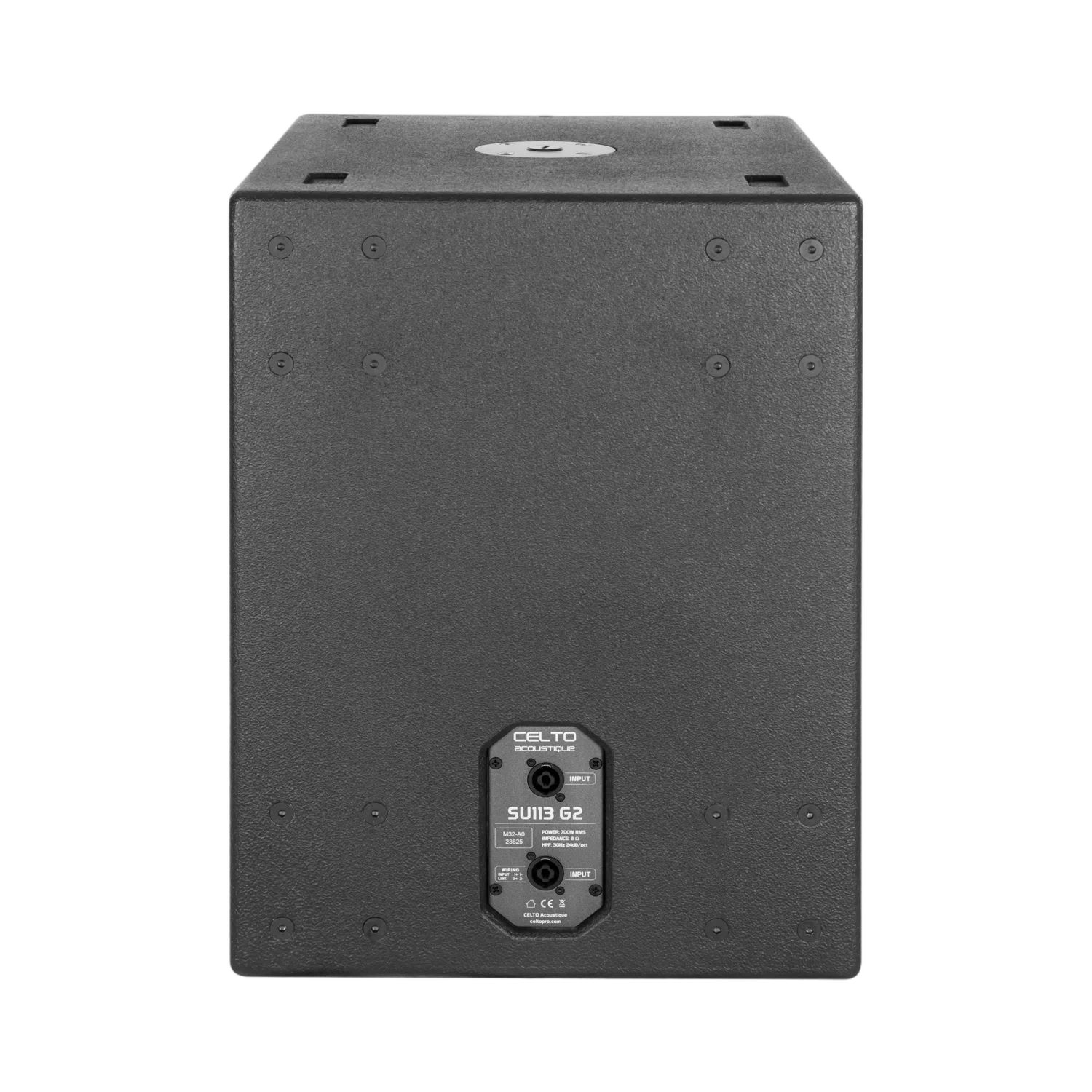

| Connectors |
Genuine NEUTRIK 2pcs Speakon NL4 mP |
| Speaker size (HxWxD) | 545 x 410 x 490 mm |
| Speaker Weight | 27 kg |
| Shipping information |
31.6 kg 590 x 512 x 680 mm |
| Accessories |

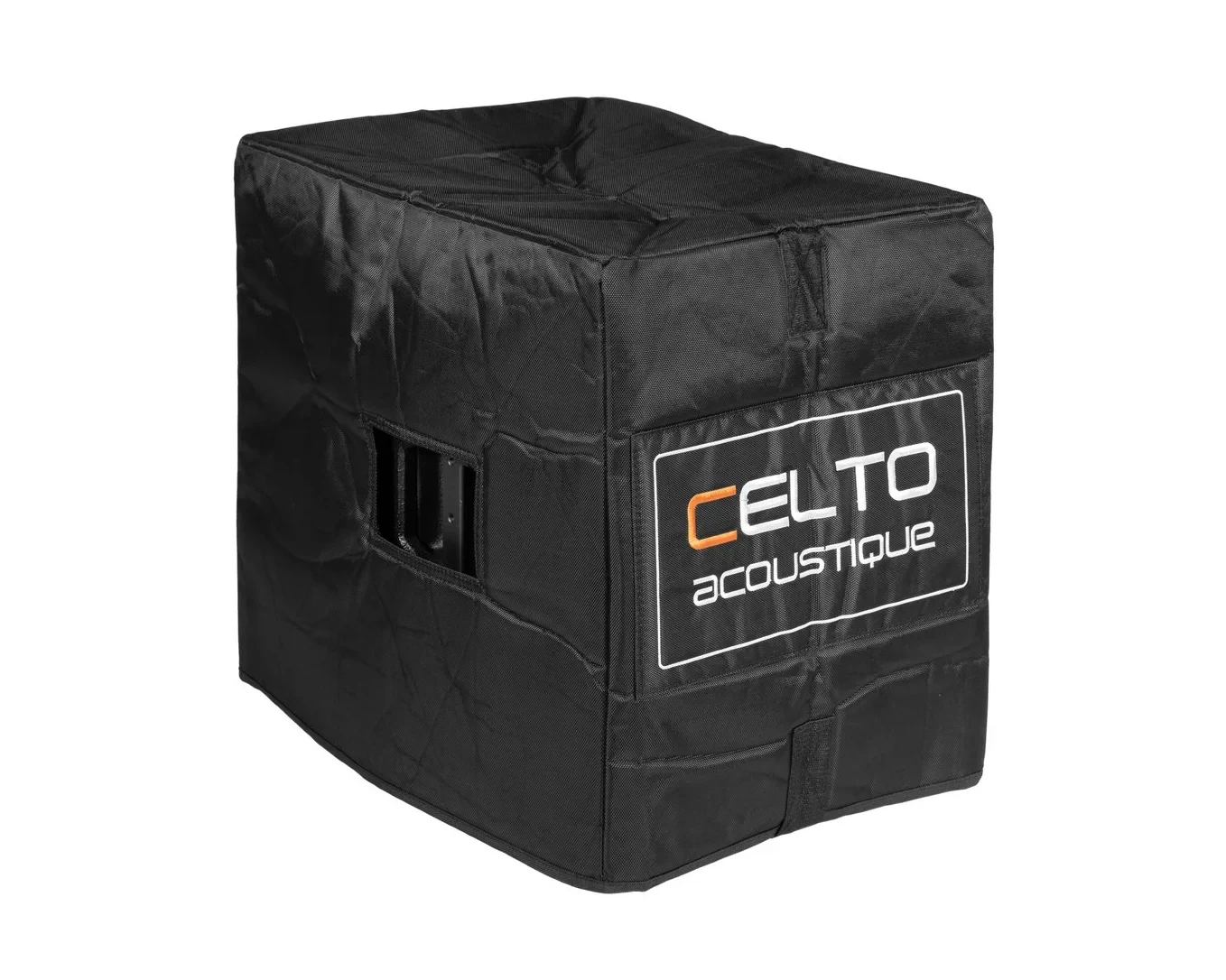

SU113G2-SBAG (padded cover bag) CPC-70 (pole bar with crank) SUBWHKIT100C (castor wheel kit) |
