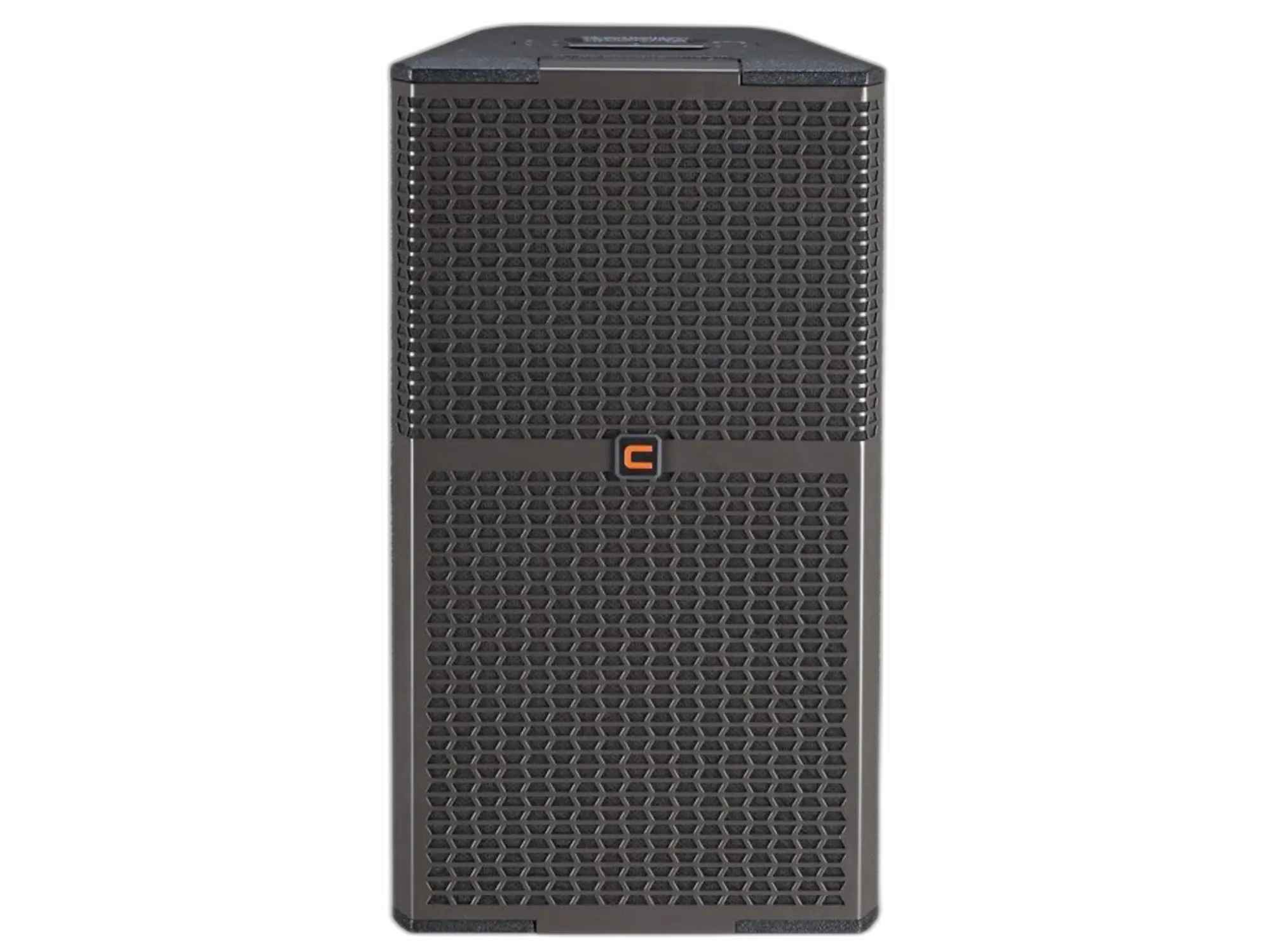

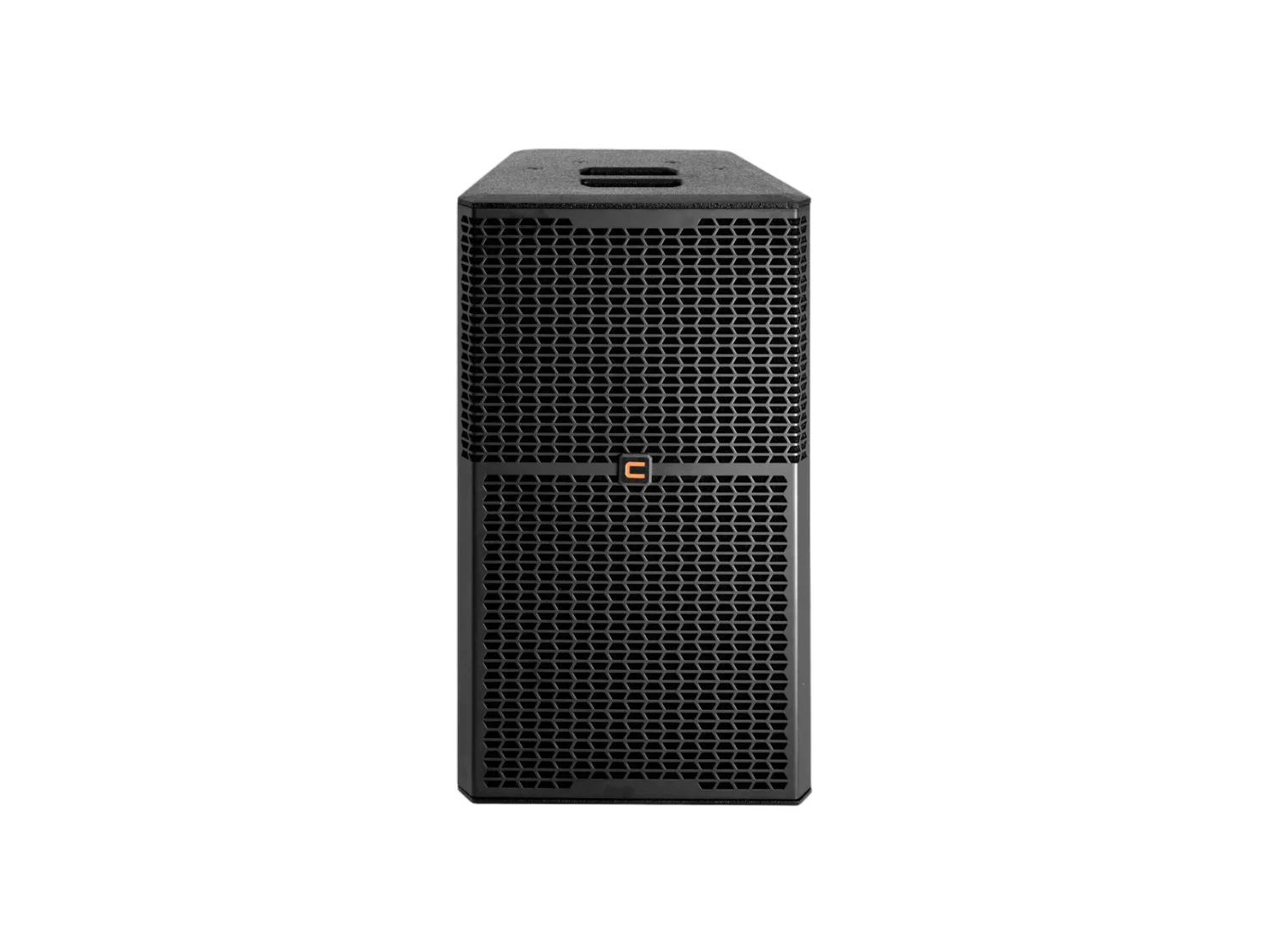

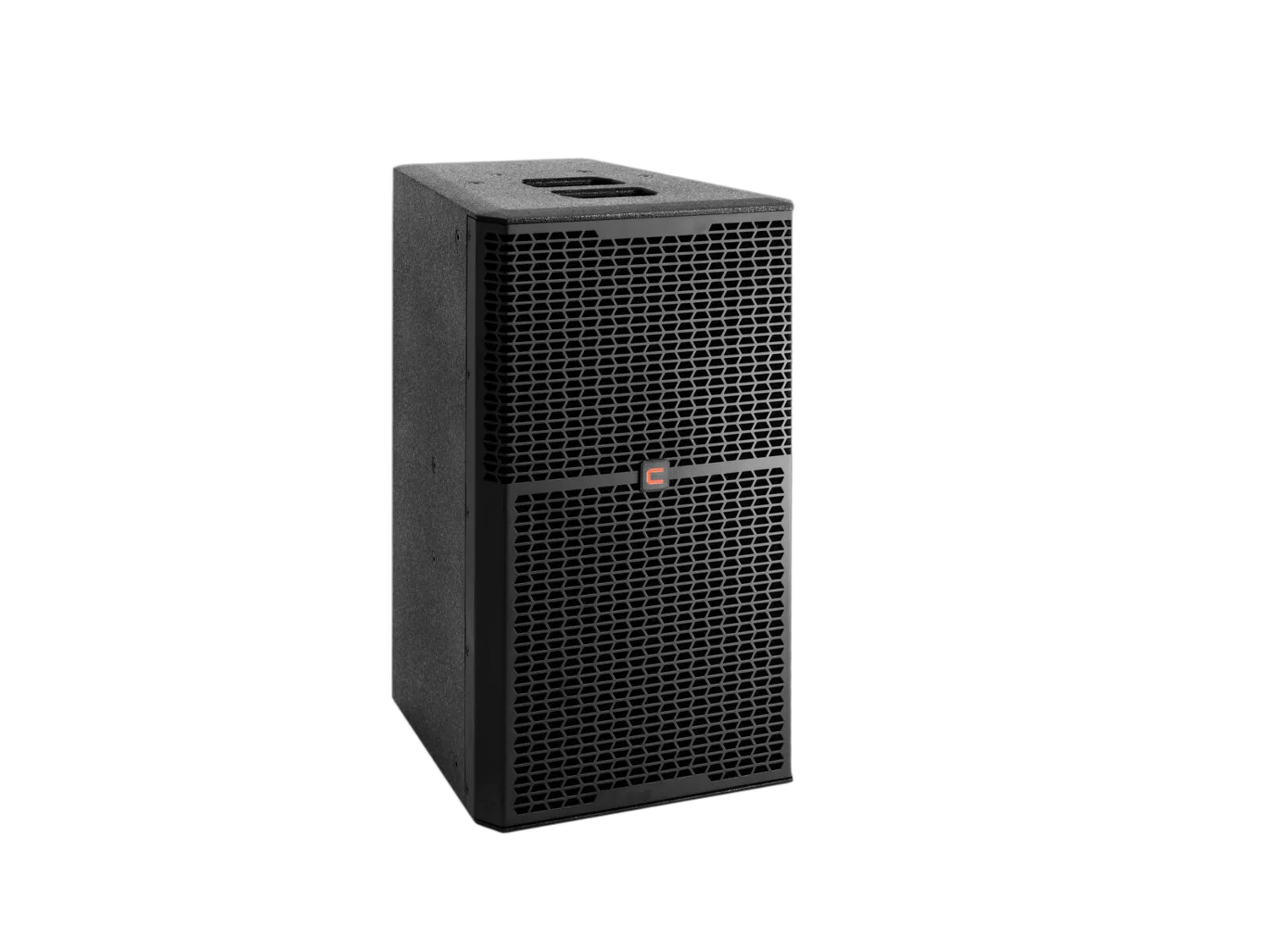

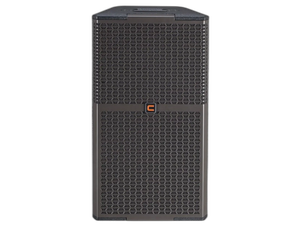

PM12 G3
made for installation - true full range with transmission line charge - 15 m8 flying points
Installation
The PM12 G3 is a Coaxial line source.
- Real 500W RMS power capacity (8 hours pink noise)
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Transmission Line Technology for true full range
- Premium custom CELTO Acoustique Drivers
- Proprietary 80ºx50º rotatable 6th order Polynomial horn
- Birch plywood cabinet with tongue & groove assembly
- Multiple M8 flying points for versatile installation
IWAC210 line source speaker system is suitable for near to far field main PA reinforcement in line array topology with subwoofer for mobile and permanent installation.
View
View
View
Technical specifications
| Speaker type | Multi-purpose full range |
| Power Handling (AES standard) | 600 W RMS / 2400 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 125 dB RMS / 131 dB Peak |
| Frequency response (-6 dB no preset) | 40~22000 Hz |
| Nominal directivity (-6 dB) | 80° (H) x 50° (V) |
| Cabinet |
Exterior grade Birch Plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware | 16 M8 points |
| Mounting hardware | Ø35 mm socket (0° and 10°) |

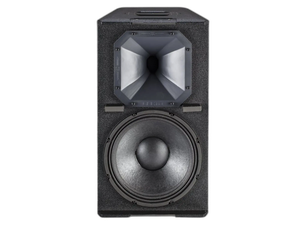

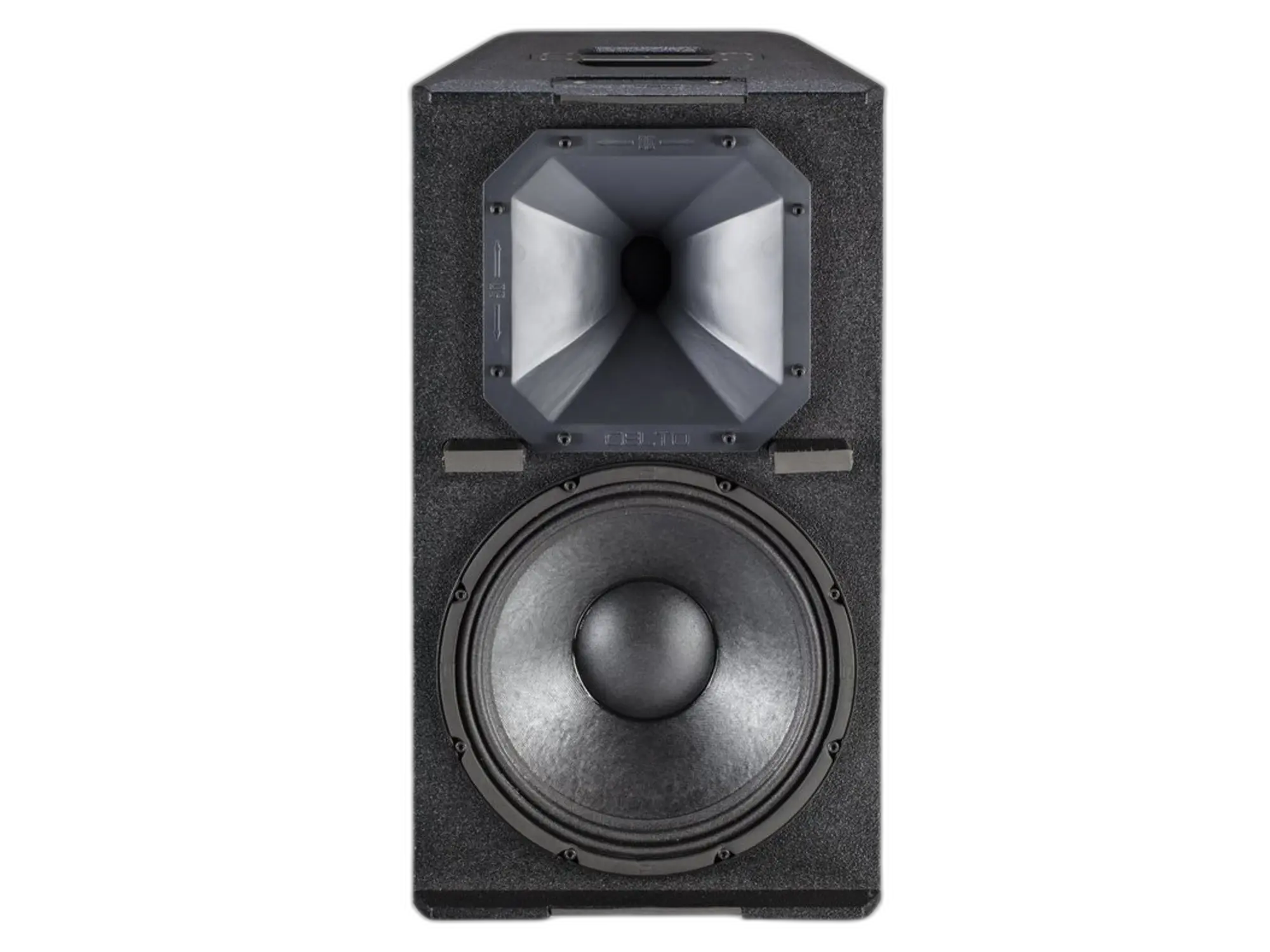

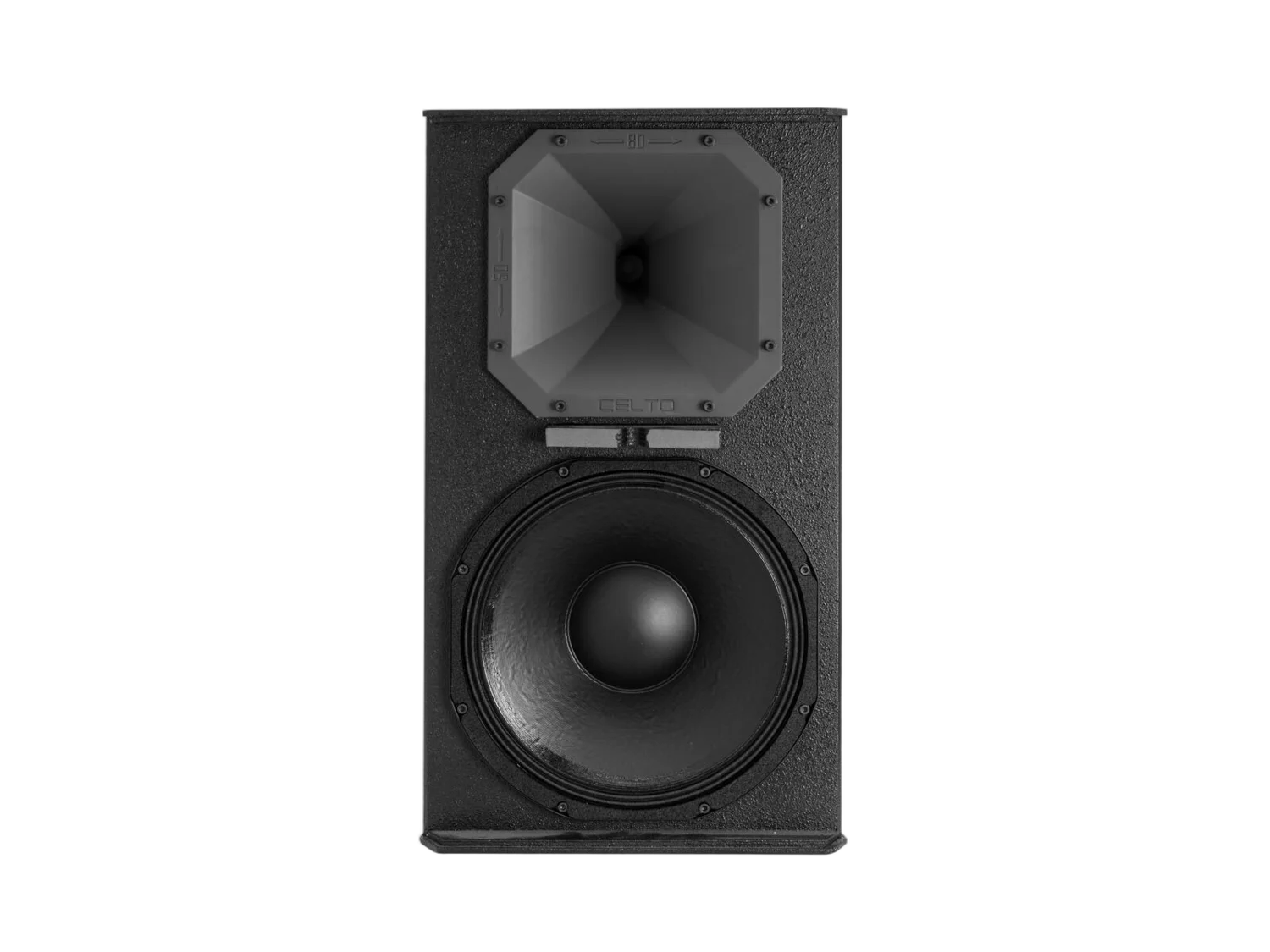

| LF |
12" CELTO ACOUSTIQUE 12PF600-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 3" / 75 mm |
| HF |
CELTO ACOUSTIQUE ACD44 |
| HF RMS power (AES standard) | 80 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.5 kHz 2-way passive network |

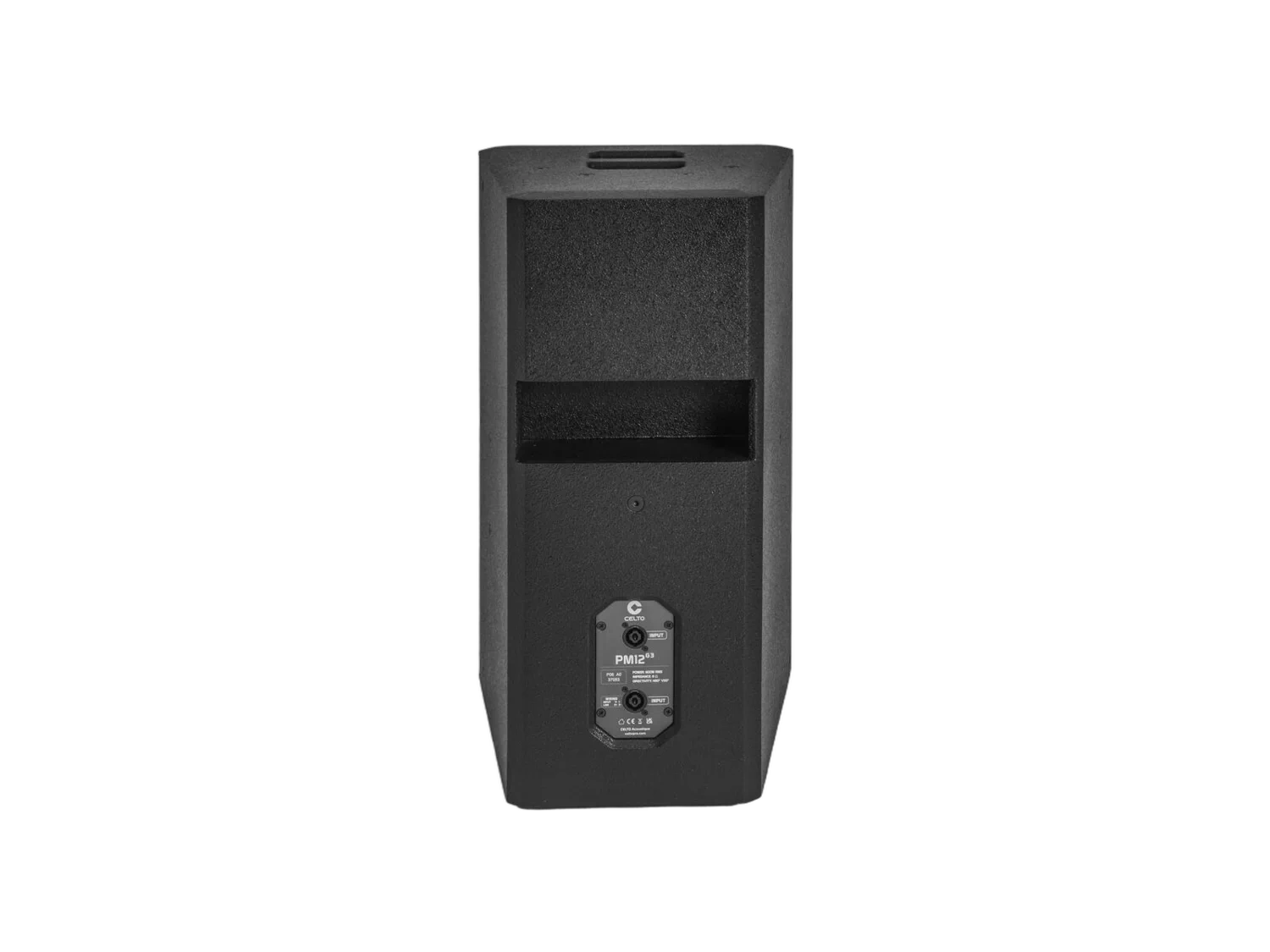

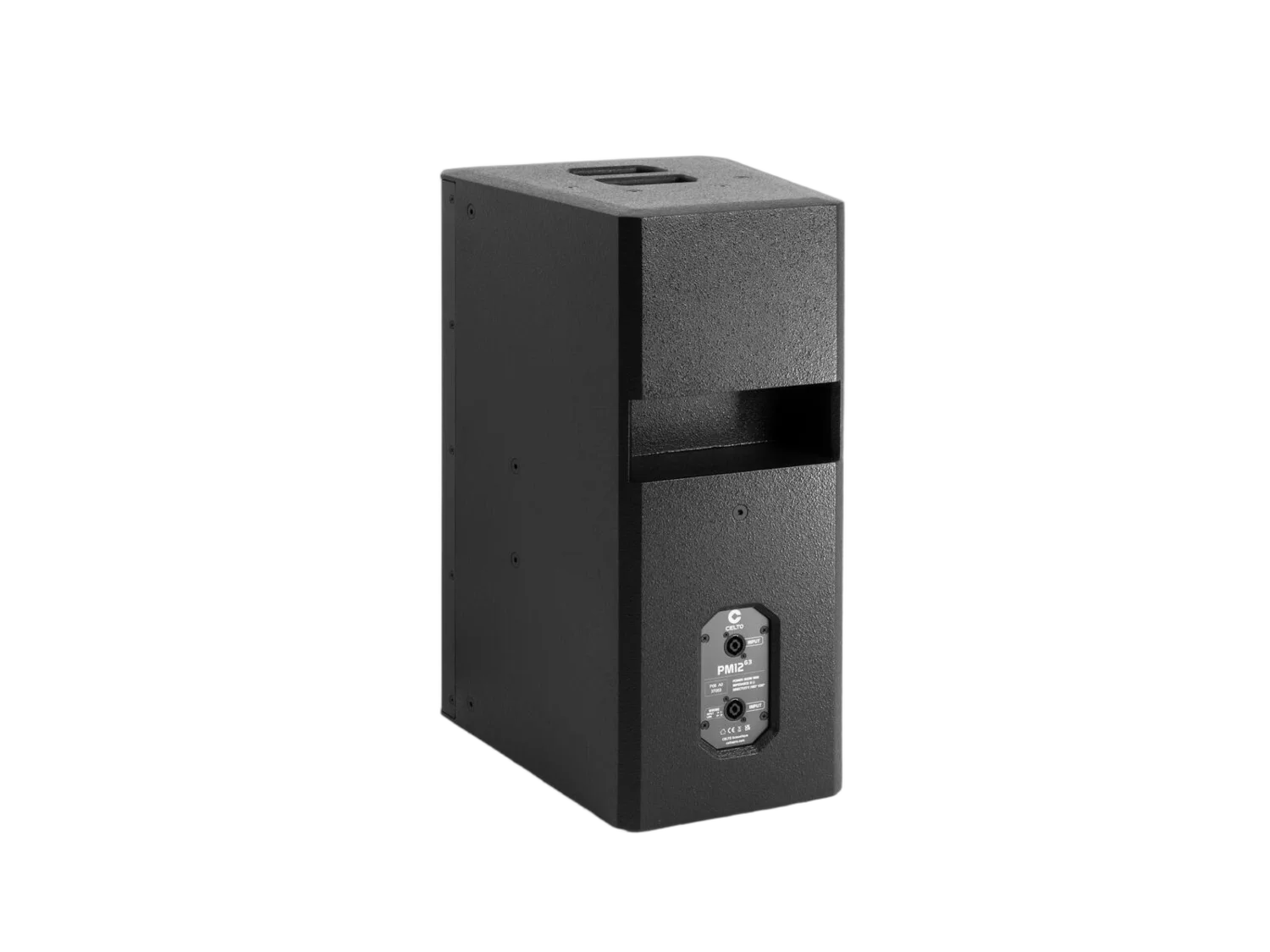

| Connectors |
Genuine NEUTRIK 2pcs Speakon NL4 mP |
| Speaker size (HxWxD) | 620 x 348 x 405 mm |
| Speaker Weight | 24 kg |
| Shipping information |
29 kg 720 x 450 x 515 mm |
| Accessories |
PM12-YOKE CPC-70 (pole bar with crank) KTV-BRKT1 (ceiling mounting braket) WMBRKT60 (wall mounting braket) |
