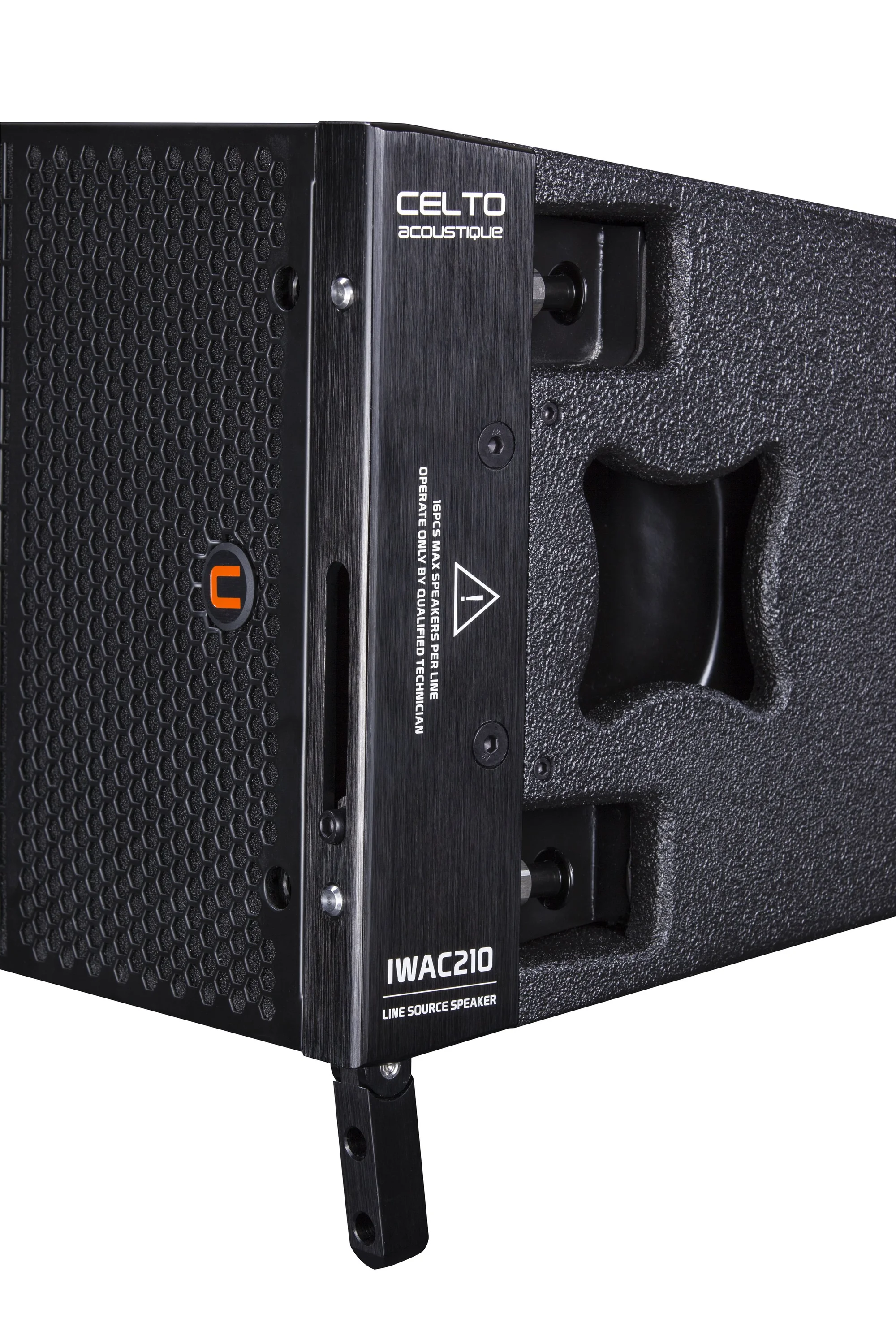

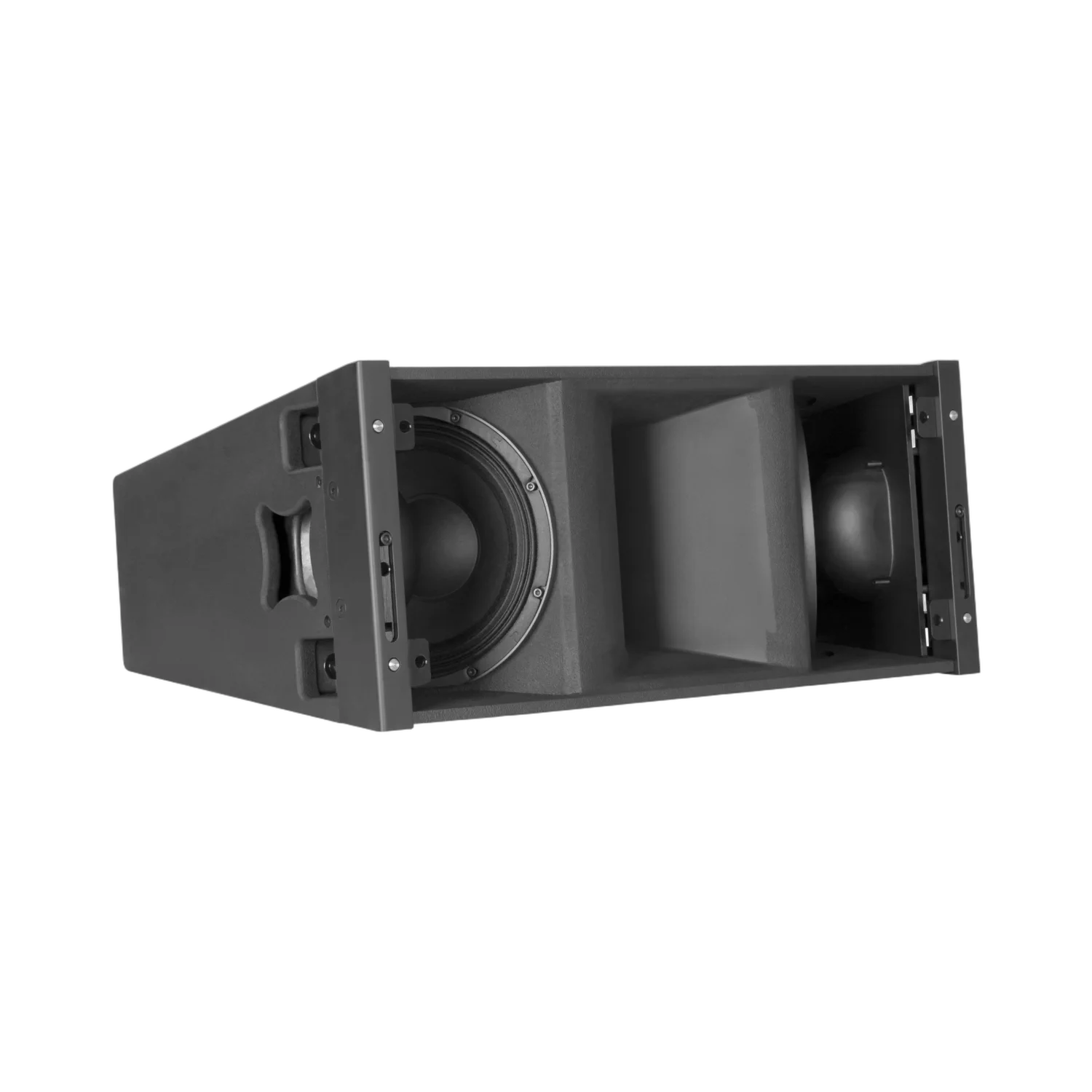

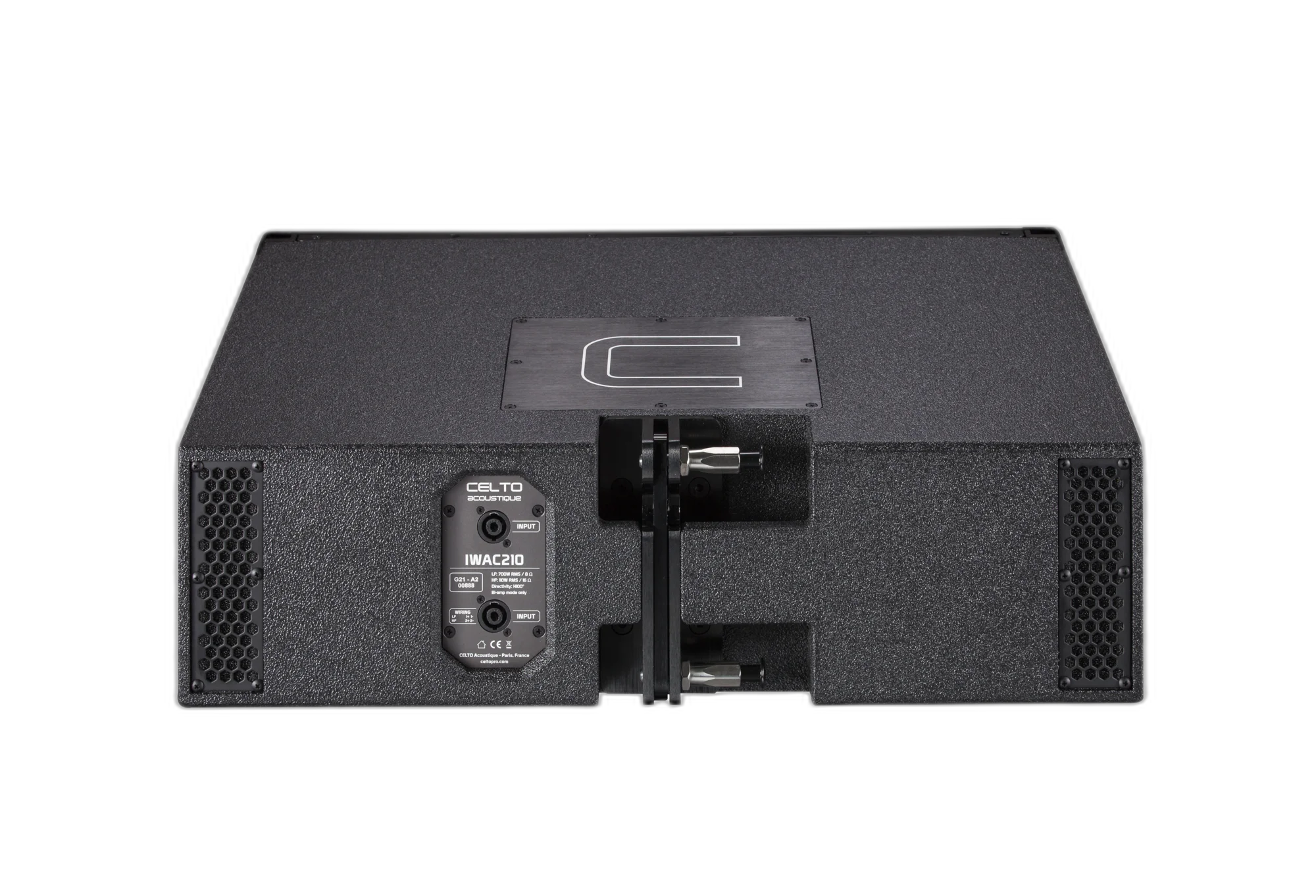

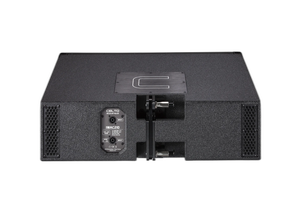

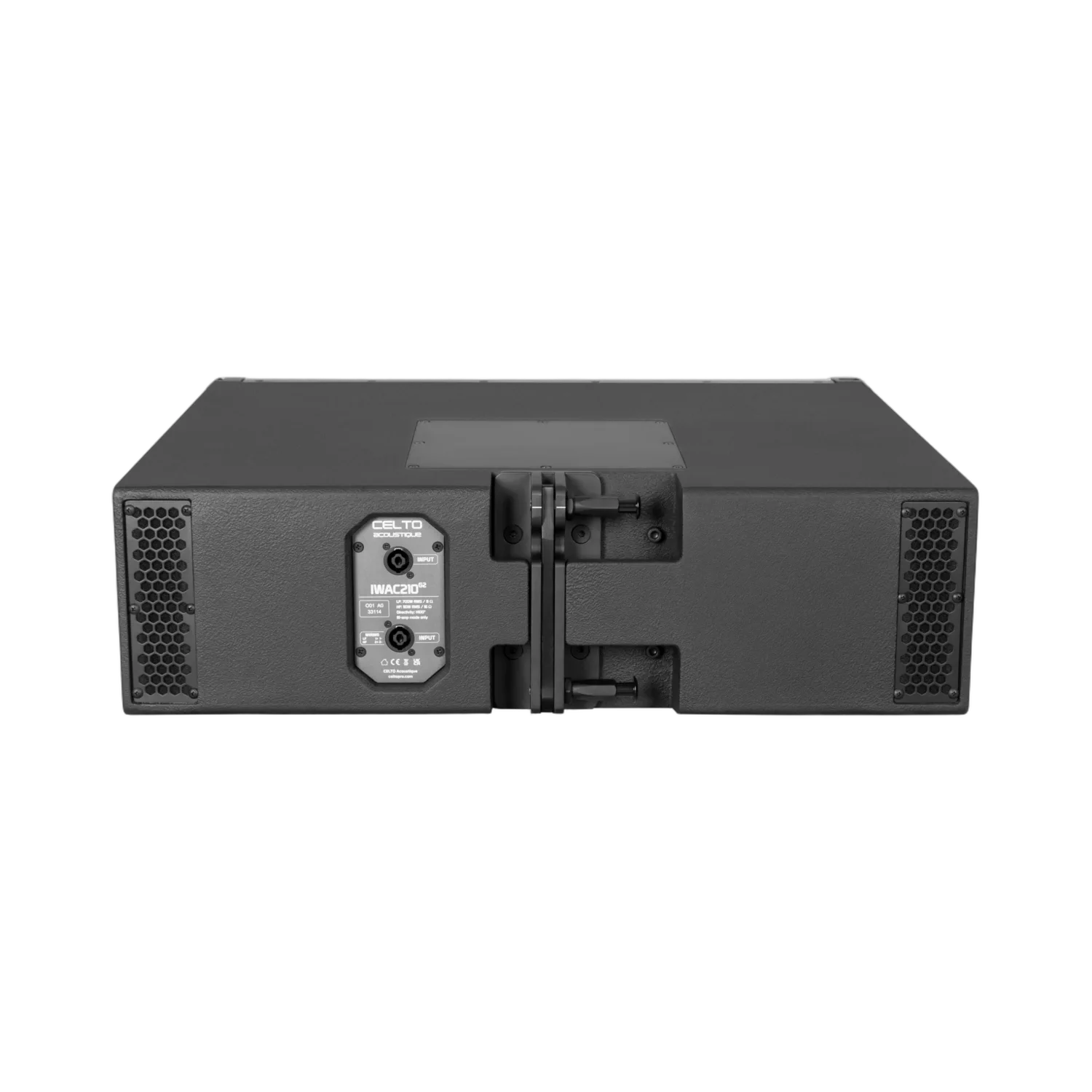

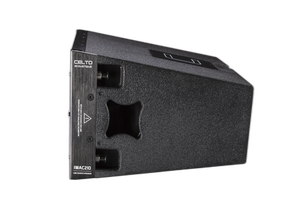

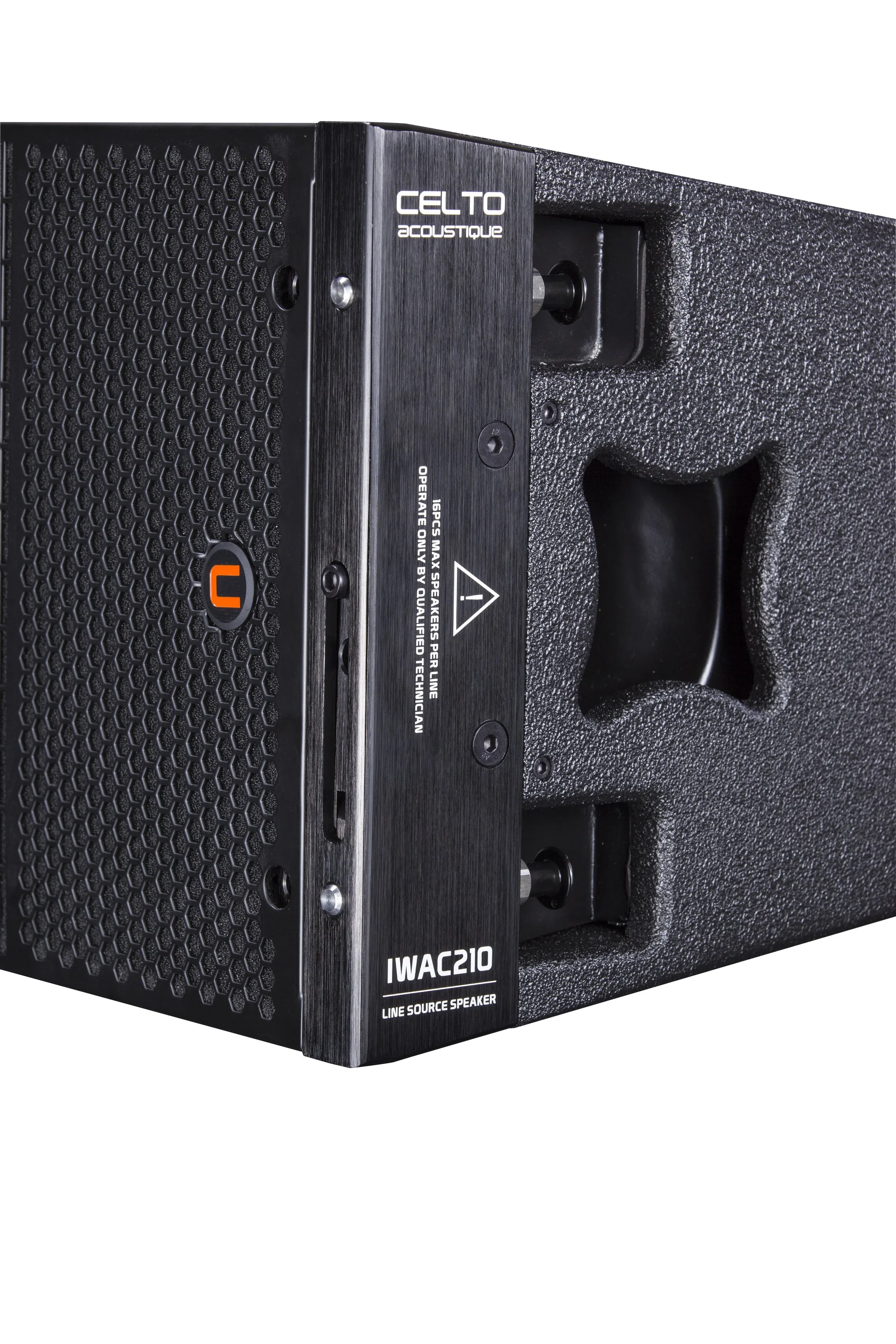

IWAC210 G2
Versatile high output / size ratio cabinet
Portable
Touring
The IWAC210 G2 is a Line Source Speakers.
- Real 700W+110W RMS power capacity
- For audiences up to 30,000 persons
- Up to 16 speakers per array with 12 times safety standard
- Premium Neodymiumd Aquaplased TC4 diaphragm for ultra smooth HF reproduction

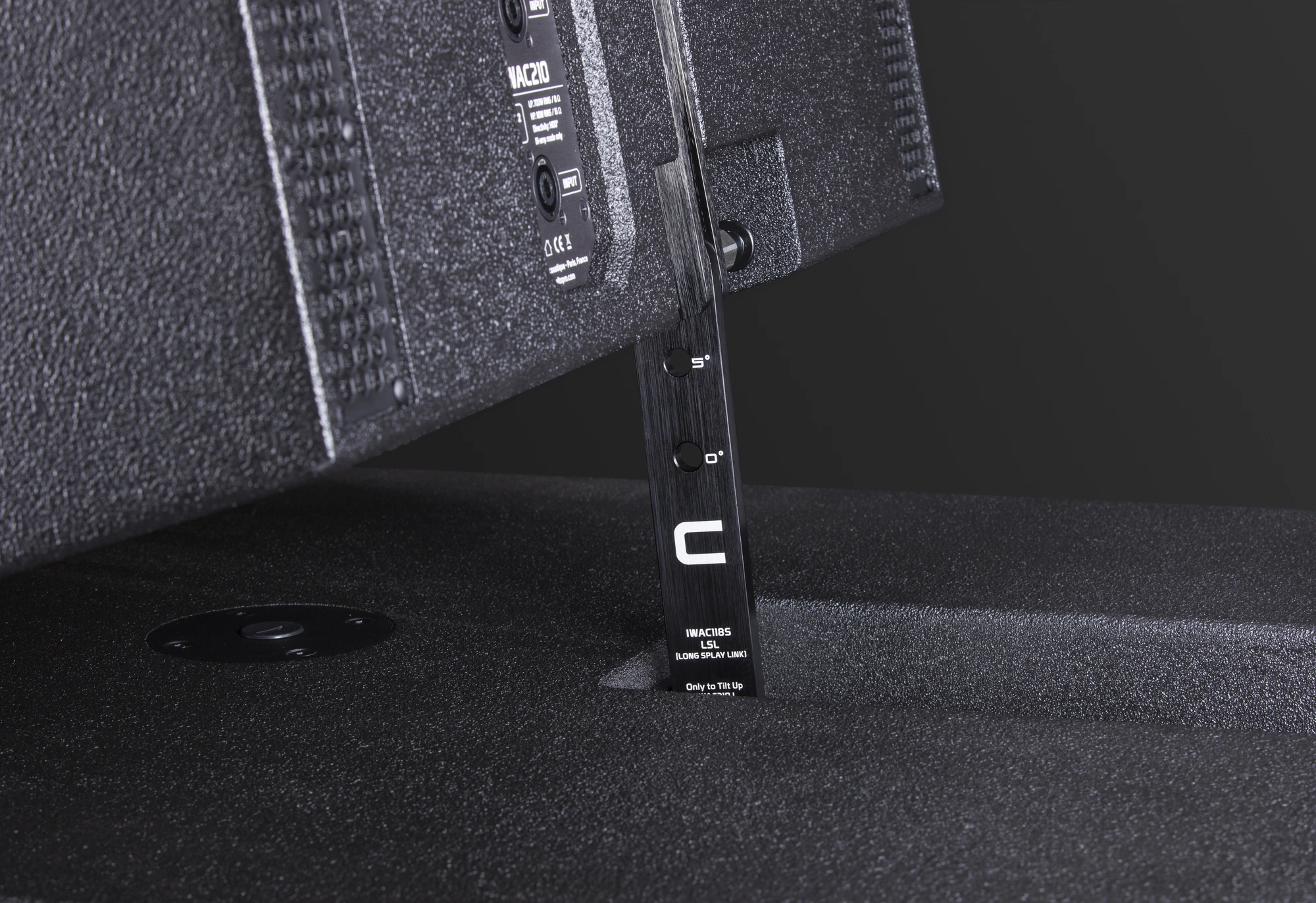

- Versatile and easy to use cable-free rigging system
- Proprietary Isophase Wave-Shaping Acoustic Coupler
- Touring grade Rubberized PolyUrea finish
IWAC210 line source speaker system is suitable for near to far field main PA reinforcement in line array topology with subwoofer for mobile and permanent installation.
View
View
View
View
View
View
View
View
Technical specifications
| Speaker type | Line source |
| Power Handling (AES standard) |
700 W RMS LF + 110 W RMS HF 2800 W Peak LF / 440 W Peak HF |
| Nominal impedance | 8 ohms LF + 16 ohms HF |
| Average sensitivity | 99 dB LF + 110 dB HF 1 W / 1 m |
| Maximum SPL (calculated) | 130 dB RMS / 137 dB Peak above 1 kHz |
| Frequency response (-6 dB with preset) | 50~18000 Hz |
| Nominal directivity (-6 dB) | 100° (H), Vertical is array dependant |
| Cabinet |
Exterior grade Baltic Birch Plywood Tongue & Groove construction |
| Cabinet finish |
Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |

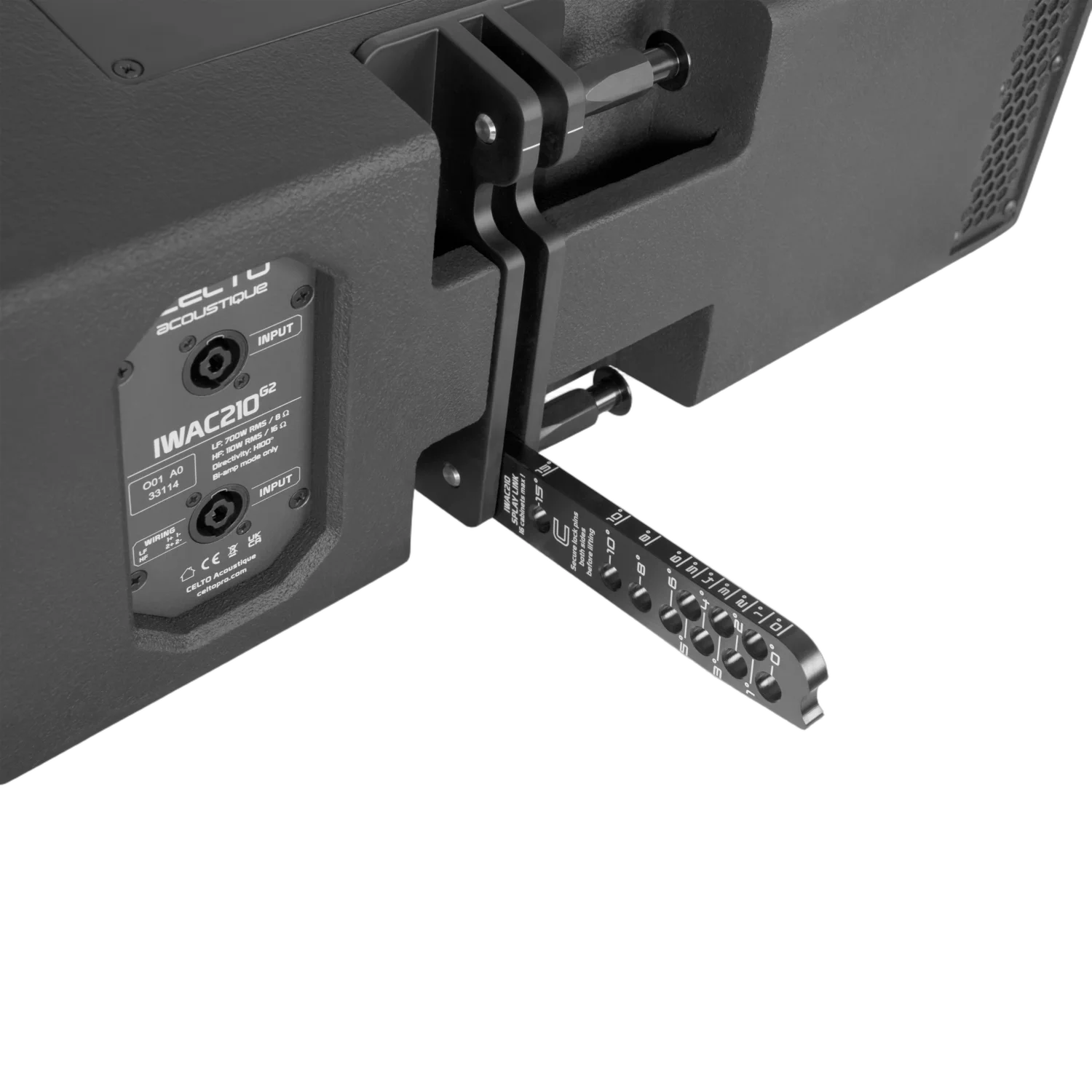

| Flying hardware | Fully integrated, cable-free, rigging |
| Mounting hardware | 4 Sockets for Ø35 mm mounting adpater |
| LF |
10" CELTO ACOUSTIQUE 10 mmBN350 (2pcs) |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2.5" / 65 mm |
| HF |
CELTO ACOUSTIQUE HFDN755 loaded by IWAC waveguide |
| HF RMS power (AES standard) | 110 W above 1 kHz |
| HF Exit | 1.5" / 38 mm |
| HF Voice coil diameter | 3" / 75 mm |
| HF Diaphragm |
AlTiN (Aluminium Titanium Nitride) dome with PI surround |
| Crossover | 1 kHz 2-way active (Bi-Amp mode only) |
| Connectors |
Genuine NEUTRIK 2pcs Speakon NL4 mP 1+/-1 LF and 2+/2- HF input |
| Speaker size (HxWxD) | 305 x 700 x 465 mm |
| Speaker Weight | 28 kg |
| Shipping information |
35 kg 414 x 800 x 590 mm |
| Accessories |
IWAC210-TK (Touring kit) IWAC210-CB (crossbow flying frame) IWAC210-MA (Mounting adpater) IWAC210-SBAG (padded cover bag) CPC-70 (pole bar with crank) |
