IWAC118S

IWAC Low frequency Extender

Touring Subwoofers IWAC
basket-outline Where to buy

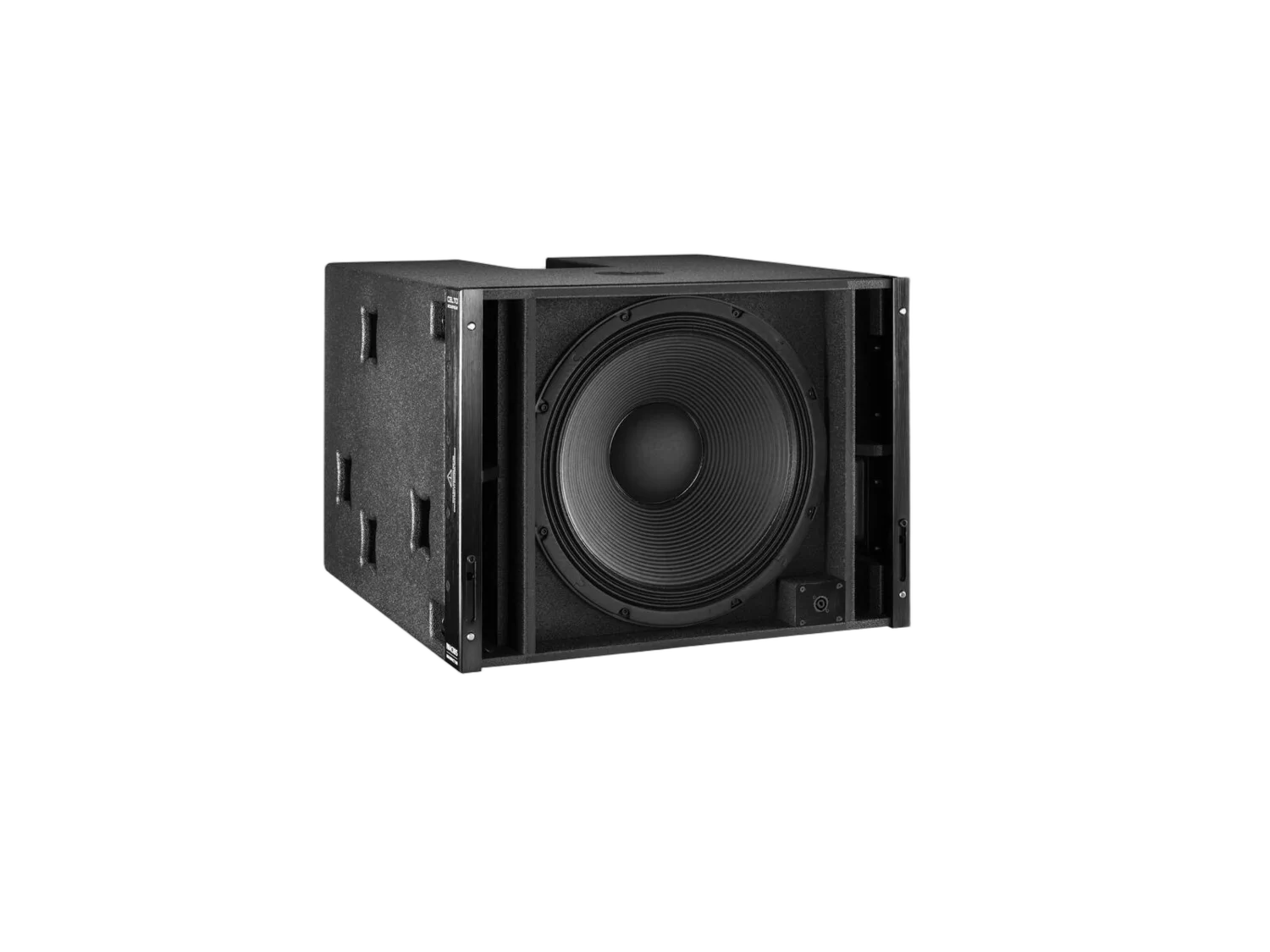

IWAC118S image 1
IWAC118S image 2
IWAC118S image 3
IWAC118S image 4
IWAC118S image 5
IWAC118S thumbnail 1
IWAC118S thumbnail 2
IWAC118S thumbnail 3
IWAC118S thumbnail 4
IWAC118S thumbnail 5

Description

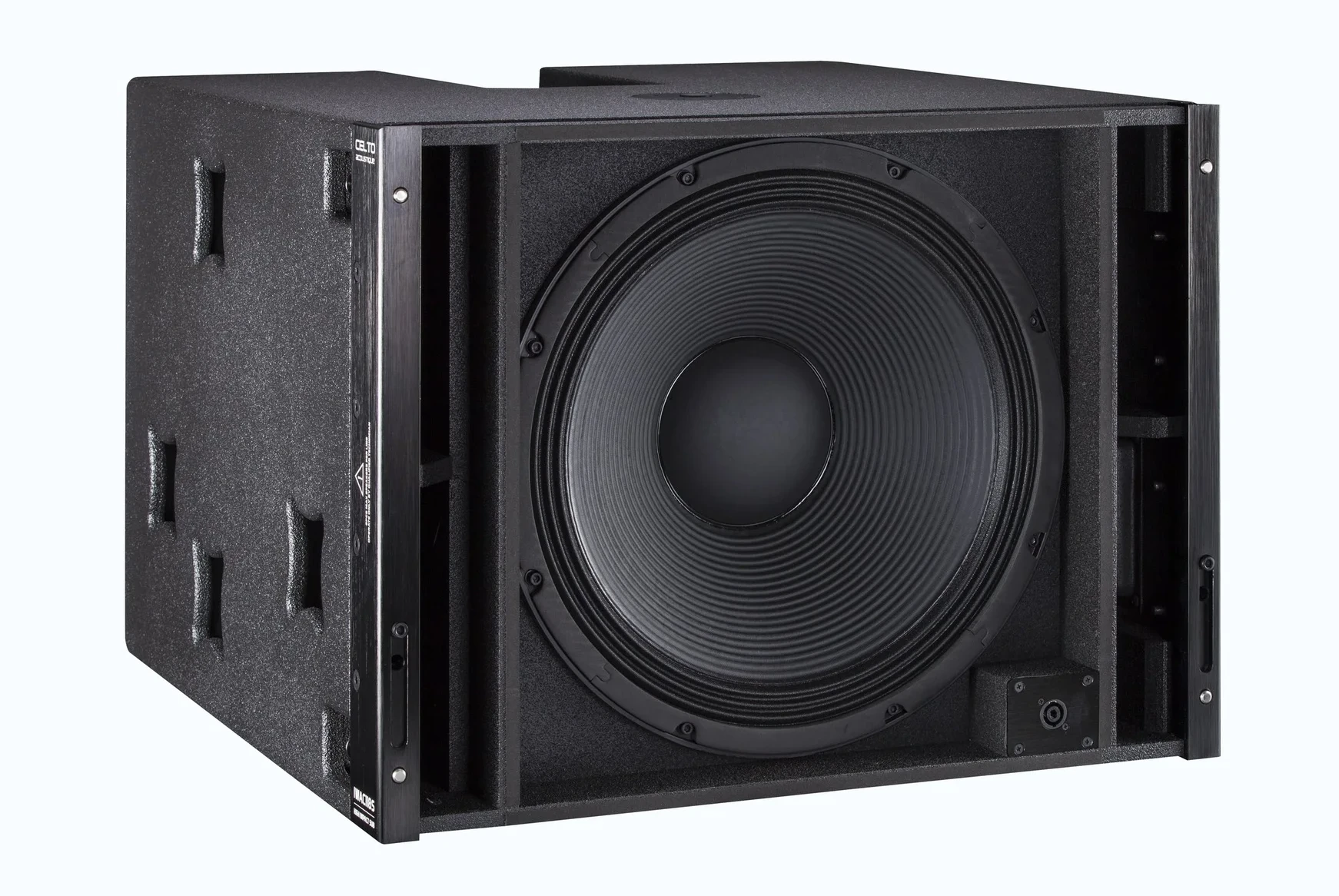

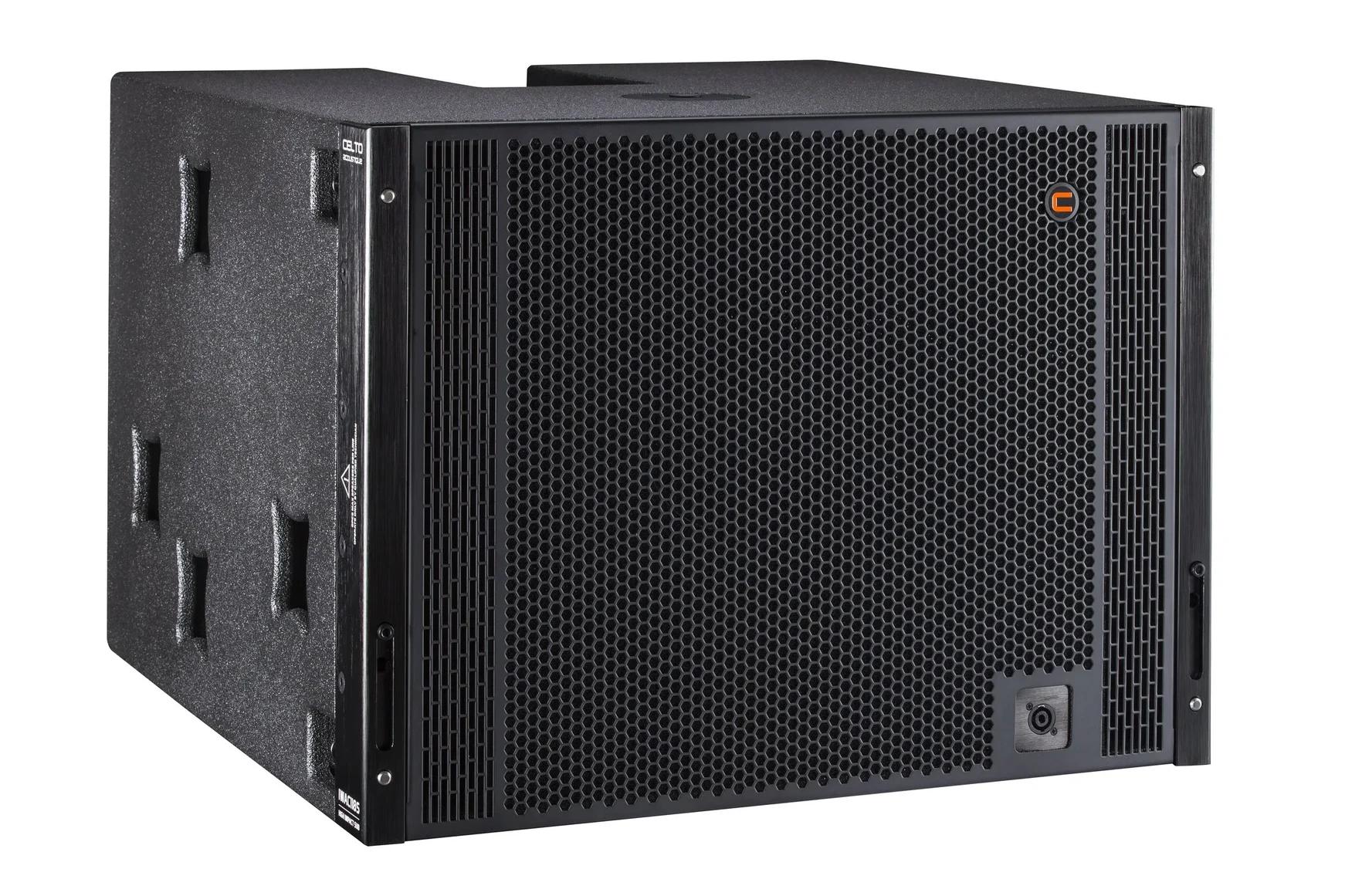

Compact authority with design intelligence—the CELTO Acoustique IWAC118S packs serious low-end punch in a lightweight, high-output bass reflex design optimized for the IWAC series. This versatile subwoofer complements IWAC210 arrays in touring, installations, theatres, clubs, and multifunctional venues needing tight, musical bass extension. Real power handling with premium 18" driver delivers clean reproduction down to the low 30s Hz with impressive efficiency. Integrated rigging allows flown or ground-stacked configurations, including mixed arrays with IWAC210 for seamless system integration. Heavily braced Baltic birch plywood cabinet with PolyUrea finish ensures vibration-free performance and touring durability. Flexible connector layout and preset options support cardioid, end-fired, or standard deployments for controlled directivity. Easy stacking and transport features make it ideal for rental companies and mobile productions. The IWAC118B proves that smart hybrid design can deliver deep, defined bass that enhances any system—without ever overwhelming it.

Key Features

  • Real 1200W RMS power capacity
  • Premium 18” Neodymium driver with ±11mm linear Xmax
  • Triple forced cooling system for low power compression
  • Heavy braced cabinet for vibration free dynamic response
  • Fully integrated rigging for floor stacking and flying
  • Touring grade Rubberized PolyUrea finish

Applications

Touring Engineered to endure

Technical specifications

Speaker type Flyable line source Subwoofer
Power Handling (AES standard) 1200 W RMS / 4800 W Peak
Nominal impedance 4 ohms
Average sensitivity 97 dB / 1 W / 1 m
Maximum SPL (calculated) 128 dB RMS / 133 dB Peak
Frequency response (-6 dB no preset) 33~100 Hz
Nominal directivity (-6 dB) Omni in usable range. Cardioid preset
Cabinet Exterior grade Baltic Birch Plywood
Heavily braced with Tongue & Groove
Cabinet finish Touring Grade Rubberized PolyUrea Black coating
Acoustic PU foam behind Front grill
Floor monitor use N/A
Flying hardware Fully integrated, cable-free, rigging
Mounting hardware 1pc M20 thread socket
LF 18" CELTO ACOUSTIQUE
18EXN1200
Woofer Chassis Die Cast Aluminium
Woofer Voice coil diameter 4" / 100 mm long throw
Crossover No, active mode only
Connectivity Genuine NEUTRIK

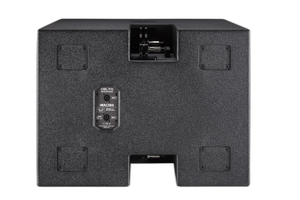

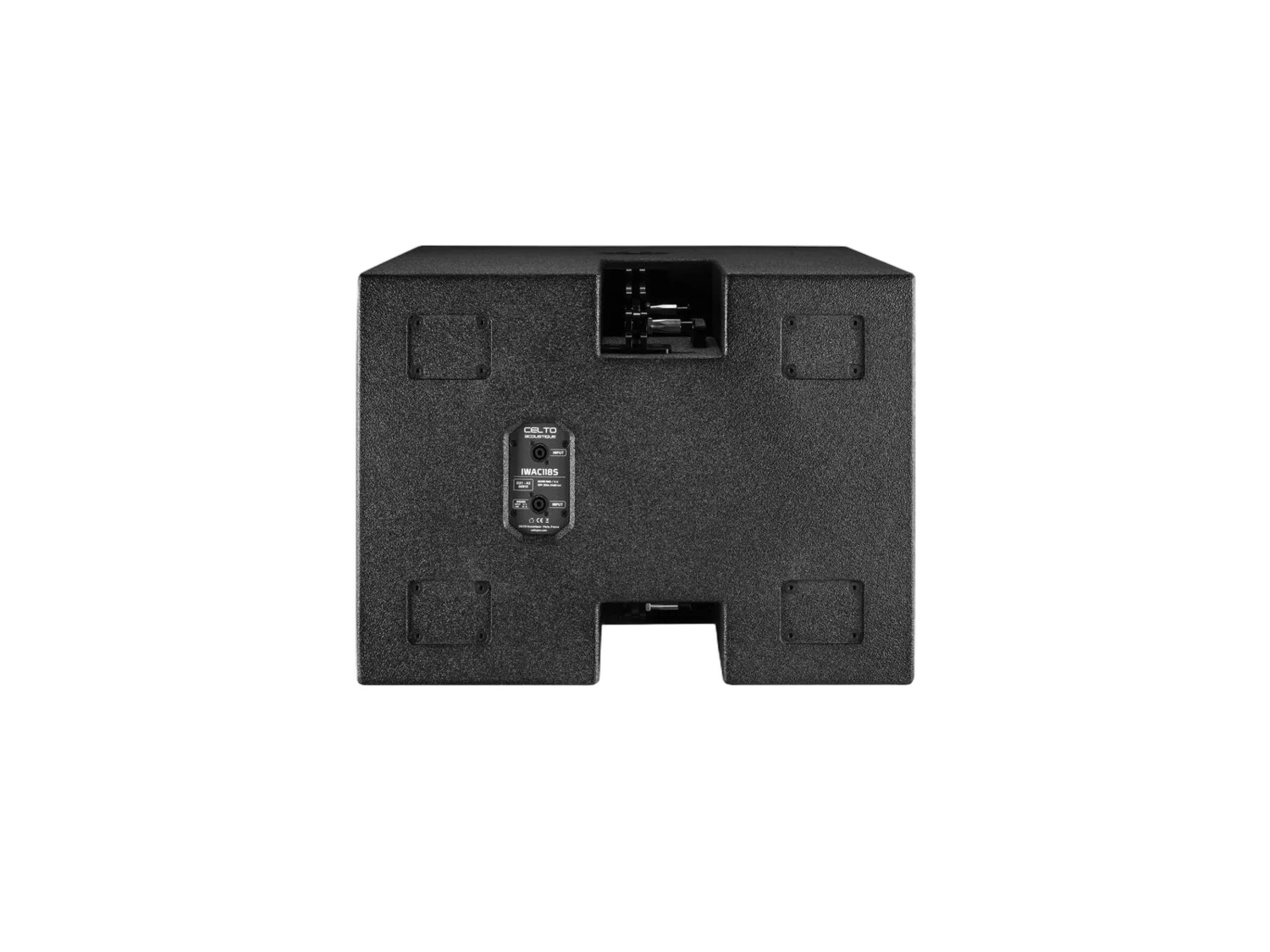

2pcs Speakon NL4 mP on rear, 1pc on front
1+/-1 input
Speaker size (HxWxD) 518 x 700 x 745 mm
Speaker Weight 55 kg
Shipping information 66 kg
618 x 800 x 845 mm
Accessories IWAC118S-TK (Touring Kit)
IWAC118S-FR (large flying frame)
IWAC118S-WB (metal wheelboard)
IWAC118S-SBAG (padded cover bag)
CPC-70 (pole bar with crank)
SUBWHKIT100C (castor wheel kit)
