Description

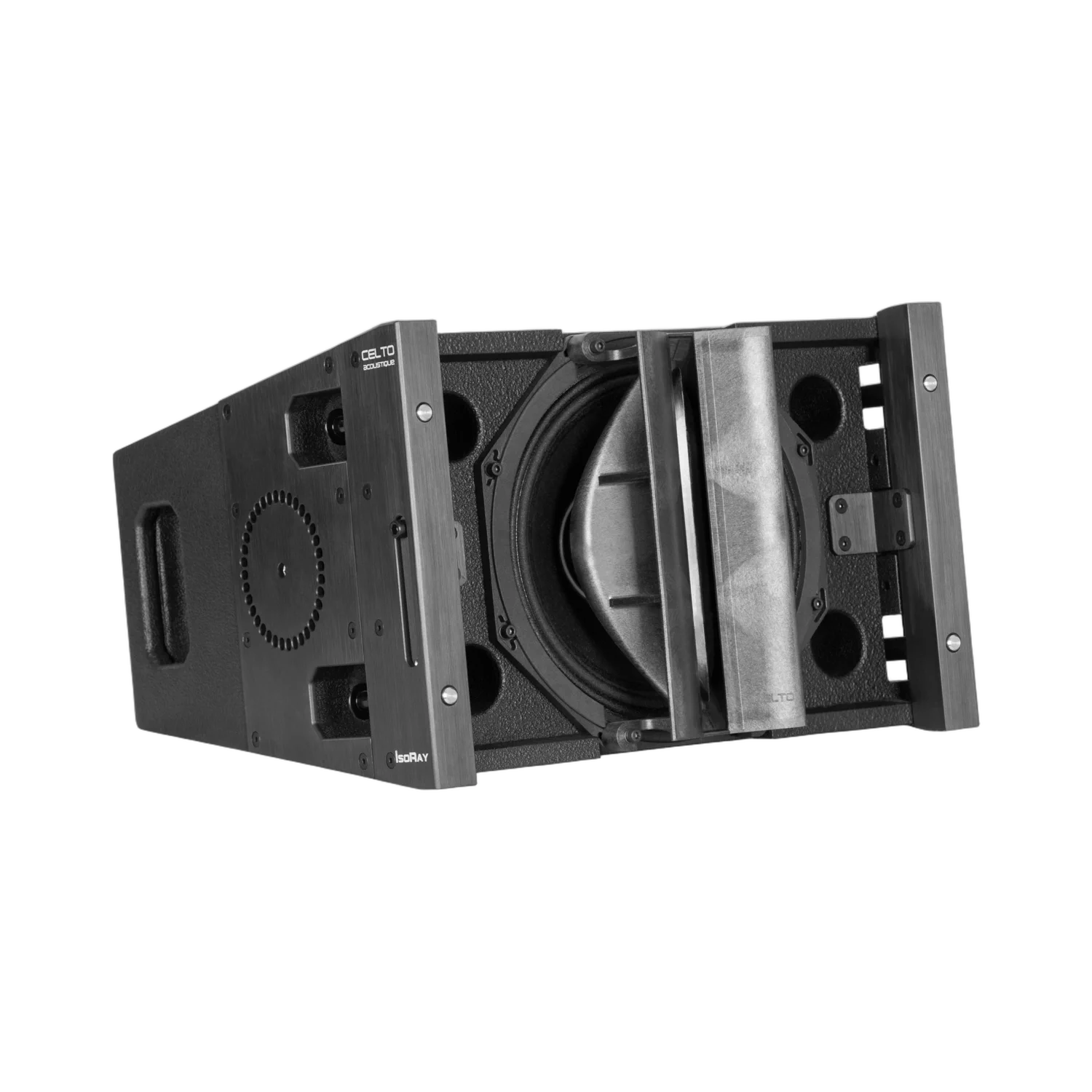

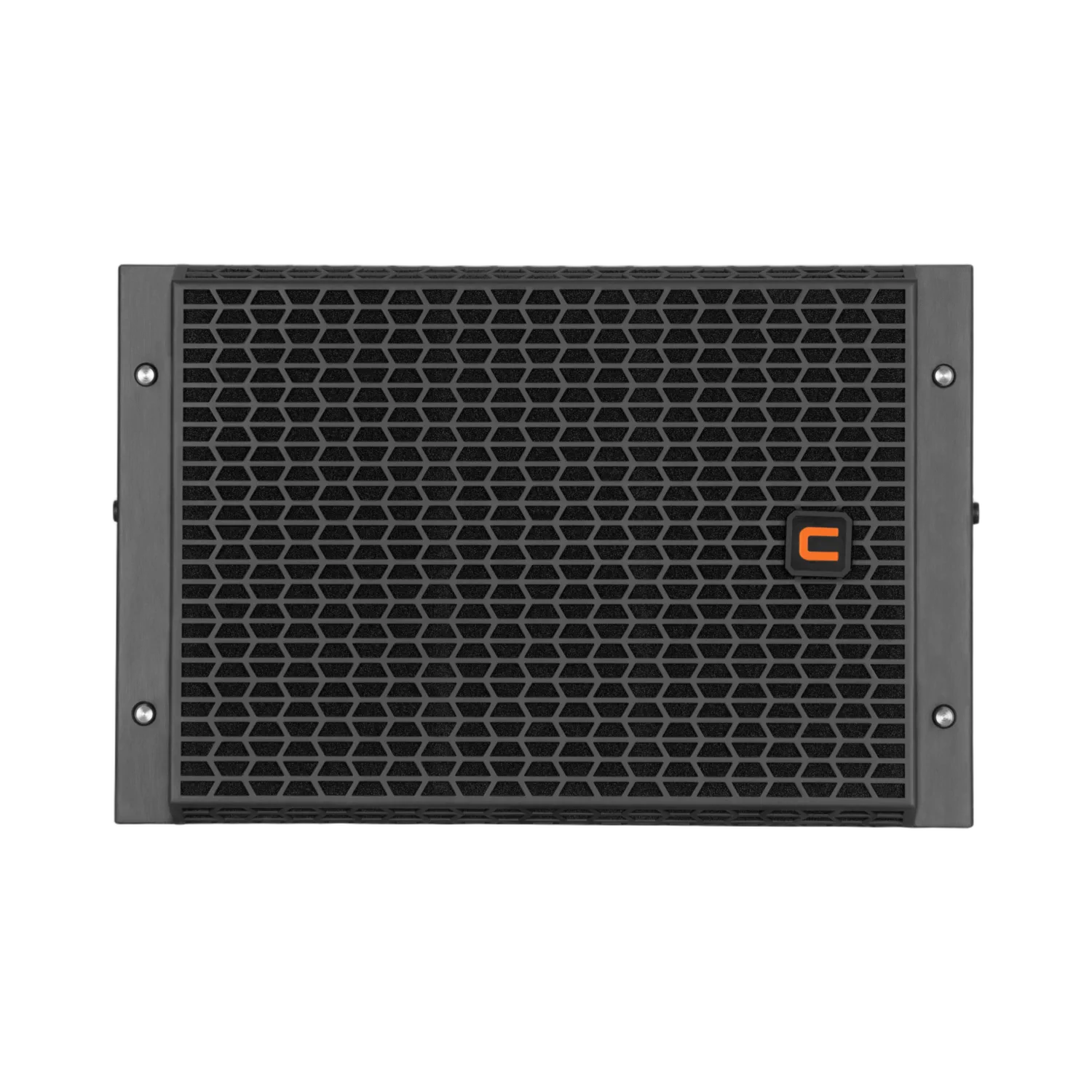

Game changer in a deceptively small package—the CELTO IsoRay10+ delivers a genuine 450W RMS (1800W peak) with unmatched size-to-SPL ratio in an ultra-compact, A3-sized cabinet weighing just 15.5 kg. This innovative coaxial line source loudspeaker is engineered for near- to far-field main PA reinforcement in array topology, always paired with a subwoofer for optimal results. Ideal for live shows, multifunctional rooms, auditoriums, theatres, sports centres, houses of worship, and demanding touring applications. At its heart, a premium 10" coaxial driver with neodymium magnet and IsoTop waveguide combines seamless point-source coherence with true line array directivity (100° Horizontal & Array-dependent Vertical coverage). Advanced HSP annular ring HF radiator and passive crossover ensure pristine highs and flawless phase alignment across 95–22,000 Hz. Outdoor-grade Baltic birch plywood cabinet with rubberized PolyUrea finish and integrated cable-free rigging supports up to 24 elements with 12:1 safety factor. Boasting 98 dB sensitivity and up to 136 dB peak SPL, it achieves extraordinary throw and coverage from surprisingly few boxes. Genuine Neutrik SpeakON connectors with input switching and dedicated FIR + DynEQ presets optimize performance in any configuration. The IsoRay10+ proves that revolutionary line array power doesn't require massive cabinets—just brilliant engineering and a touch of audacity.
Key Features
- 10'' Ultra compact Line source
- Real 450W RMS power capacity
- Tiny A3 paper size format
- Unmatched Size/SPL ratio
- Only 15kg / 33lbs
- 16 ohm (passive) for high power density
- FIR + DynEQ Presets
- Up to 24 speakers per array with 12 times safety
- Touring grade Ruberrized PolyUrea black paint finish
Applications
Touring
Engineered to endure
Technical specifications
| Speaker type | Coaxial Line source |
| Power Handling (AES standard) | 450 W RMS / 1800 W Peak |
| Nominal impedance | 16 ohms |
| Average sensitivity | 98 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 130 dB RMS / 136 dB Peak above 1 kHz |
| Frequency response (-6 dB no preset) | 95~22000 Hz |
| Nominal directivity (-6 dB) | 100° (H), Vertical is array dependant |
| Cabinet |
Exterior grade Baltic Birch Plywood Tongue & Groove construction |
| Cabinet finish |
Touring Grade Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | N/A |
| Flying hardware |

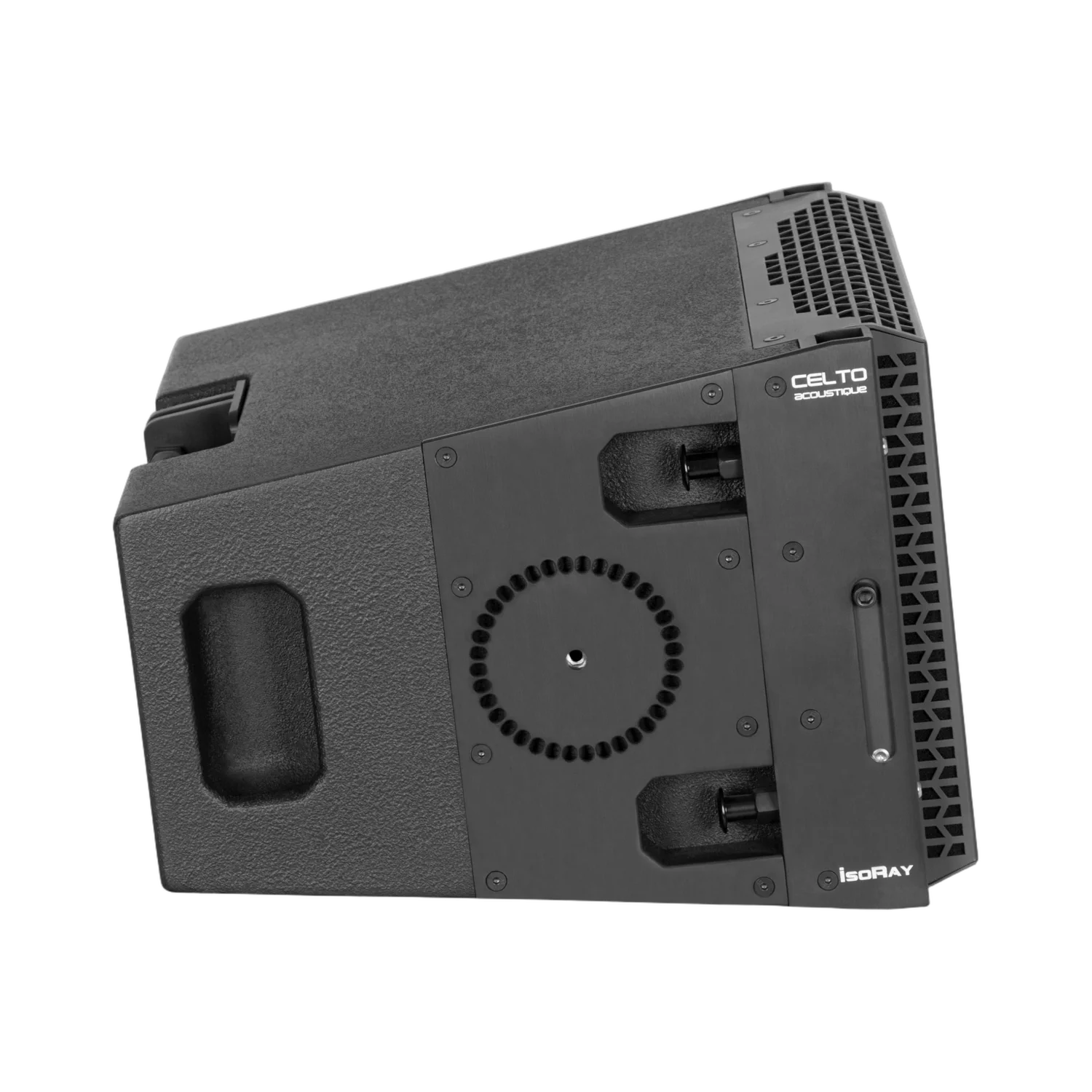

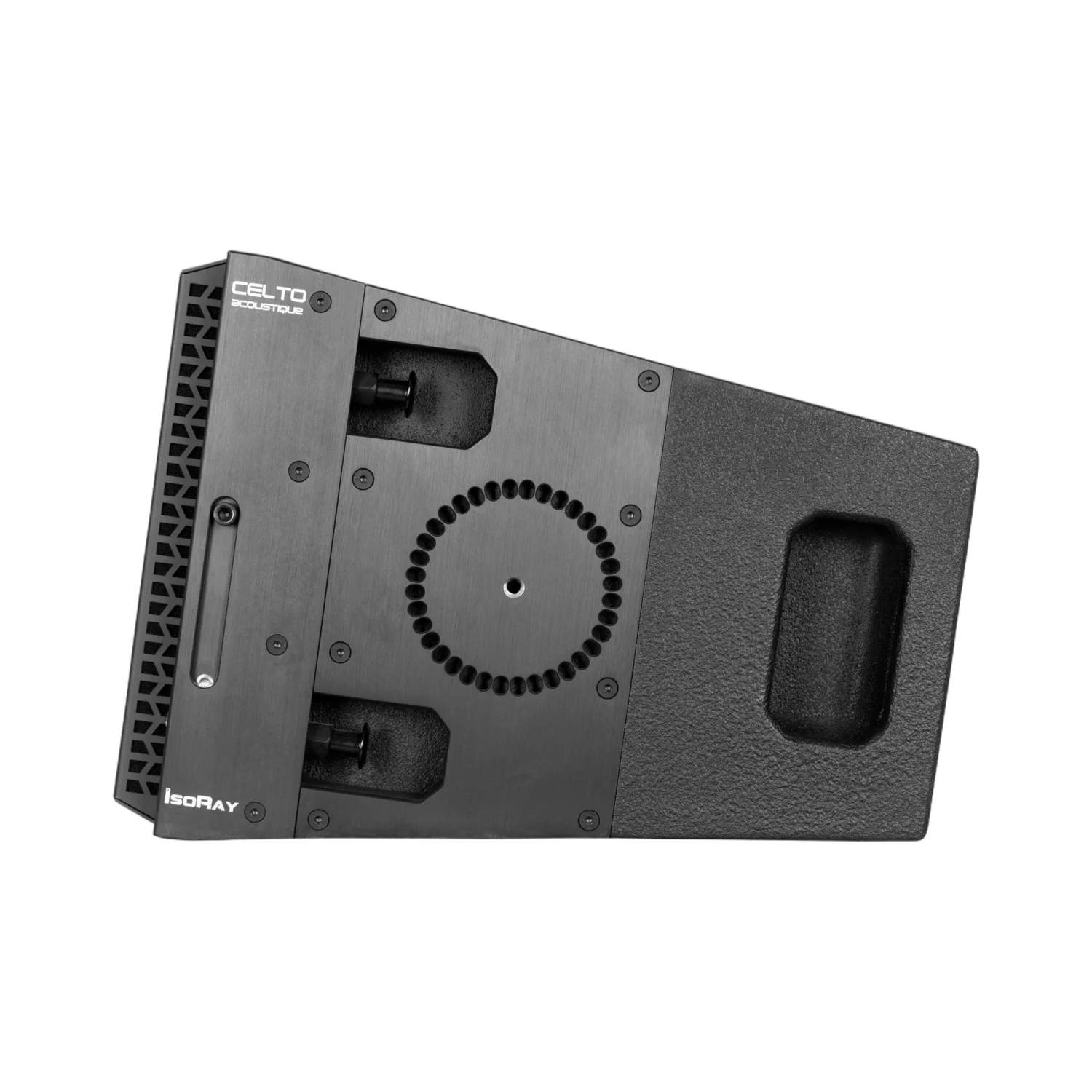

Fully integrated, cable-free, rigging 36 positions Aluminium Yoke plate |
| Mounting hardware | Foldable yoke and Ø35 mm adapter (optional) |
| LF |
10" coaxial CELTO ACOUSTIQUE 10CXN400LA |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 3" / 75 mm |
| HF |
CELTO ACOUSTIQUE ACDN44 loaded by IsoTop waveguide (in coaxial mounting) |
| HF RMS power (AES standard) | 80 W above 1.2 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm Silver loaded wire |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.1 kHz 2-way passive network |
| Connectivity |

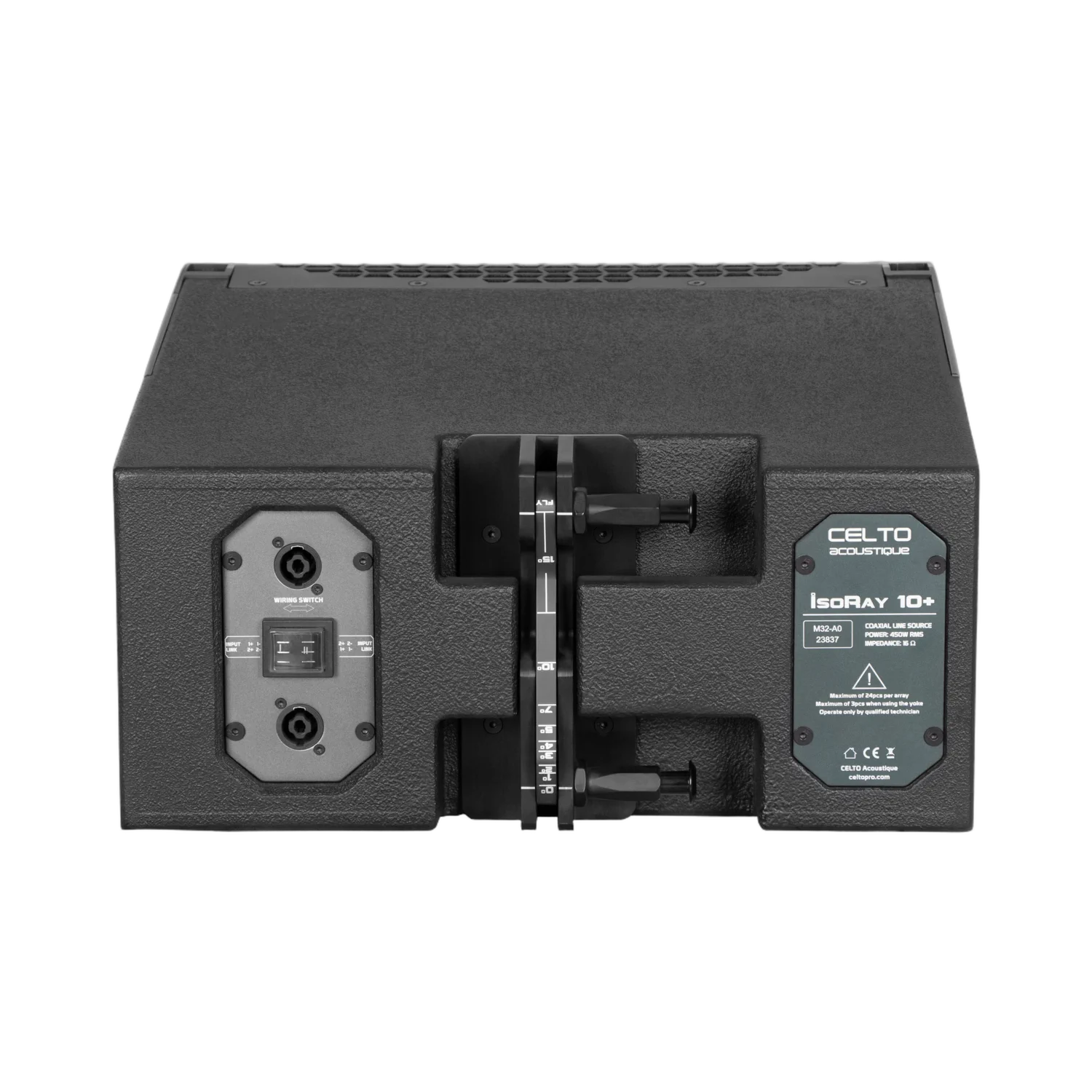

Genuine NEUTRIK 2pcs Speakon NL4 mP with switch for 1+/-1 or 2+/2- input |
| Speaker size (HxWxD) | 280 x 420 x 390 mm |
| Speaker Weight | 15.5 kg |
| Shipping information |
20.5 kg 390 x 500 x 570 mm |
| Accessories |
CCA10-SK (Skateboard flightcase) CCA10-FR (Crossbow flying frame) CCA10-FYOKE (Foldable Yoke) CCA10-ST (Support frame for stacking) CC10-ZBAG (padded bag with Zip) CPC-70 (pole bar with crank) CCA-MA (mounting adapter) |
