Installation

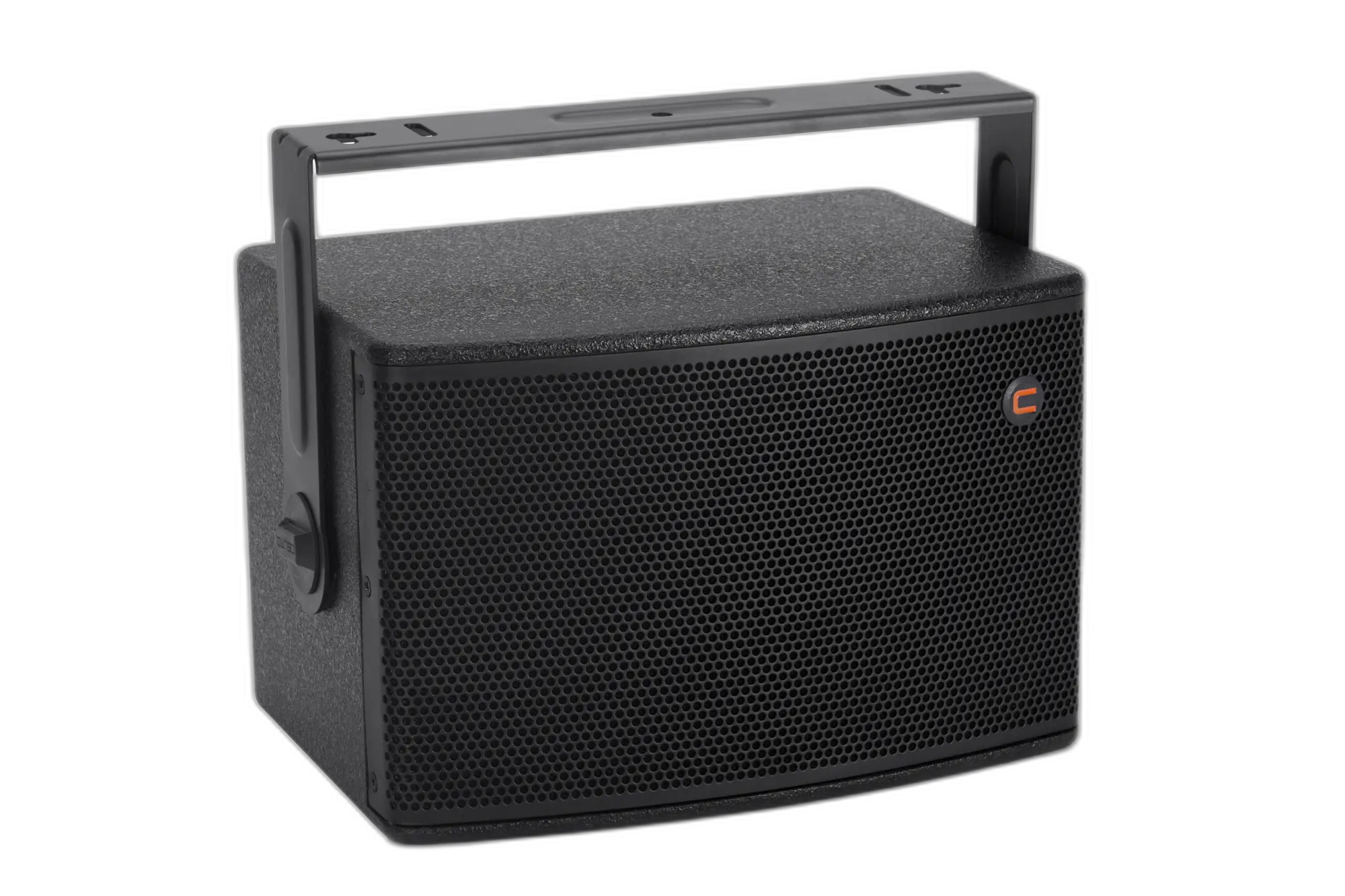

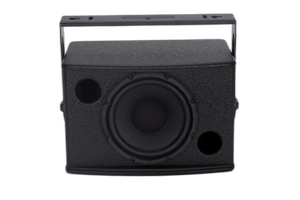

The iFIX7 G2 is a Compact Install Speakers.
- Real 200W RMS with high-end sound quality
- Full range with deep and warm bass
- Coaxial transducer for unmatched spacial coherence
- HF compression driver with Ketone Polymer dome
- Audiophile grade crossover with Right-Phase topology
- Birch plywood cabinet with smooth texture or varnish finish

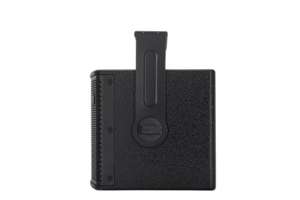

- Multi-functional yoke with dented ring for secured angles

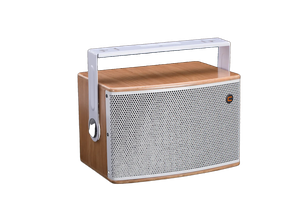

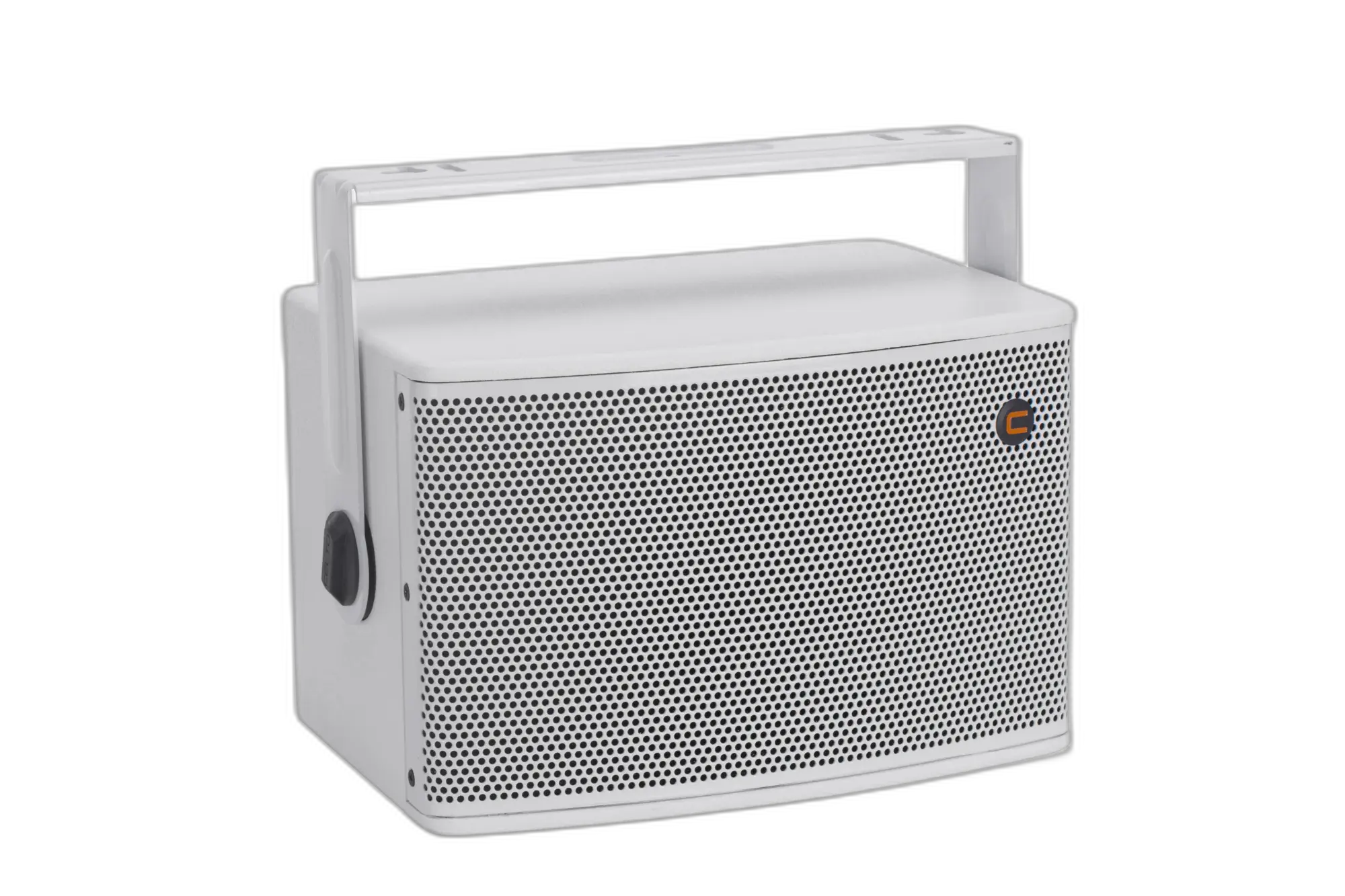

- Available in Black, White, Natural and Oak colors
iFIX7 loudspeaker system is suitable for near field main PA reinforcement with or without subwoofer for permanent installation.
View
View
View
View
View
View
View
View
View
Technical specifications
| Speaker type | Fix Install Full Range Coaxial Speaker |
| Power Handling (AES standard) | 200 W RMS / 800 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 92 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 115 dB RMS / 121 dB Peak |
| Frequency response (-6 dB no preset) | 52~22000 Hz |
| Nominal directivity (-6 dB) | 80° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |

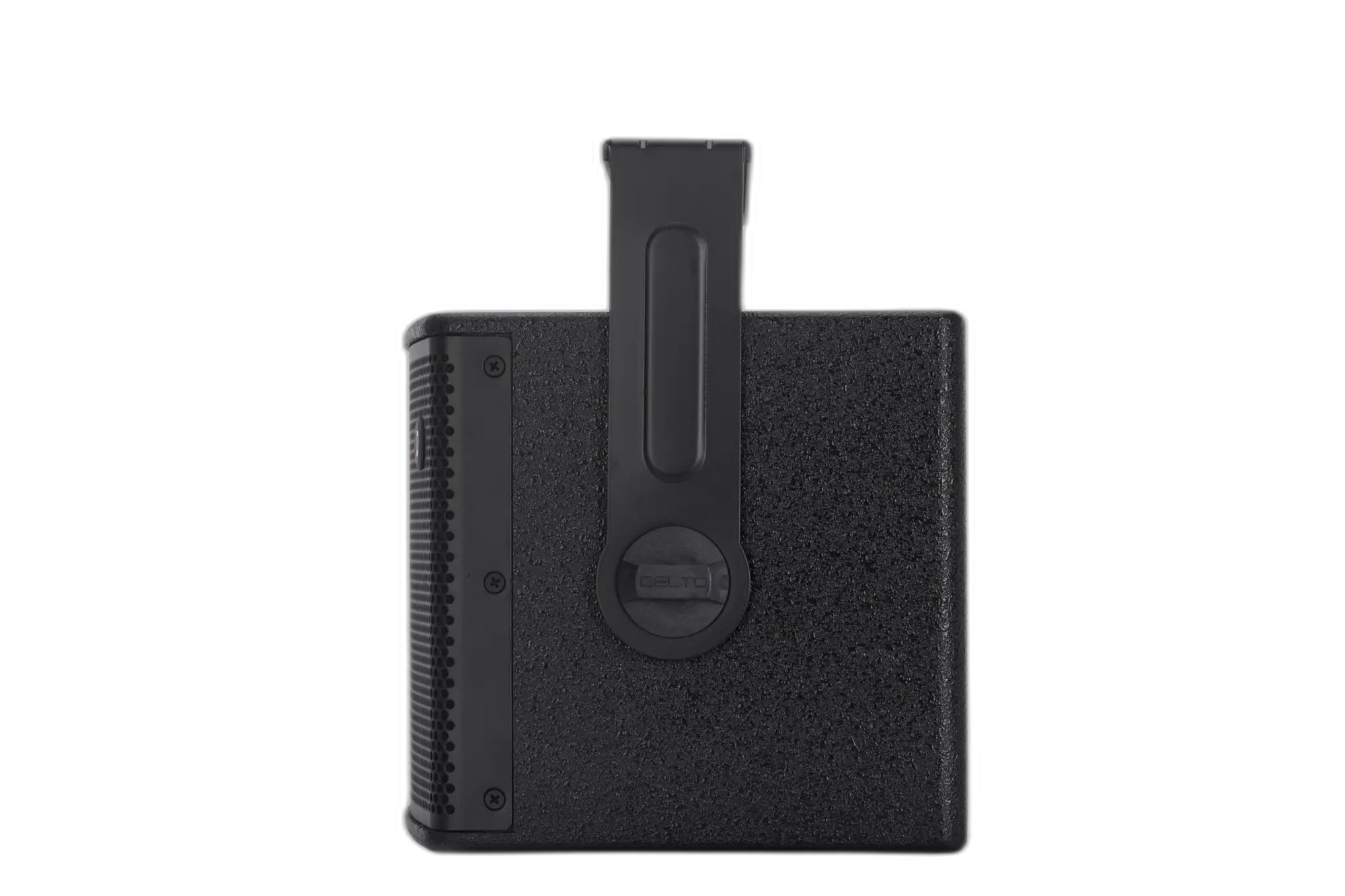

| Flying hardware |
Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |

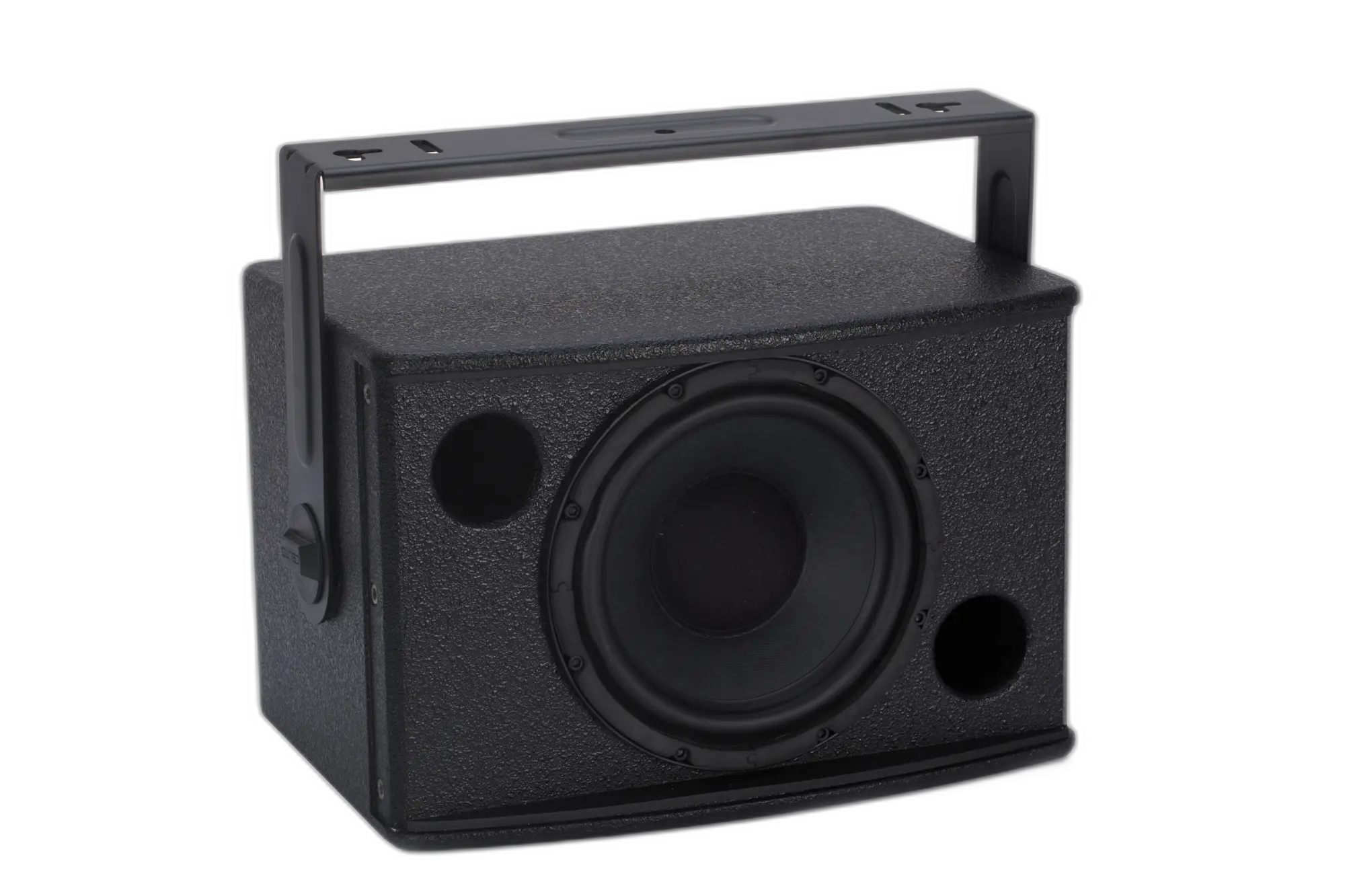

| LF |
8" coaxial CELTO ACOUSTIQUE 8CXF220 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2" / 51 mm |
| HF |
CELTO ACOUSTIQUE PCDN250 (in coaxial mounting) |
| HF RMS power (AES standard) | 20 W above 1.5 kHz |
| HF Exit | 0.75" / 19 mm |
| HF Voice coil diameter | 1.1" / 28 mm |
| HF Diaphragm | C400 PEI dome |
| Crossover | 2.5 kHz 2-way passive network |

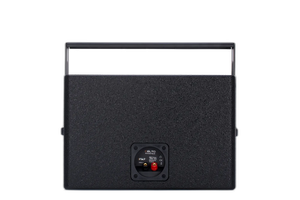

| Connectors |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 246 x 370 x 268 mm |
| Speaker Weight | 10 kg |
| Shipping information |
12 kg 390 x 330 x 510 mm |
| Accessories | Does not apply |
| Does not apply |
CPC-70 (pole bar with crank) CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Aluninum grill |
