Installation

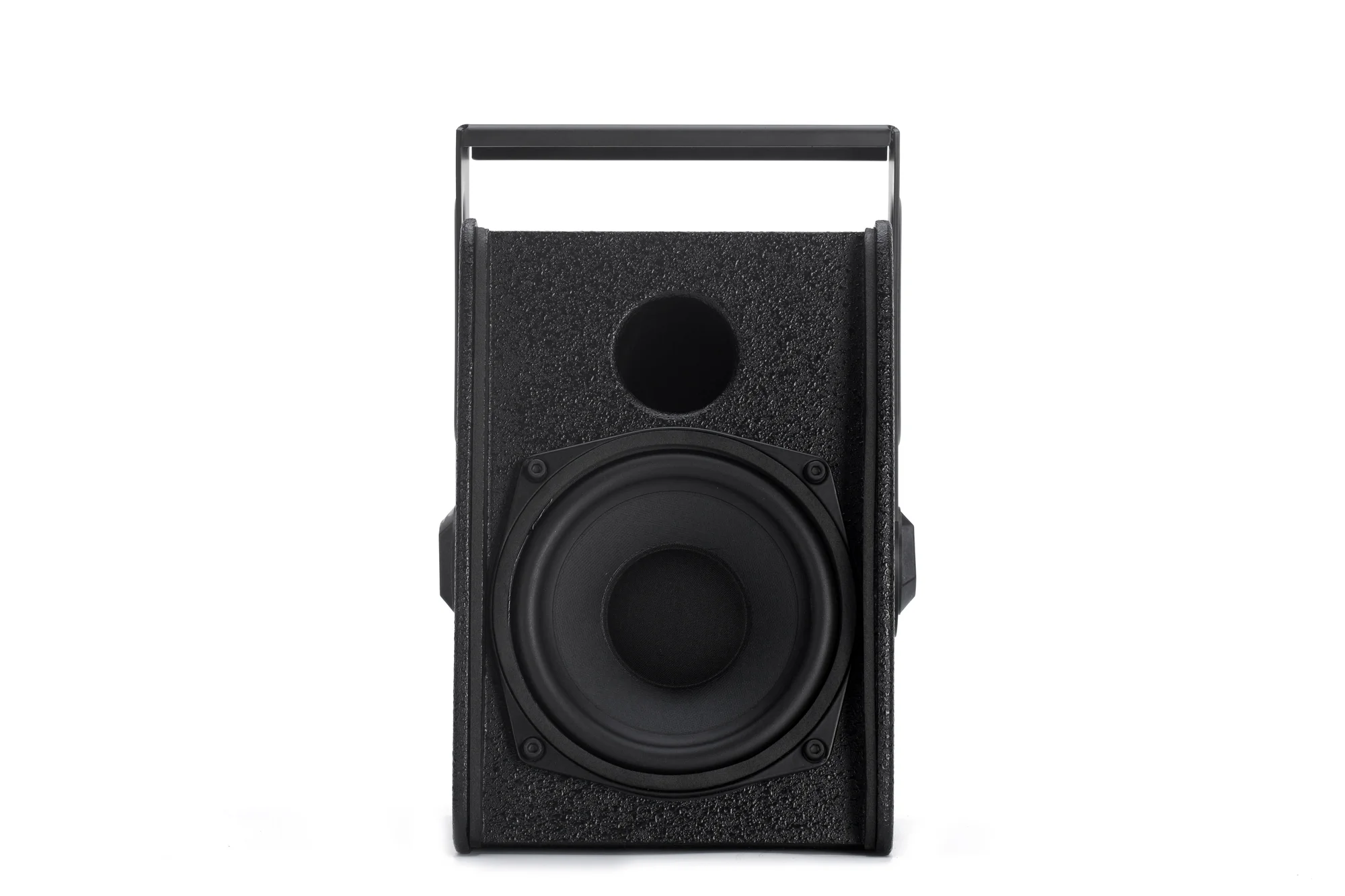

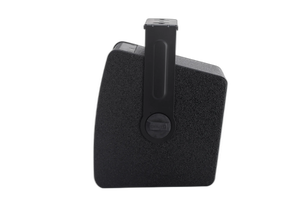

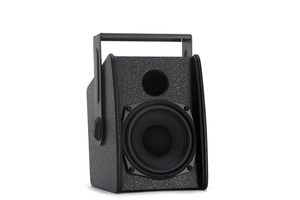

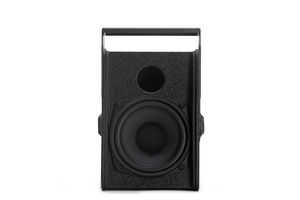

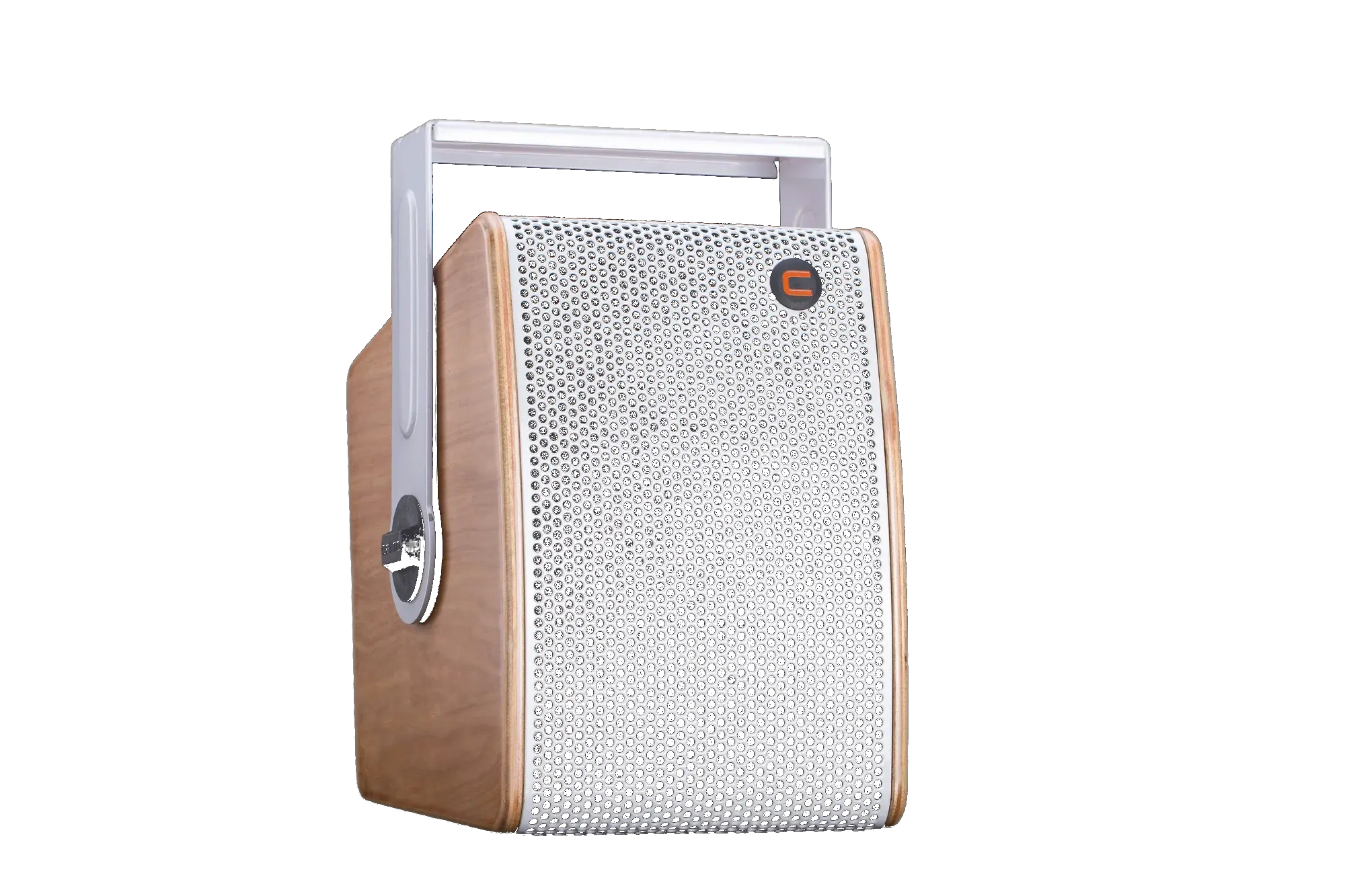

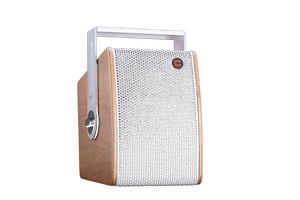

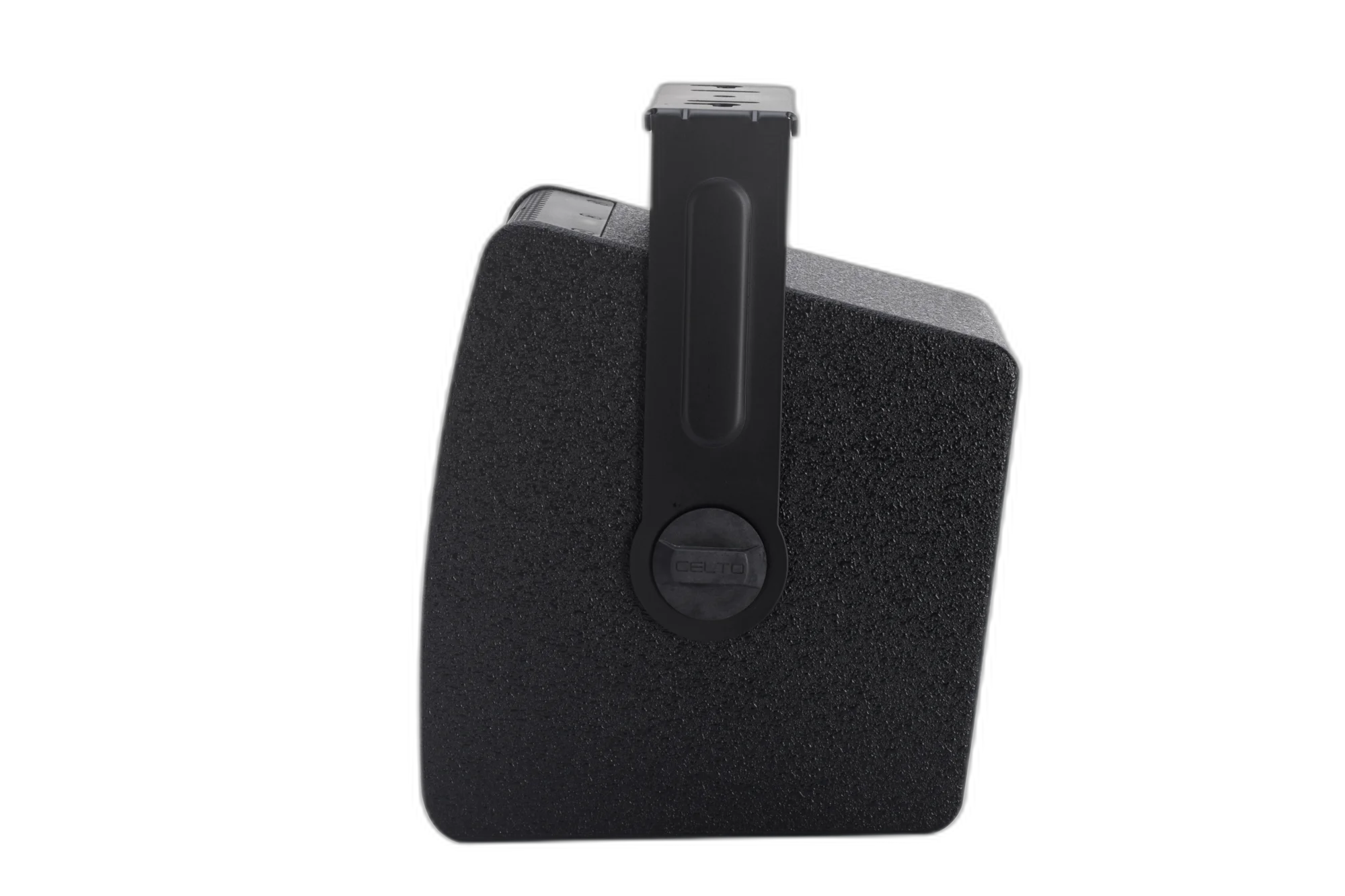

The iFIX6 G2 is a Compact install speakers.
- Real 120W RMS power capacity

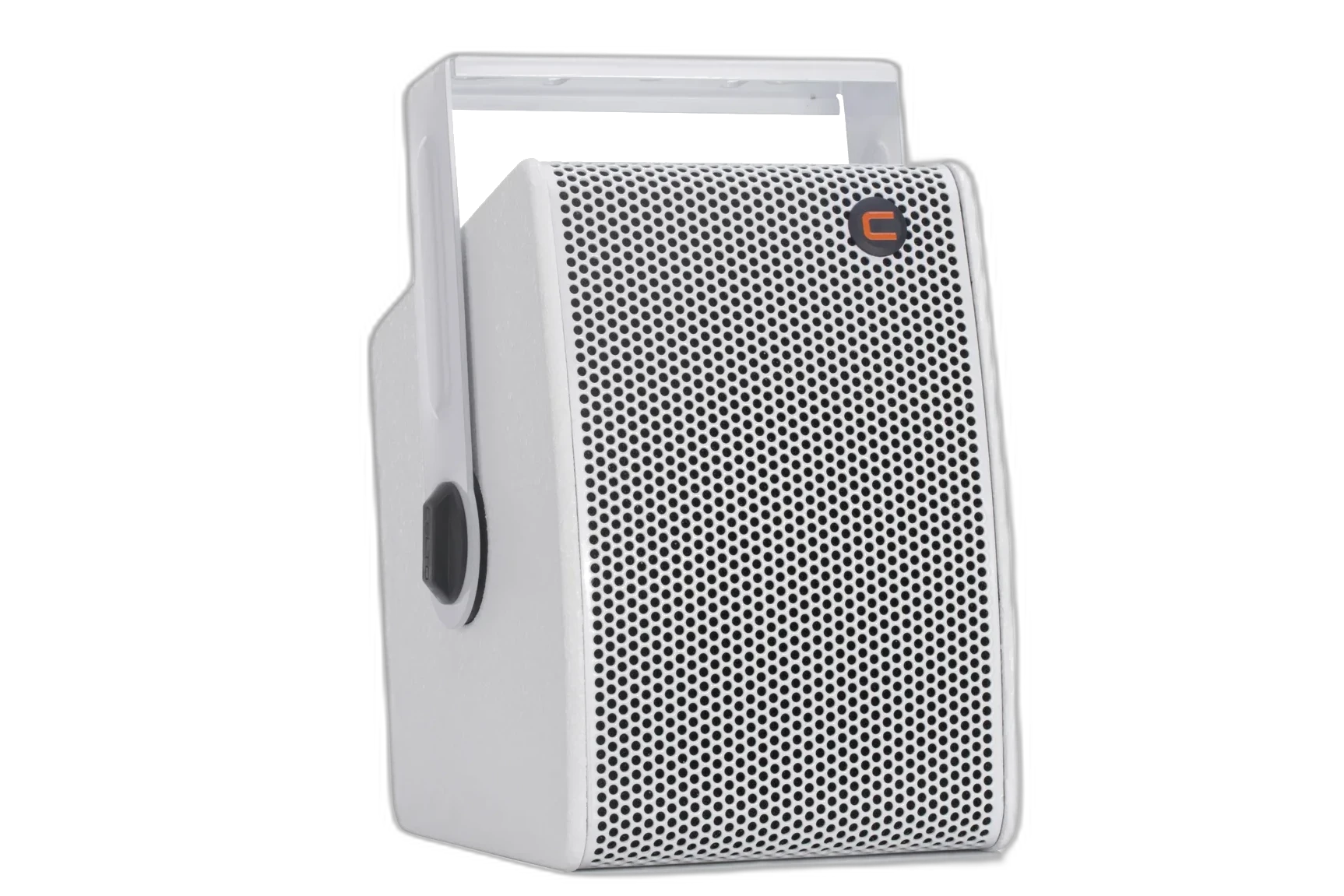

- Contemporary design available in white, black and natural wood colors
- Any RAL color on demand
- Fullrange, can be used without subwoofer
- Highly dynamic and smooth reproduction
- Premium CELTO coaxial driver with compression HF
- Shipped with wall mount bracket
iFIX6 loudspeaker system is suitable for near field main PA reinforcement with or without subwoofer for permanent installation.
View
View
View
View
View
View
View
View
View
Technical specifications
| Speaker type | Fix Install Full Range Coaxial Speaker |
| Power Handling (AES standard) | 120 W RMS / 480 W Peak |
| Nominal impedance | 12 ohms |
| Average sensitivity | 90 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 111 dB RMS / 117 dB Peak |
| Frequency response (-6 dB no preset) | 65~22000 Hz |
| Nominal directivity (-6 dB) | 85° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware |
Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |
| LF |
6" coaxial CELTO ACOUSTIQUE 6CXF150 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 1.5" / 38 mm |
| HF |
CELTO ACOUSTIQUE PCDN250 (in coaxial mounting) |
| HF RMS power (AES standard) | 20 W above 1.5 kHz |
| HF Exit | 0.75" / 19 mm |
| HF Voice coil diameter | 1.1" / 28 mm |
| HF Diaphragm | C400 PEI dome |
| Crossover | 2.5 kHz 2-way passive network |
| Connectors |

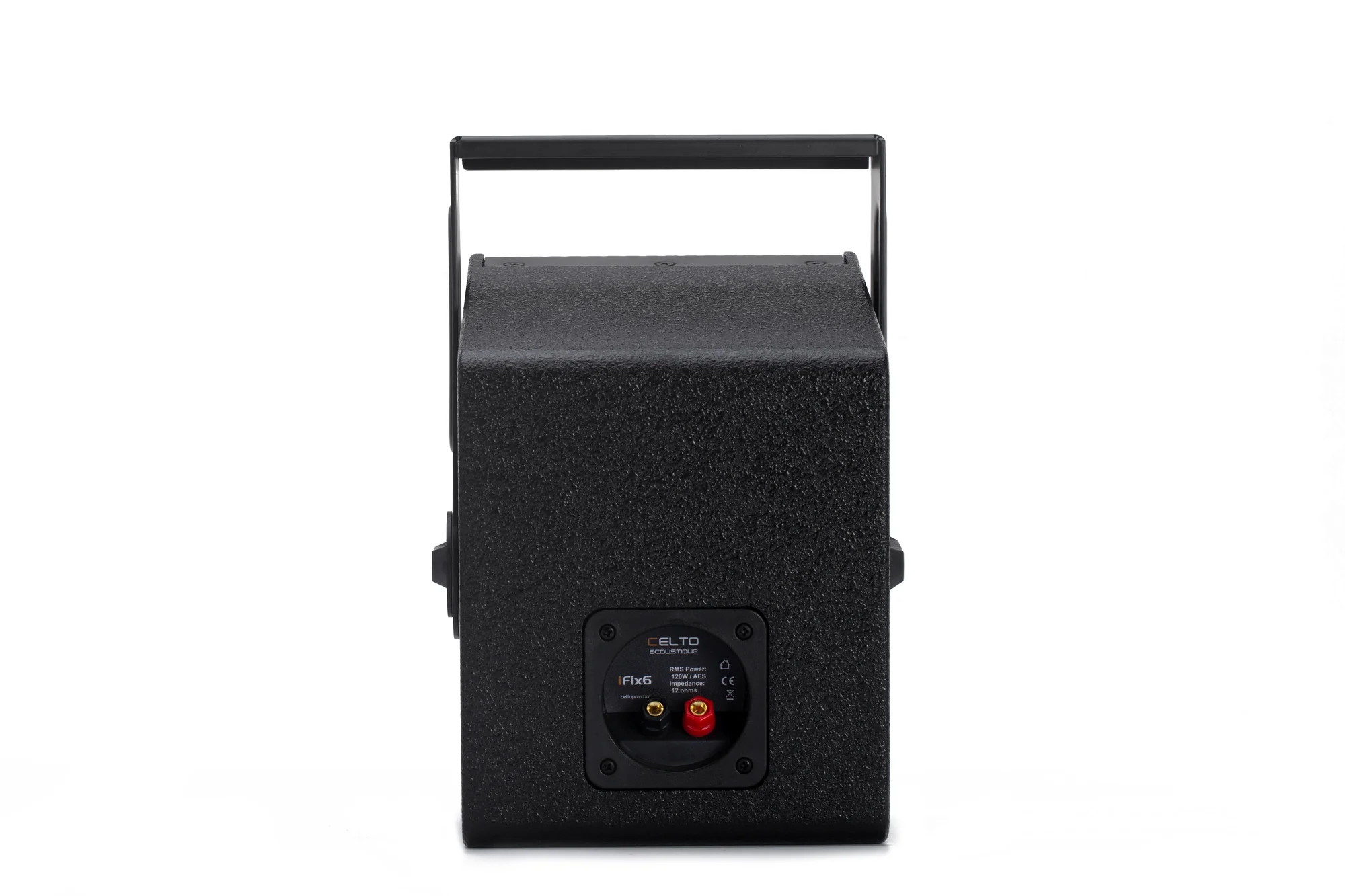

PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 260 x 190 x 250 mm |
| Speaker Weight | 5 kg |
| Shipping information |
7.5 kg 370 x 360 x 340 mm |
| Accessories |
CPC-70 (pole bar with crank) CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Aluninum grill |
Related products

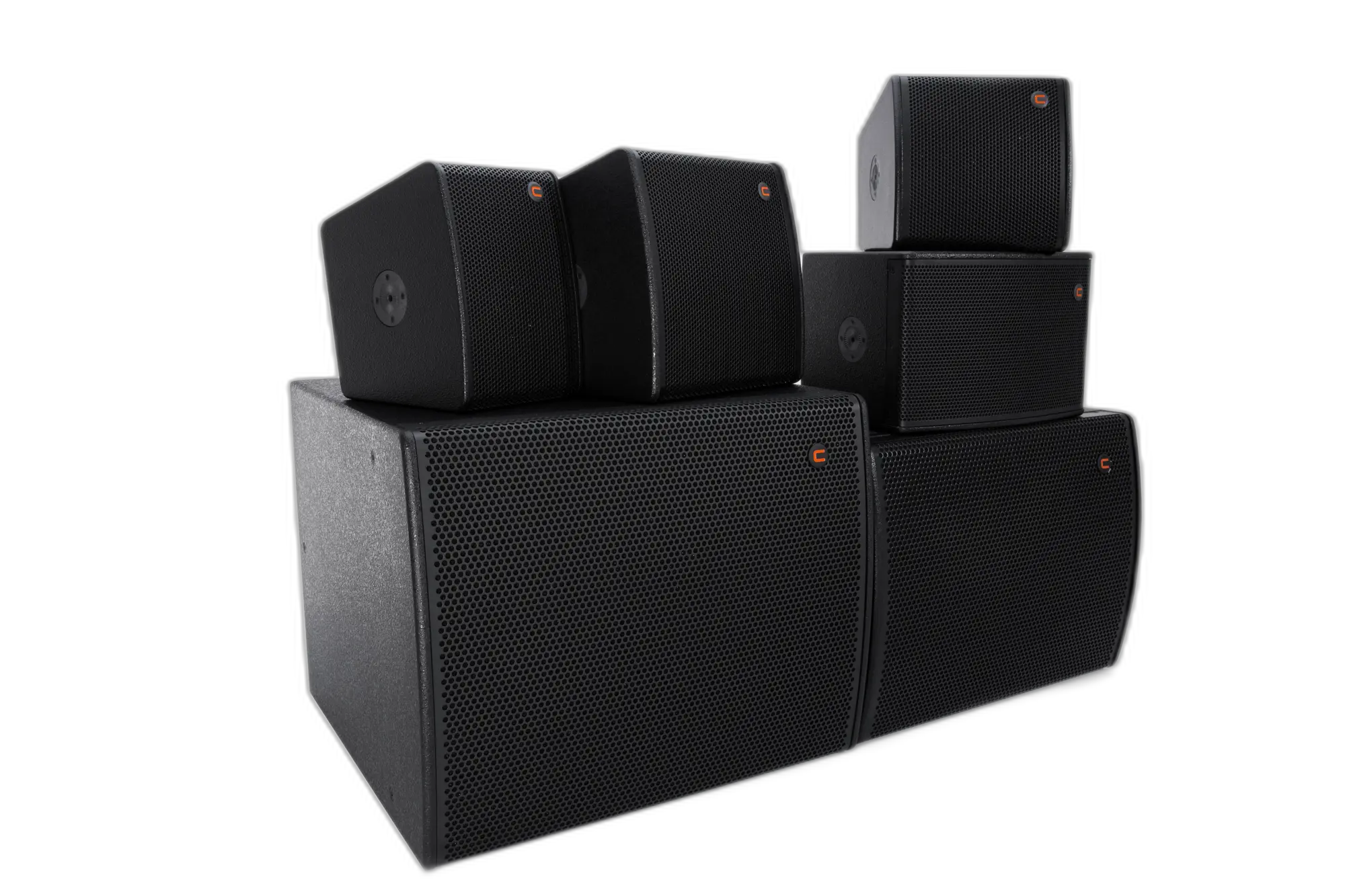

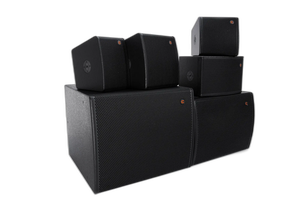

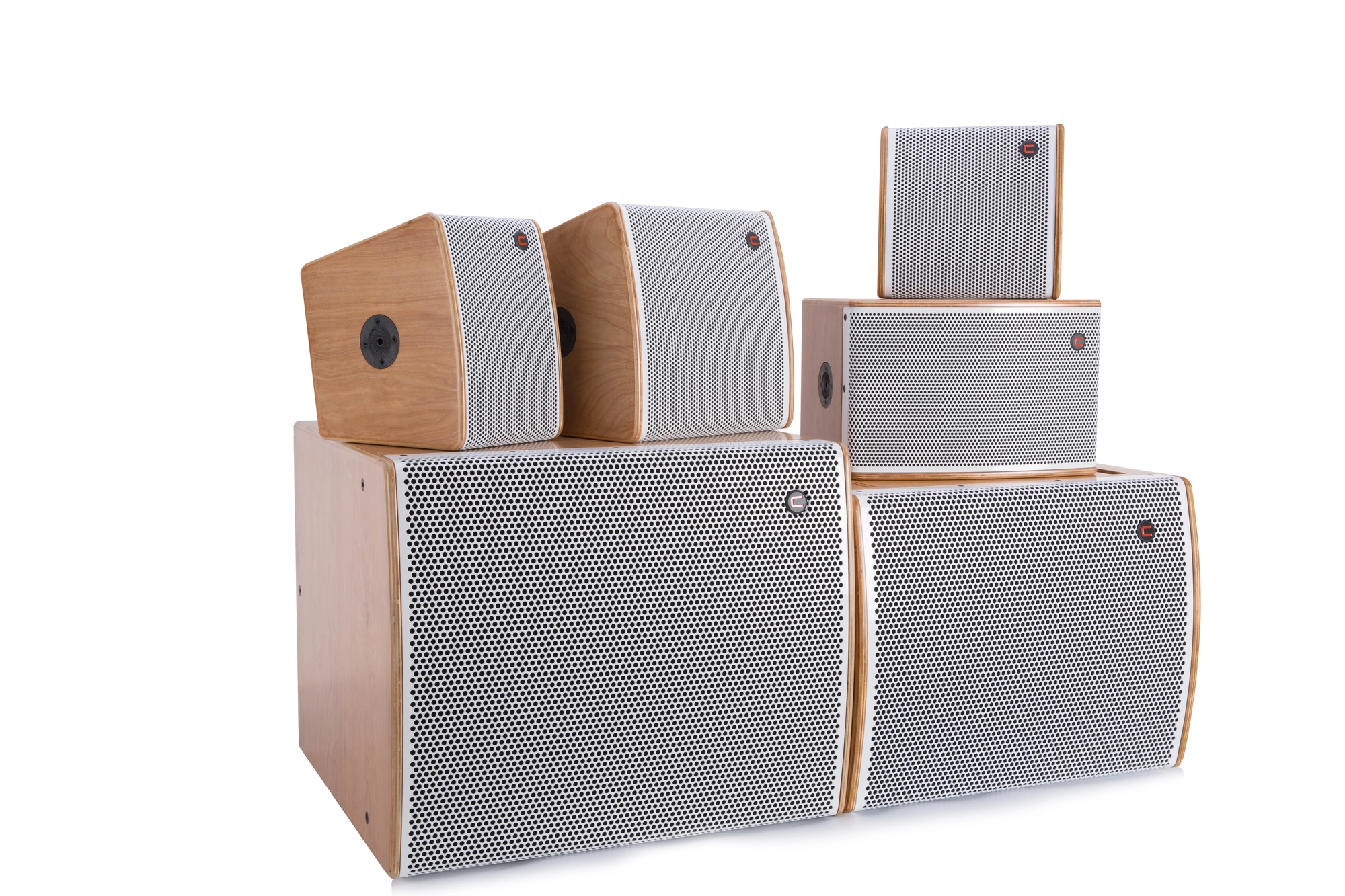

iFIX6 G2 does wonders when combined with these other products from our range
We talk about it
See iFIX6 G2 in action
Kiki’s Alexandria
July 11, 2025
Egypt,
Installation,
Outside,
Case Studies
iFIX13S G2
iFIX17S G2
iFIX6 G2

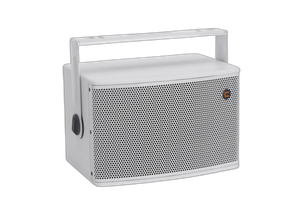

iFIX7 G2

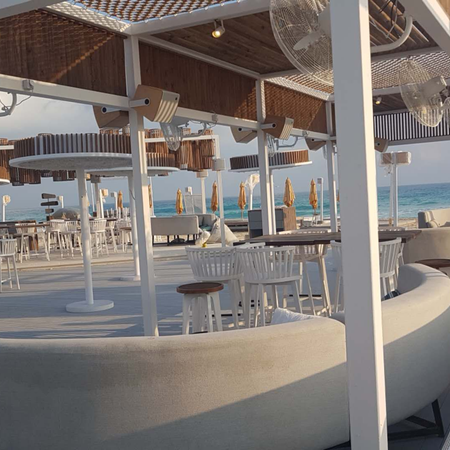

Sixty pieces of our iFIX speakers in Kiki’s bar, Alexandria
