Description

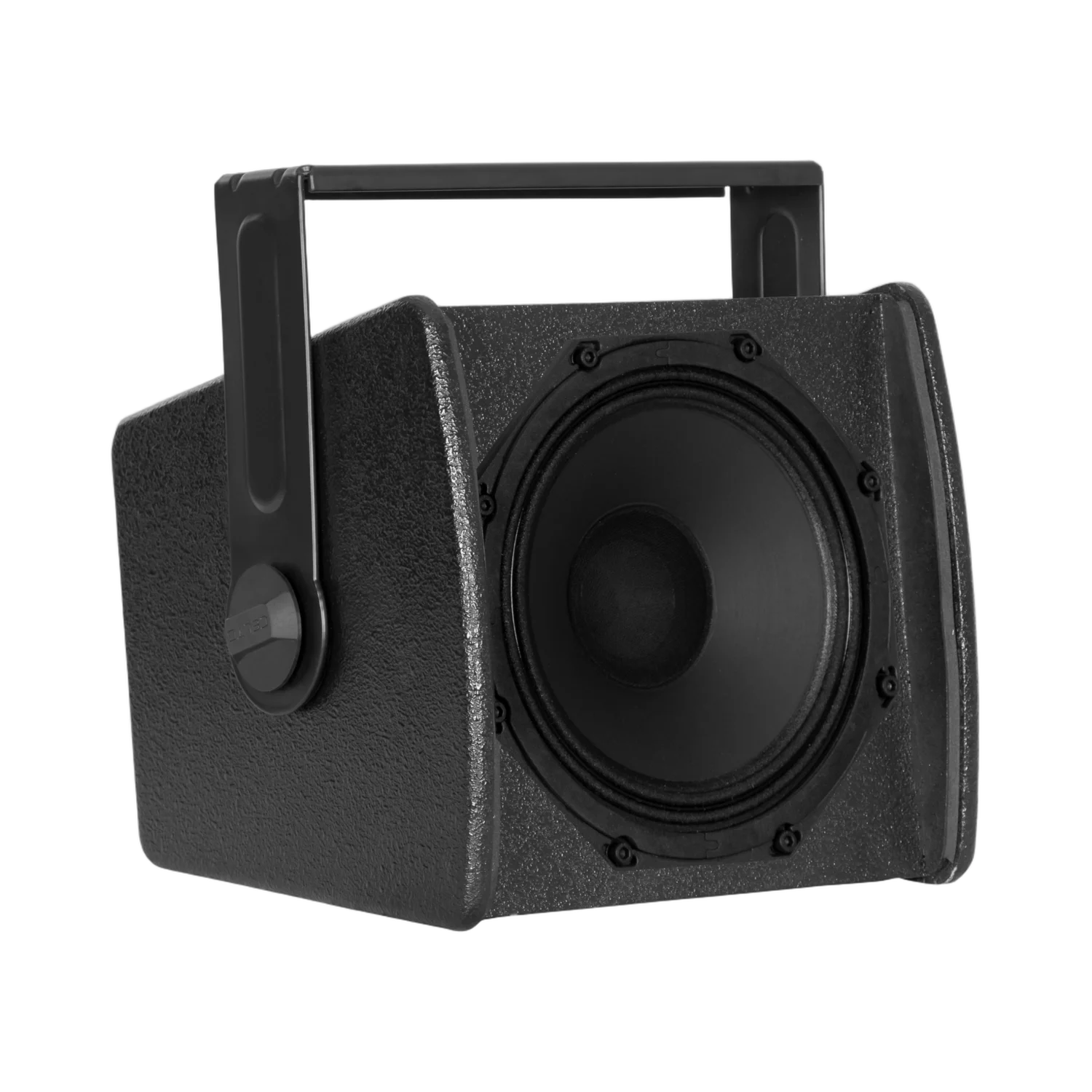

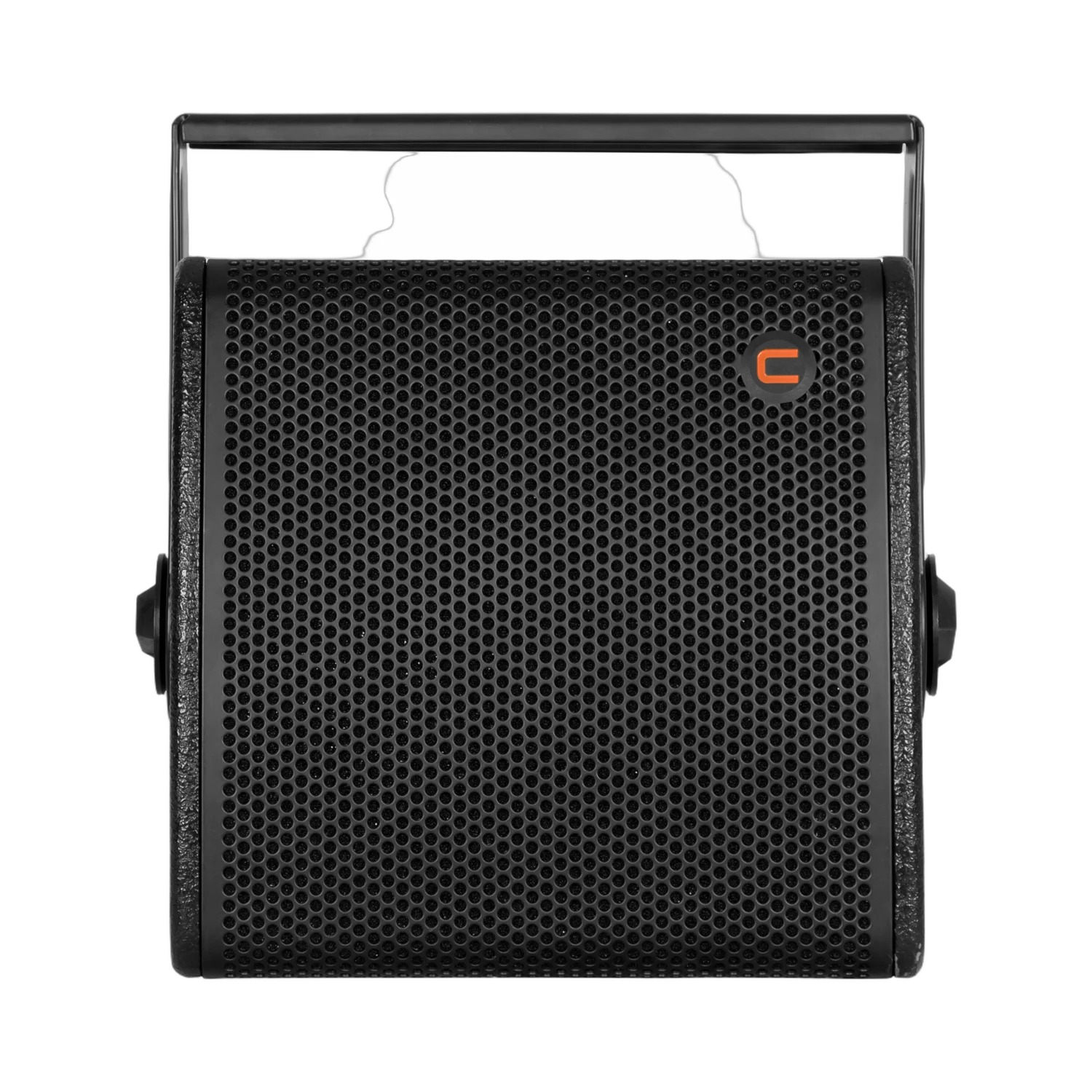

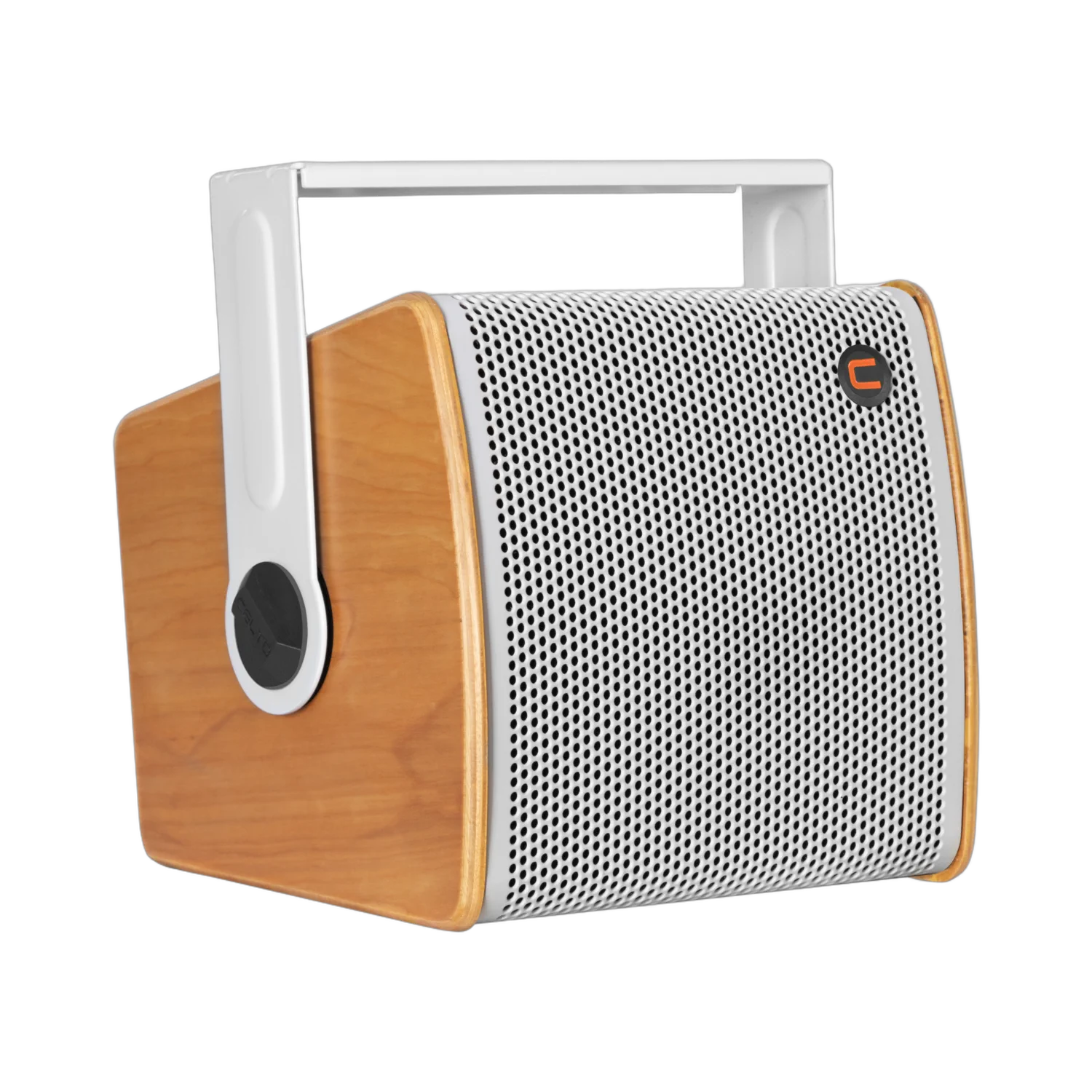

Big sound in a small package—that's the promise of the CELTO iFIX8 G2, delivering a solid 300W RMS with exceptional efficiency. This coaxial installation loudspeaker is engineered for high-impact near-field reinforcement when paired with a subwoofer. Ideal for vibrant nightclubs, pubs, restaurants, multifunctional venues, auditoriums, and premium background music setups. Its 8" coaxial driver with HSP annular ring radiator HF delivers outstanding clarity and an impressive SPL-to-size ratio. Audiophile-grade crossover with Right-Phase design ensures seamless integration and precise imaging. Built from robust birch plywood and finished in black, white, natural wood, or custom colors to suit any interior. Multi-function yoke bracket included for quick, reliable wall or ceiling mounting. With 95 dB sensitivity and 124 dB peak SPL, it transforms compact spaces into sonic powerhouses. Proof that you don't need massive cabinets to achieve massive sound—the iFIX8 G2 simply gets the job done with style.
Key Features
- Real 300W RMS with high-end sound quality
- High Efficiency for incredible SPL to Size ratio
- Coaxial transducer for unmatched spacial coherence
- Next generation HSP Annular Ring Radiator HF
- Audiophile grade crossover with Right-Phase topology
- Birch plywood cabinet with smooth texture or varnish finish
Applications
Installation
Sound Architecture
Technical specifications
| Speaker type | FIX Install Coaxial Satellite Speaker (must be used with Subwoofer) |
| Power Handling (AES standard) | 300 W RMS / 1200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 95 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 120 dB RMS / 126 dB Peak |
| Frequency response (-6 dB no preset) | 95~22000 Hz |
| Nominal directivity (-6 dB) | 80° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware |

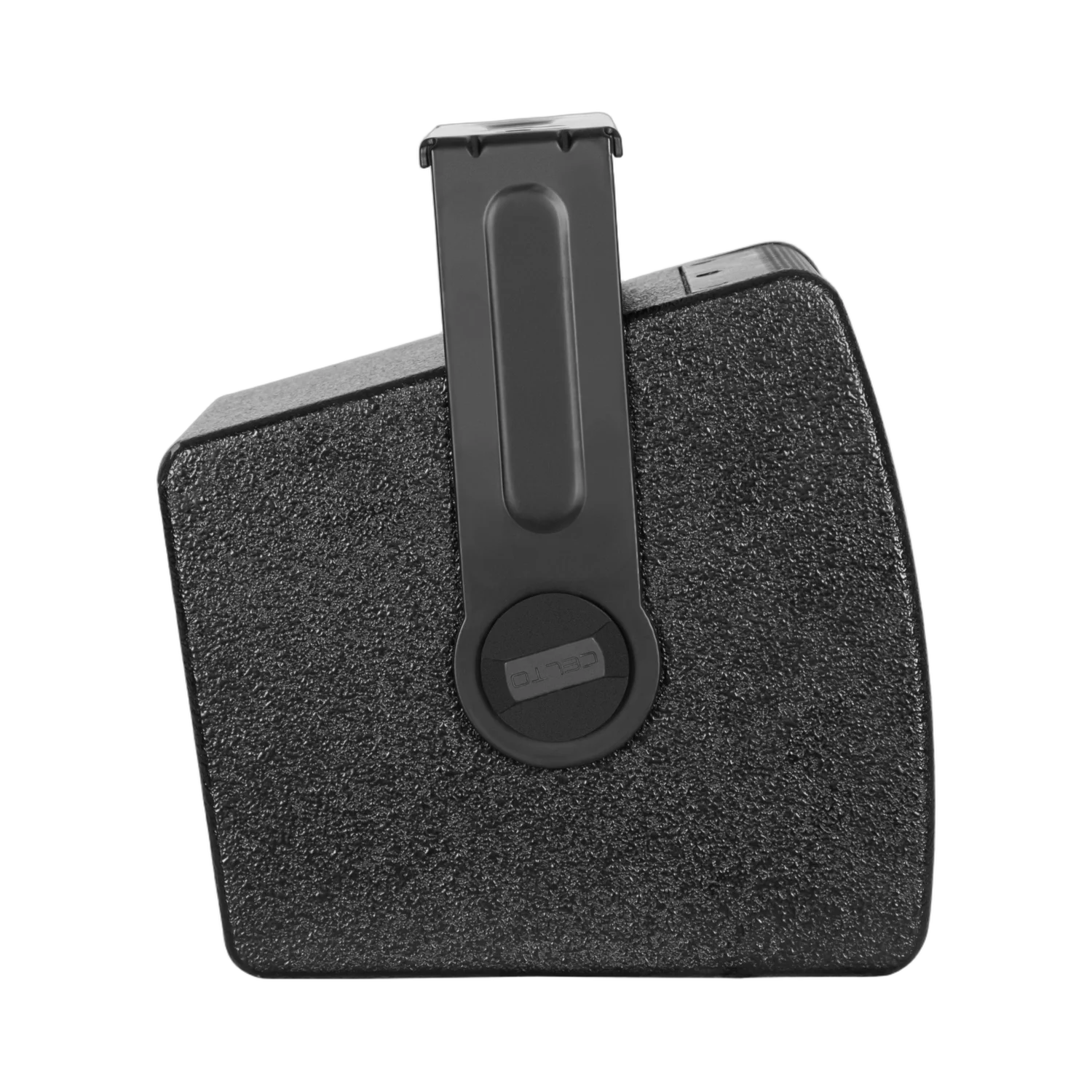

Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |
| LF |
8" coaxial CELTO ACOUSTIQUE 8CXT250 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2.5" / 65 mm |
| HF |
CELTO ACOUSTIQUE ACDX 40 (single magnet coaxial mounting) |
| HF RMS power (AES standard) | 60 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.6 kHz 2-way passive network |
| Connectivity |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 243 x 250 x 250 mm |
| Speaker Weight | 7 kg |
| Shipping information |
9 kg 350 x 320 x 370 mm |
| Accessories |
WMBRKT20 (wall mount bracket) Rust-Free Aluminum grill |
Product files
| Name | Category | Type | Size | |
|---|---|---|---|---|
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | 33.5 KiB | Download | |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | 29.9 KiB | Download | |
|
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD | 66.8 KiB | Download | |
|
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD | 66.9 KiB | Download | |
|
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD | 66.5 KiB | Download | |
|
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_NAT_A0_20250714_WEB_CAD | DWG | 901.3 KiB | Download |
|
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_BLK_A0_20250714_WEB_CAD | DWG | 901.5 KiB | Download |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | DWG | 754.0 KiB | Download |
|
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD
|
CELTO_IFIX8G2_WHT_A0_20250714_WEB_CAD | DWG | 903.4 KiB | Download |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | DWG | 716.7 KiB | Download |
