iFIX 7 G2
Elegant Power. Audiophile Soul.
Description
Don't let its elegant, compact form deceive you—the CELTO Acoustique iFIX7 G2 unleashes a true 200W RMS with audiophile-grade refinement.
This full-range coaxial speaker delivers deep, warm bass and pristine highs, ideal for standalone use or paired with a subwoofer.
Tailored for demanding installations in nightclubs, bars, restaurants, multifunctional spaces, theatres, and background music systems.

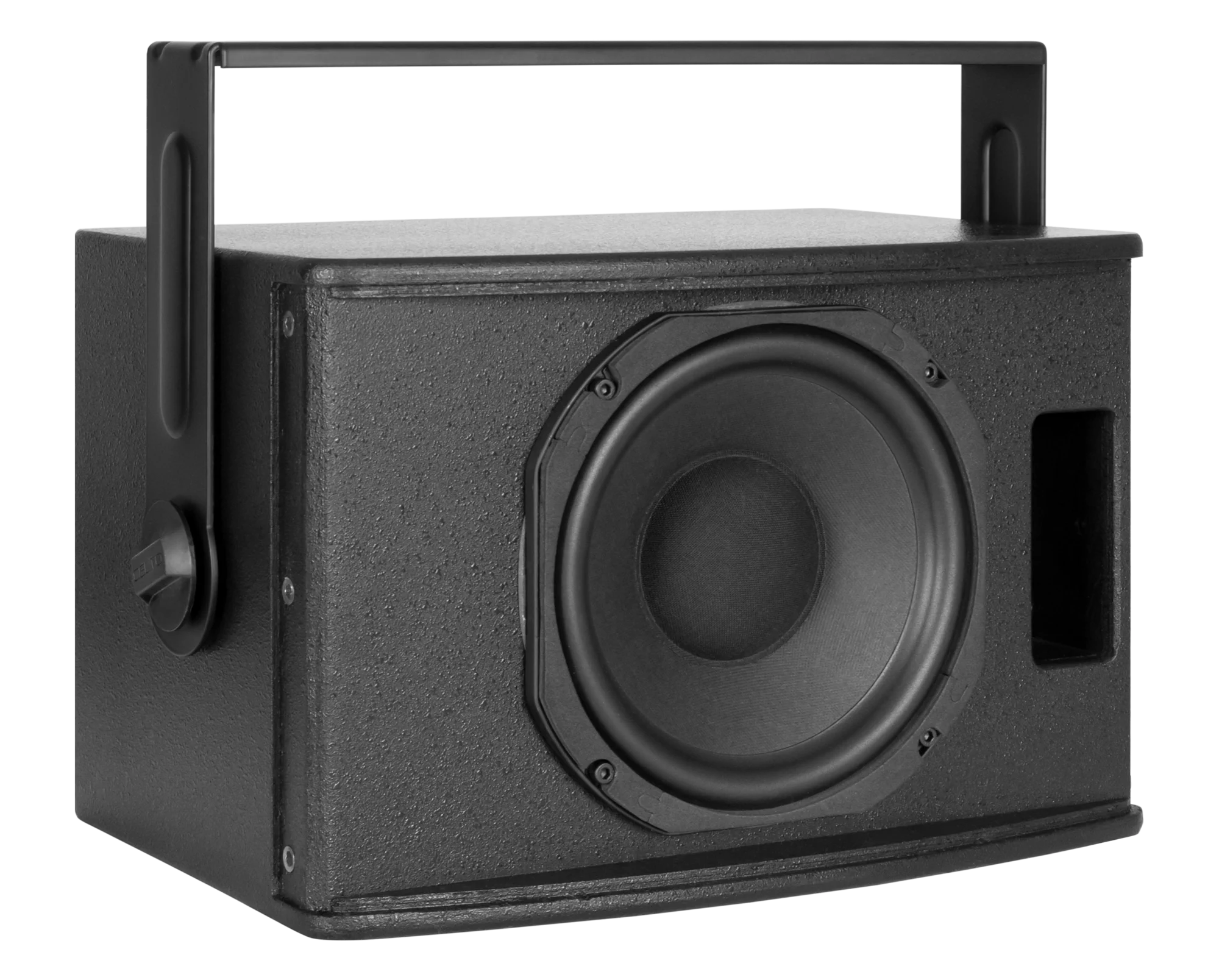

Its advanced 7.5" coaxial transducer with ketone polymer HF dome ensures unmatched spatial coherence and natural timbre.
Audiophile crossover with Right-Phase topology guarantees perfect driver alignment and phase accuracy.

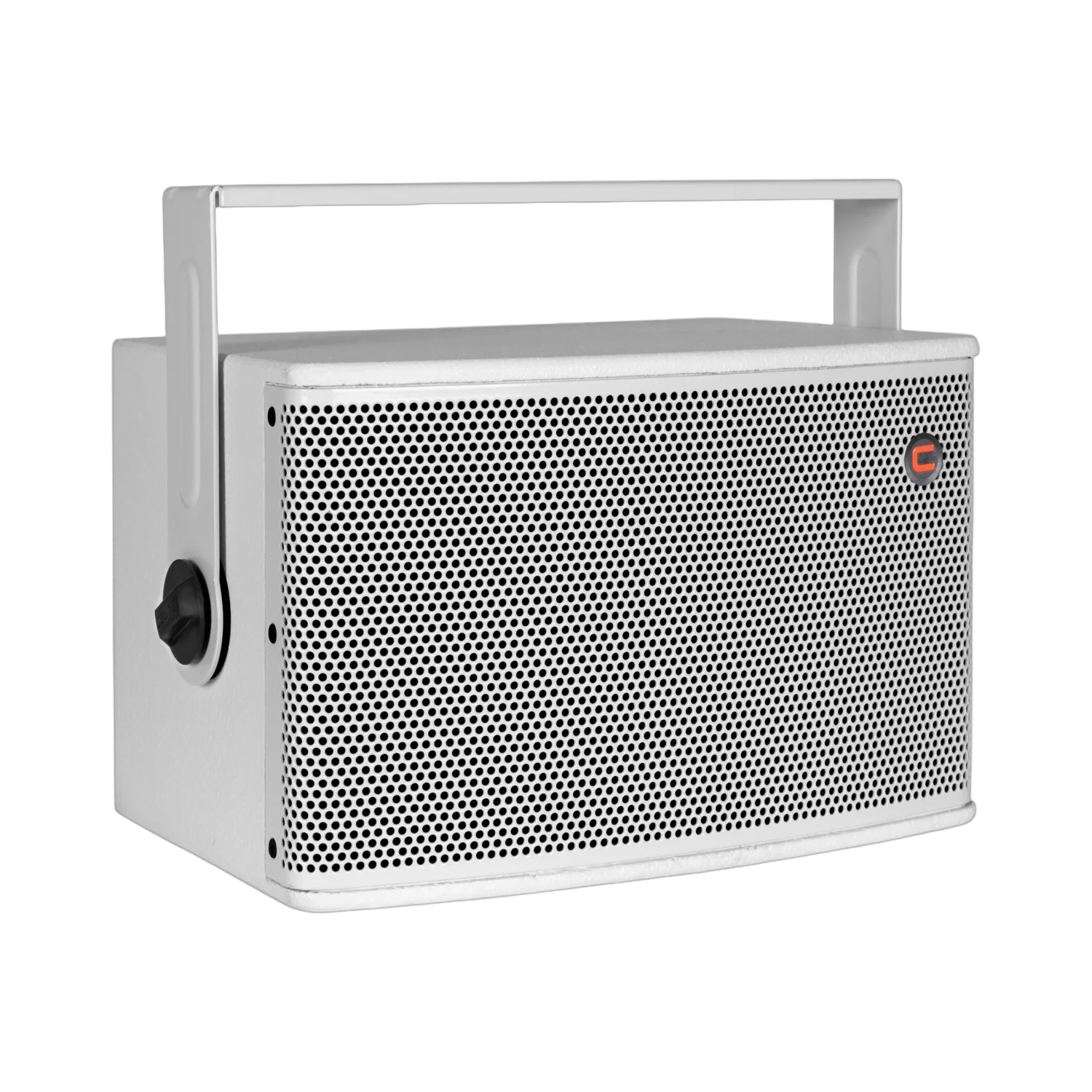

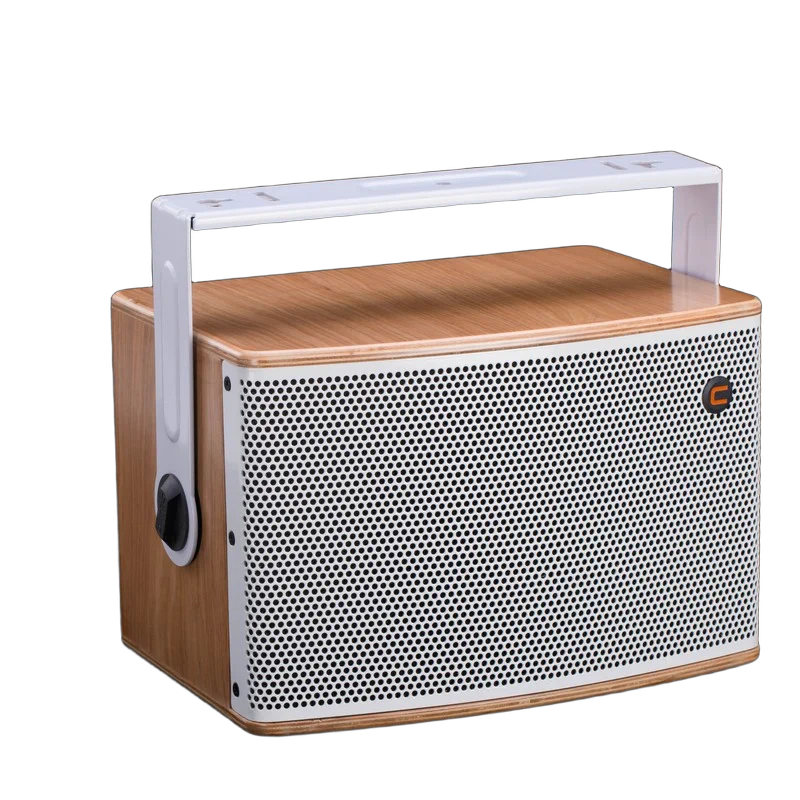

Crafted from 15 mm birch plywood, available in black, white, natural oak, or custom finishes for aesthetic integration.

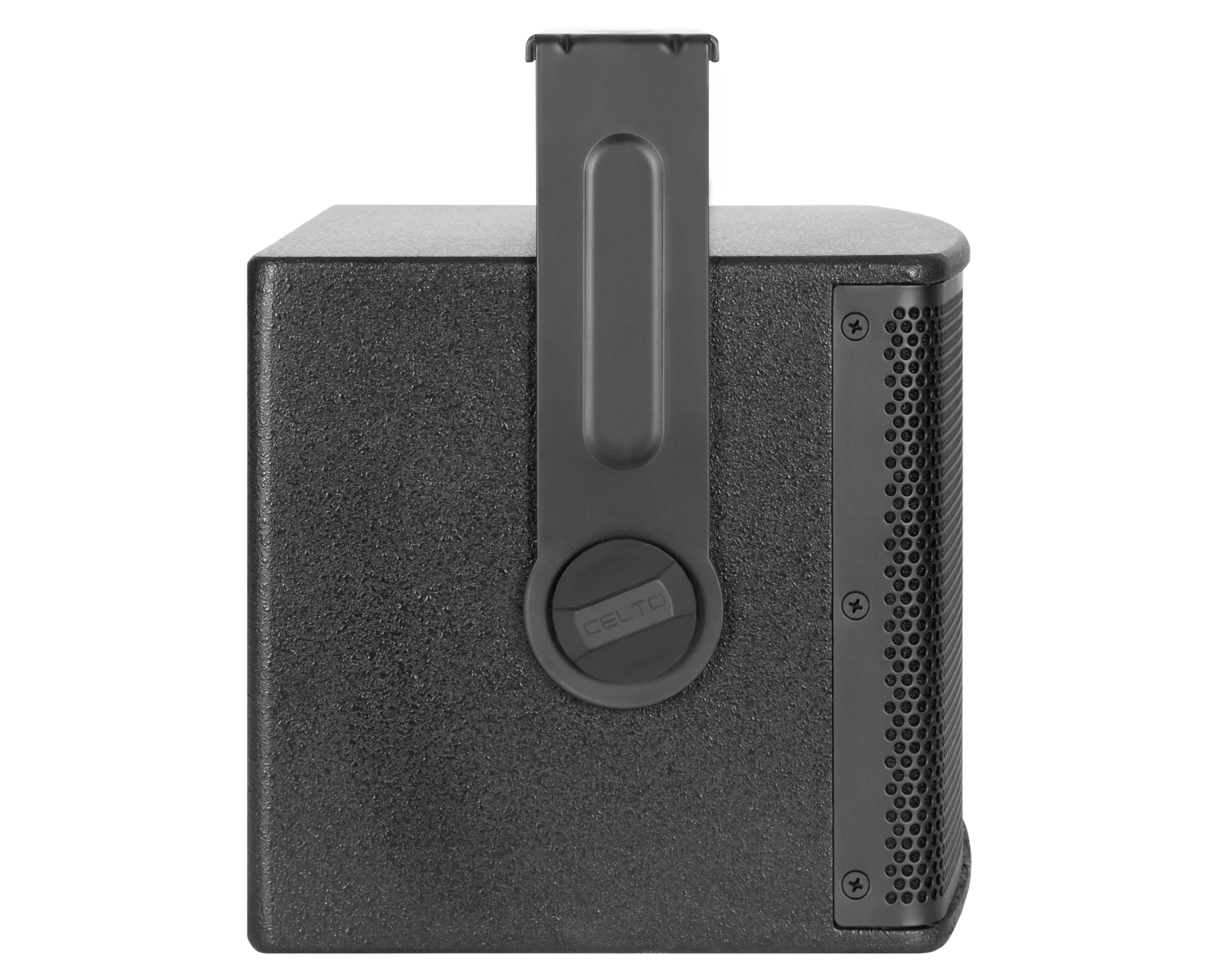

Included multi-function yoke with dented ring allows precise, secure angling.
Boasting 92 dB sensitivity and 121 dB peak SPL, it fills rooms with effortless authority.
From subtle ambience to energetic foreground sound, the iFIX7 G2 proves that sophistication and power can coexist beautifully.
Key Features
- Real 200W RMS with high-end sound quality
- Full range with deep and warm bass
- Coaxial transducer for unmatched spacial coherence
- HF compression driver with Ketone Polymer dome
- Audiophile grade crossover with Right-Phase topology
- Birch plywood cabinet with smooth texture or varnish finish
Applications
Installation
Sound Architecture
Technical specifications
| Speaker type | FIX Install Full Range Coaxial Speaker |
| Power Handling (AES standard) | 200 W RMS / 800 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 92 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 115 dB RMS / 121 dB Peak |
| Frequency response (-6 dB no preset) | 52~22000 Hz |
| Nominal directivity (-6 dB) | 80° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware |
Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |
| LF |
8" coaxial CELTO ACOUSTIQUE 8CXF220 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2" / 51 mm |
| HF |
CELTO ACOUSTIQUE PCDN250 (in coaxial mounting) |
| HF RMS power (AES standard) | 20 W above 1.5 kHz |
| HF Exit | 0.75" / 19 mm |
| HF Voice coil diameter | 1.1" / 28 mm |
| HF Diaphragm | C400 PEI dome |
| Crossover | 2.4 kHz 2-way passive network |

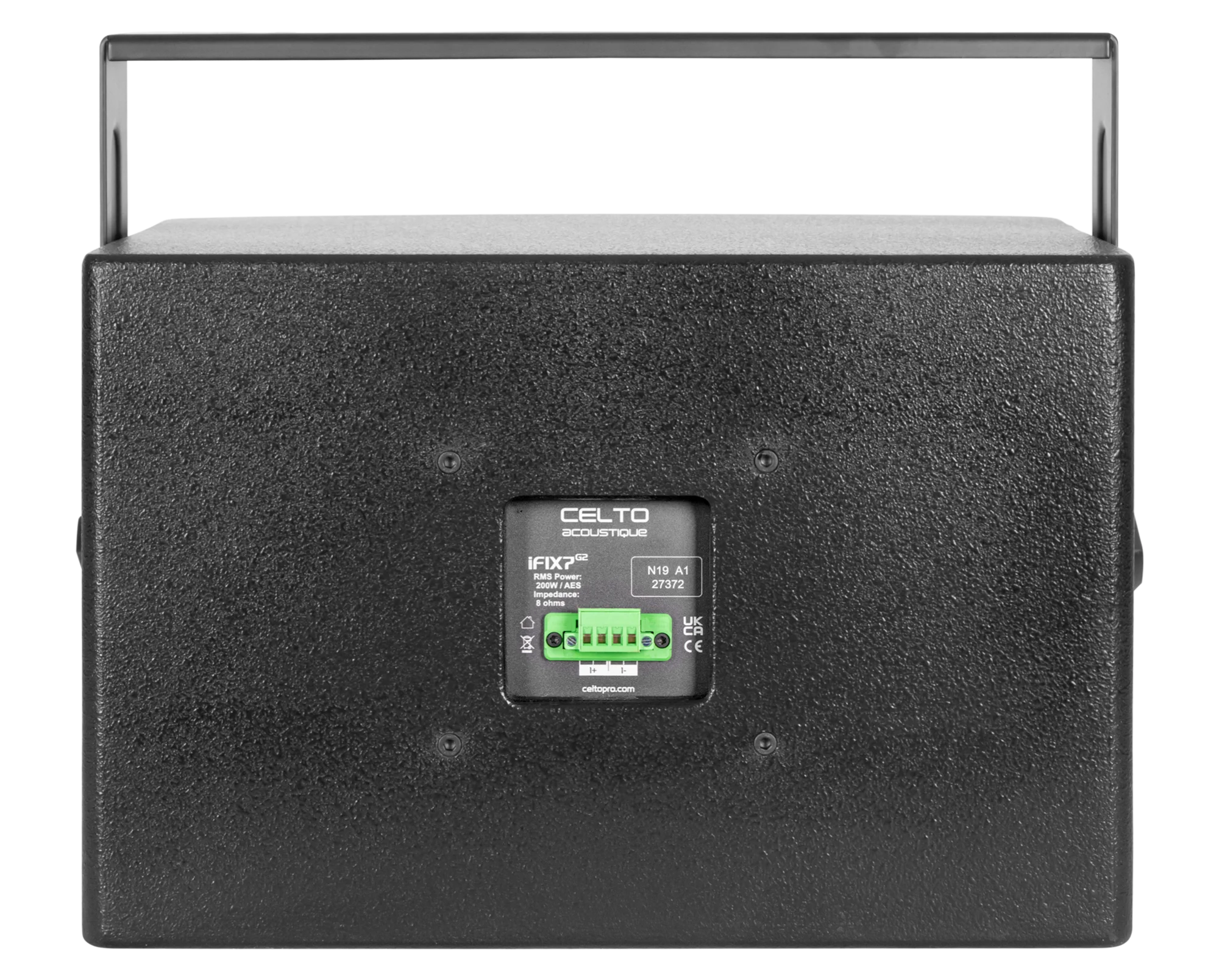

| Connectivity |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 246 x 370 x 268 mm |
| Speaker Weight | 10 kg |
| Shipping information |
12 kg 390 x 330 x 510 mm |
| Accessories |
WMBRKT20 (wall mount bracket) Rust-Free Aluminum grill |
Product files
| Name | Category | Type | Size | |
|---|---|---|---|---|
|
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD | 61.4 KiB | Download | |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | 33.5 KiB | Download | |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | 29.9 KiB | Download | |
|
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD | 61.3 KiB | Download | |
|
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD | 61.0 KiB | Download | |
|
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_NAT_A0_20250714_WEB_CAD | DWG | 875.0 KiB | Download |
|
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_WHT_A0_20250714_WEB_CAD | DWG | 875.0 KiB | Download |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | DWG | 754.0 KiB | Download |
|
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD
|
CELTO_IFIX7G2_BLK_A0_20250714_WEB_CAD | DWG | 875.0 KiB | Download |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | DWG | 716.7 KiB | Download |
