iFIX 6 G2

Small Box. Serious Sound.

Installation Point source speakers iFIX Gen 2

Where to buy

Description

The CELTO iFIX6 G2 delivers a genuine 150W RMS of power with remarkable clarity and dynamism. This full-range coaxial loudspeaker excels in near-field main PA reinforcement, performing beautifully with or without a subwoofer. Perfect for trendy nightclubs, multifunctional venues, pubs, restaurants, auditoriums, theatres, and background music applications. Equipped with a premium 6" coaxial driver featuring a compression HF, it ensures smooth, highly accurate reproduction across 65–22,000 Hz. Its contemporary design comes in black, white, natural wood, or any custom RAL color to blend seamlessly into any décor. The sturdy birch plywood cabinet and included multi-function yoke bracket make installation effortless and secure. With 90 dB sensitivity and up to 117 dB peak SPL, it punches well above its weight class. Conical 85° coverage provides even sound distribution without hot spots. Versatile, discreet, and surprisingly powerful—this little powerhouse proves that great sound doesn't need to shout about its size.

Key Features

Real 120W RMS power capacity
Fullrange, can be used without subwoofer
Highly dynamic and smooth reproduction
Premium CELTO coaxial driver with compression HF

Applications

Installation Sound Architecture

Technical specifications

Speaker type	FIX Install Full Range Coaxial Speaker
Power Handling (AES standard)	150 W RMS / 600 W Peak
Nominal impedance	12 ohms
Average sensitivity	90 dB / 1 W / 1 m
Maximum SPL (calculated)	111 dB RMS / 117 dB Peak
Frequency response (-6 dB no preset)	65~22000 Hz
Nominal directivity (-6 dB)	85° conical
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No
Flying hardware	Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware	Yes for Yoke, wall mount bracket and CCA-MA

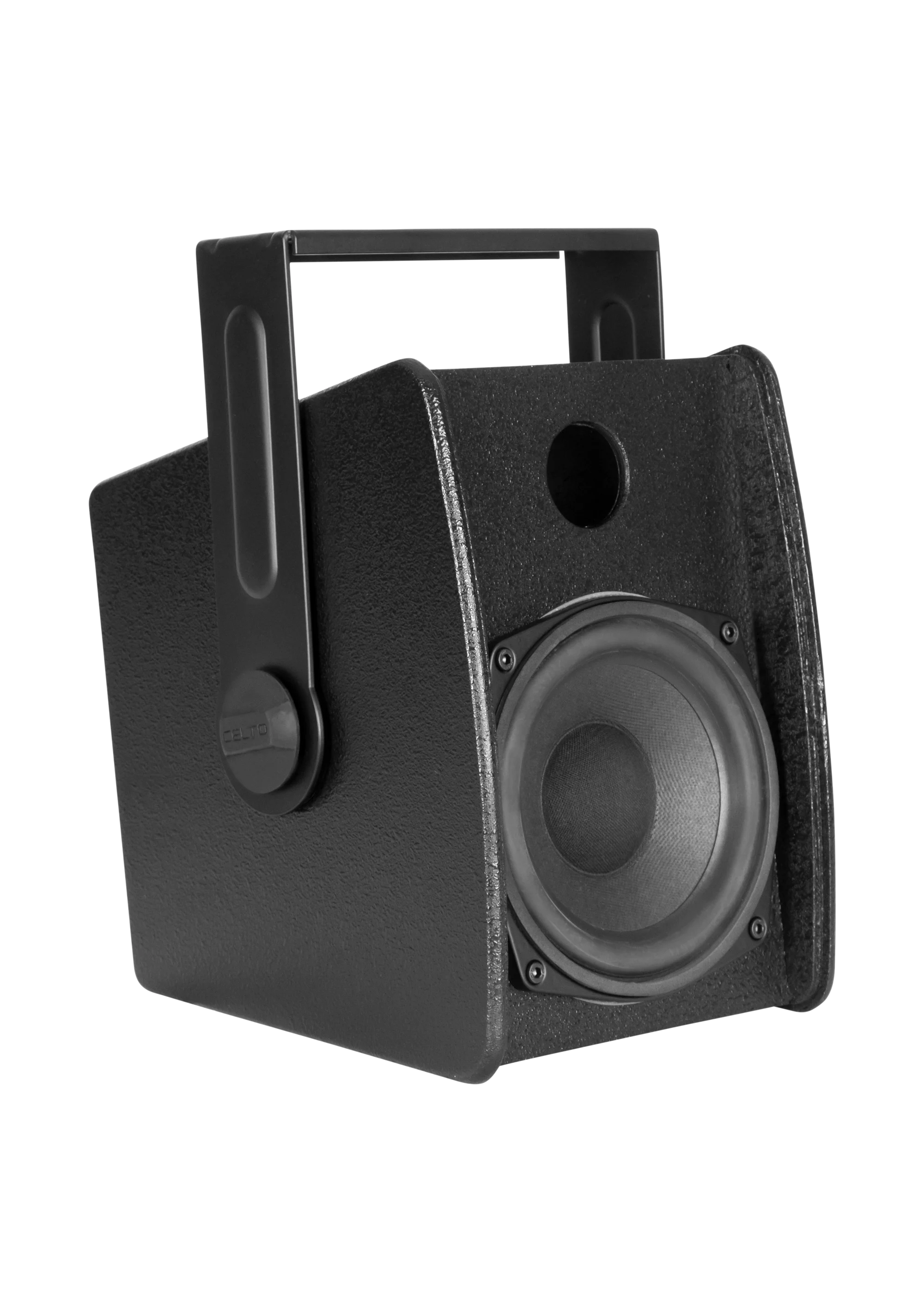

LF	6" coaxial CELTO ACOUSTIQUE 6CXF150
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil diameter	1.5" / 38 mm
HF	CELTO ACOUSTIQUE PCDN250 (in coaxial mounting)
HF RMS power (AES standard)	20 W above 1.5 kHz
HF Exit	0.75" / 19 mm
HF Voice coil diameter	1.1" / 28 mm
HF Diaphragm	C400 PEI dome
Crossover	2.5 kHz 2-way passive network

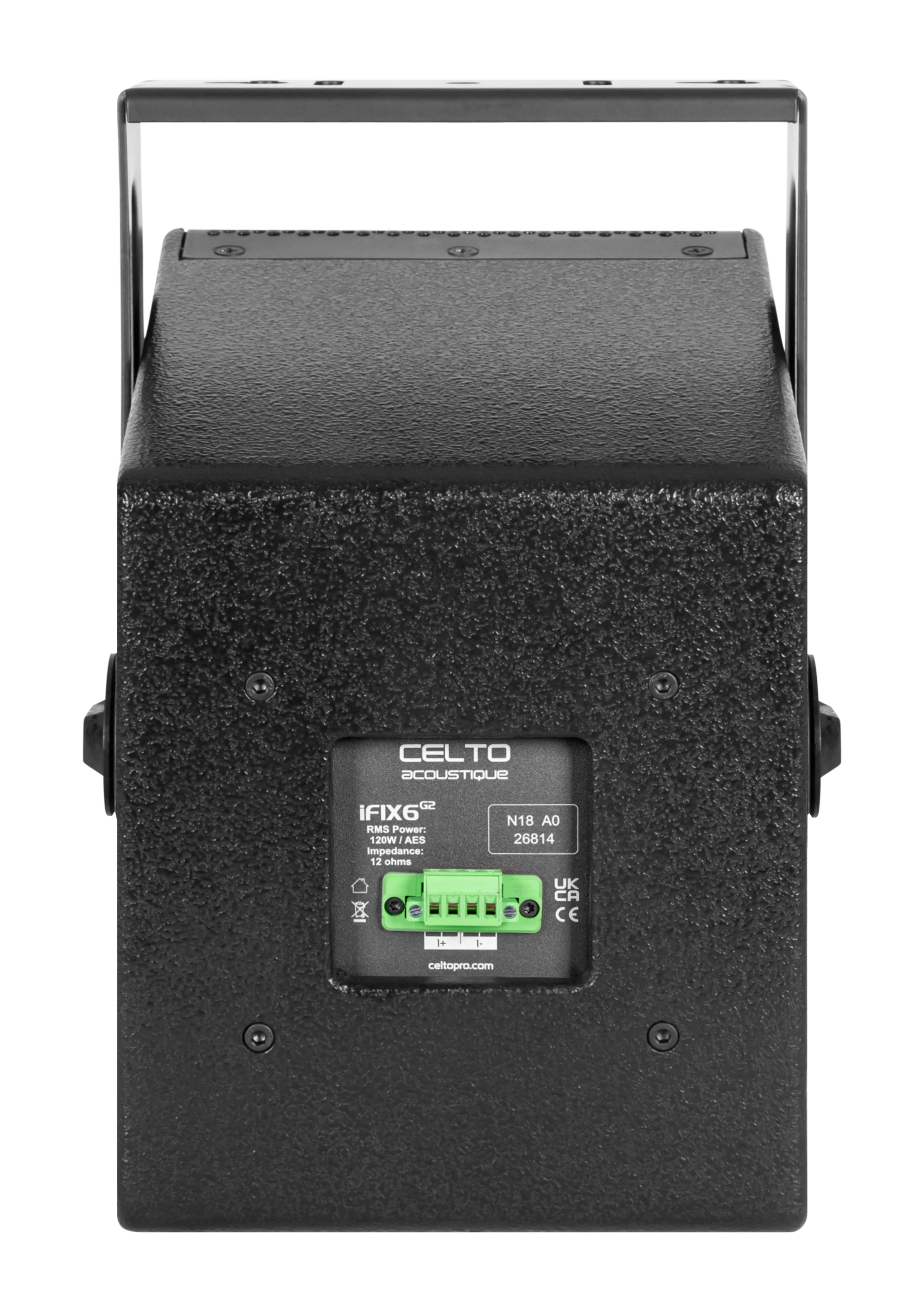

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	260 x 190 x 250 mm
Speaker Weight	5 kg
Shipping information	7.5 kg 370 x 360 x 340 mm
Accessories	WMBRKT20 (wall mount bracket) Rust-Free Aluminum grill

Product files

Name	Category	Type	Size
CELTO_WMBRKT20_A0_20250721_WEB_CAD CELTO_WMBRKT20_A0_20250721_WEB_CAD	CELTO_WMBRKT20_A0_20250721_WEB_CAD	PDF	33.5 KiB	Download
CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD	CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD	PDF	60.5 KiB	Download
CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD	CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD	PDF	60.7 KiB	Download
CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD	CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD	PDF	60.8 KiB	Download
CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD	CELTO_IFIX6G2_NAT_A0_20250714_WEB_CAD	DWG	853.5 KiB	Download
CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD	CELTO_IFIX6G2_BLK_A0_20250714_WEB_CAD	DWG	853.5 KiB	Download
CELTO_WMBRKT20_A0_20250721_WEB_CAD CELTO_WMBRKT20_A0_20250721_WEB_CAD	CELTO_WMBRKT20_A0_20250721_WEB_CAD	DWG	754.0 KiB	Download
CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD	CELTO_IFIX6G2_WHT_A0_20250714_WEB_CAD	DWG	853.5 KiB	Download
