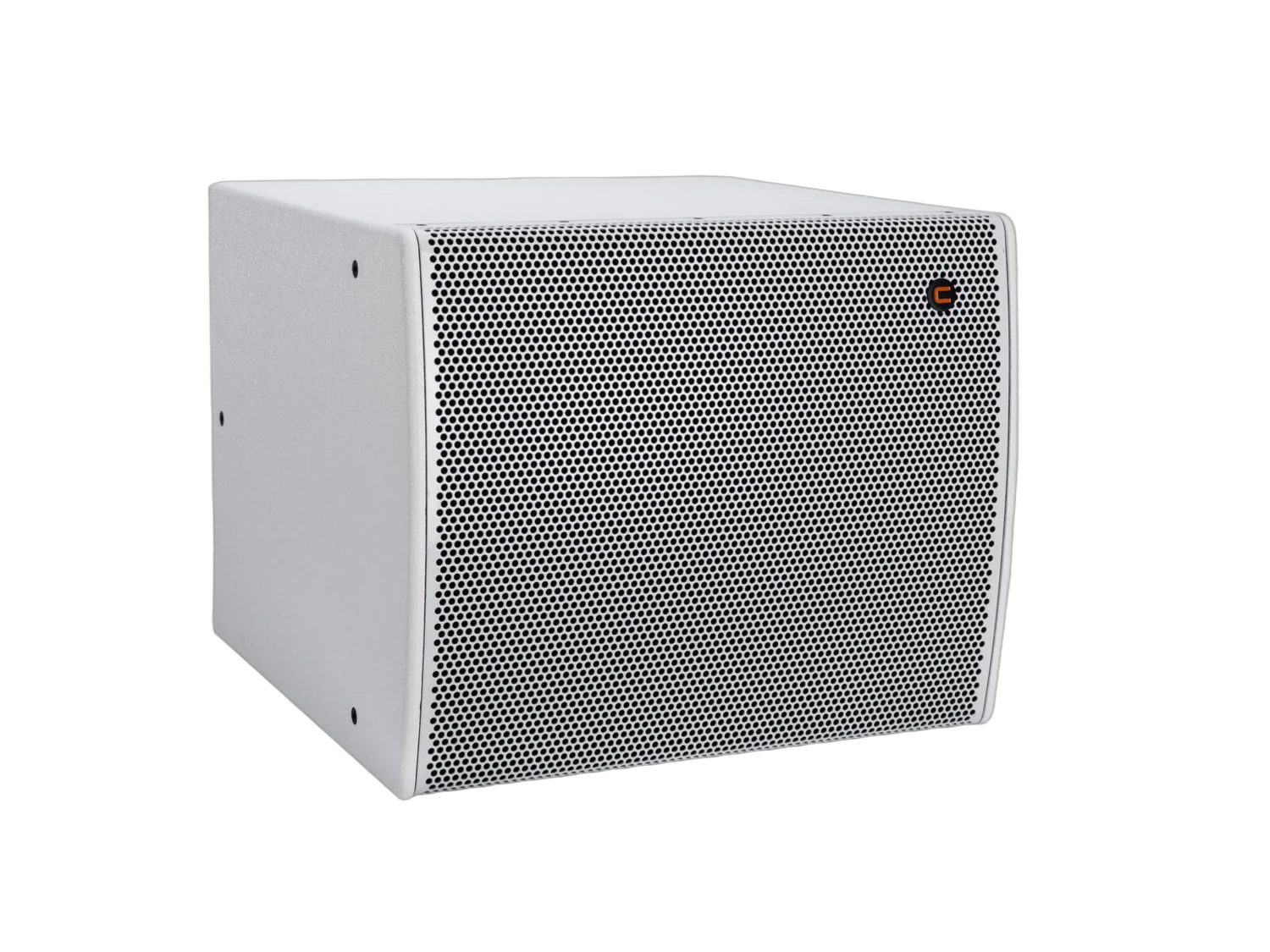

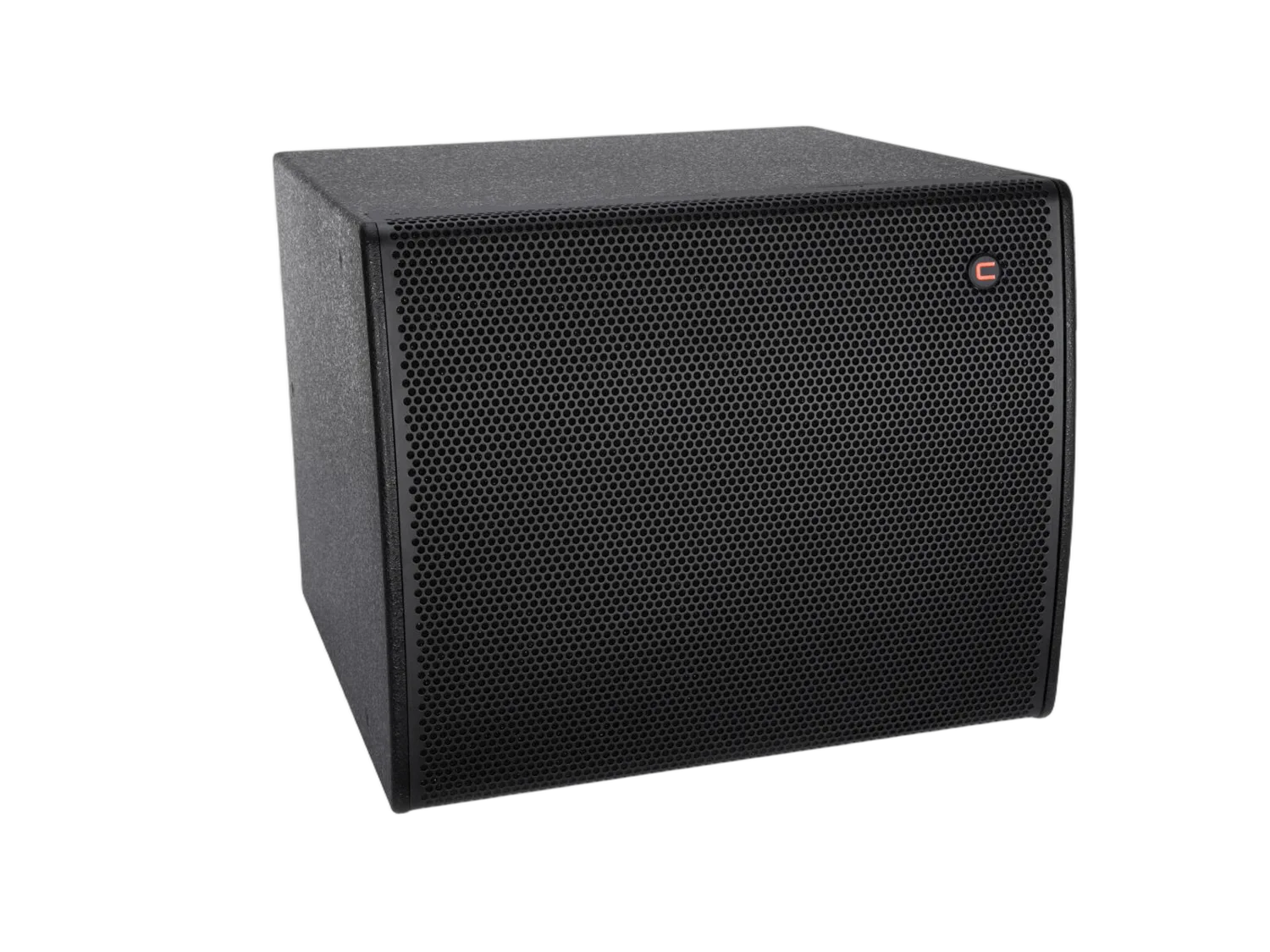

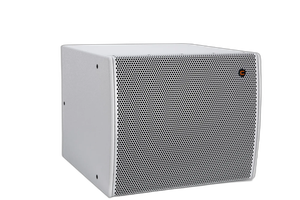

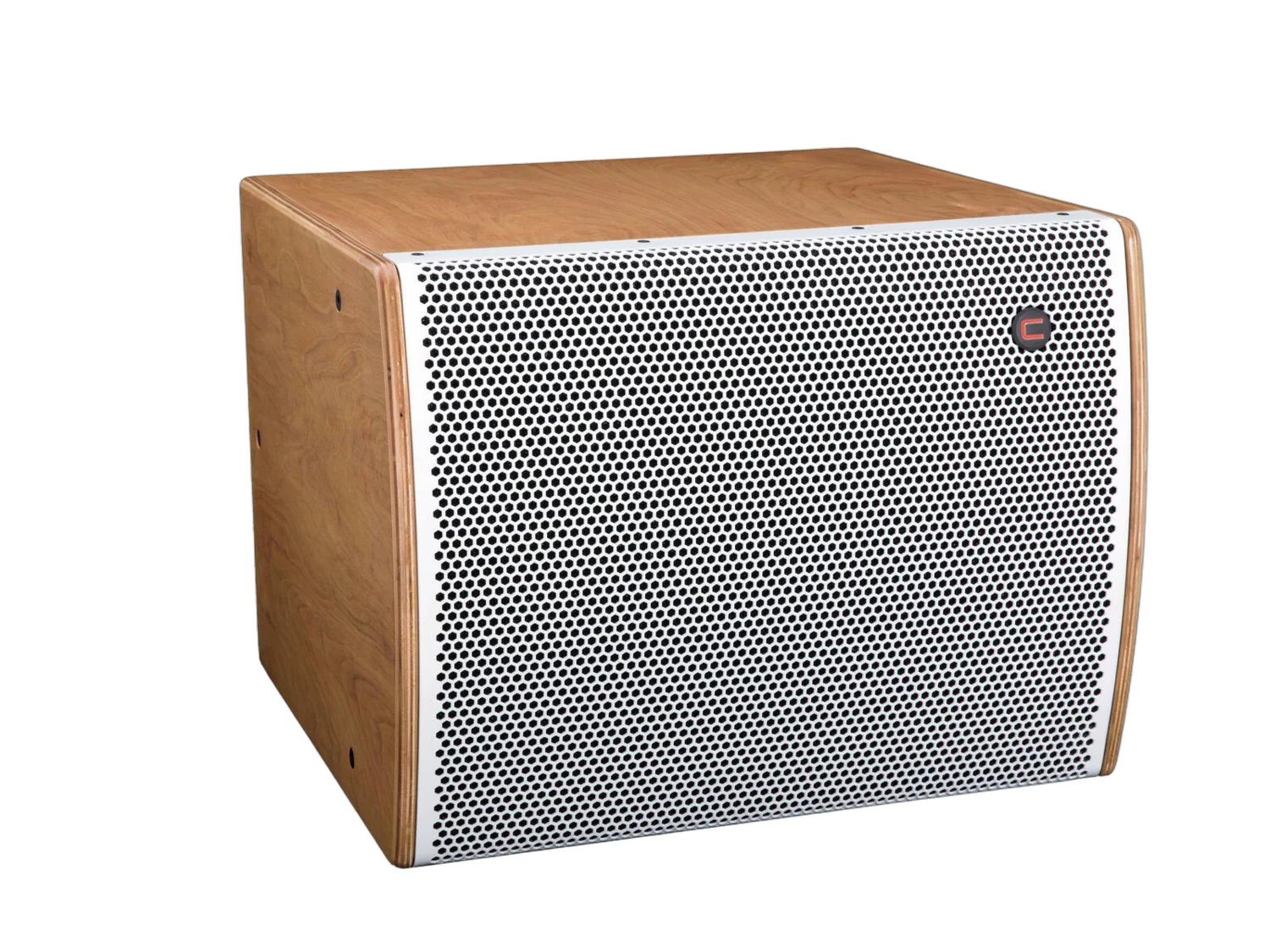

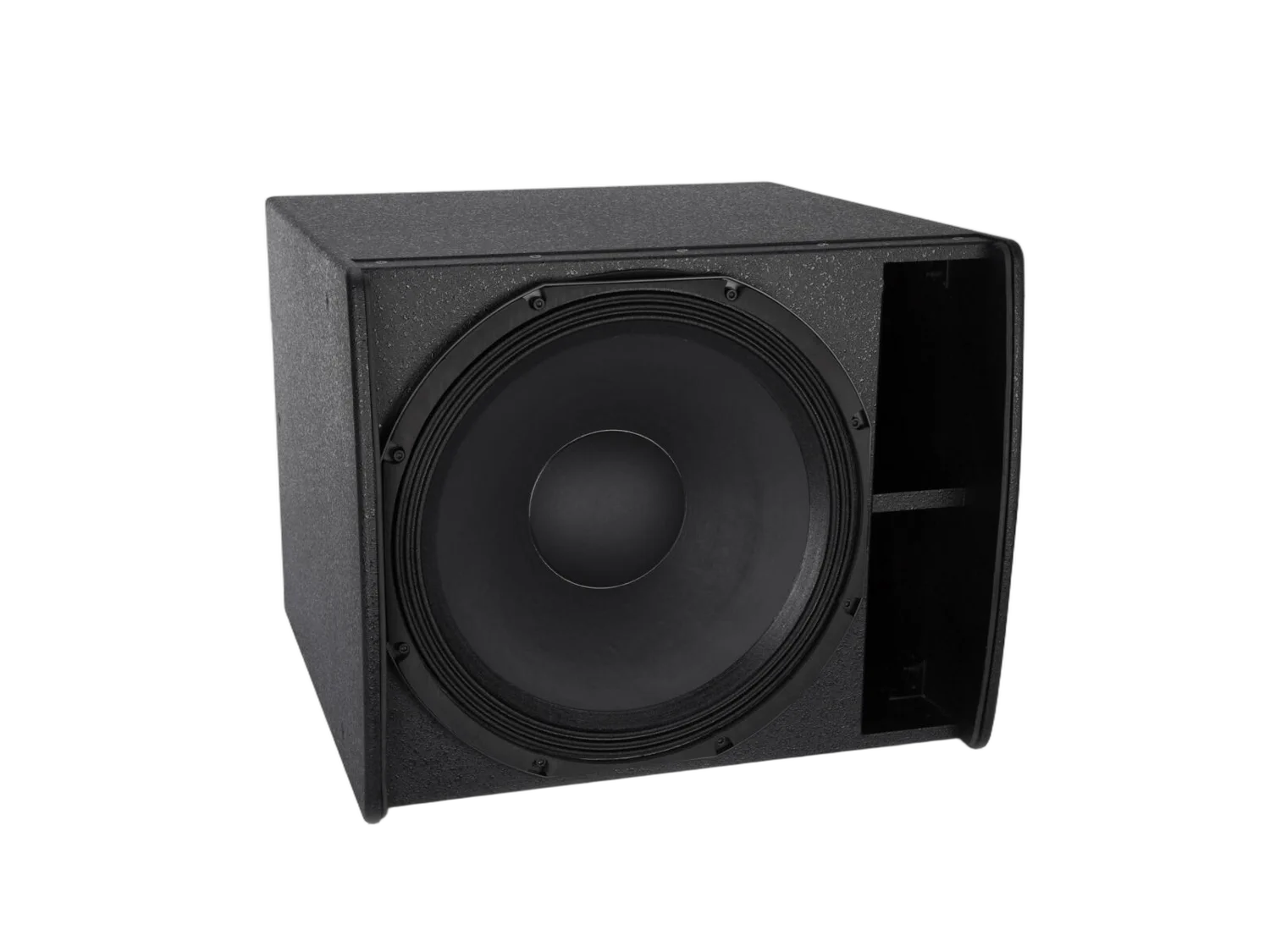

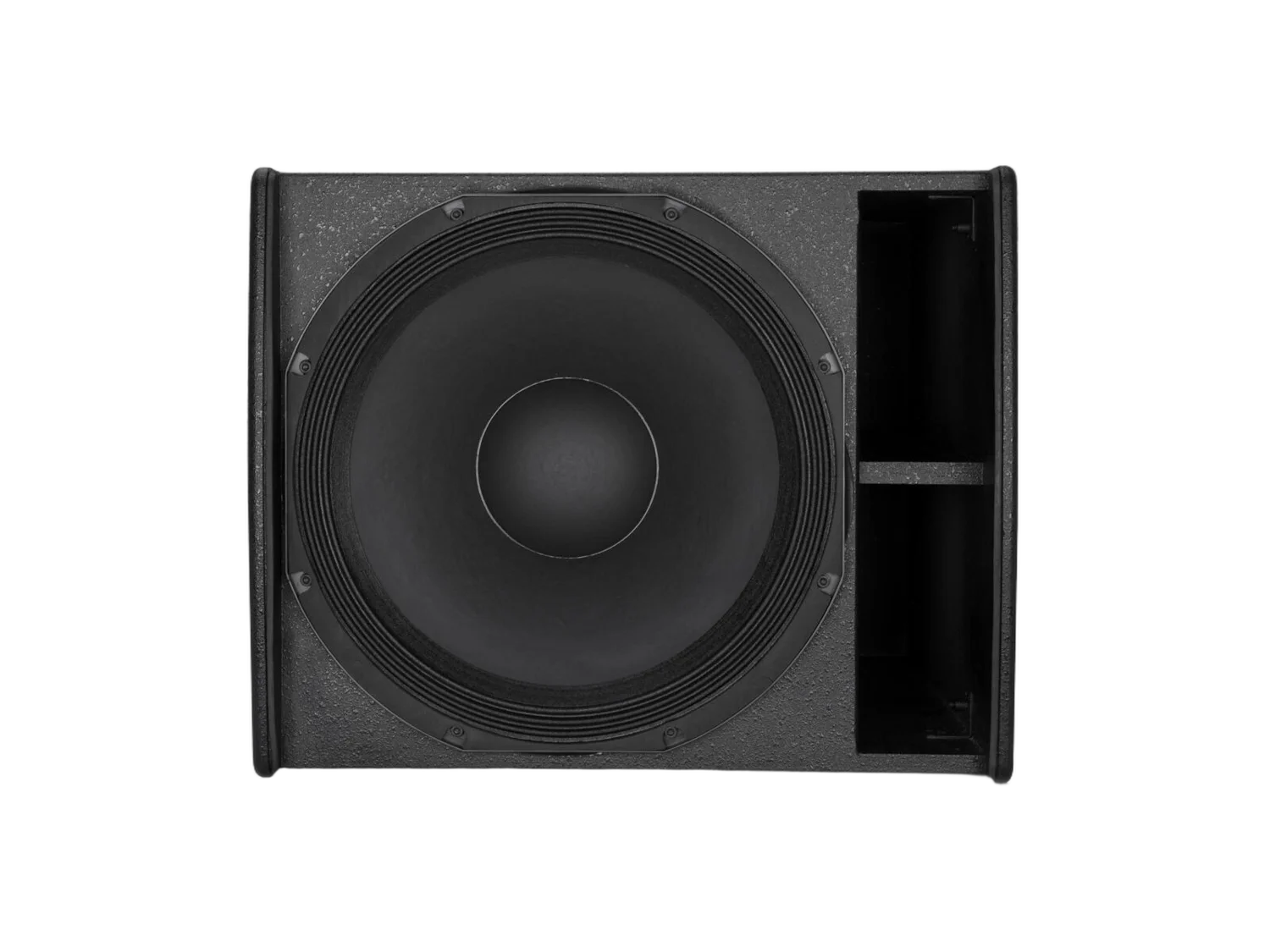

iFIX17S G2
Impressive ultra compact sub with 17.5" woofer
The iFIX17S G2 is a Subwoofer.
- Real 1000W RMS with accurate deep tones

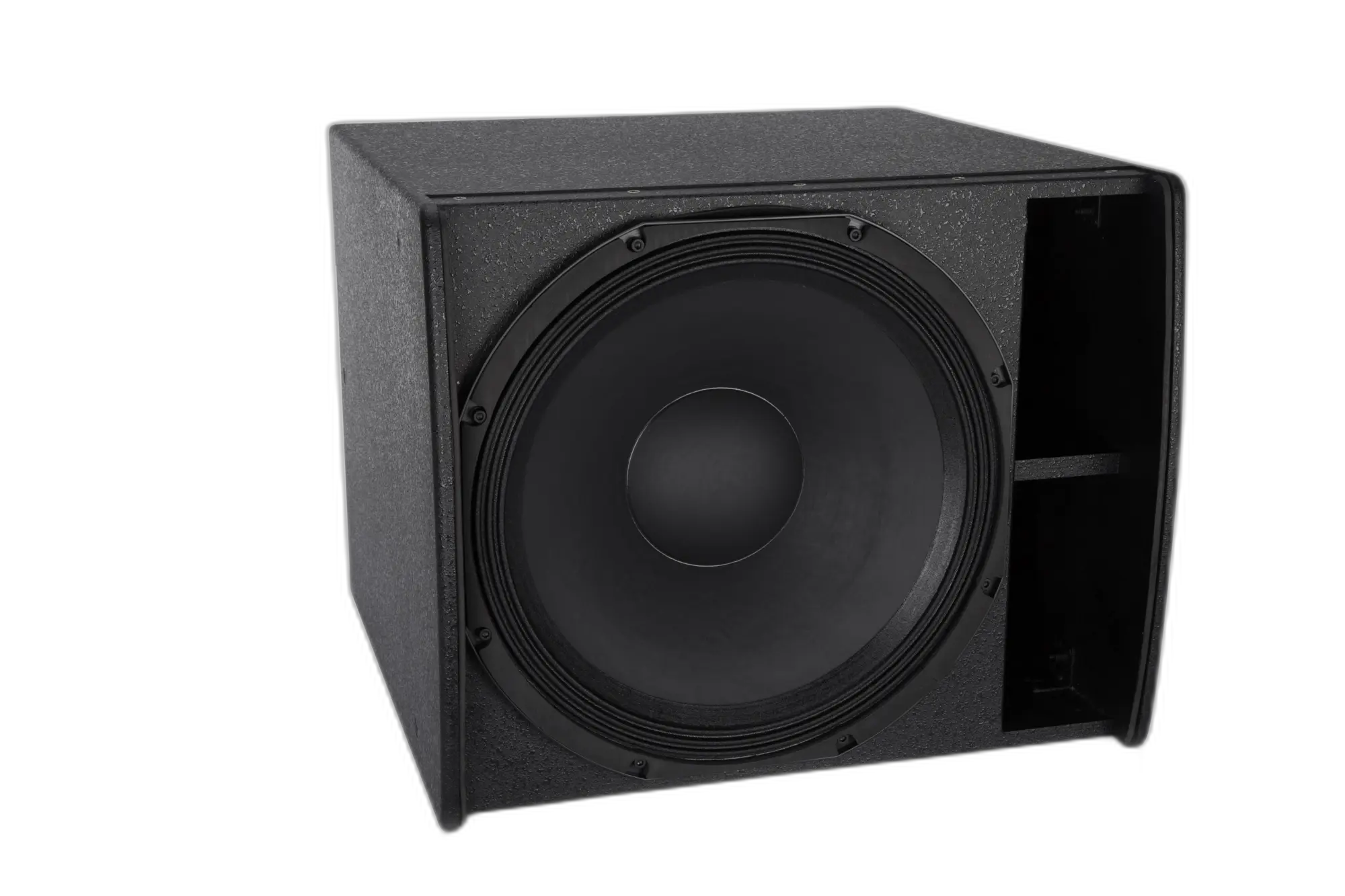

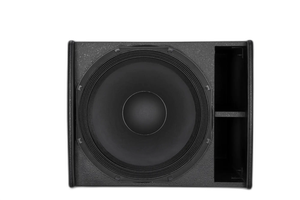

- CELTO woofer with trimmed chassis for ultra compact format
- High Efficiency for incredible SPL to Size ratio
- 6 M8 Flying points for added versatility
- Birch plywood cabinet with smooth texture or varnish finish

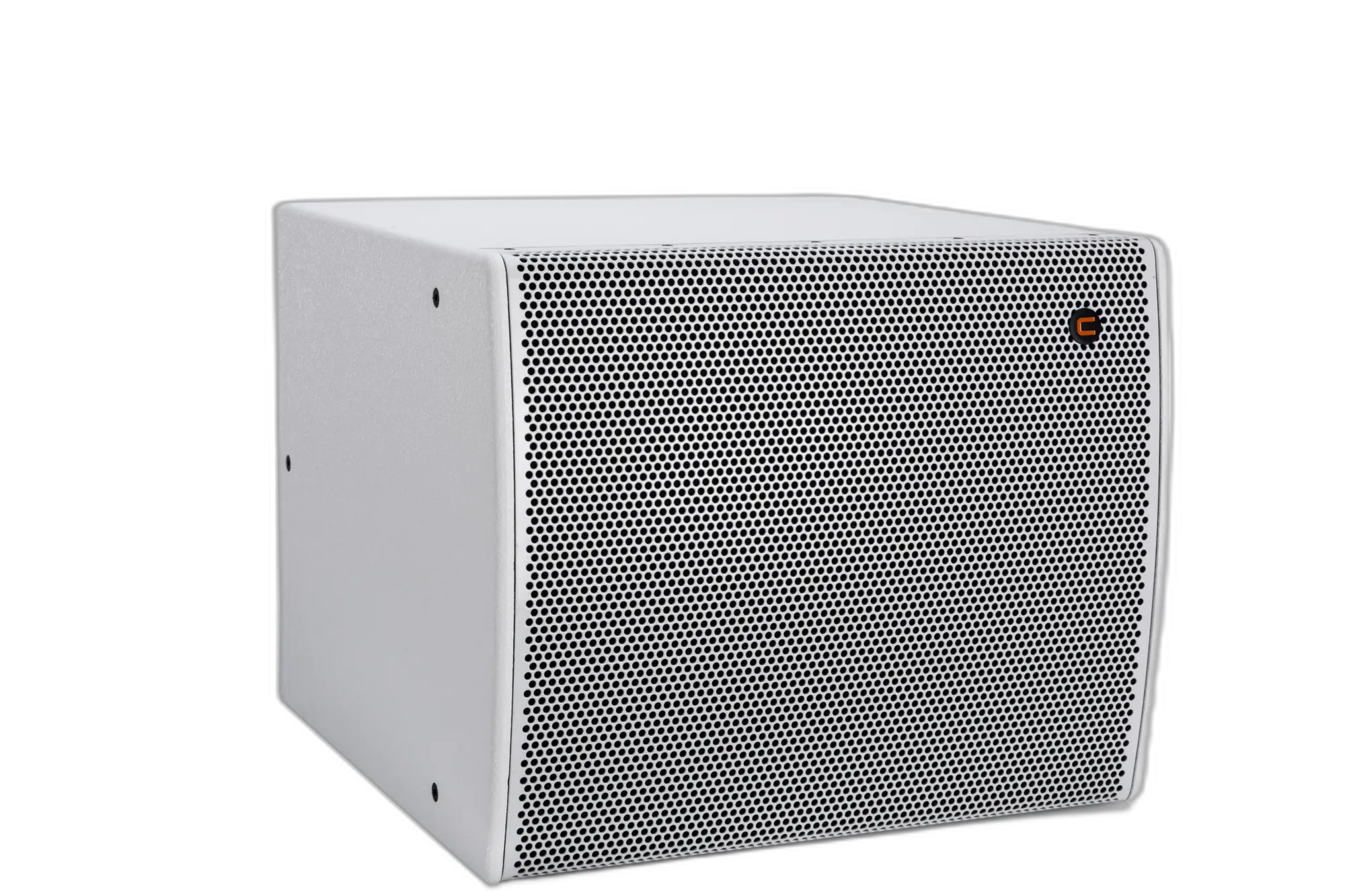

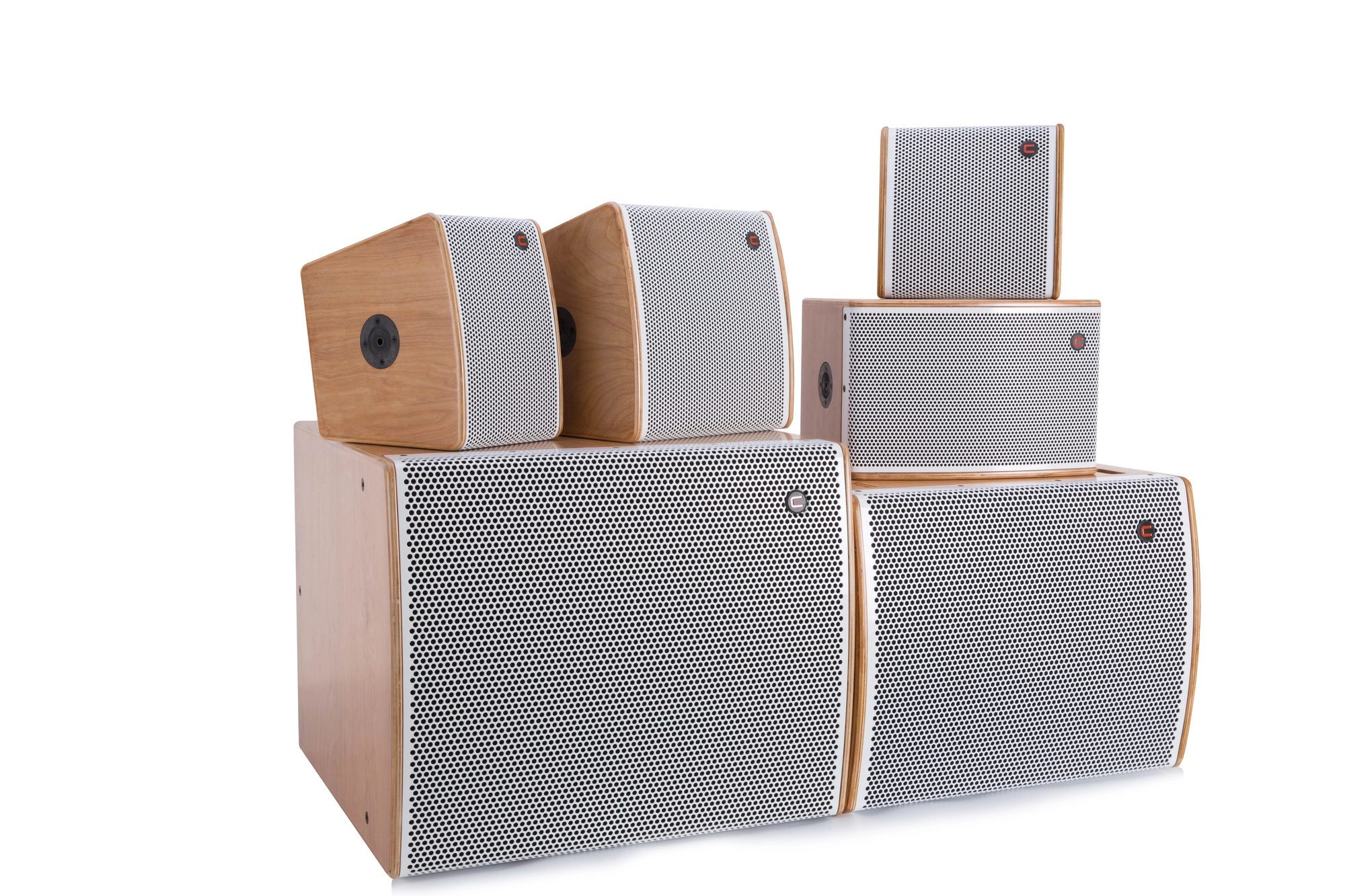

- Available in Black, White, Natural and Oak colors
iFIX17S subwoofer is suitable for bass reinforcement for main PA systems, indoor and outdoor.
View
View
View
View
View
View
View
View
Technical specifications
| Speaker type | Sub woofer |
| Power Handling (AES standard) | 800 W RMS / 3200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 126 dB RMS / 132 dB Peak |
| Frequency response (-6 dB with preset) | #N/A |
| Nominal directivity (-6 dB) | Omni in usable range |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware | 8 M8 points |
| Mounting hardware | No |

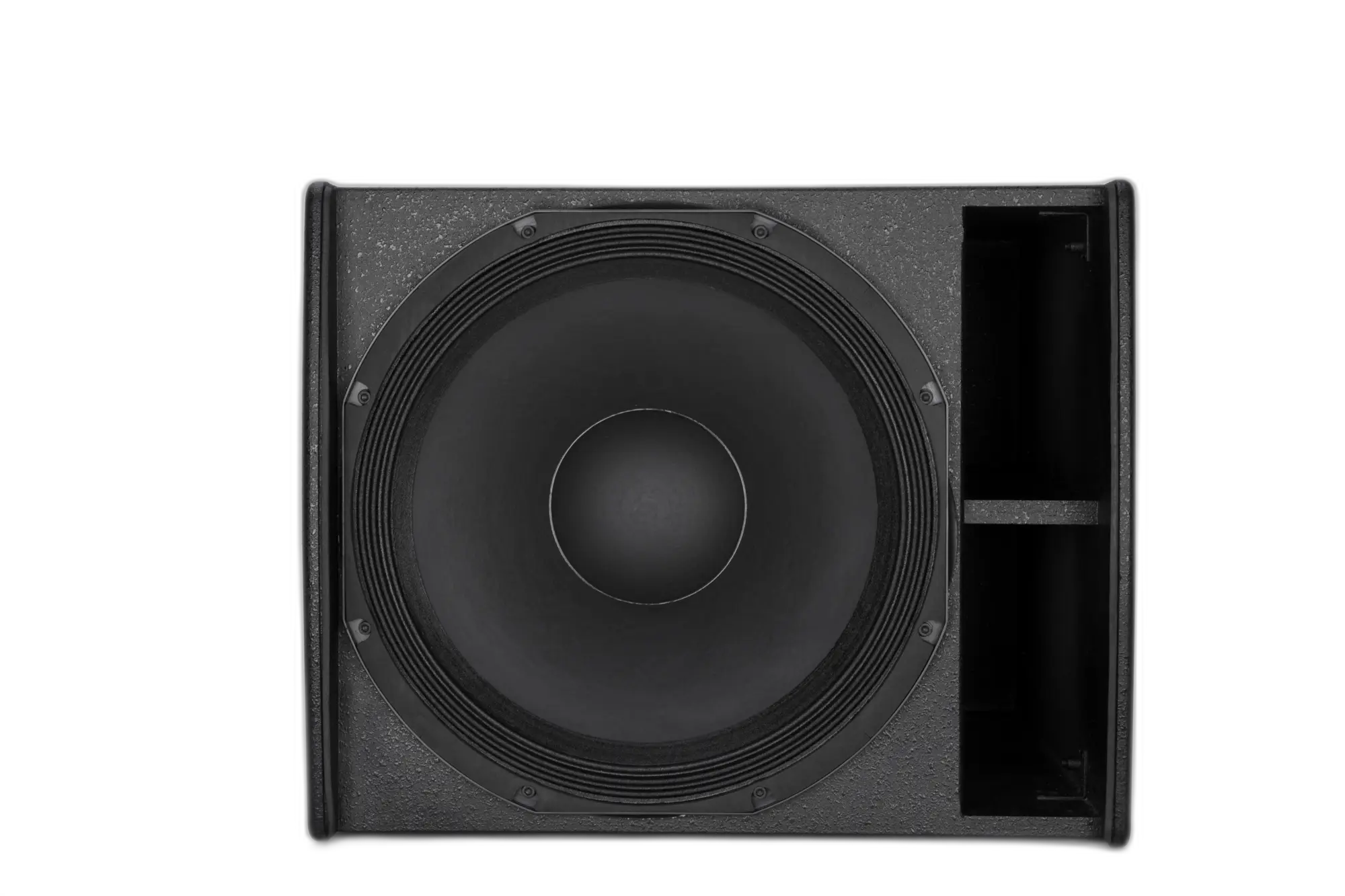

| LF | 15" CELTO 15PF800-8 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 3.6" / 91 mm |
| HF | N / A |
| HF RMS power (AES standard) | Does not apply |
| HF Exit | Does not apply |
| HF Voice coil diameter | Does not apply |
| HF Diaphragm | Does not apply |
| Crossover | No, active mode only |

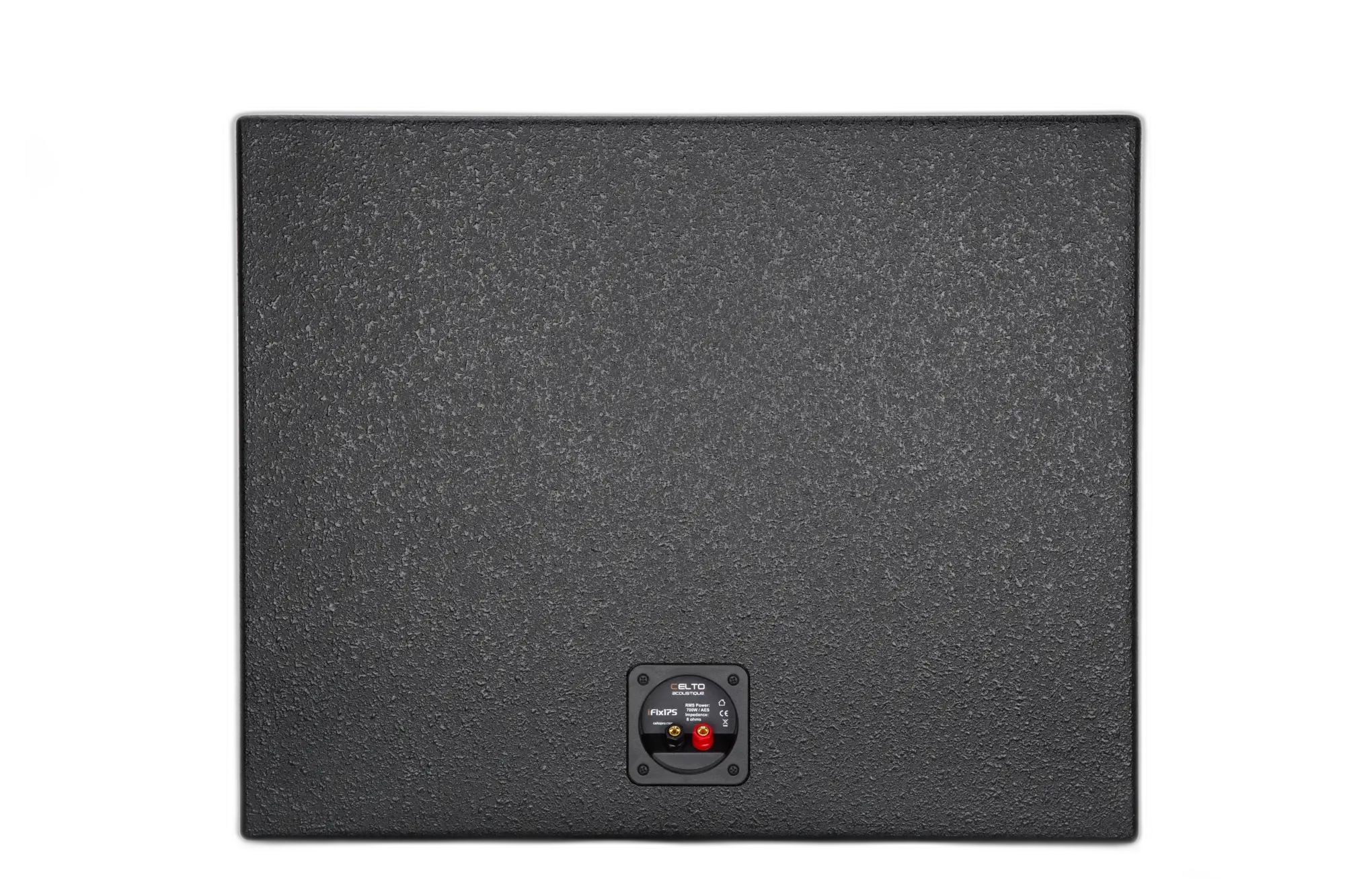

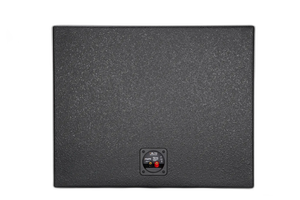

| Connectors |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 415 x 545 x 500 mm |
| Speaker Weight | 25 kg net |
| Shipping information |
30 kg 610 x 530 x 685 mm |
| Accessories |
iFIXG2-BRKT (Installation brackets) Rust-Free Aluninum grill |
We talk about it
See iFIX17S G2 in action
Kiki’s Alexandria
July 11, 2025
Egypt,
Installation,
Outside,
Case Studies

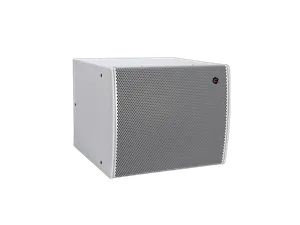

iFIX13S G2
