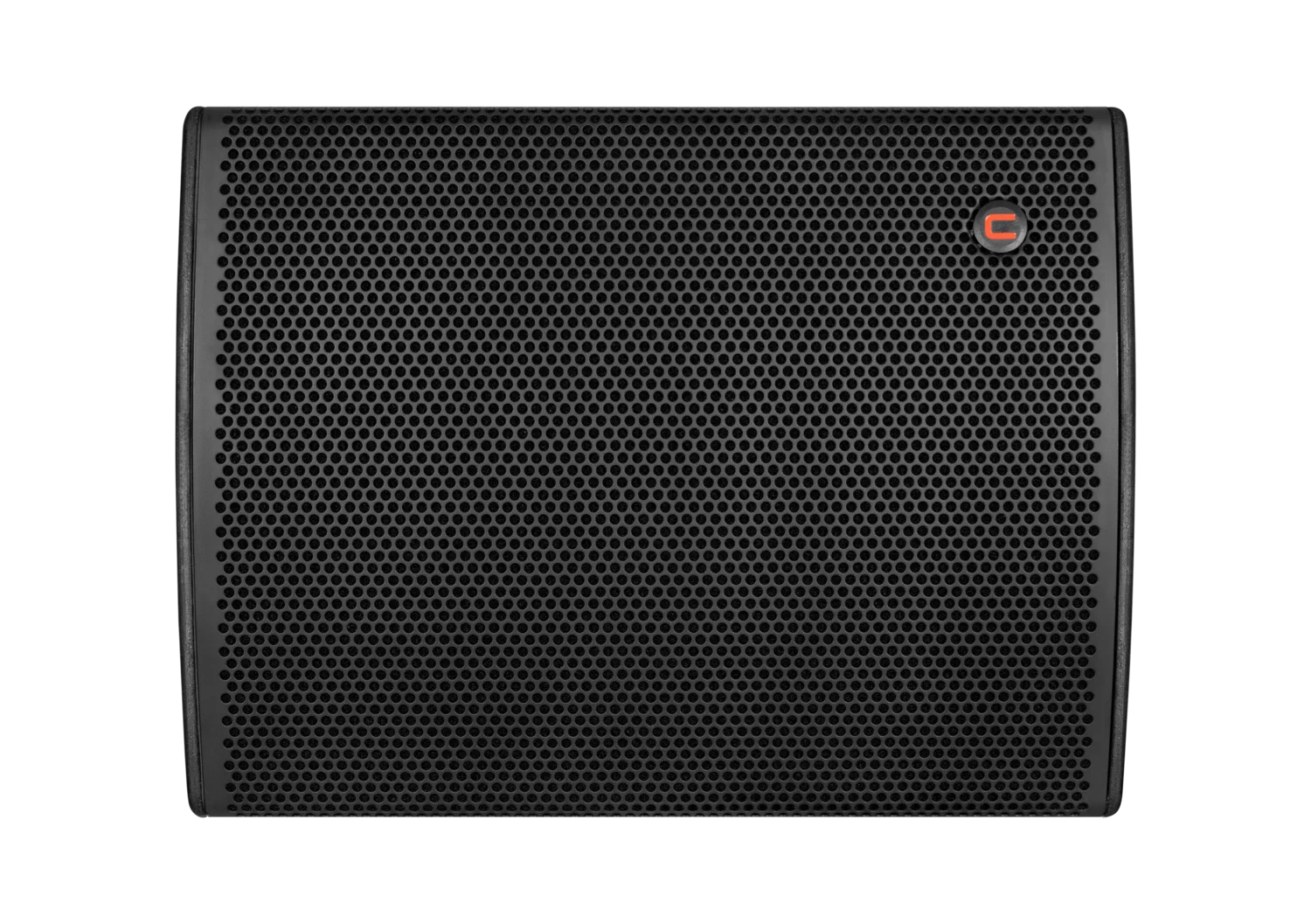

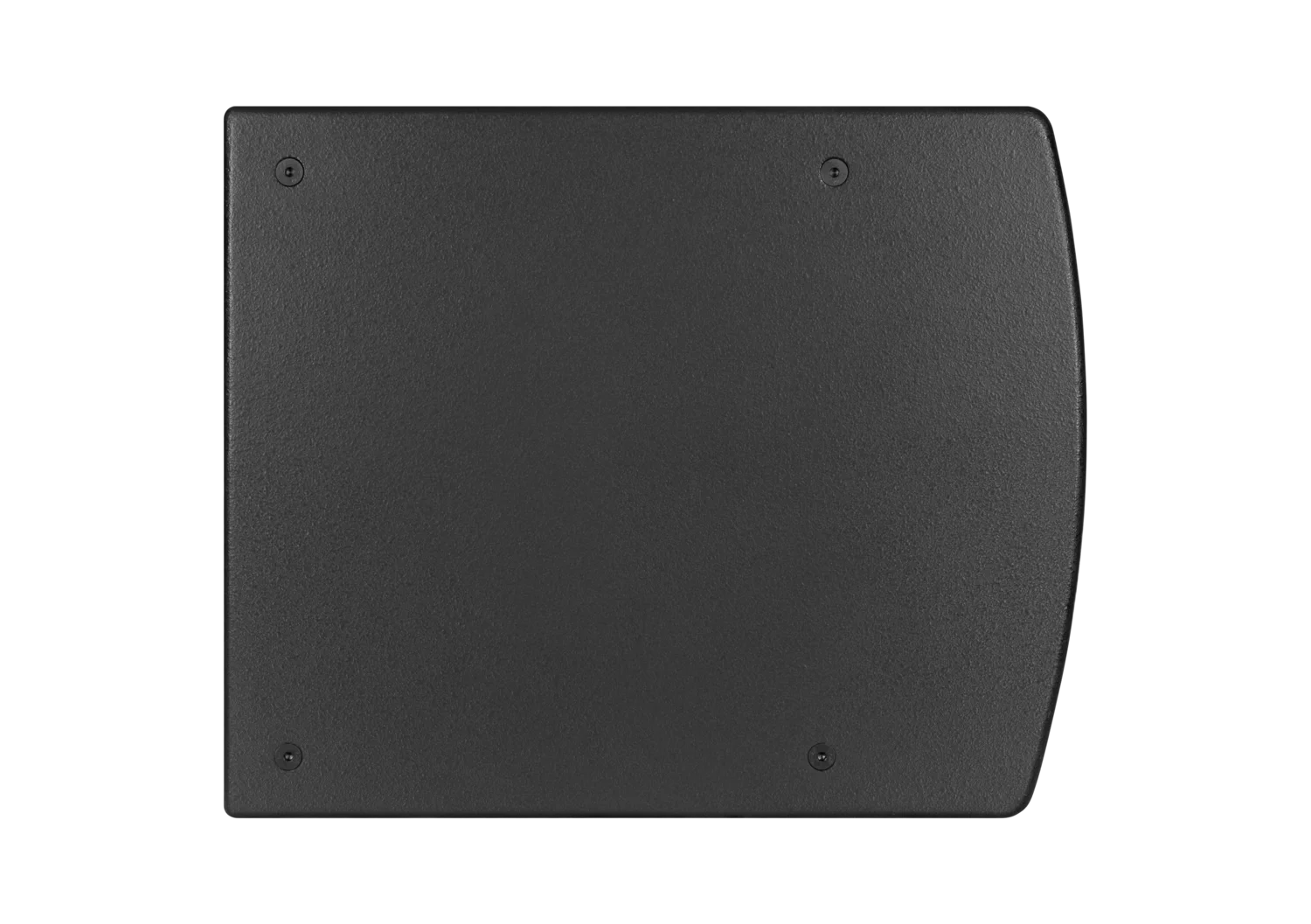

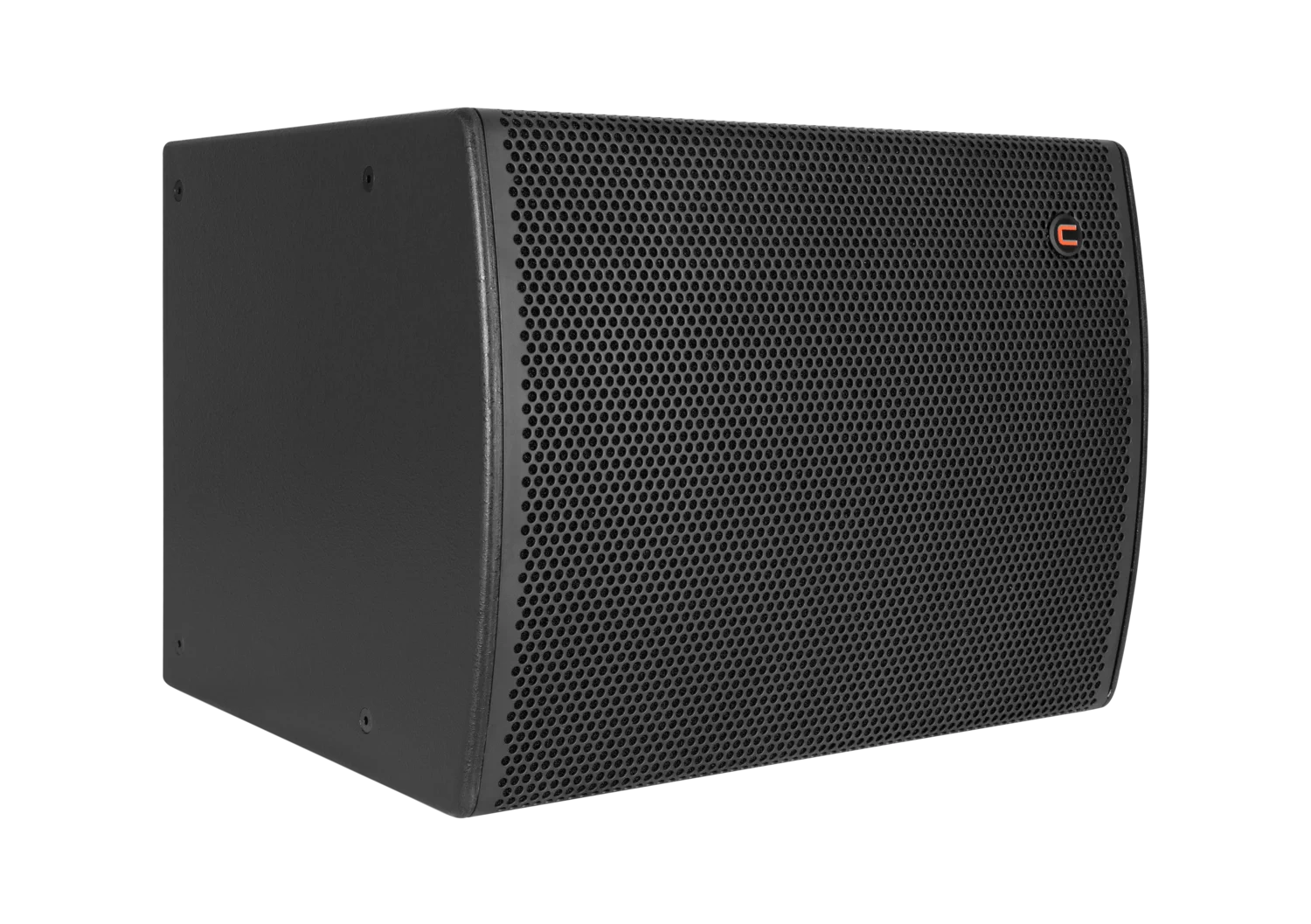

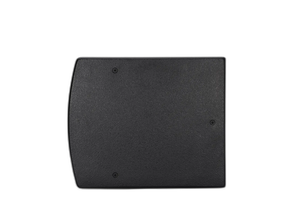

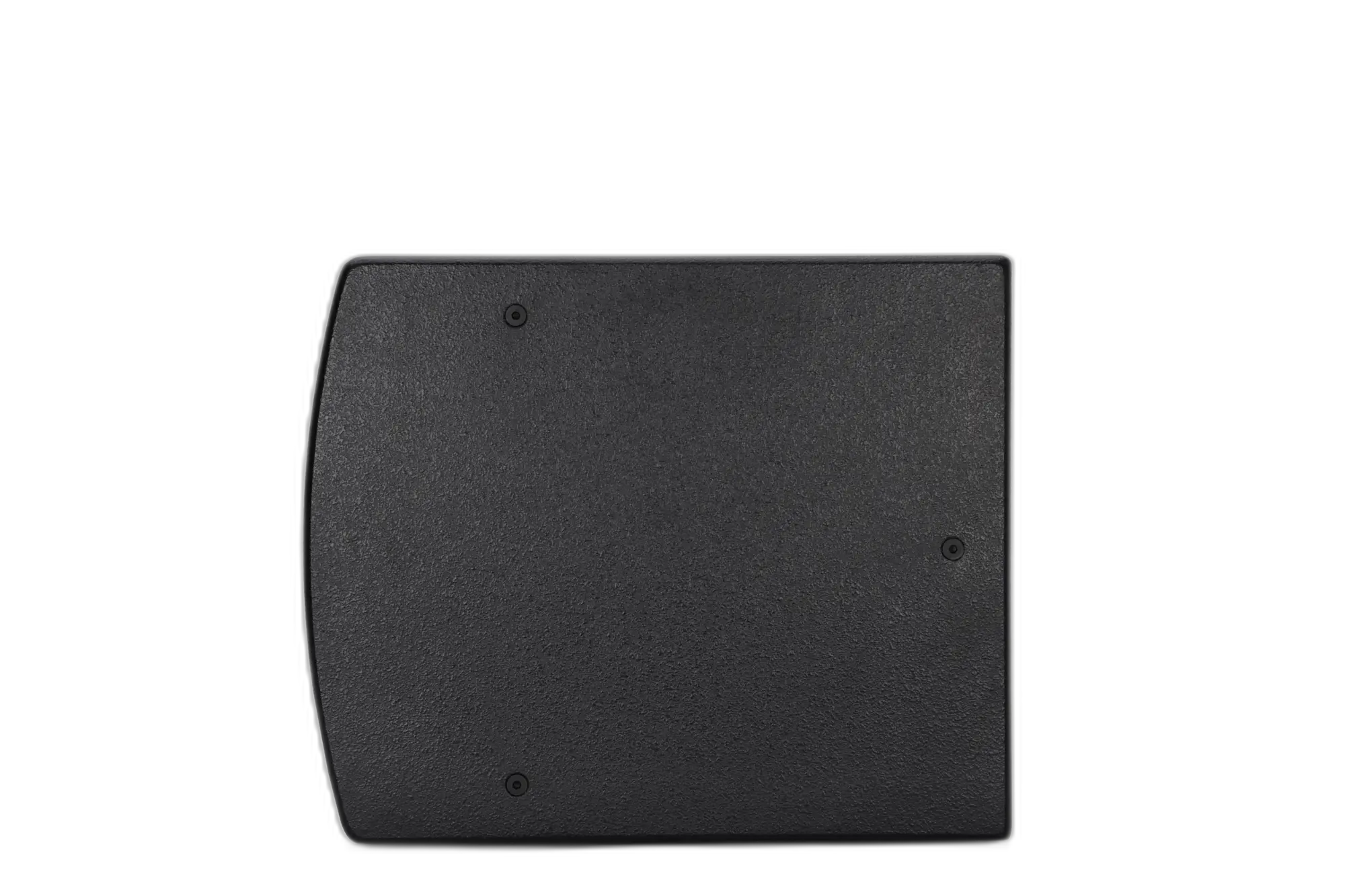

iFIX 13S G2

Deep Bass. Discreet Presence.

Installation Subwoofers iFIX Gen 2

Where to buy

Description

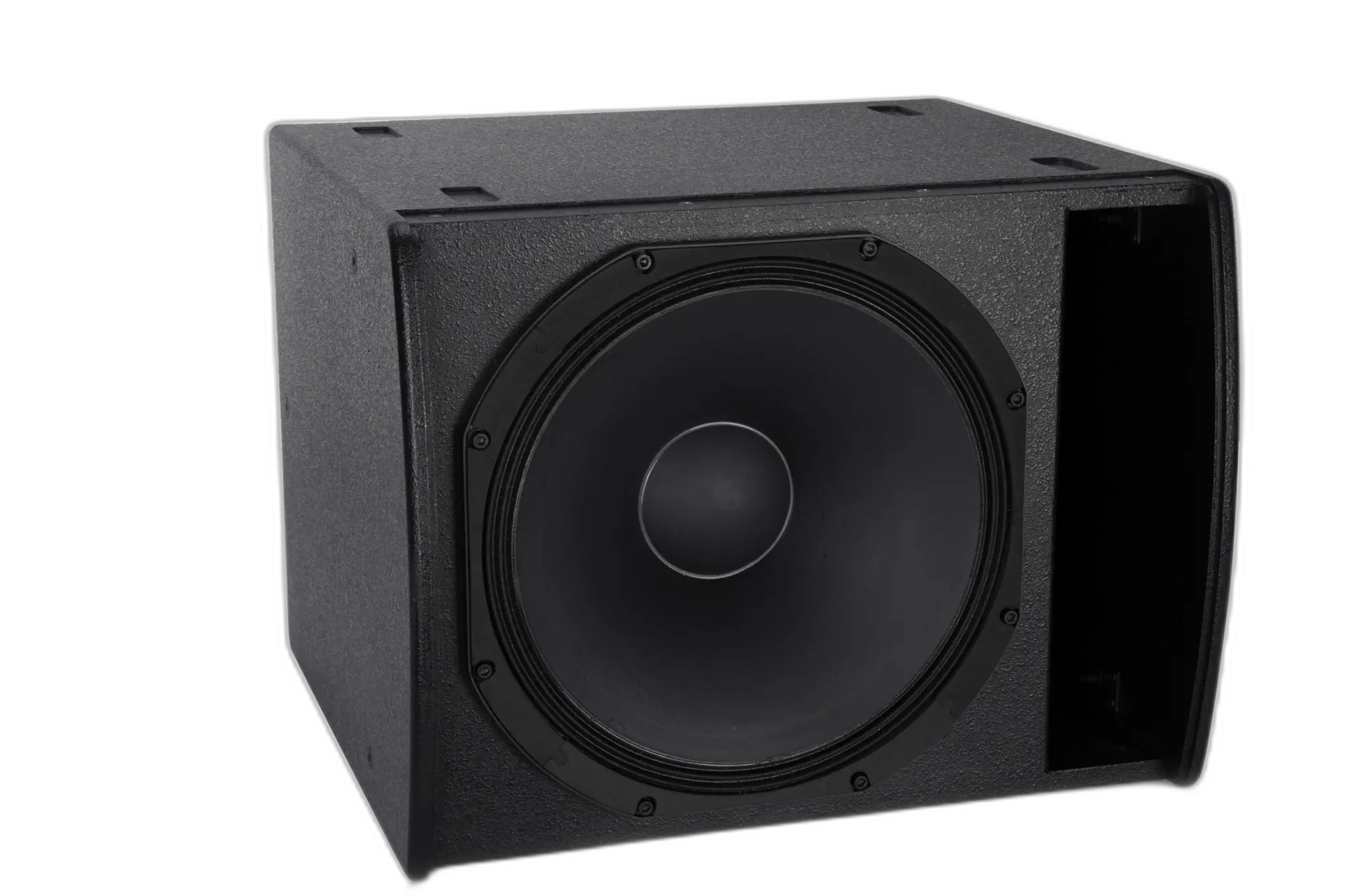

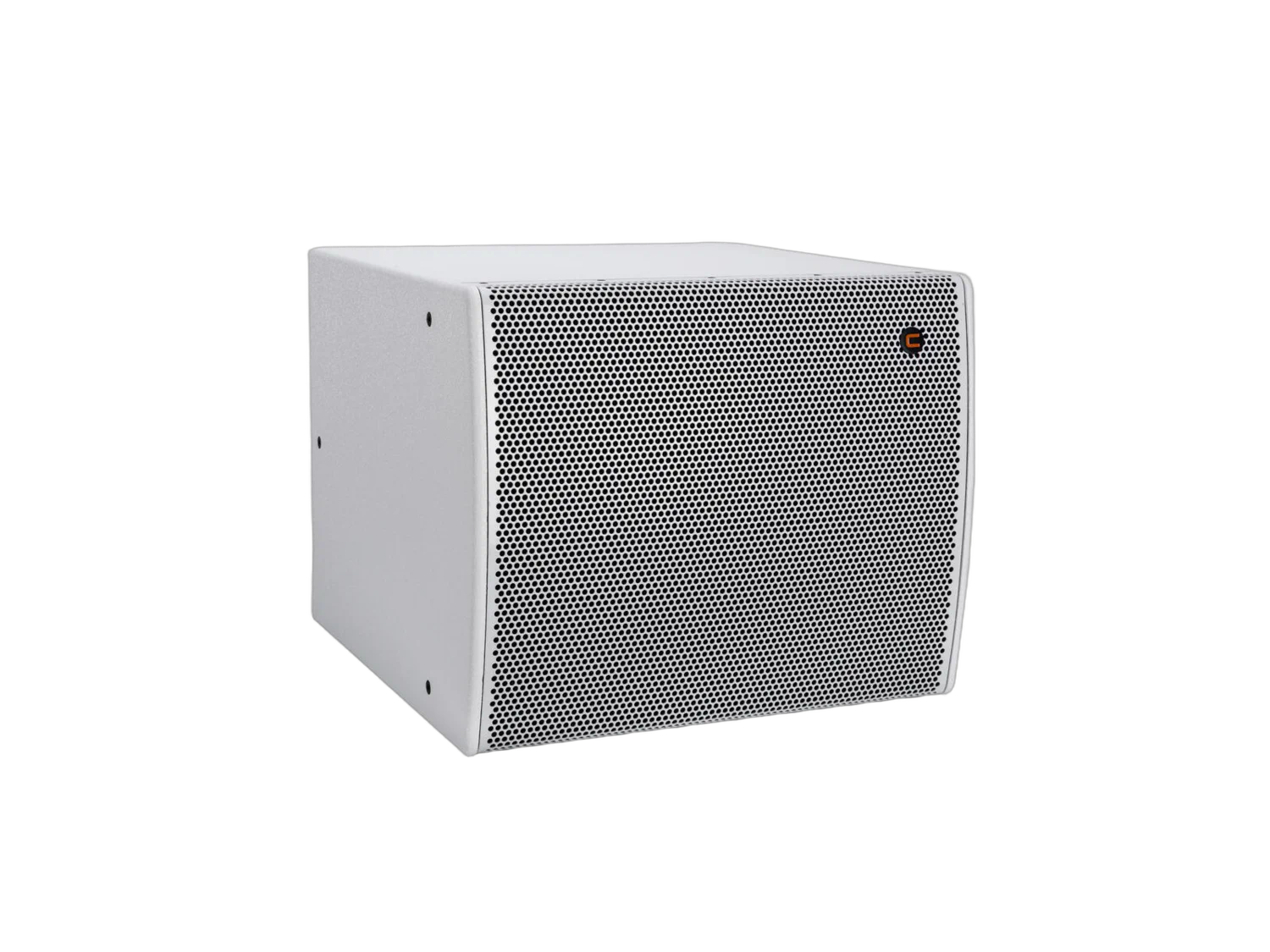

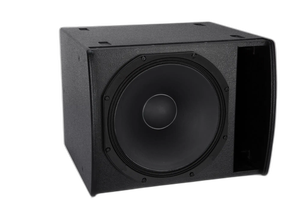

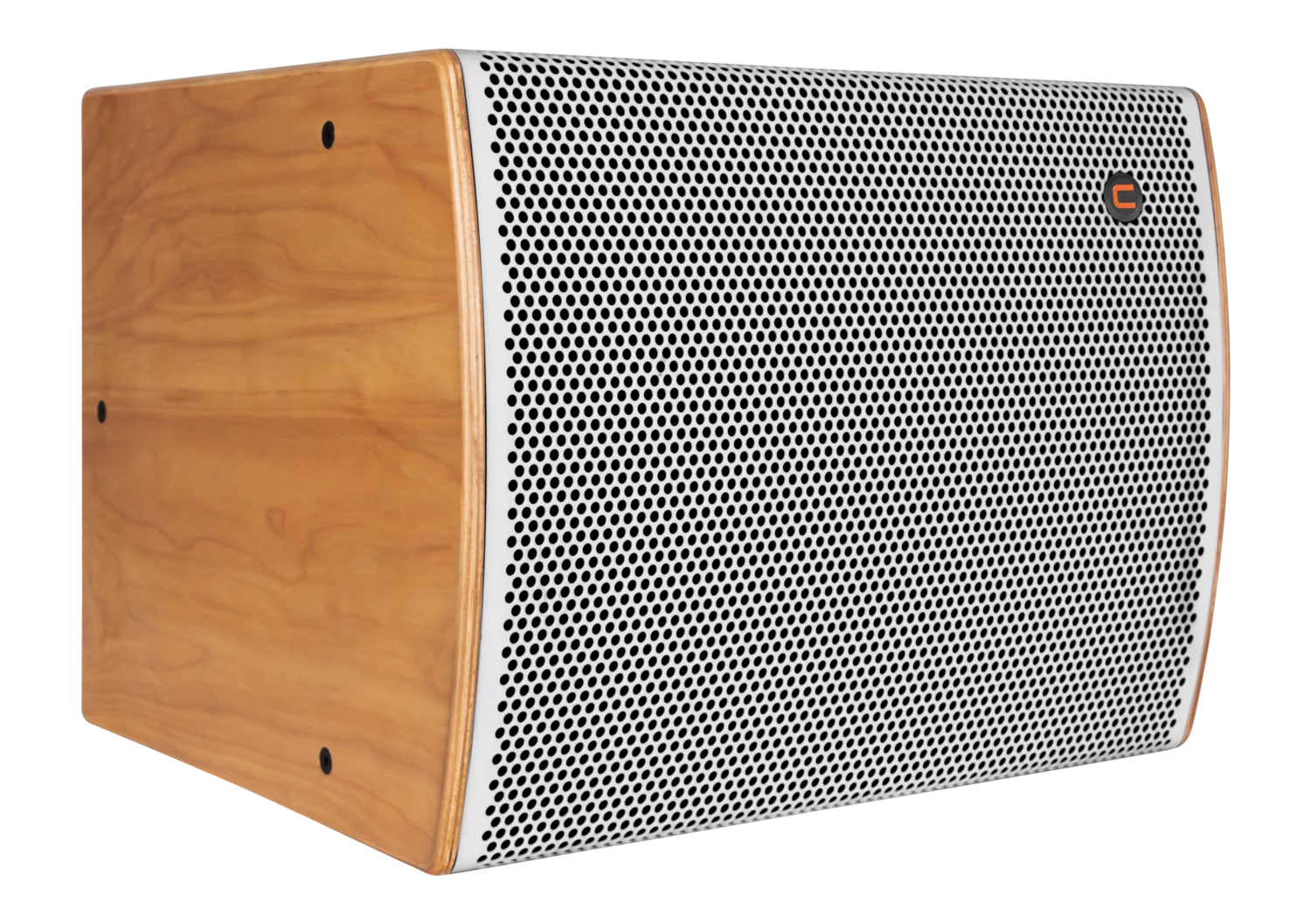

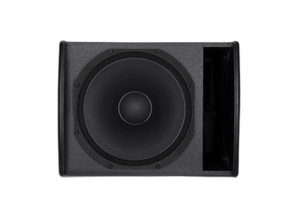

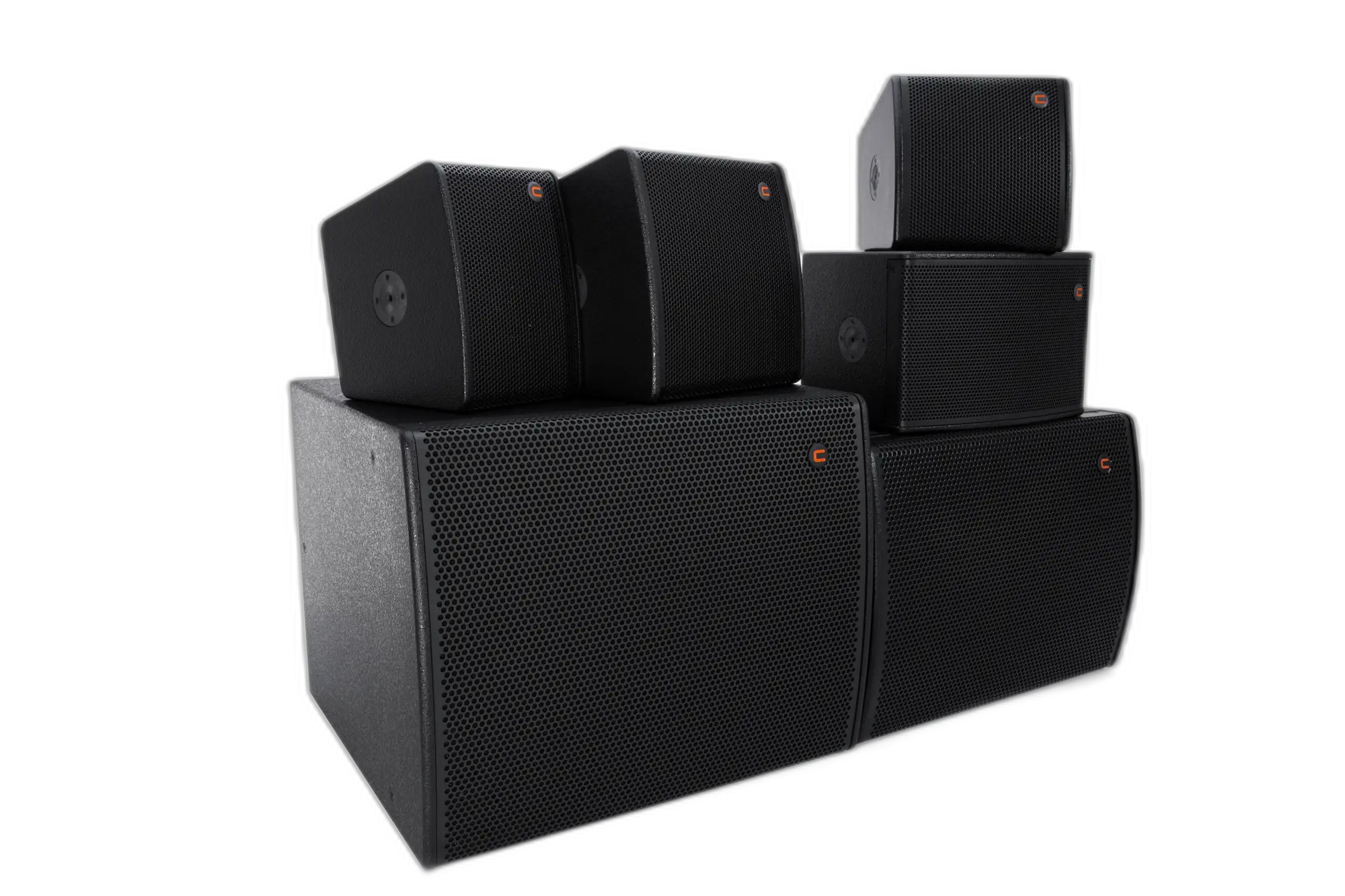

Compact yet commanding—the CELTO Acoustique iFIX13S subwoofer delivers a genuine 800W RMS of deep, accurate bass extension. Designed as the perfect low-frequency companion for the iFIX full-range series in permanent installations. Ideal for reinforcing main PA systems in nightclubs, multifunctional rooms, pubs, restaurants, theatres, and outdoor-capable setups. Its custom 13.5" woofer with trimmed chassis achieves remarkable output in an ultra-compact cabinet. High efficiency yields an impressive SPL-to-size ratio with tight, musical low-end down to 42 Hz. Six M8 flying points offer versatile rigging options for wall, ceiling, or stacked configurations. Built from 18 mm birch plywood and available in black, white, natural wood, or custom colors. Reaching 131 dB peak SPL with 97 dB sensitivity, it provides authoritative bass without overwhelming the space. The iFIX13S G2 proves that powerful low end can be both discreet and devastatingly effective.

Key Features

Real 800W RMS with accurate deep tones
CELTO trimmed chassis for ultra compact format
High Efficiency for incredible SPL to Size ratio
6 M8 Flying points for added versatility

Applications

Installation Sound Architecture

Technical specifications

Speaker type	Subwoofer
Power Handling (AES standard)	800 W RMS / 3200 W Peak
Nominal impedance	8 ohms
Average sensitivity	97 dB / 1 W / 1 m
Maximum SPL (calculated)	126 dB RMS / 132 dB Peak
Frequency response (-6 dB no preset)	42~1500 Hz
Nominal directivity (-6 dB)	Omni in usable range
Cabinet	Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish	Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use	No
Flying hardware	8 M8 points
Mounting hardware	No

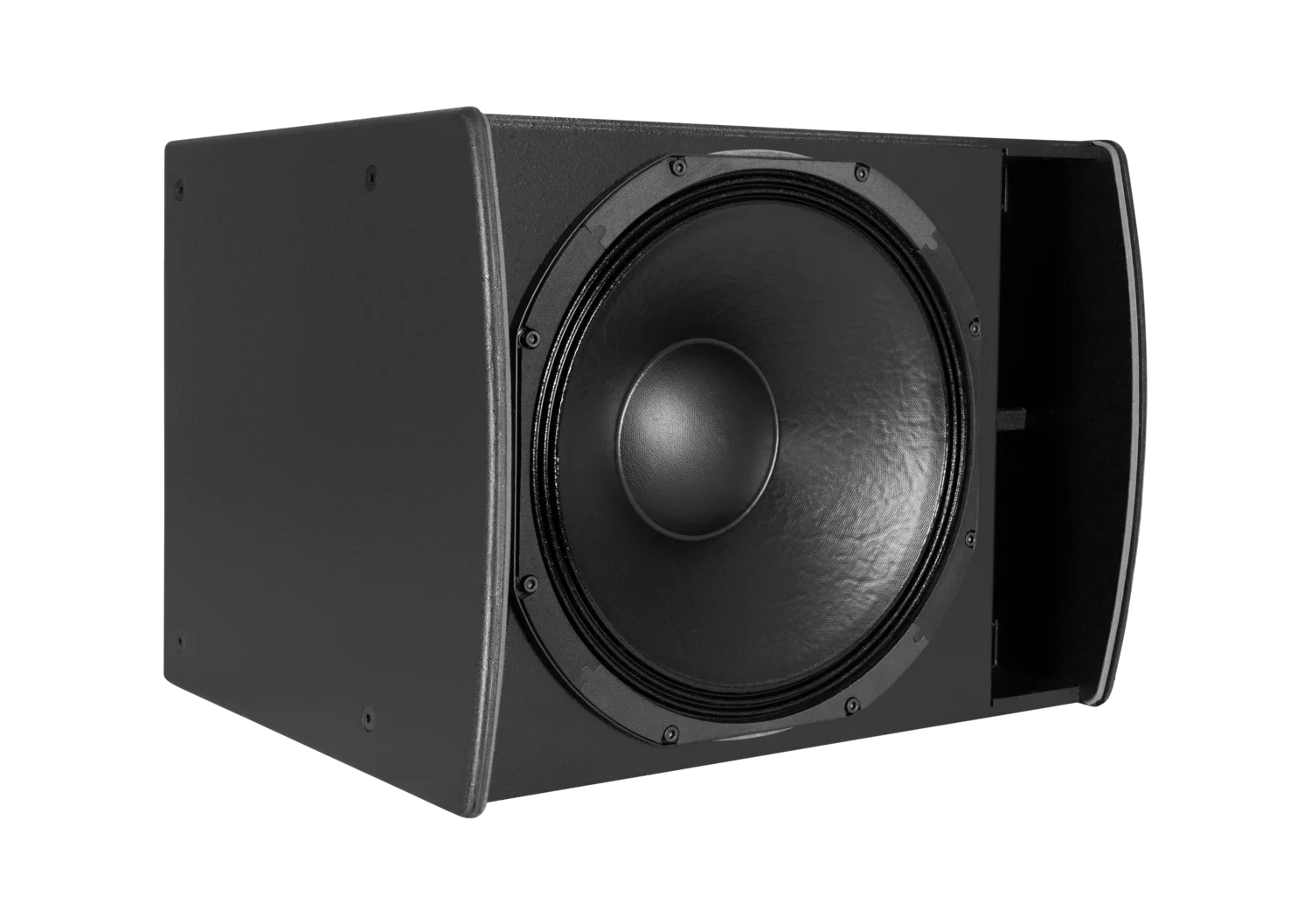

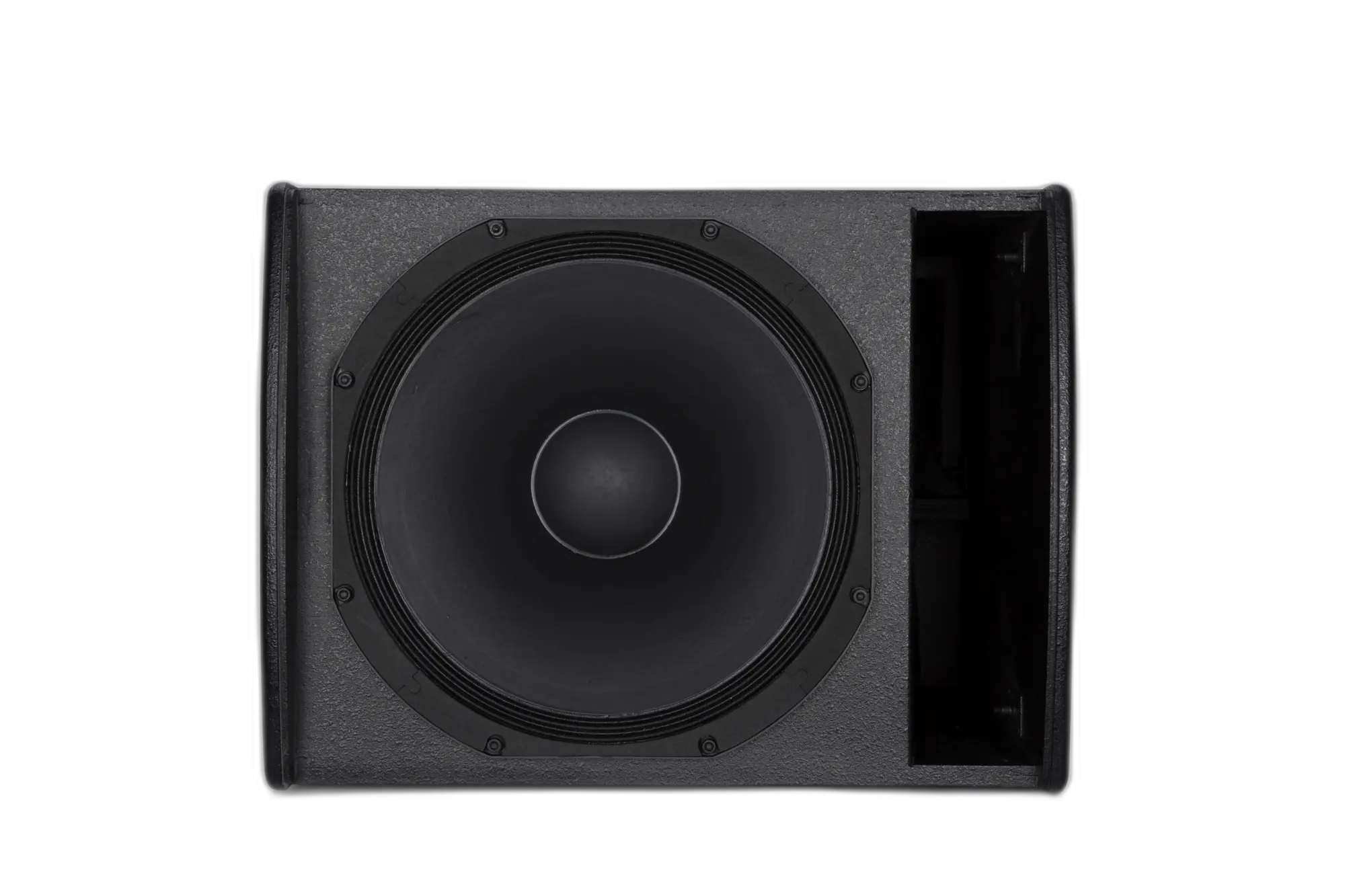

LF	15" CELTO 15PF800-8
Woofer Chassis	Die Cast Aluminium
Woofer Voice coil diameter	3.6" / 91 mm
Crossover	No, active mode only

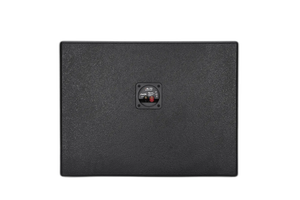

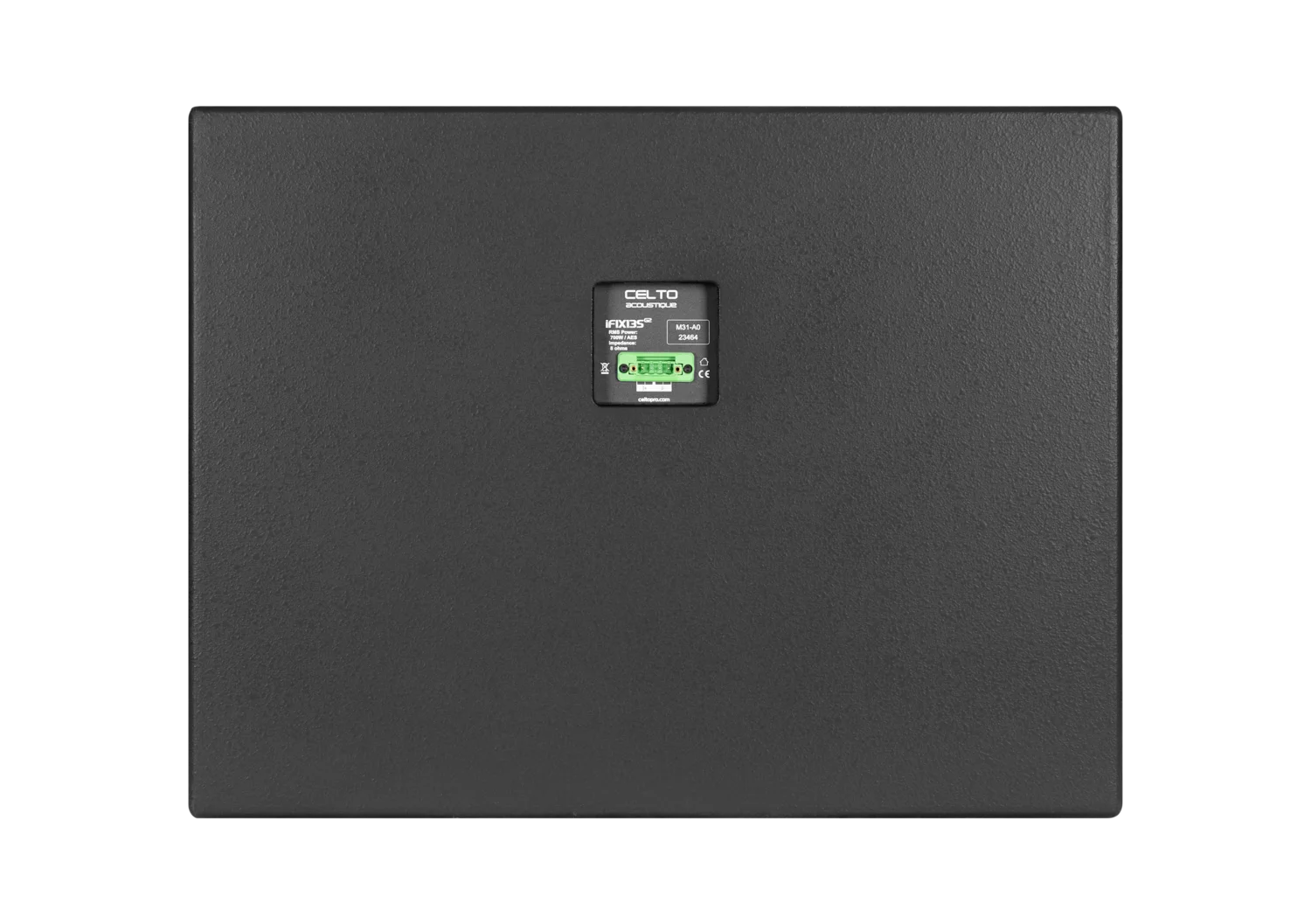

Connectivity	PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD)	415 x 545 x 500 mm
Speaker Weight	25 kg net
Shipping information	30 kg 610 x 530 x 685 mm
Accessories	iFIXG2-BRKT (Installation brackets) Rust-Free Aluminum grill
