Description

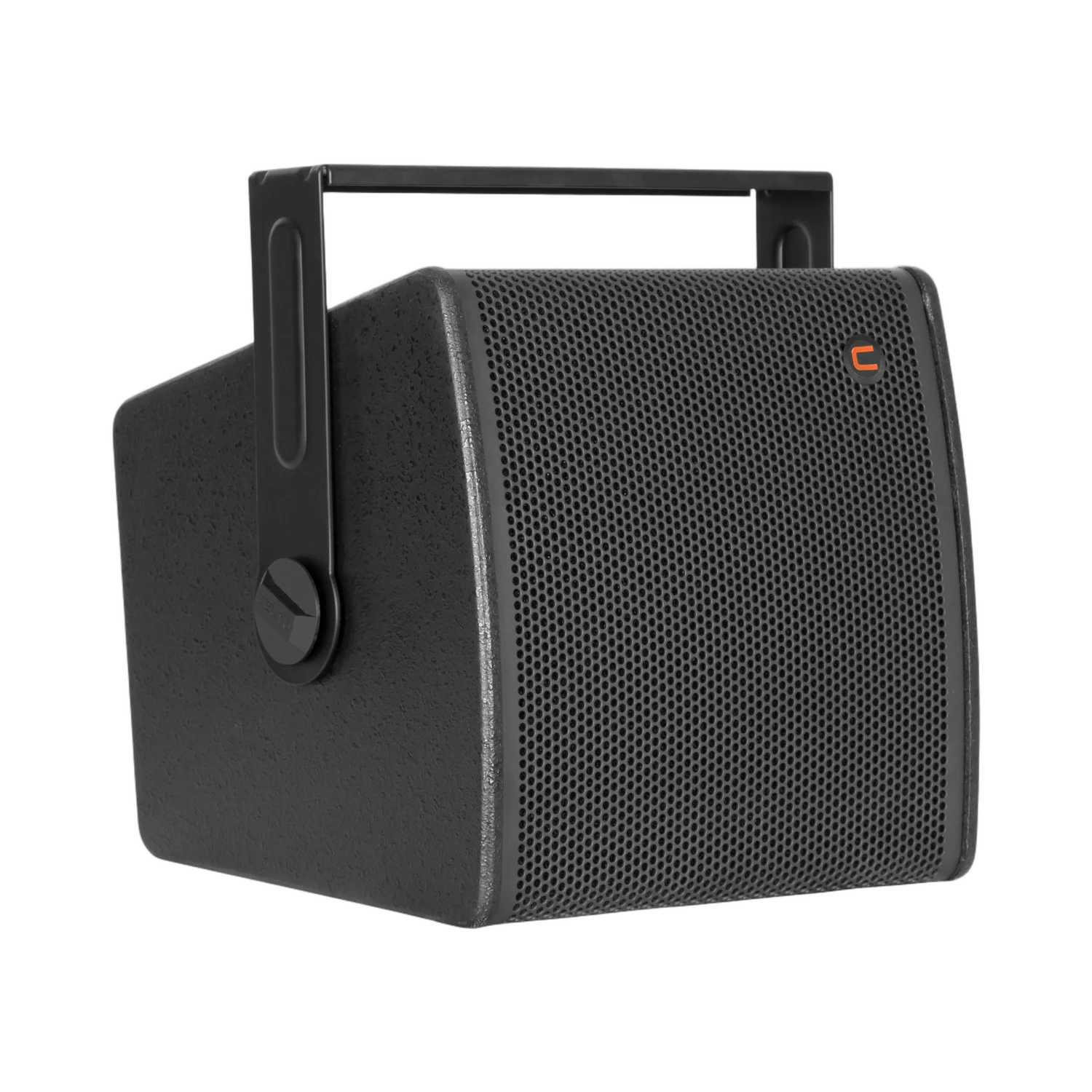

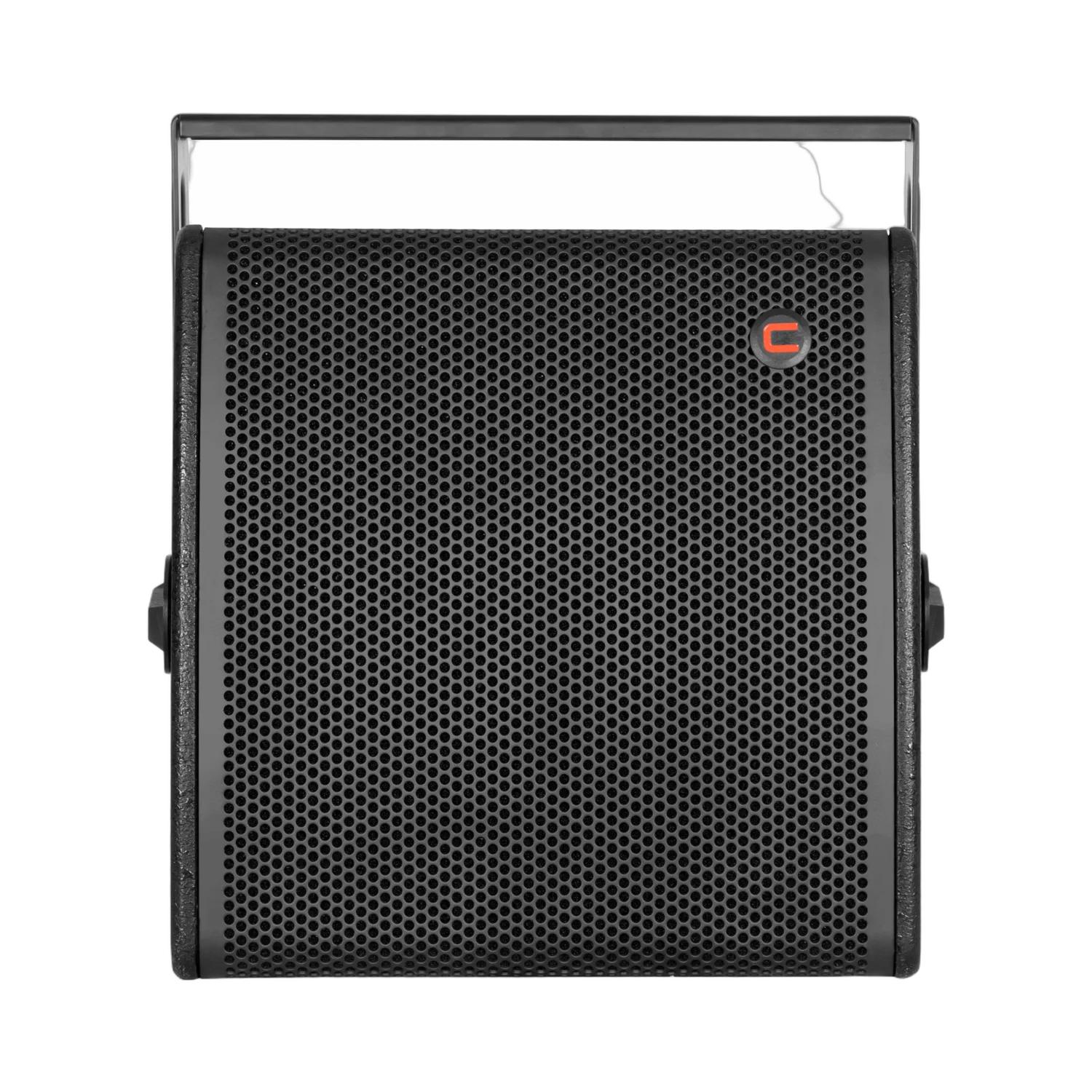

Big sound in an astonishingly small package—the CELTO Acoustique iFIX10 G2 packs a serious 300W RMS for uncompromising performance.
This high-output coaxial loudspeaker excels in near-field PA applications when combined with a dedicated subwoofer.
Perfect for high-energy venues including nightclubs, bars, restaurants, theatres, auditoriums, and foreground music systems.
Next-generation 10" coaxial driver with HSP annular ring radiator HF delivers extraordinary efficiency and tonal accuracy.
Audiophile crossover with Right-Phase topology provides flawless phase coherence and wide, even coverage.

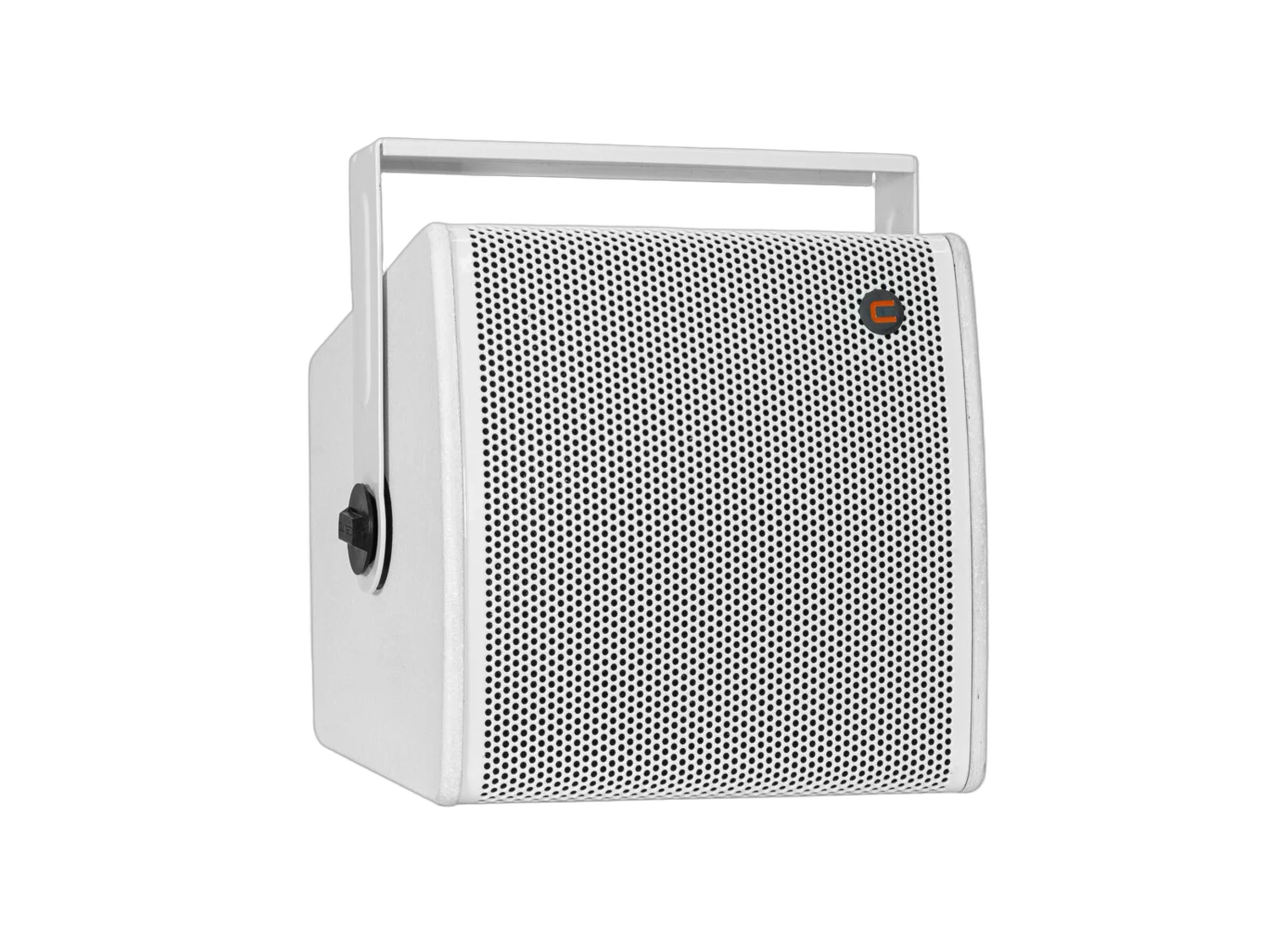

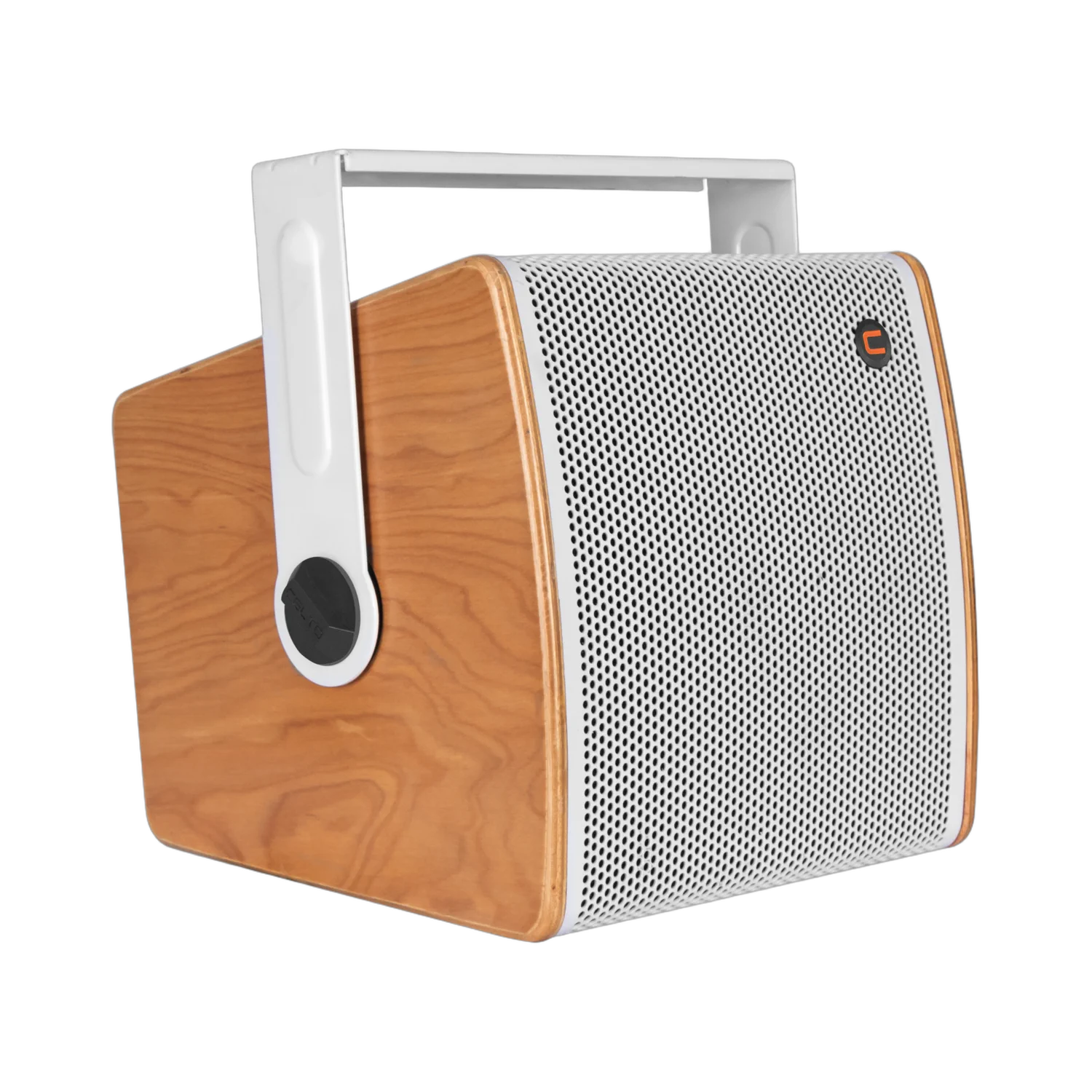

Premium birch plywood construction available in black, white, natural, or custom RAL finishes for discreet integration.

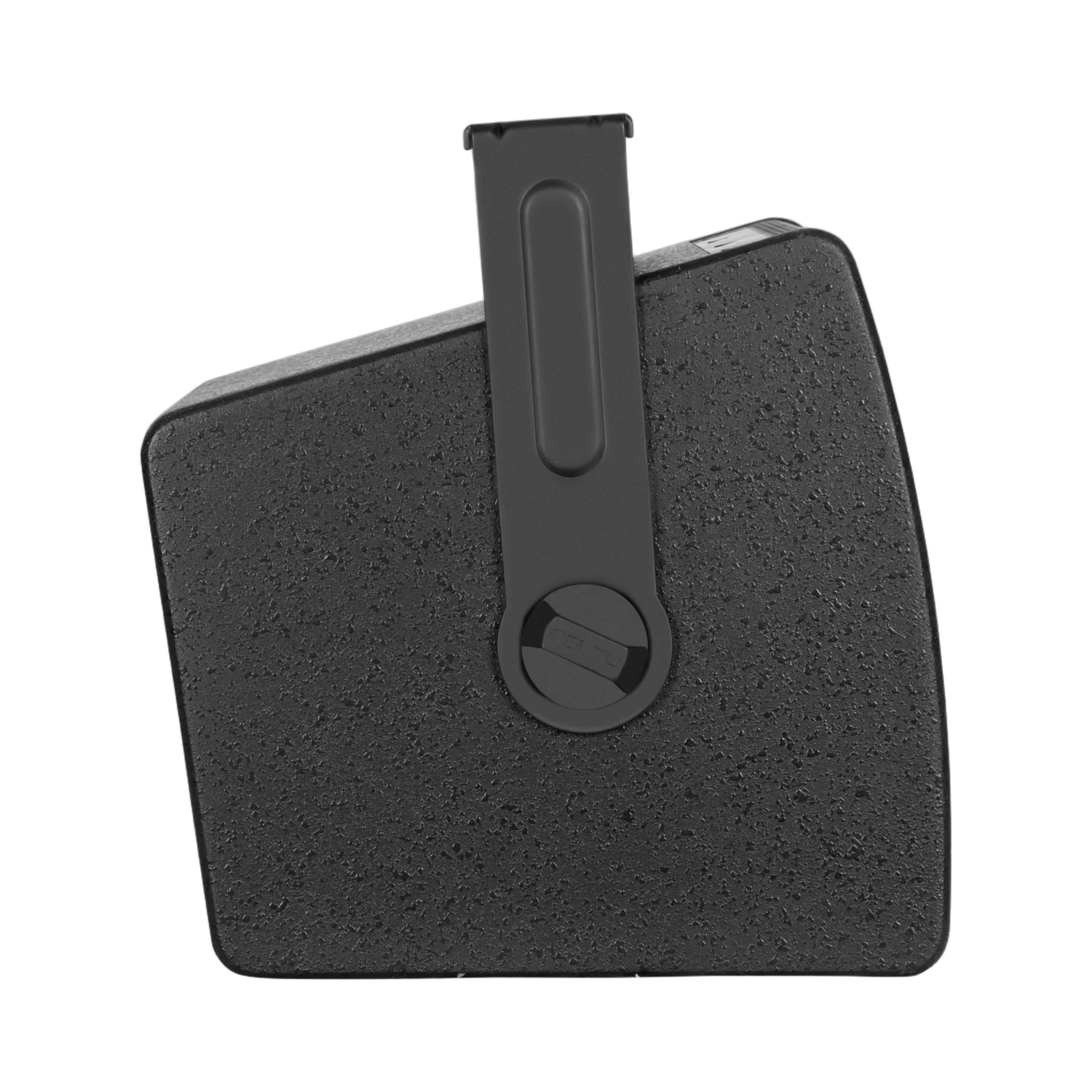

Supplied with multi-function yoke for precise, secure installation angles.
Achieving 97 dB sensitivity and a staggering 128 dB peak SPL, it redefines expectations for compact installations.
When you need authoritative sound without dominating the room visually, the iFIX10 G2 is the sophisticated choice.
Key Features
- Real 300W RMS with high-end sound quality
- High Efficiency for incredible SPL to Size ratio
- Coaxial transducer for unmatched spacial coherence
- Next generation HSP Annular Ring Radiator HF
- Audiophile grade crossover with Right-Phase topology
- Birch plywood cabinet with smooth texture or varnish finish
Applications
Installation
Sound Architecture
Technical specifications
| Speaker type | FIX Install Coaxial Satellite Speaker (must be used with Subwoofer) |
| Power Handling (AES standard) | 300 W RMS / 1200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 122 dB RMS / 128 dB Peak |
| Frequency response (-6 dB no preset) | 95~22000 Hz |
| Nominal directivity (-6 dB) | 80° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware |
Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |
| LF |
10" coaxial CELTO ACOUSTIQUE 10CXF310 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2.5" / 65 mm |
| HF |
CELTO ACOUSTIQUE ACD40 (in coaxial mounting) |
| HF RMS power (AES standard) | 80 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.5 kHz 2-way passive network |

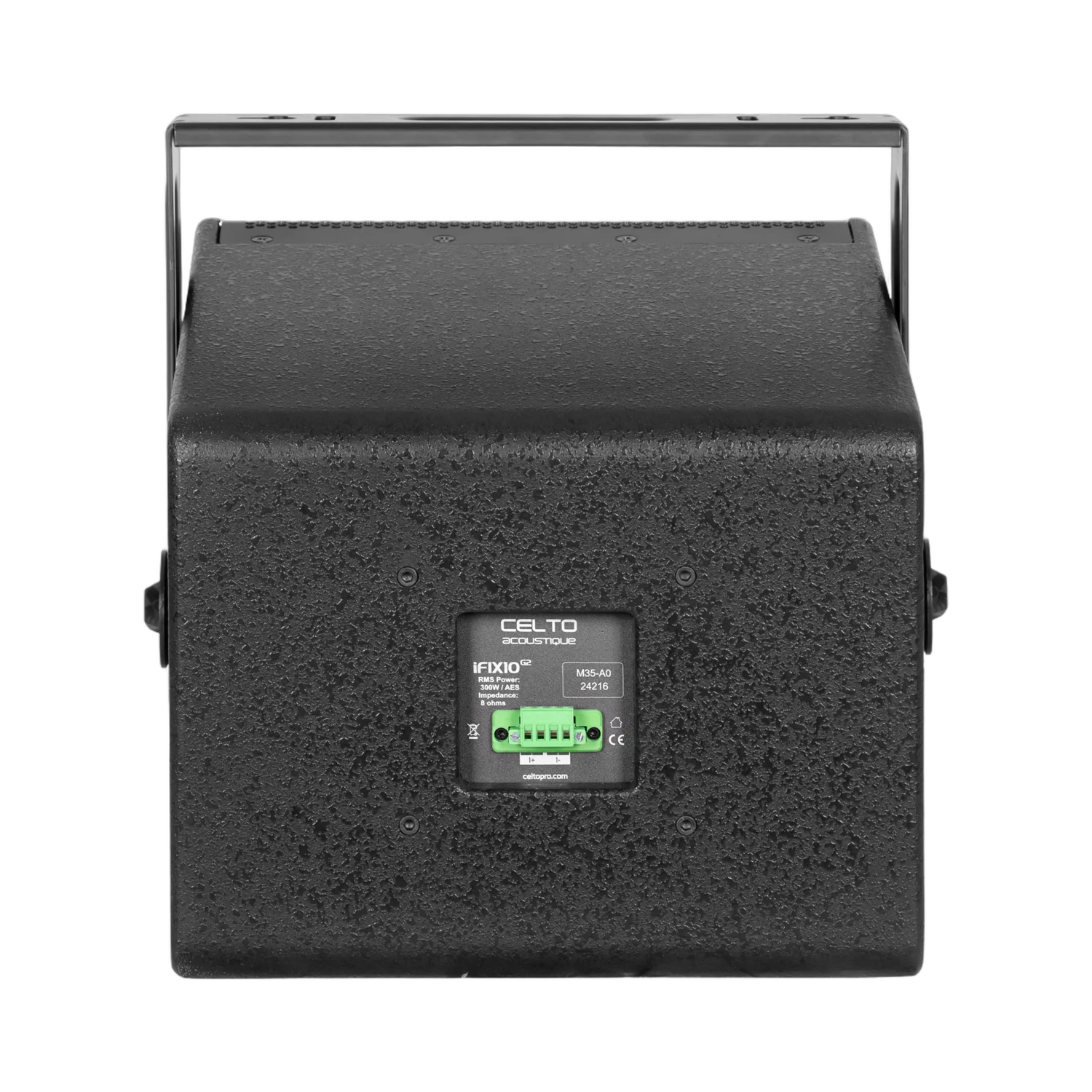

| Connectivity |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 300 x 300 x 304 mm |
| Speaker Weight | 12 kg |
| Shipping information |
14 kg 410 x 380 x 440 mm |
| Accessories |
WMBRKT20 (wall mount bracket) Rust-Free Aluminum grill |
Product files
| Name | Category | Type | Size | |
|---|---|---|---|---|
|
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD | 61.3 KiB | Download | |
|
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD | 61.7 KiB | Download | |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | 33.5 KiB | Download | |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | 29.9 KiB | Download | |
|
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD | 61.5 KiB | Download | |
|
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_BLK_A0_20250715_WEB_CAD | DWG | 855.9 KiB | Download |
|
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_NAT_A0_20250715_WEB_CAD | DWG | 855.2 KiB | Download |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | DWG | 754.0 KiB | Download |
|
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD
|
CELTO_IFIX10G2_WHT_A0_20250715_WEB_CAD | DWG | 855.6 KiB | Download |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | DWG | 716.7 KiB | Download |
Expand your system
The iFIX 10 G2 does wonder when combined with these other products from our range
