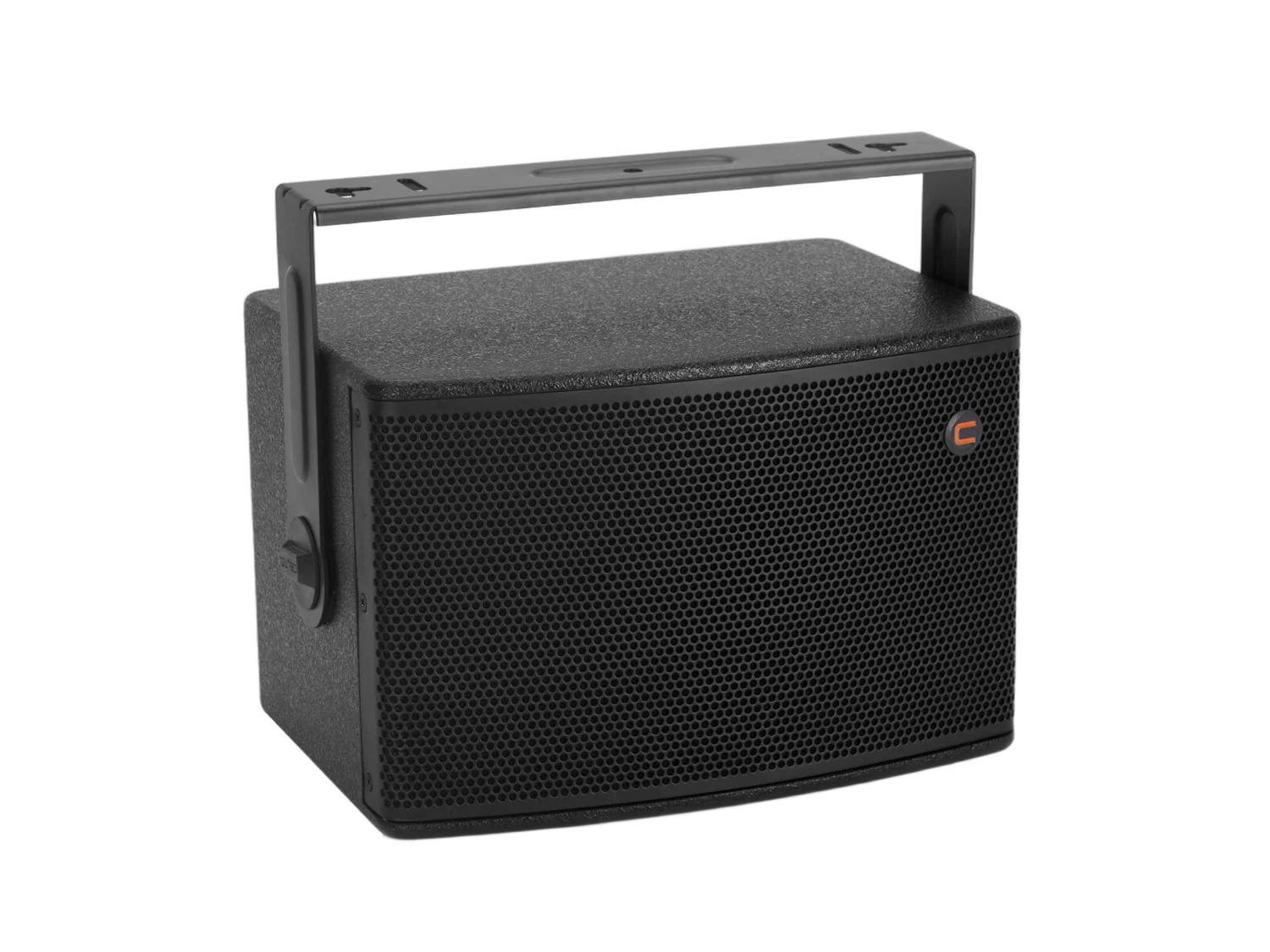

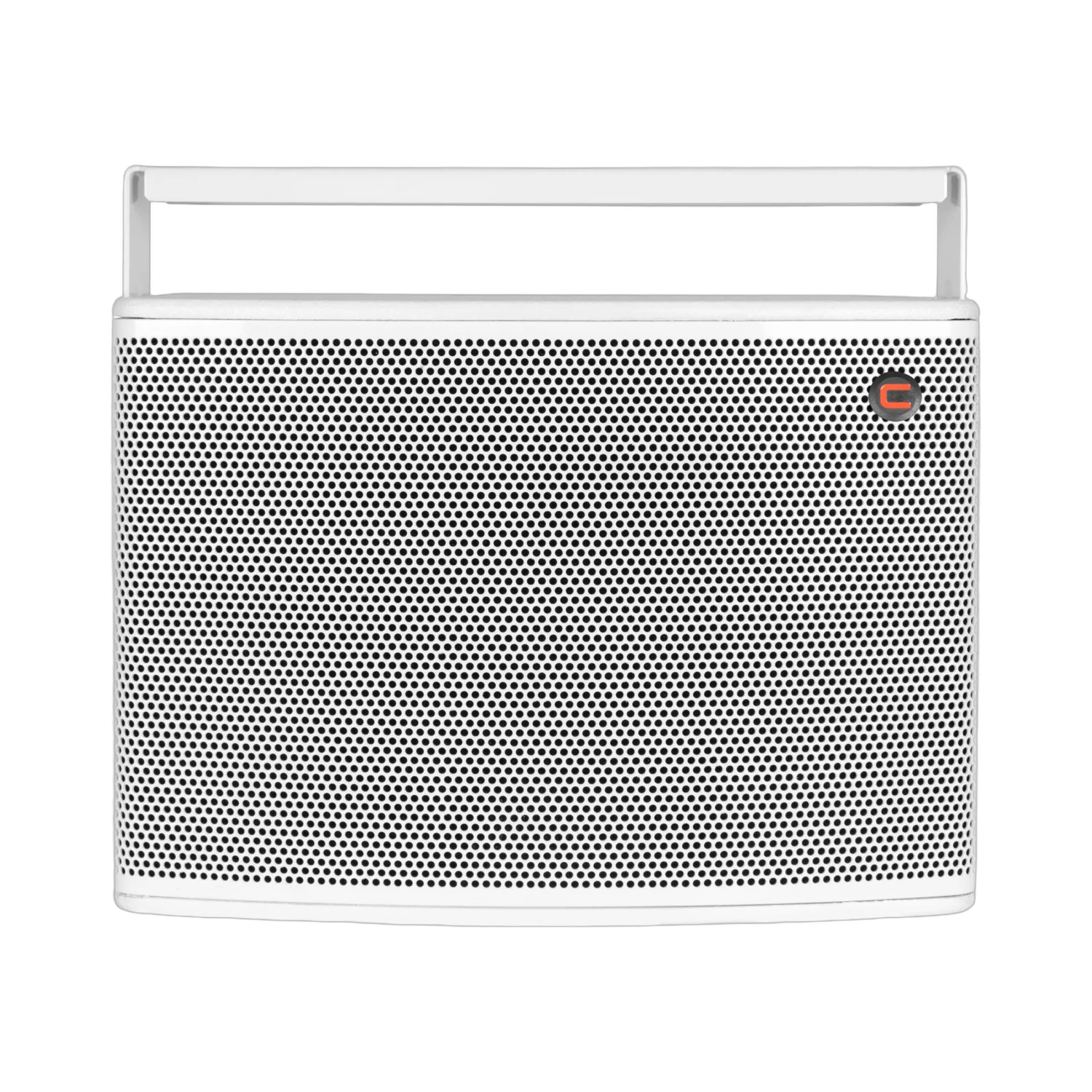

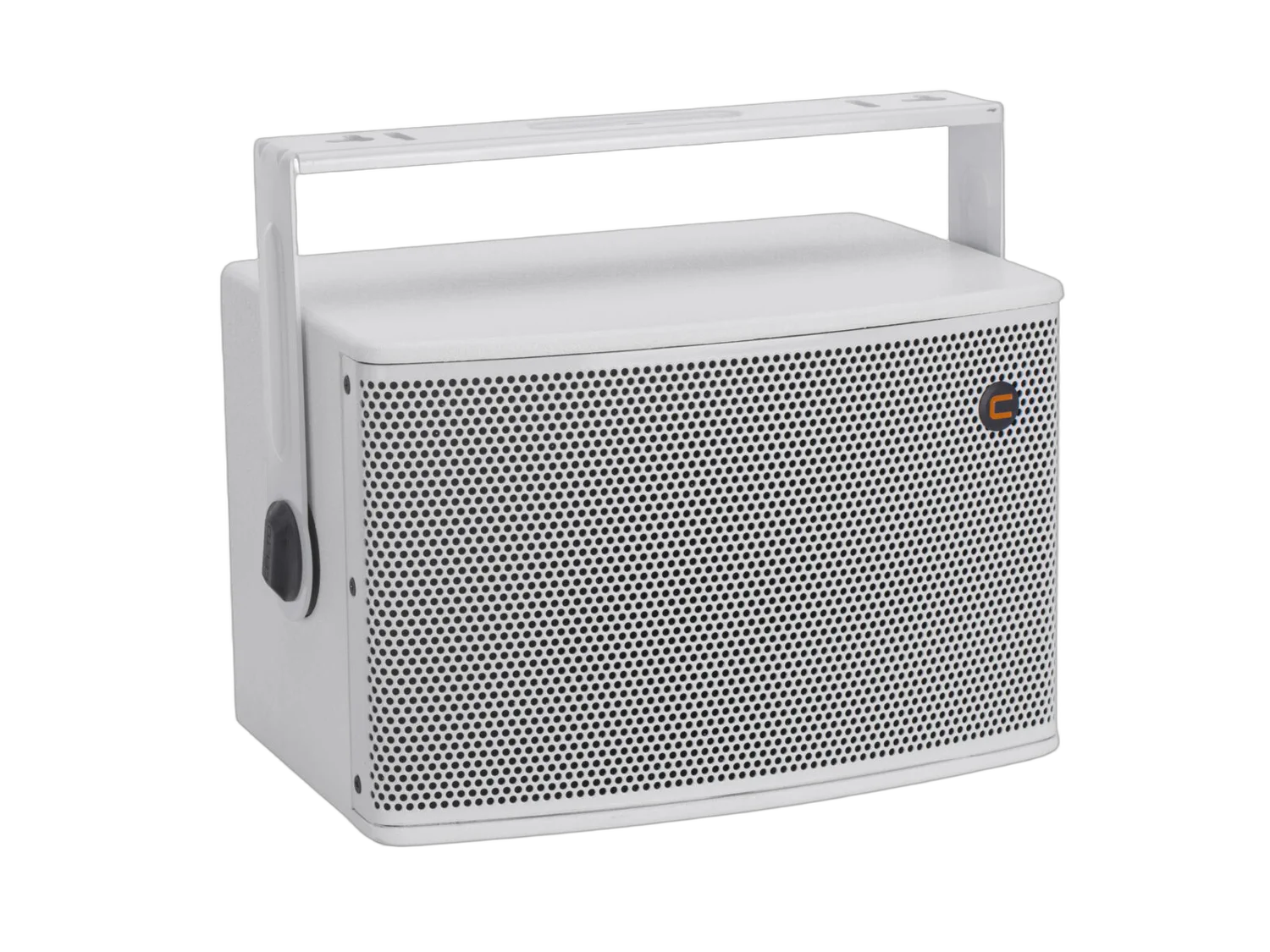

iFIX 10 FR
Compact Might. Full Authority.
Description
Big sound in a remarkably compact package—the CELTO Acoustique iFIX10 FR delivers a genuine 300W RMS with audiophile-grade clarity and impact.
This high-output coaxial loudspeaker is engineered for near-field main PA reinforcement, paired with a subwoofer for an extra low extension.
Ideal for trendy nightclubs, multifunctional venues, pubs, restaurants, auditoriums, theatres, and foreground music applications.
Featuring a next-generation 10" coaxial driver with HSP annular ring radiator HF for extraordinary efficiency and tonal precision.
Audiophile crossover with Right-Phase topology ensures flawless phase coherence and immersive spatial imaging.

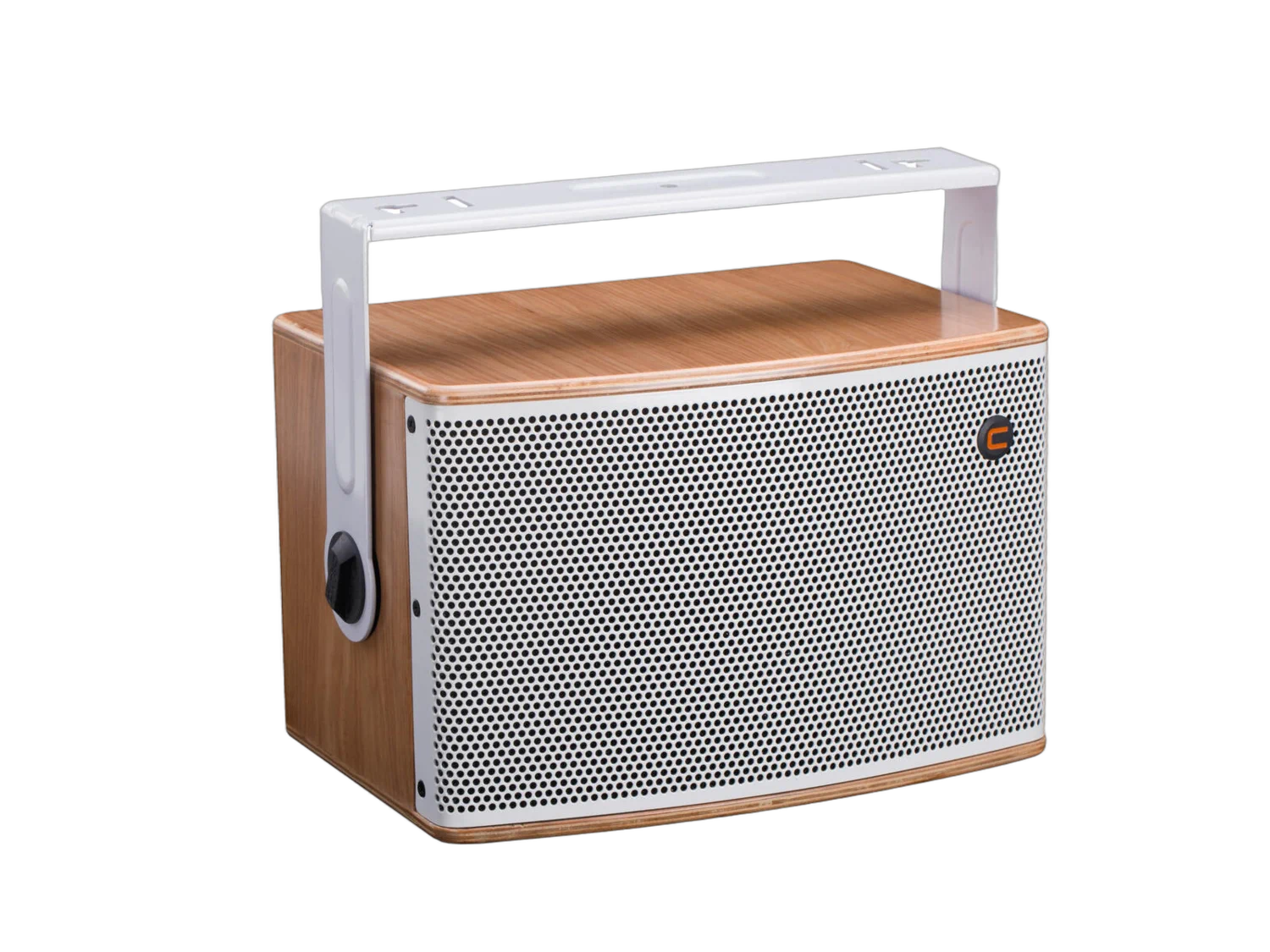

Crafted from premium birch plywood, available in black, white, natural oak, or custom RAL finishes for seamless integration.
Multi-function yoke with dented ring included for precise and secure mounting angles.
With 97 dB sensitivity and a staggering 128 dB peak SPL, it defies its size with effortless authority.
The iFIX10 FR proves that true high-fidelity power can thrive in discreet, elegant installations without always needing a subwoofer.
Key Features
- Real 300W RMS with high-end sound quality Fullrange, can be used without subwoofer
- Coaxial transducer for unmatched spacial coherence
- Next generation HSP Annular Ring Radiator HF
- Audiophile grade crossover with Right-Phase topology
- Birch plywood cabinet with smooth texture or varnish finish
Applications
Installation
Sound Architecture
Technical specifications
| Speaker type | FIX Install Full Range Coaxial Speaker |
| Power Handling (AES standard) | 300 W RMS / 1200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 122 dB RMS / 128 dB Peak |
| Frequency response (-6 dB no preset) | 68~22000 Hz |
| Nominal directivity (-6 dB) | 80° conical |
| Cabinet |
Exterior grade Birch plywood Tongue & Groove construction |
| Cabinet finish |
Textured Waterborne Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | No |
| Flying hardware |

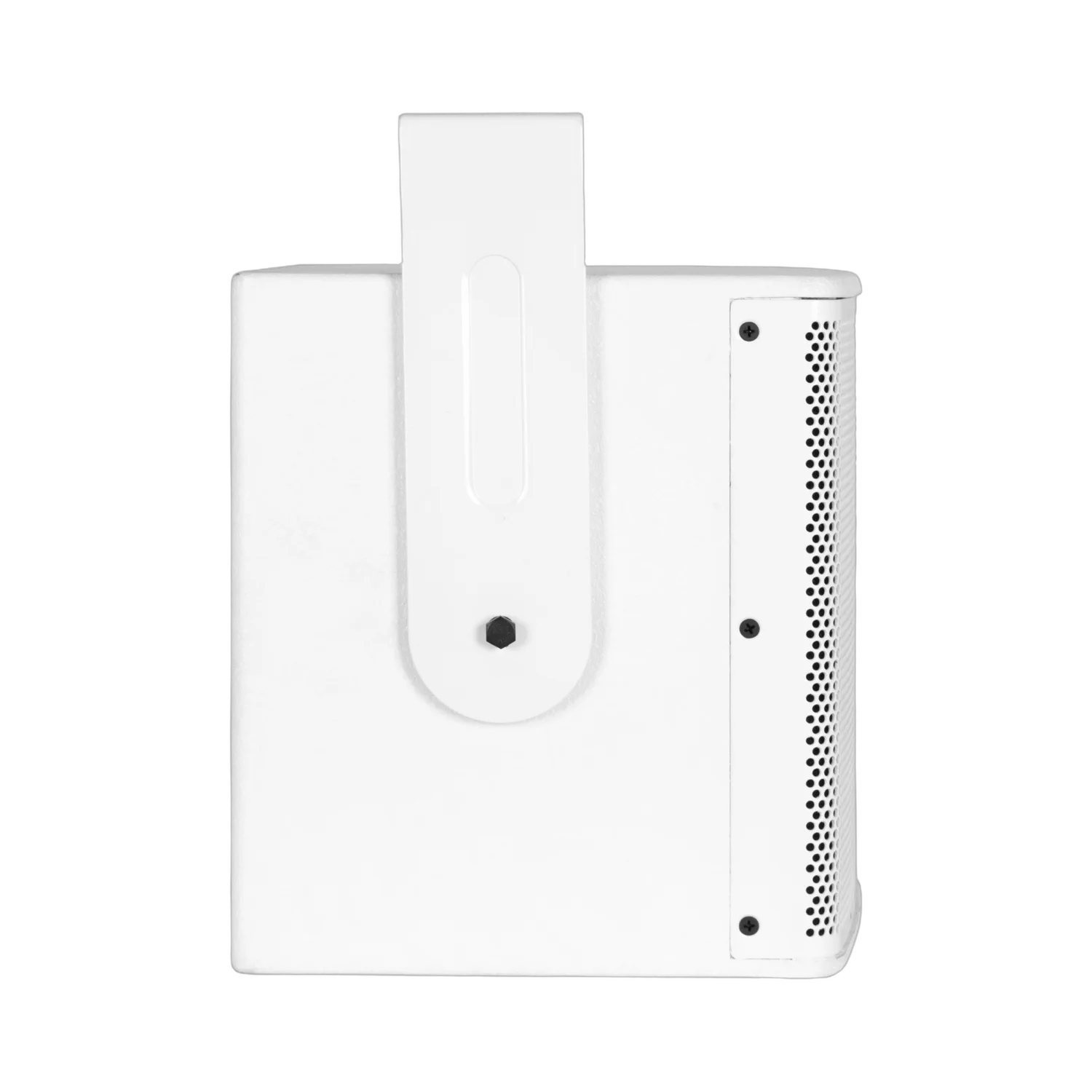

Multi-function Yoke (can be mounted with screws or Eyebolt, Included in carton) |
| Mounting hardware |
Yes for Yoke, wall mount bracket and CCA-MA |
| LF |

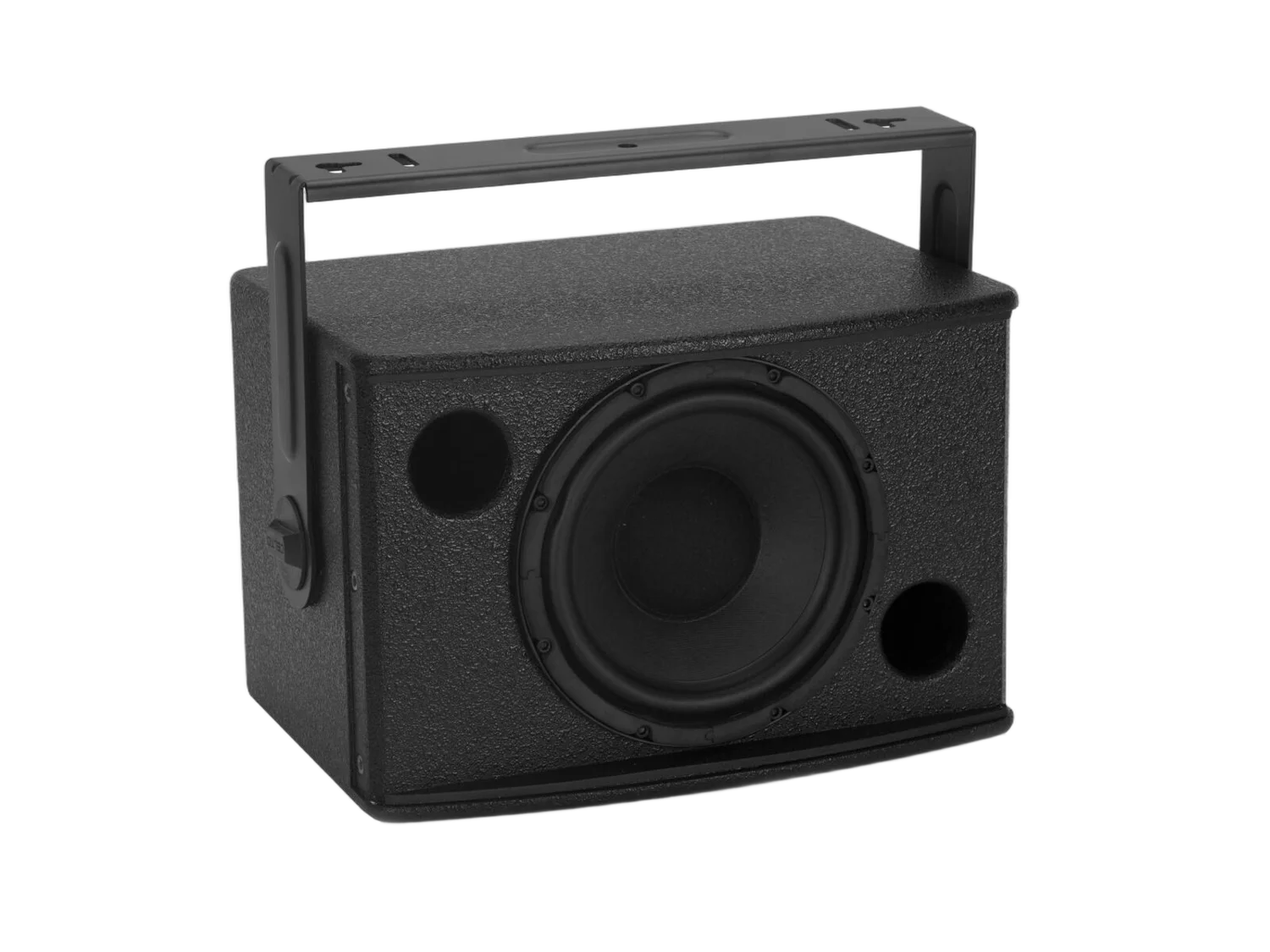

10" coaxial CELTO ACOUSTIQUE 10CXF310 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2.5" / 65 mm |
| HF |
CELTO ACOUSTIQUE ACD40 (in coaxial mounting) |
| HF RMS power (AES standard) | 80 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.5 kHz 2-way passive network |

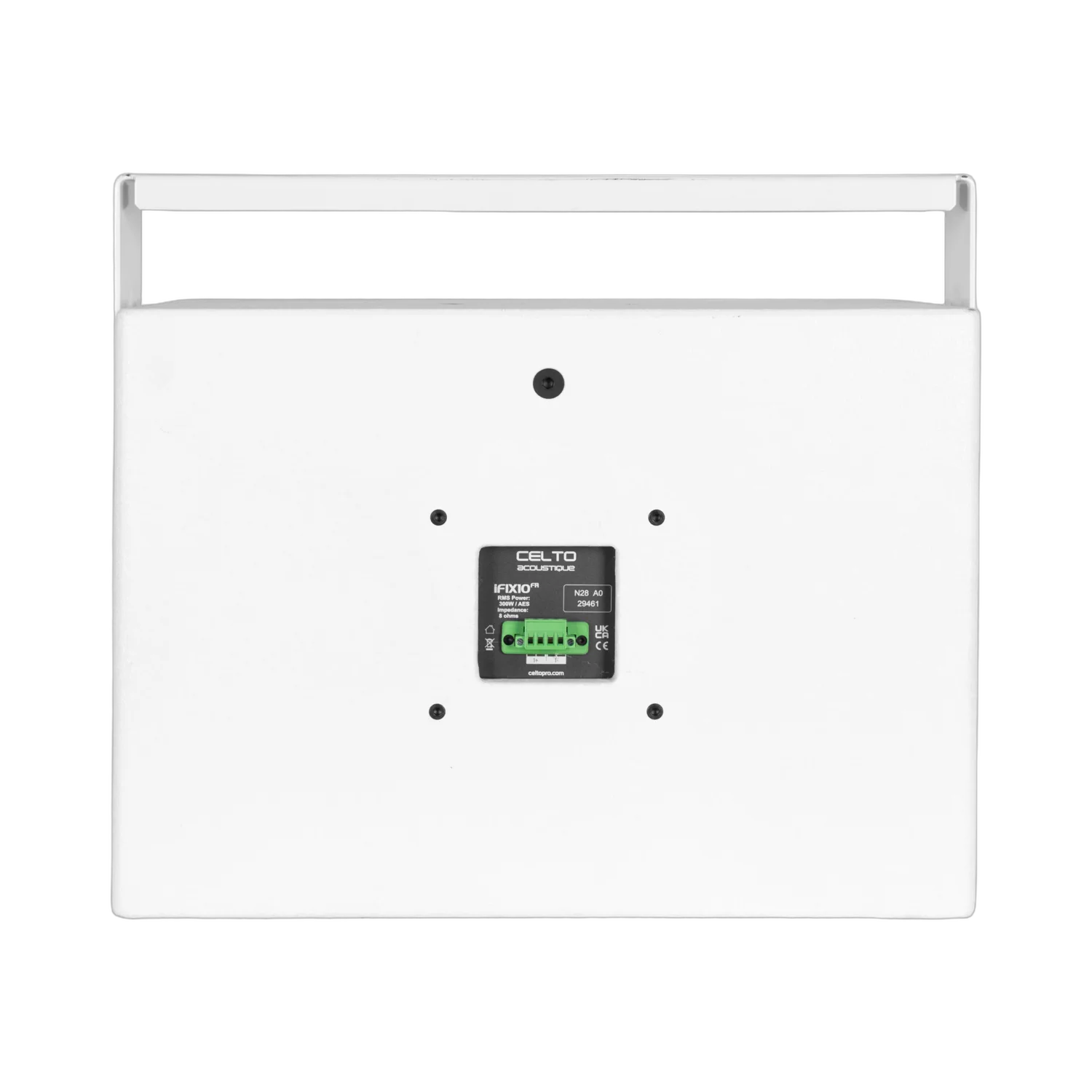

| Connectivity |
PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch |
| Speaker size (HxWxD) | 316 x 440 x 298 mm |
| Speaker Weight | 14.5 kg |
| Shipping information |
19 kg 510 x 410 x 360 mm |
| Accessories |
WMBRKT20 (wall mount bracket) Rust-Free Aluminum grill |
Product files
| Name | Category | Type | Size | |
|---|---|---|---|---|
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | 33.5 KiB | Download | |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | 29.9 KiB | Download | |
|
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD | 52.3 KiB | Download | |
|
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD | 52.6 KiB | Download | |
|
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD | 52.3 KiB | Download | |
|
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_NAT_A0_20250715_WEB_CAD | DWG | 783.8 KiB | Download |
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD
CELTO_WMBRKT20_A0_20250721_WEB_CAD
|
CELTO_WMBRKT20_A0_20250721_WEB_CAD | DWG | 754.0 KiB | Download |
|
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_WHT_A0_20250715_WEB_CAD | DWG | 783.9 KiB | Download |
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD
|
CELTO_IFIX-WPCOVER_A0_20250715_WEB_CAD | DWG | 716.7 KiB | Download |
|
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD
|
CELTO_IFIX10FR_BLK_A0_20250715_WEB_CAD | DWG | 784.5 KiB | Download |
Expand your system
The iFIX 10 FR does wonder when combined with these other products from our range
