CORE C2.20

Unleashed Authority. Built To Last.

Installation Portable Amplifiers C Amplifiers
basket-outline Where to buy

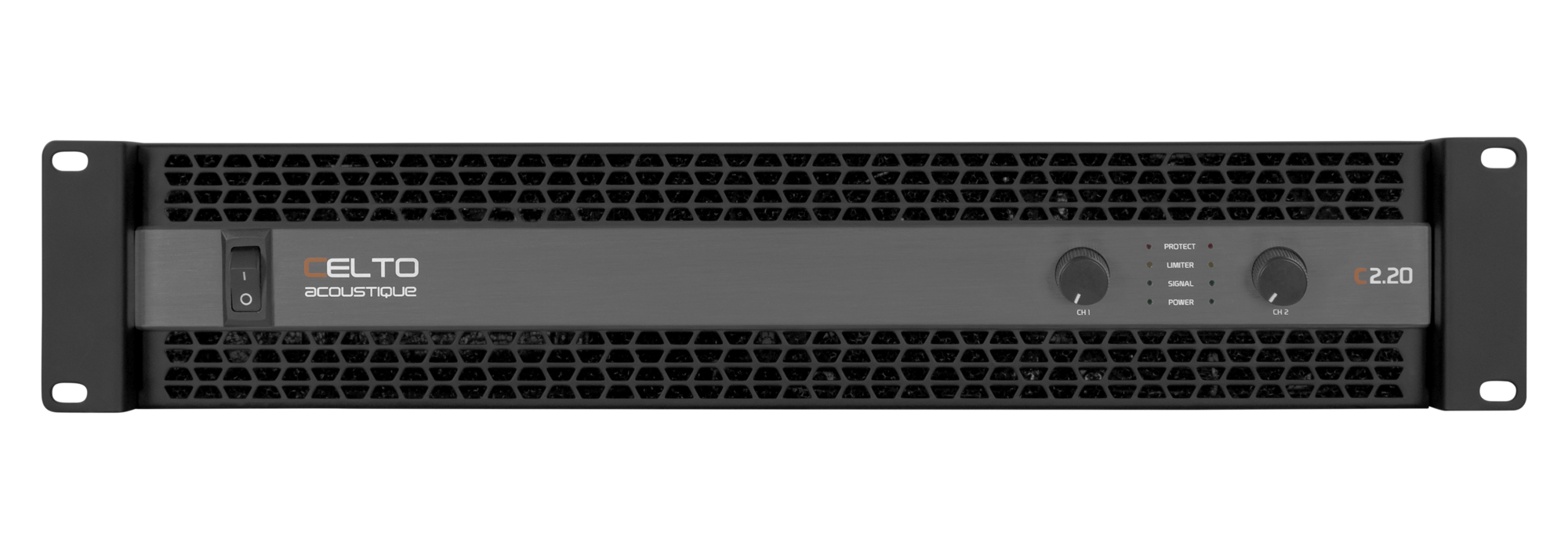

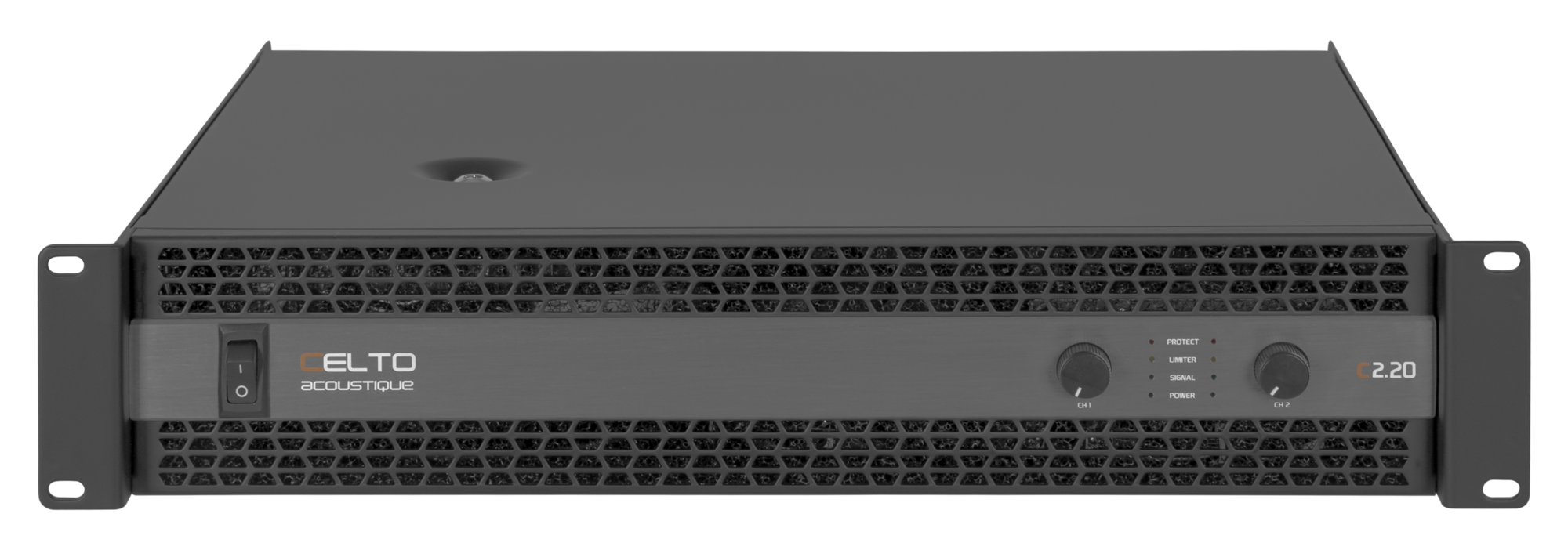

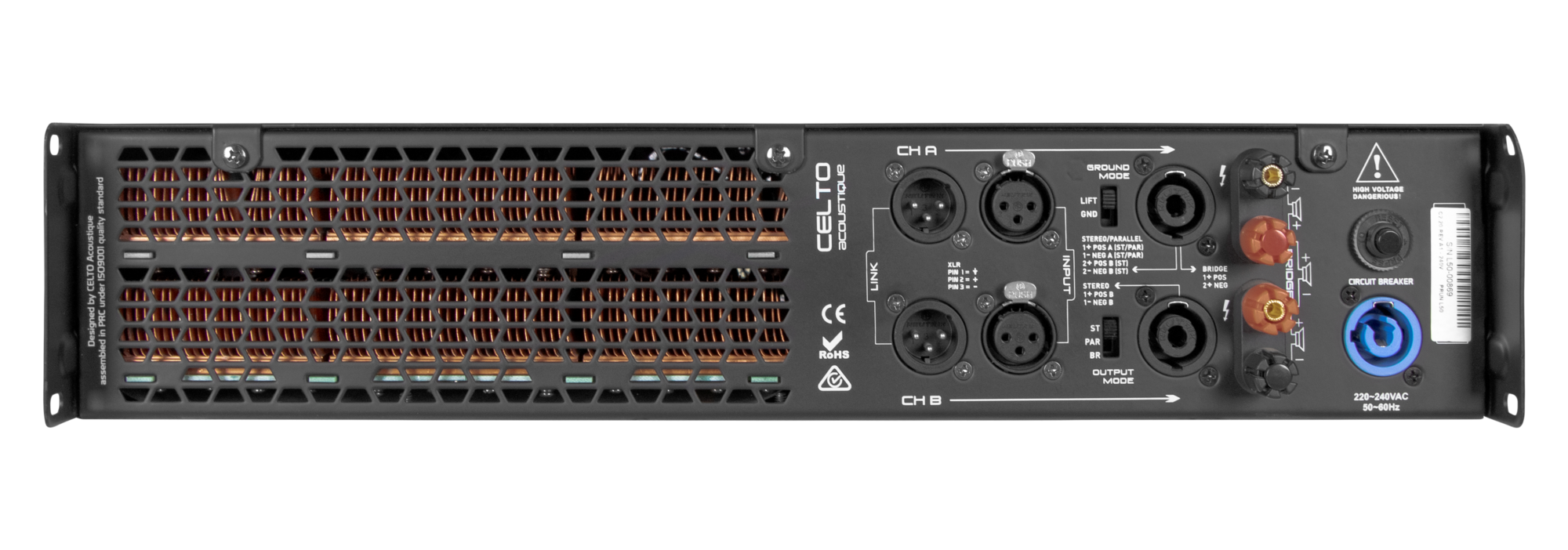

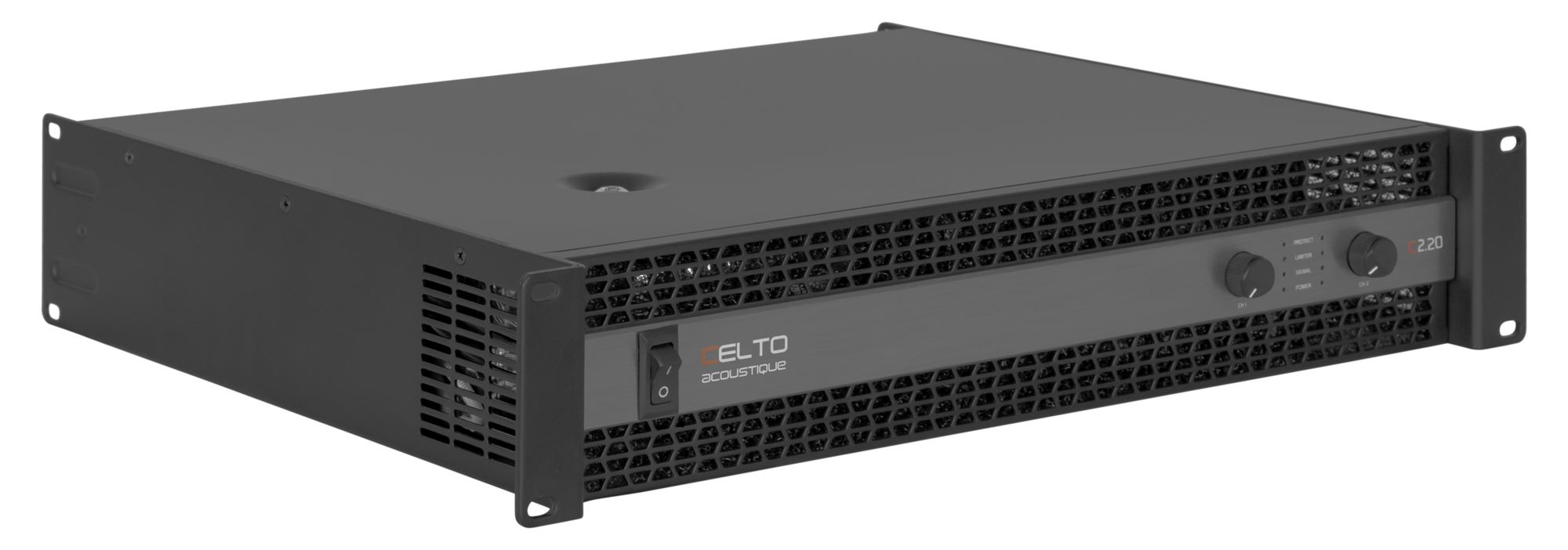

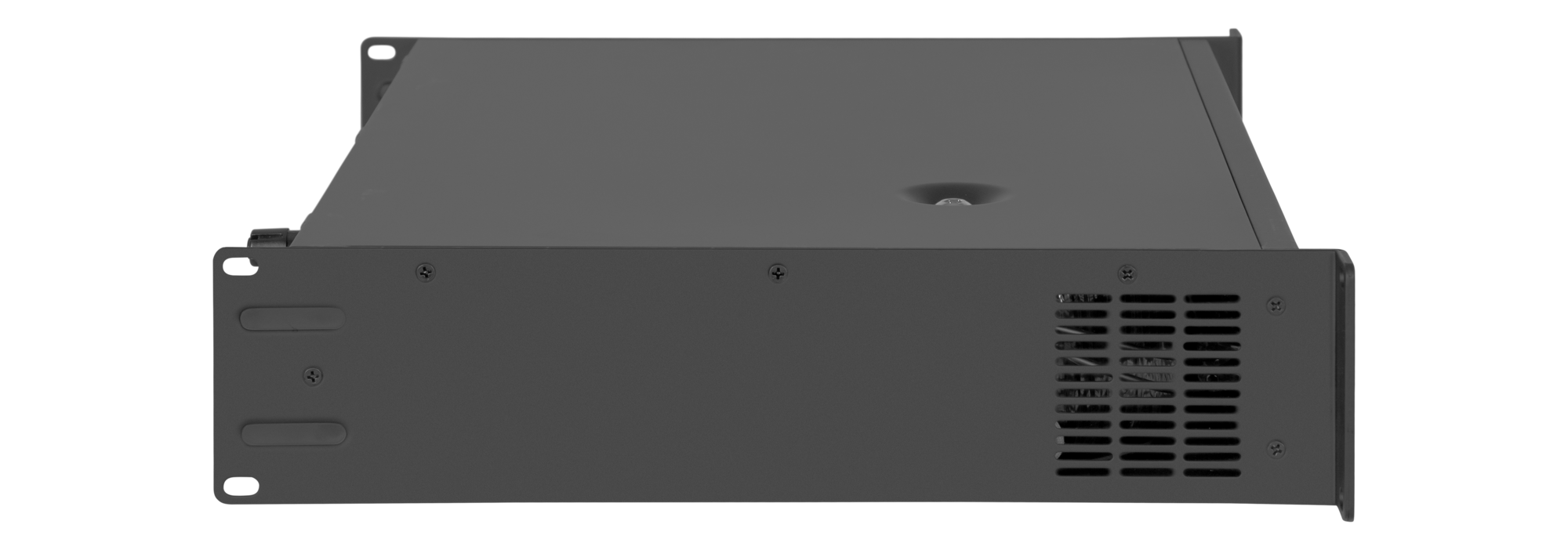

CORE C2.20 image 1
CORE C2.20 image 2
CORE C2.20 image 3
CORE C2.20 image 4
CORE C2.20 image 5
CORE C2.20 thumbnail 1
CORE C2.20 thumbnail 2
CORE C2.20 thumbnail 3
CORE C2.20 thumbnail 4
CORE C2.20 thumbnail 5

Description

Flagship punch in the CORE lineup—the CELTO Acoustique C2.20 unleashes 2 × 1200 W @ 8 Ω (2000 W @ 4 Ω) via advanced Class TD topology for superior efficiency. Engineered for high-output installations and touring systems needing authoritative drive without compromise. Higher gain (42 dB) and faster slew rate (>30 V/µs) provide lightning transients and headroom to spare. Same proven protection and preamp circuit as siblings, now with even greater thermal stability. Linear toroidal PSU and copper heatsink cooling handle sustained high power effortlessly. Full Neutrik connectivity and flexible operating modes make integration seamless. At 19.5 kg, it's the heavyweight champion that still fits standard racks. The C2.20 delivers the kind of power that makes speakers thank you—and audiences stay longer.

Key Features

  • 2 × 1200 W @ 8 Ω (2000 W @ 4 Ω) with bridge mode 4000 W @ 8 Ω
  • Advanced Class TD topology (82% efficiency) for superior power delivery
  • High slew rate (>30 V/µs) and damping (>500) for dynamic, accurate reproduction
  • Complete protections and low-noise preamp with Opto-Limiter
  • Temperature-regulated fans with copper heatsink for reliable high-output use

Applications

Installation Sound Architecture
Portable Professional sound, on demand

Technical specifications

Channels 2
RMS Power @ 8 Ω (per ch., EIA 1 kHz 1% THD) 1200 W
RMS Power @ 4 Ω (per ch.) 2000 W
RMS Power @ 2 Ω (per ch.) Not recommended
Bridge @ 8 Ω 4000 W
Bridge @ 4 Ω —
Frequency Response (-1 dB) 20 – 20 000 Hz
Typical THD < 0.1 %
Signal to Noise Ratio (A-weighted) > 110 dB
Crosstalk (1 kHz) > 65 dB
Slew Rate > 30 V/µs
Damping Factor (8 Ω) > 500
Voltage Gain 42 dB
Input Impedance 20 kΩ
Preamp Low noise/low distortion + PeakStop Opto-Limiter
Output Stage / Class Class TD
Power Supply Linear toroidal transformer
Cooling Front-to-back regulated fans + copper heatsink
Power Connector PowerCon (locking)
Input Connectors 2 × Neutrik XLR (latch) + 2 × XLR Link
Output Connectors 2 × Neutrik Speakon NL4 + 2 × binding posts
Dimensions (W×H×D) mm 483×88×378 (2U)
Weight Net 19.5 kg
