CMP10
Compact Coax. Professional Results.
Description

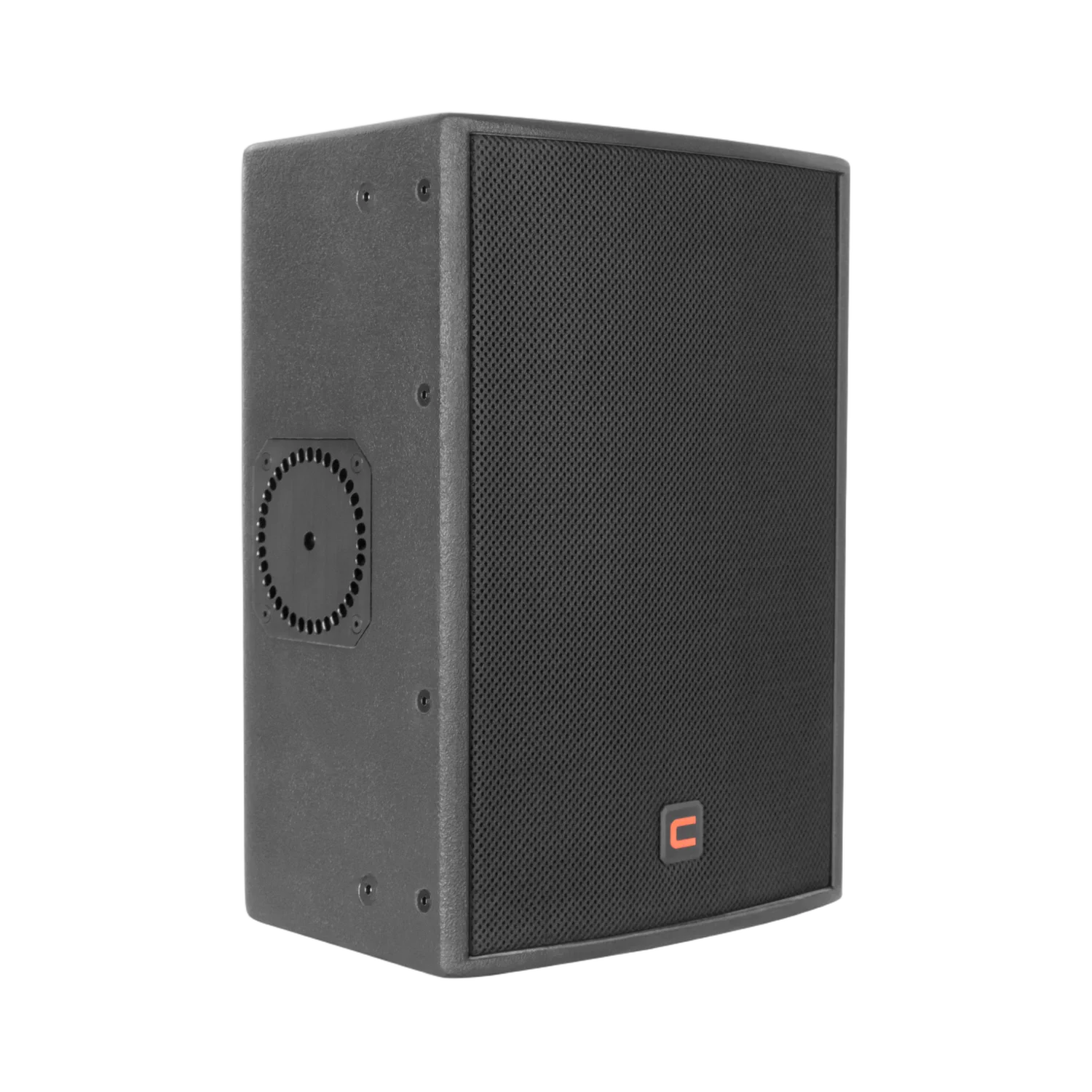

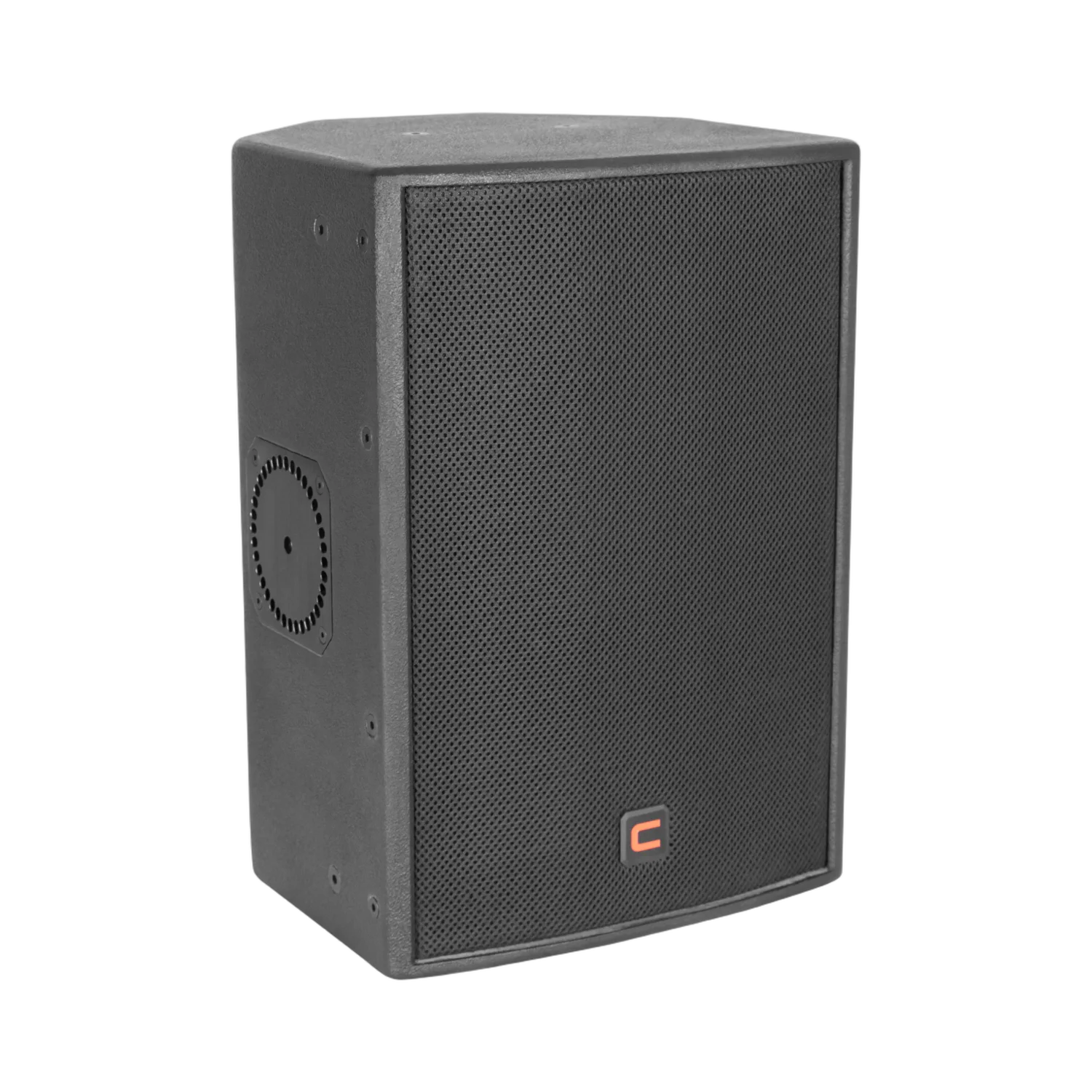

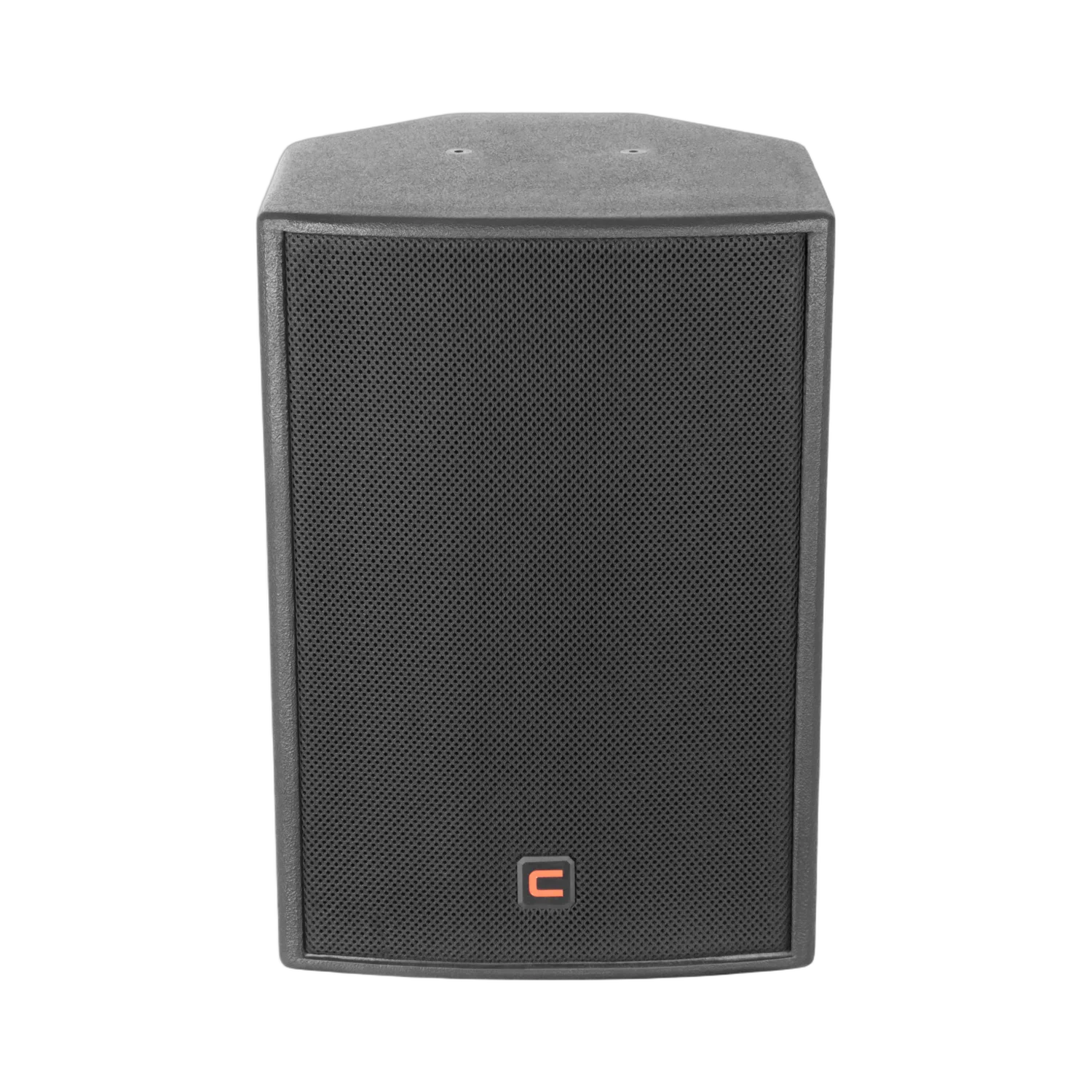

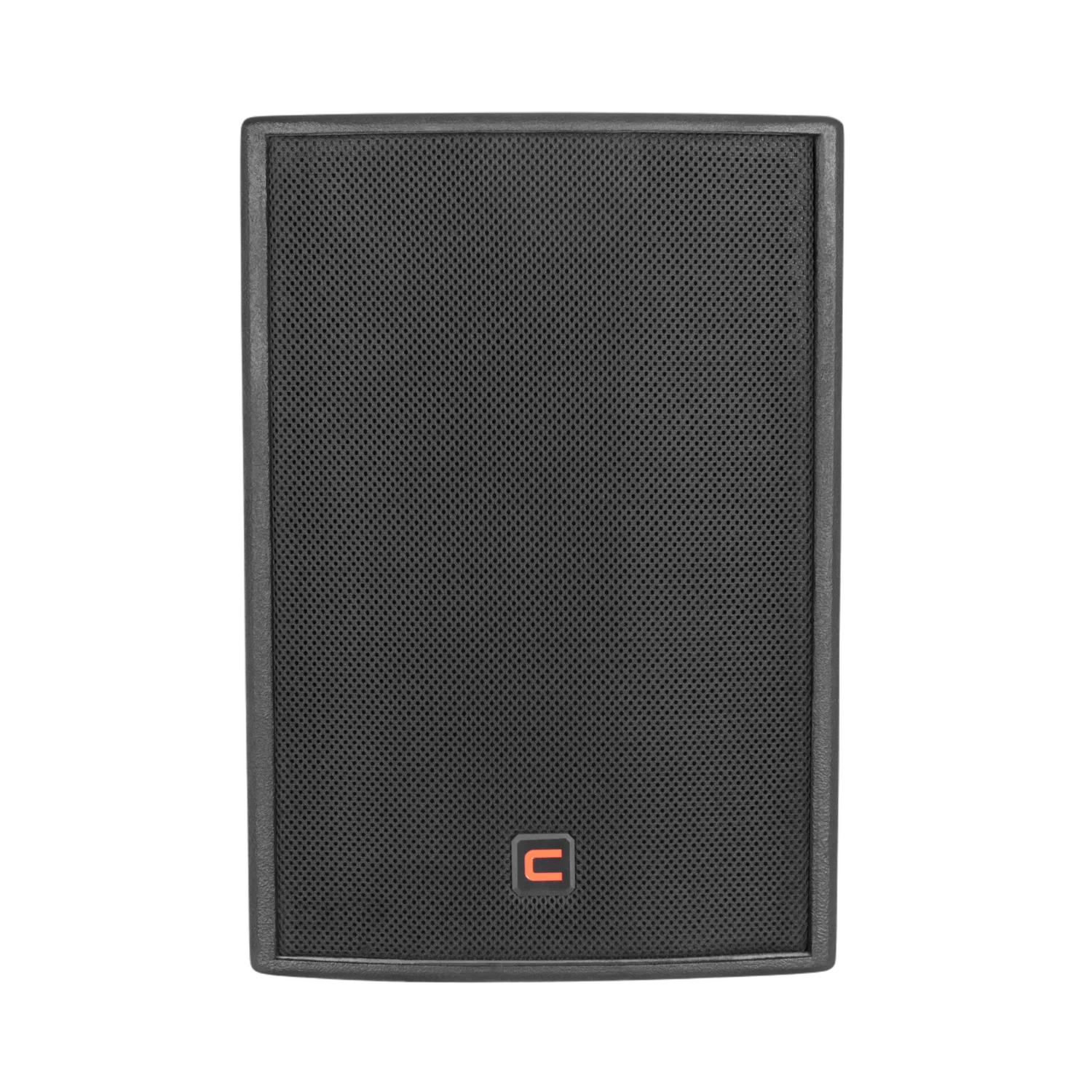

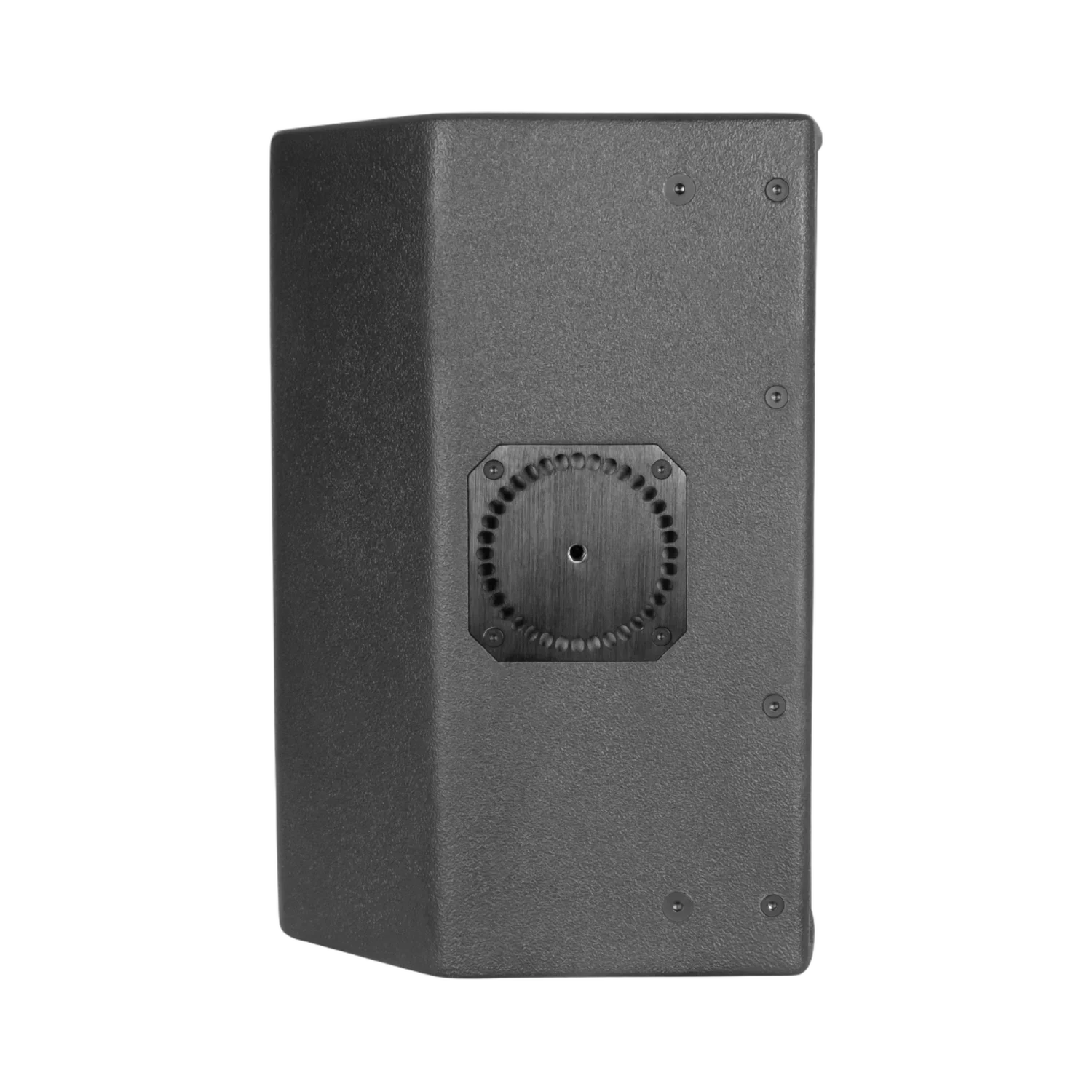

The CELTO Acoustics CMP10 is a premium coaxial multi-purpose full-range loudspeaker designed for exceptional audio performance in diverse applications. Featuring a custom 10" coaxial driver and a next-generation HSP Annular Ring Radiator HF compression driver, it delivers natural, holographic sound reproduction with outstanding clarity. With 300W RMS power handling (1200W peak) and 8 ohm impedance, the CMP10 ensures reliable, high-output performance without distortion. Its wide 78Hz–22kHz frequency response, 97dB sensitivity, and maximum SPL of 128dB peak provide powerful, balanced sound across the spectrum. The 80° conical dispersion pattern offers consistent coverage both on- and off-axis, ideal for even audience distribution. Built from exterior-grade Baltic birch plywood with touring-grade Ruberrized PolyUrea coating, this robust 15kg enclosure is engineered for durability in rental, installation, or portable use. Versatile mounting options include symmetrical floor monitoring, integrated rigging points, optional yoke, and pole-mount adapter. Equipped with genuine Neutrik SpeakON connectors and a high-quality passive crossover, it guarantees seamless integration and professional reliability. Perfect for near-field main PA with subwoofer, stage monitoring, delay fill, or permanent installations in auditoriums, nightclubs, and multi-functional venues. The CMP10 combines premium components, innovative design, and multi-purpose flexibility to deliver exceptional value for rental companies and sound professionals.
Key Features
- Real 300W RMS power capacity
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Premium custom coaxial driver based on IsoRay technology
- Next generation HSP Annular Ring Radiator HF
- Conical 80° HF Horn pattern
- Outdoor grade Baltic birch plywood cabinet
- Touring grade Rubberized PolyUrea black coating
- Monitor angle and integrated rigging
Applications
Portable
Professional sound, on demand
Touring
Engineered to endure
Technical specifications
| Speaker type | Coaxial Multi-purpose full range |
| Power Handling (AES standard) | 300 W RMS / 1200 W Peak |
| Nominal impedance | 8 ohms |
| Average sensitivity | 97 dB / 1 W / 1 m |
| Maximum SPL (calculated) | 122 dB RMS / 128 dB Peak |
| Frequency response (-6 dB no preset) | 78~22000 Hz |
| Nominal directivity (-6 dB) | 80° Conical |
| Cabinet |
Marine grade Baltic Birch Plywood Tongue & Groove construction |
| Cabinet finish |
Touring Grade Rubberized PolyUrea Black coating Integral Airnet fabric on Front grill |
| Floor monitor use | Yes, dual symetric angle |
| Flying hardware |
7 M8 points 36 positions Aluminium Yoke plate |
| Mounting hardware | Ø35 mm adapter (optional) |
| LF |
10" coaxial CELTO ACOUSTIQUE 10CXF310 |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 2.5" / 65 mm |
| HF |
CELTO ACOUSTIQUE ACD40 (in coaxial mounting) |
| HF RMS power (AES standard) | 80 W above 1.5 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Crossover | 1.5 kHz 2-way passive network |
| Connectivity |

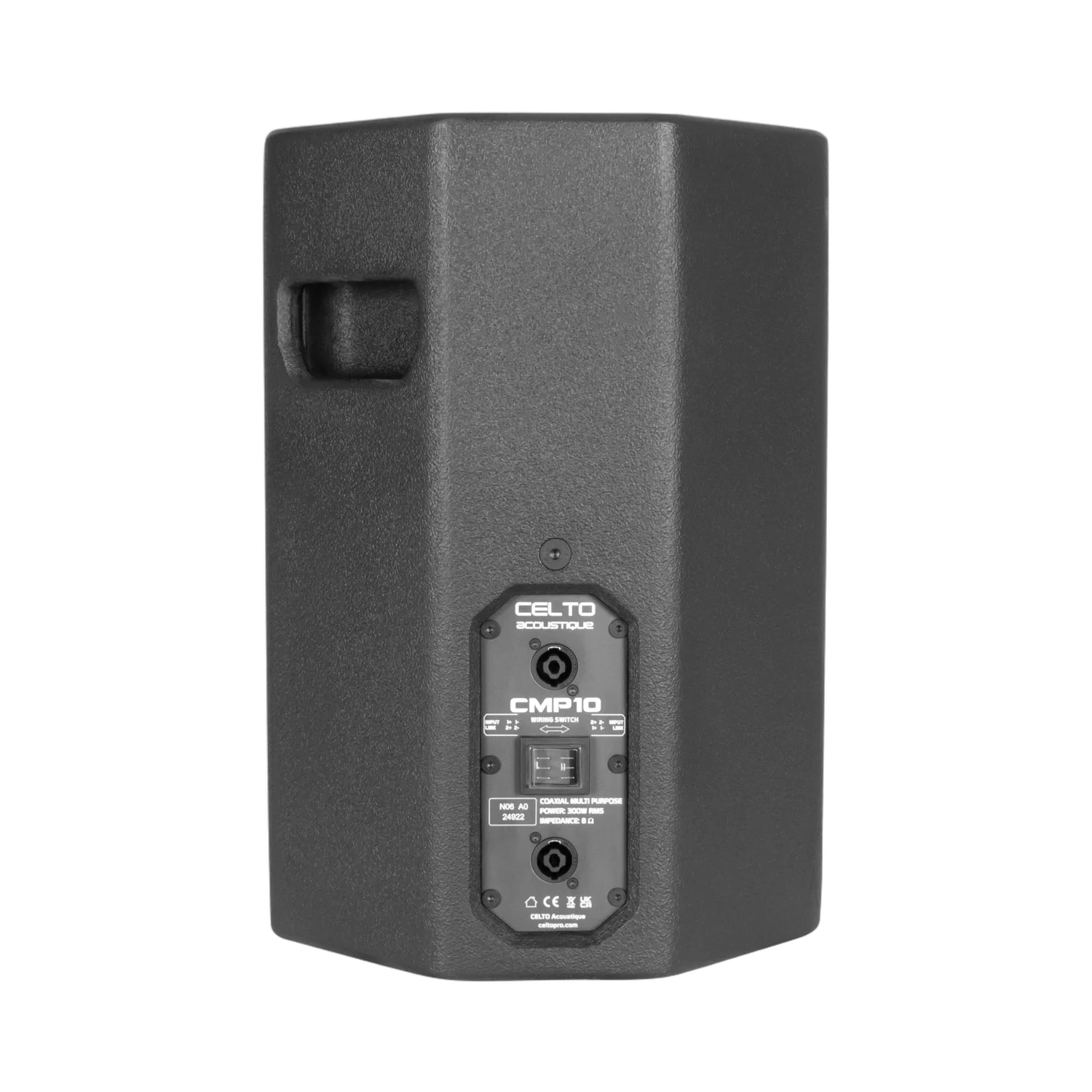

Genuine NEUTRIK 2pcs Speakon NL4 mP with switch for 1+/-1 or 2+/2- input |
| Speaker size (HxWxD) | 440 x 306 x 298 mm |
| Speaker Weight | 15 kg |
| Shipping information |
18.6 kg 570 x 410 x 410 mm |
| Accessories |
CMP10-YOKE CMP10-SBAG (padded cover bag) CMP10-RCK (Road Case Kit) CPC-70 (pole bar with crank) CCA-MA (mounting adapter) |
