The C2.20 is a Core Amplifier.

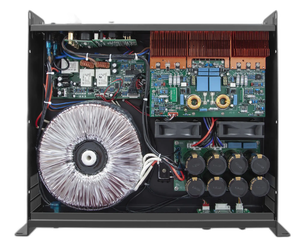

- Linear with Aluminum toroidal transformer
- Low distortion Peak Limiter
- Class TD output stage (82% efficient)
- Protection, Soft-start, Short-circuit, Over-voltage, Over-current, Over-load, DC output, Temperature
- Simple layout and assembly for easy servicing
- Genuine parts exclusively provided by world class suppliers
- Compact and Lightweight 2U low depth format
- 2 years warranty
Designed for those who expect great power and performance, this amplifier will create sounds that resonate deep within the body, creating ultimate enjoyment for all ears.
View
View
View
View
View
View
View
Technical specifications
| Power Supply | Linear topology with toroidal transforner |
| Output Stage | Class TD (82% efficiency) |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 8Ω | 2x 1200 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 4Ω | 2x 2000 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 2Ω | Not Recommended |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 8Ω Bridge | 1x 4000 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 4Ω Bridge | Not Recommended |
| Frequency response | 20~20000Hz (-1 dB) |
| Typical THD (1 W, 20Hz~20kHz, 8Ω / 400 W, 1kHz, 8Ω ) | <0.04% / <0.1% |
| Signal to Noise Ratio | >110 dB(A) |
| Crosstalk (1kHz) | >65 dB |
| Input Impedance | 20 kΩ (Balanced) |
| Maximum input | +20 dBu |
| Amplifier slew rate | >30V/us |
| Amplifier damping factor (8 ohms, 500Hz) | >500 |
| Preamp | Low noise and low distortion circuit, PeakStop Opto-Limiter |
| Nominal Voltage Gain | 42dB (126 times voltage) |
| Cooling | Front to back airflow, Temperature regulated fans, Copper heat-sink for maximum heat transfer |
| Protections | Soft-Start, Short-Circuit, Over-Voltage, Over-Current, Over-Load, DC Output, Temperature |
| Input connectors | 2 Balanced NEUTRIK XLR |
| Output connectors | 4 NEUTRIK SpeakON NL4MP |
| Power Connector | Attached Cable |
| Operating Voltage | 190~260VAC 50-60Hz |
| Size ( WxHxD) | 19" 2U height, 378mm total depth |
| Weight net | 19,5 kg |
| Weight gross | 21 kg |
