The C2.10 is a Core Amplifier.
Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
Lorem ipsum dolor sit amet consectetur adipiscing elit. Quisque faucibus ex sapien vitae pellentesque sem placerat. In id cursus mi pretium tellus duis convallis. Tempus leo eu aenean sed diam urna tempor. Pulvinar vivamus fringilla lacus nec metus bibendum egestas. Iaculis massa nisl malesuada lacinia integer nunc posuere. Ut hendrerit semper vel class aptent taciti sociosqu. Ad litora torquent per conubia nostra inceptos himenaeos.
Designed for those who expect great power and performance, this amplifier will create sounds that resonate deep within the body, creating ultimate enjoyment for all ears.
View
View
View
View
View
View
View
Technical specifications

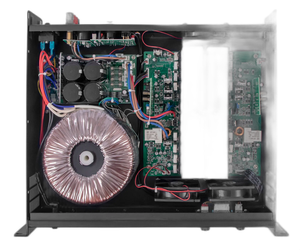

| Power Supply | Linear topology with toroidal transforner |
| Output Stage | 2-step Class H without cross-rail distortion (70% efficiency) |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 8Ω | 2x 750 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 4Ω | 2x 1100 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 2Ω | Not Recommended |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 8Ω Bridge | 1x 2200 W |
| RMS Output Power(1 kHz, 1% THD, EIA standard) 4Ω Bridge | Not Recommended |
| Frequency response | 20~20000Hz (-1 dB) |
| Typical THD (1 W, 20Hz~20kHz, 8Ω / 400 W, 1kHz, 8Ω ) | <0.04% / <0.10% |
| Signal to Noise Ratio | >108 dB(A) |
| Crosstalk (1kHz) | >65 dB |
| Input Impedance | 20 kΩ (Balanced) |
| Maximum input | +20 dBu |
| Amplifier slew rate | >20V/us |
| Amplifier damping factor (8 ohms, 500Hz) | >500 |
| Preamp | Low noise and low distortion circuit, PeakStop Opto-Limiter |
| Nominal Voltage Gain | Pe40dB (100 times voltage)akStop Opto-Limiter |
| Cooling | Front to back airflow, Temperature regulated fans, Copper heat-sink for maximum heat transfer |
| Protections | Soft-Start, Short-Circuit, Over-Voltage, Over-Current, Over-Load, DC Output, Temperature |

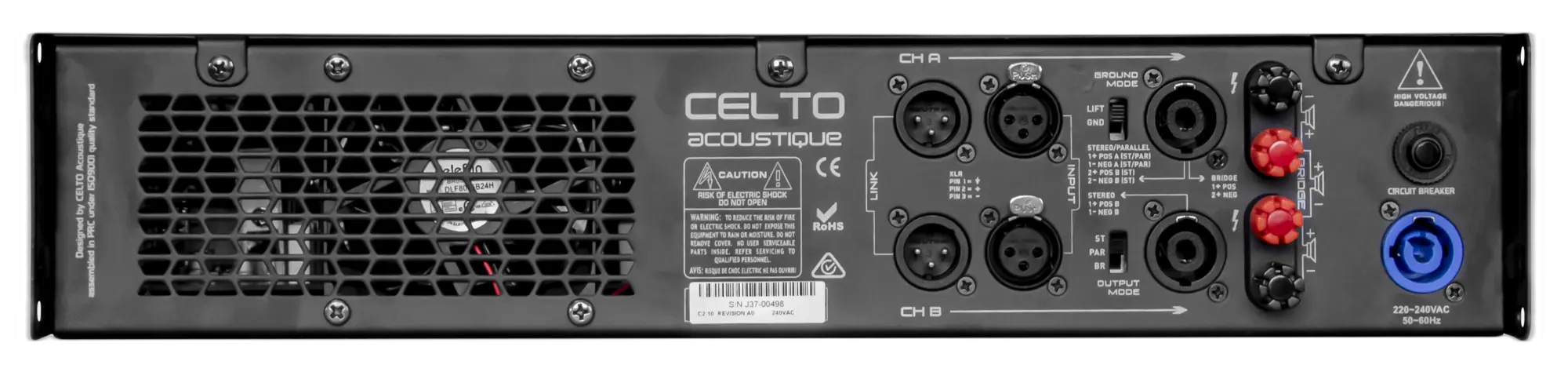

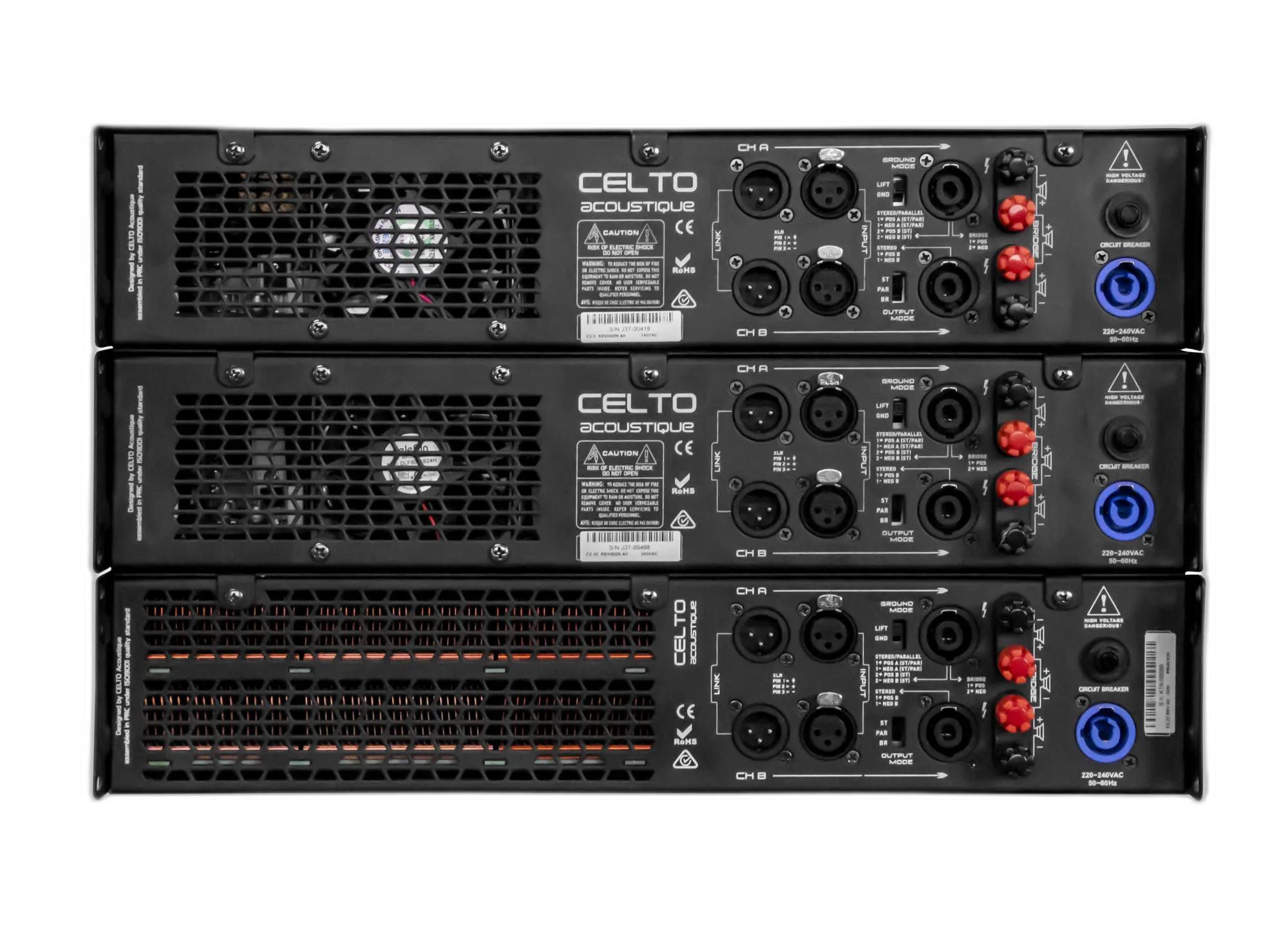

| Input connectors | 2 Balanced NEUTRIK XLR |
| Output connectors | 4 NEUTRIK SpeakON NL4MP |
| Power Connector | Attached Cable |
| Operating Voltage | 190~260VAC 50-60Hz |
| Size ( WxHxD) | 19" 2U height, 378mm total depth |
| Weight net | 16 kg |
| Weight gross | 17,5 kg |
