ACS218
Self Powered Active Subwoofer
Installation
Touring

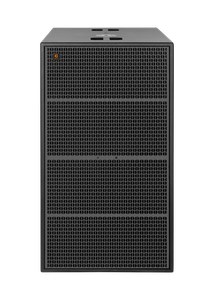

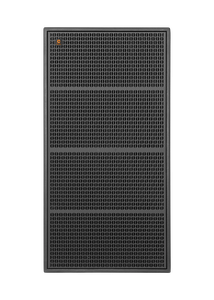

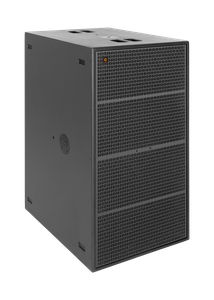

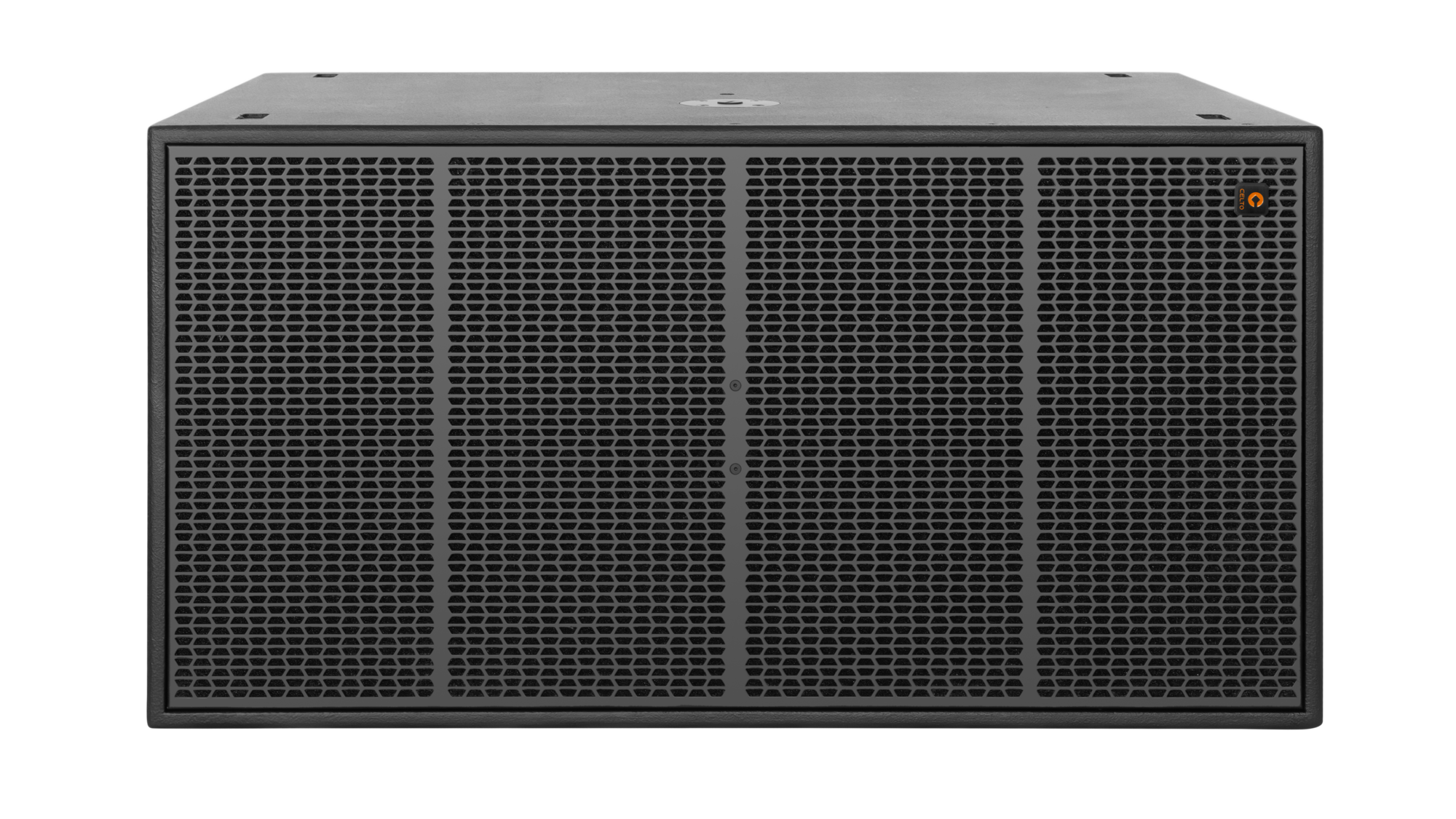

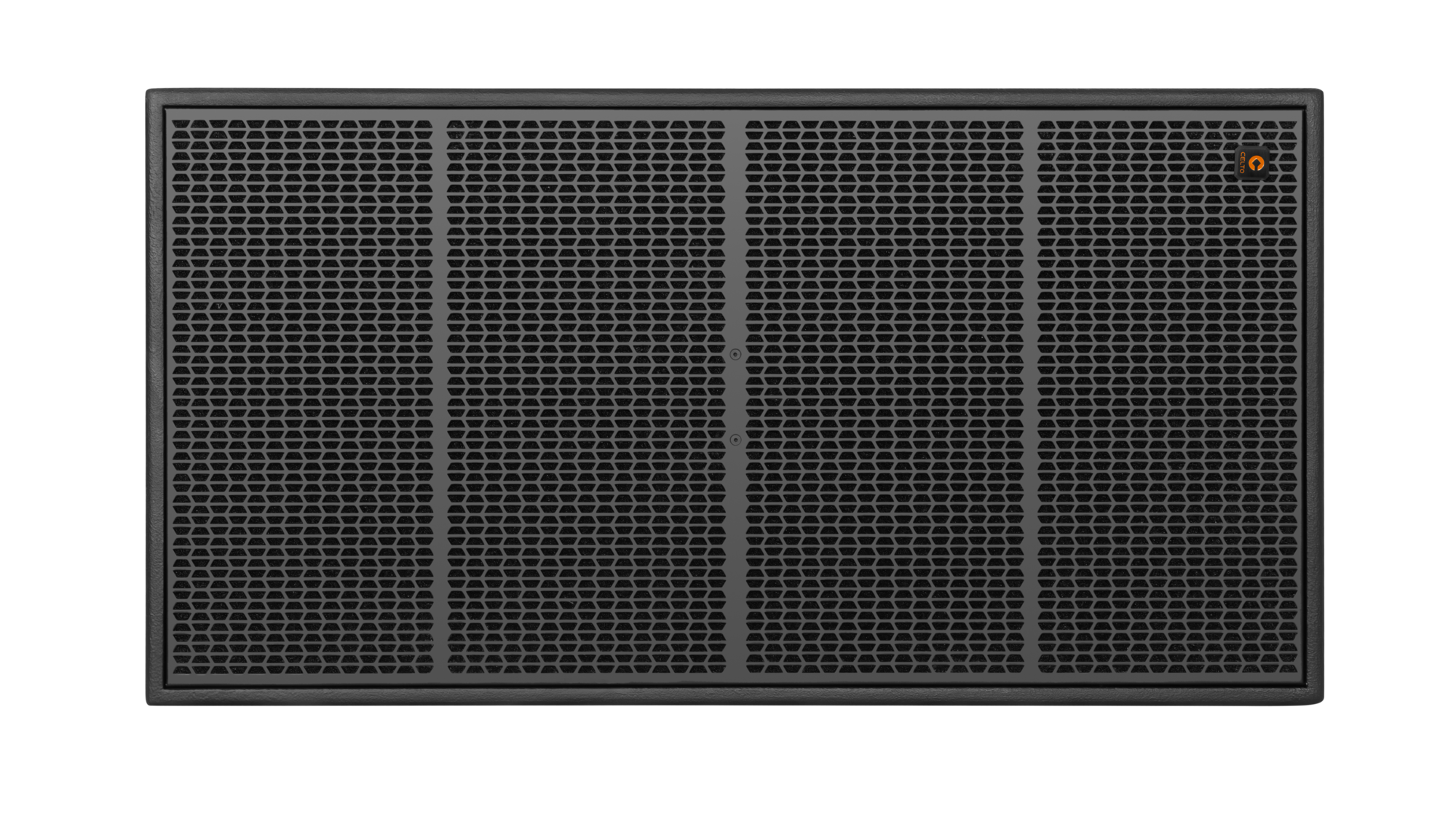

The ACS218 is a Active Subwoofer.
ACS 218 is a high-performance, 2×18" 6000W self-powered subwoofer engineered to deliver deep, accurate, and controlled low-frequency reproduction. Designed as a companion for the ACS10 line source, it provides powerful low-end extension with advanced onboard amplification and DSP control.
Key Features
Key Features
- Compact design that provides extended low-end response down to 30Hz
- Integrated 6000W Peak Class D amplifier with DSP processing

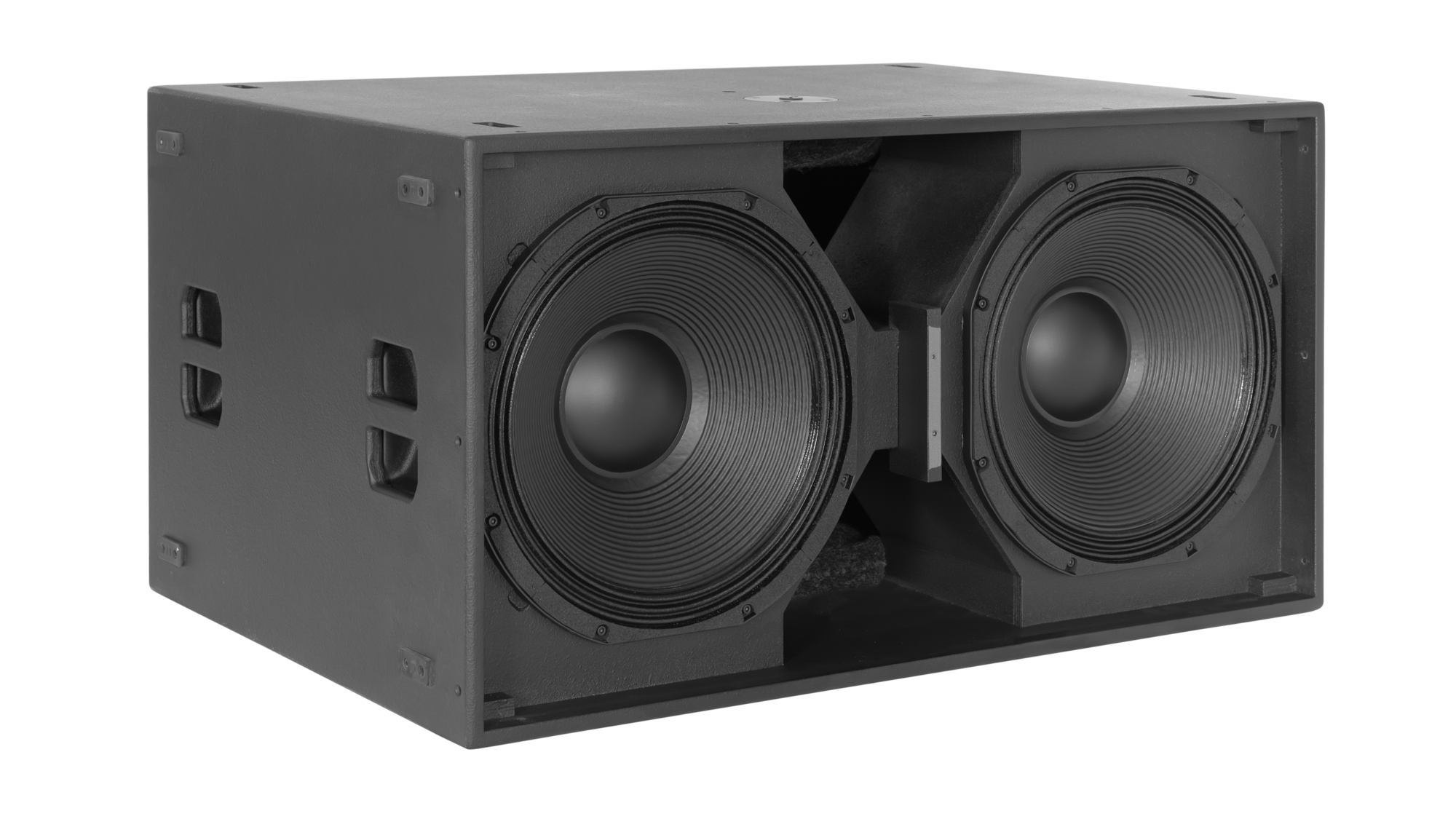

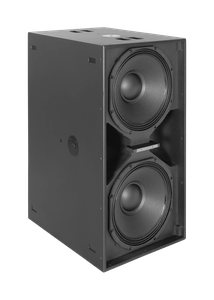

- Custom 18" die cast woofers with 4" PI grade voice coil and KEVLAR loaded Canadian pulp cone
- Active PFC + SMPS for stable, efficient power delivery
- Opmized for seamless integration with ACS10 satellite curvature system
- Heavy braced CNC birch plywood cabinet with touring grade rubberized PolyUrea coating
Description of expected application for the ACS Sytem
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
View
View
View
View
View
View
View
View
View
View
View
Technical specifications
| Speaker type | Self-powered , active subwoofer |
| Maximum SPL (calculated) | 139 dB Peak |
| Frequency response (-6 dB no preset) | 30~95 Hz |
| Nominal directivity (-6 dB) | Omni in usable range |
| Design | |
| Transducers | Dual 18" (2x18) woofer with 4" PI grade voic coil |
| Amplifier Module | CELTO SPM3000 with alumium heatsink |
| Power Supply | Active PFC + SMPS (universal mains 90~260V AC) |
| Amplifier Type | 4th Generation proprietary Class D |
| Power Output | 6000 W Peak / 3000 W RMS |
| Preamplifier | -120 dB noise floor op-amps, Fine Gold capacitors |
| DSP Architecture | 115 dB AKM converters, 56-bit accumulators |
| DPS Control | Crossover, EQ and protection |
| DPS Presets | Flat / Punch / Deep |

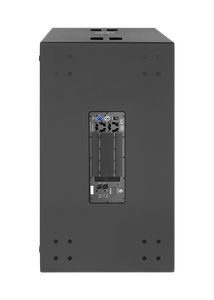

| Connectivity | Balanced XLR input/thru + PowerCon In/Out |
| Enclosure |
Exterior grade Birch Plywood Heavily braced with Tongue & Groove |
| Cabinet finish |

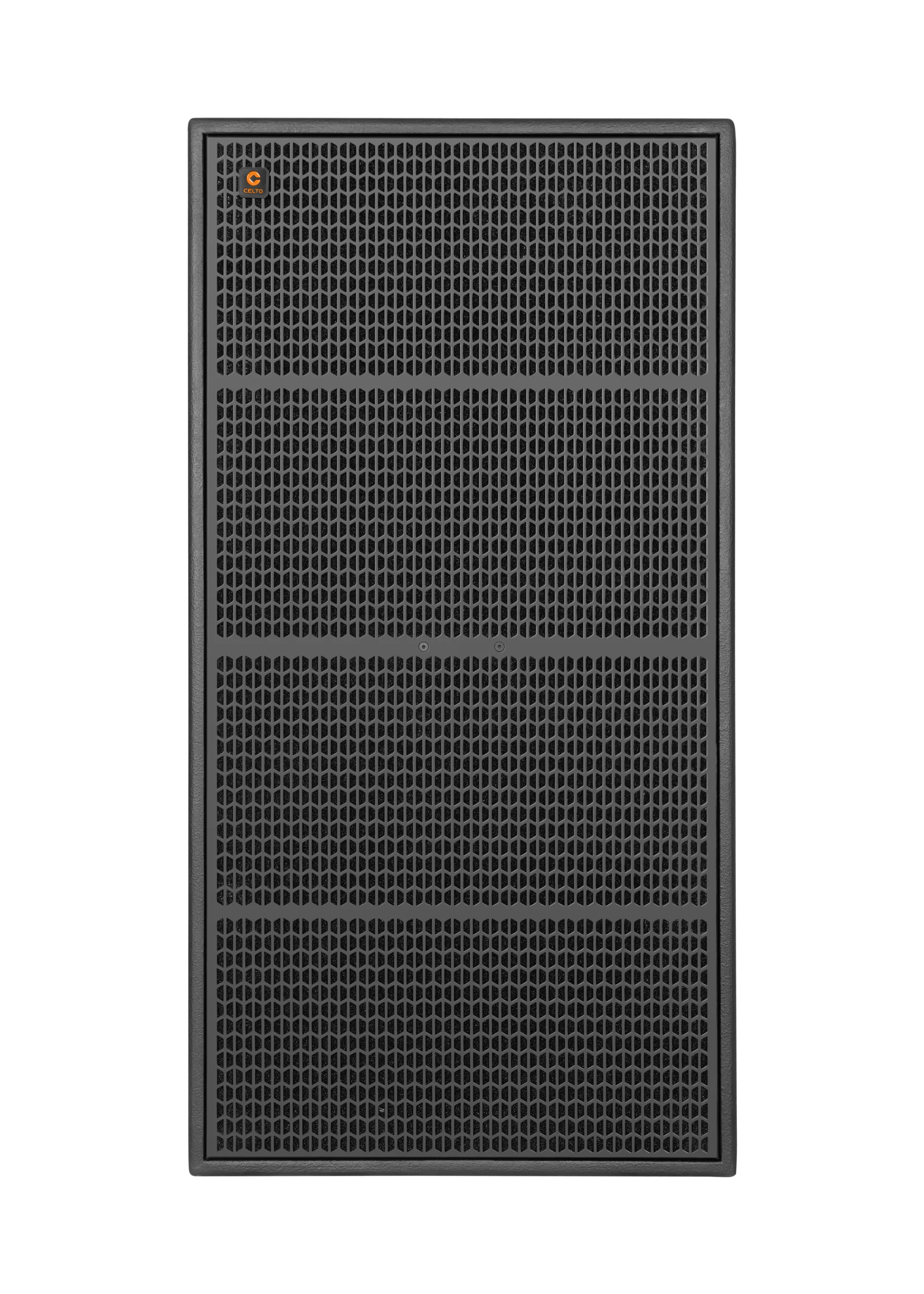

Touring Grade Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | |
| Flying hardware | |

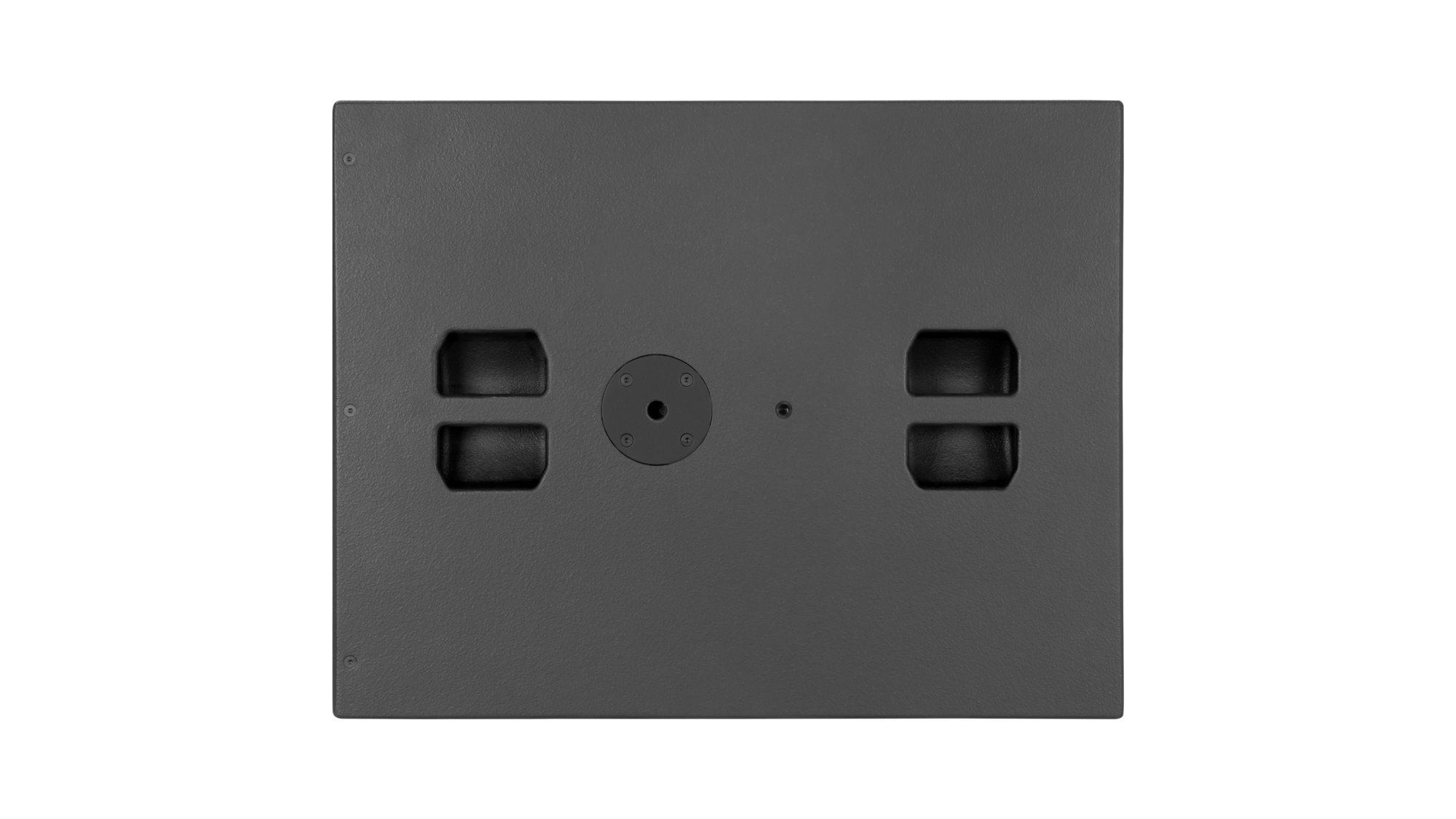

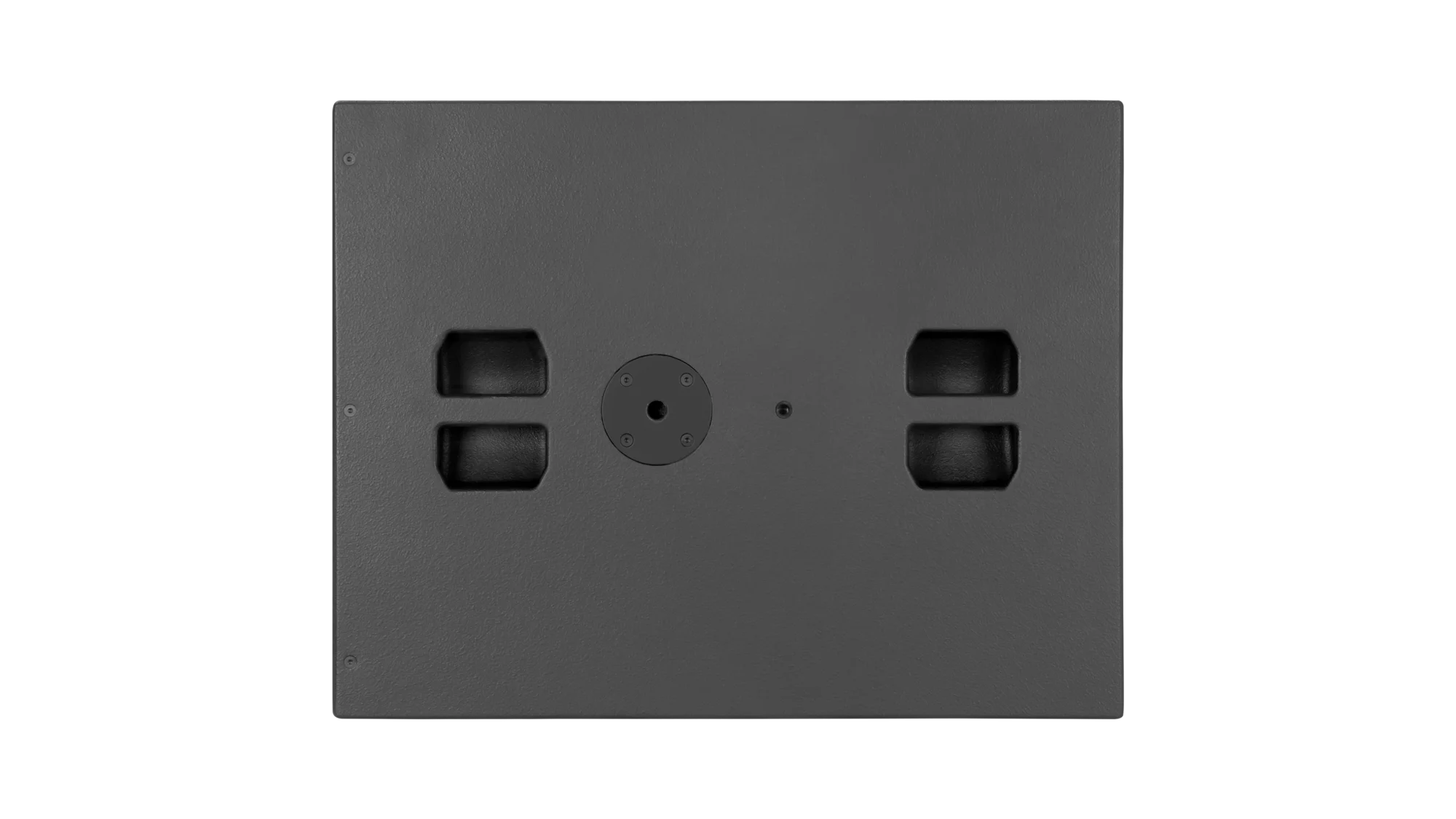

| Mounting hardware | 2pc M20 thread socket + ACS10-CB thread |
| LF | 18" CELTO ACOUSTIQUE |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 4" / 100 mm long throw |
| HF | |
| HF RMS power (AES standard) | |
| HF Exit | |
| HF Voice coil diameter | |
| HF Diaphragm | |
| Speaker size (HxWxD) | 1100 x 580 x 740 mm |
| Speaker Weight | 83 kg |
| Shipping information |
92 kg 1220 x 680 x 850 mm |
| Accessories |
ACS218-SBAG (padded cover bag) CB700 (connection bar) SUBWHKIT100C (castor wheel kit) |
