ACS10 (M+P)
Active curvature system
Installation
Touring

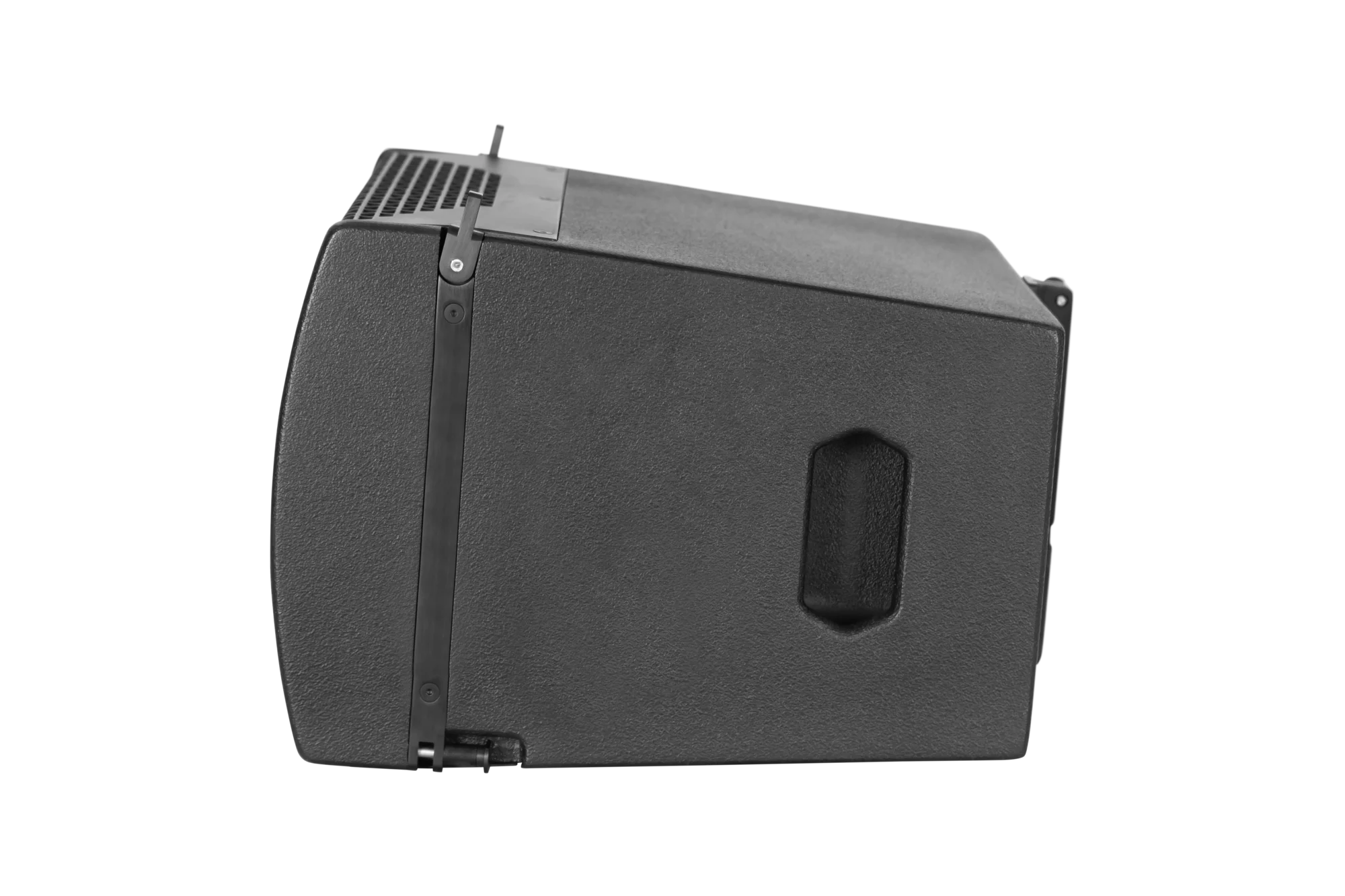

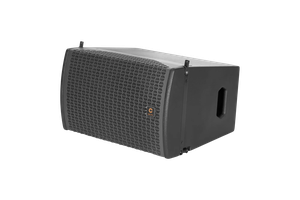

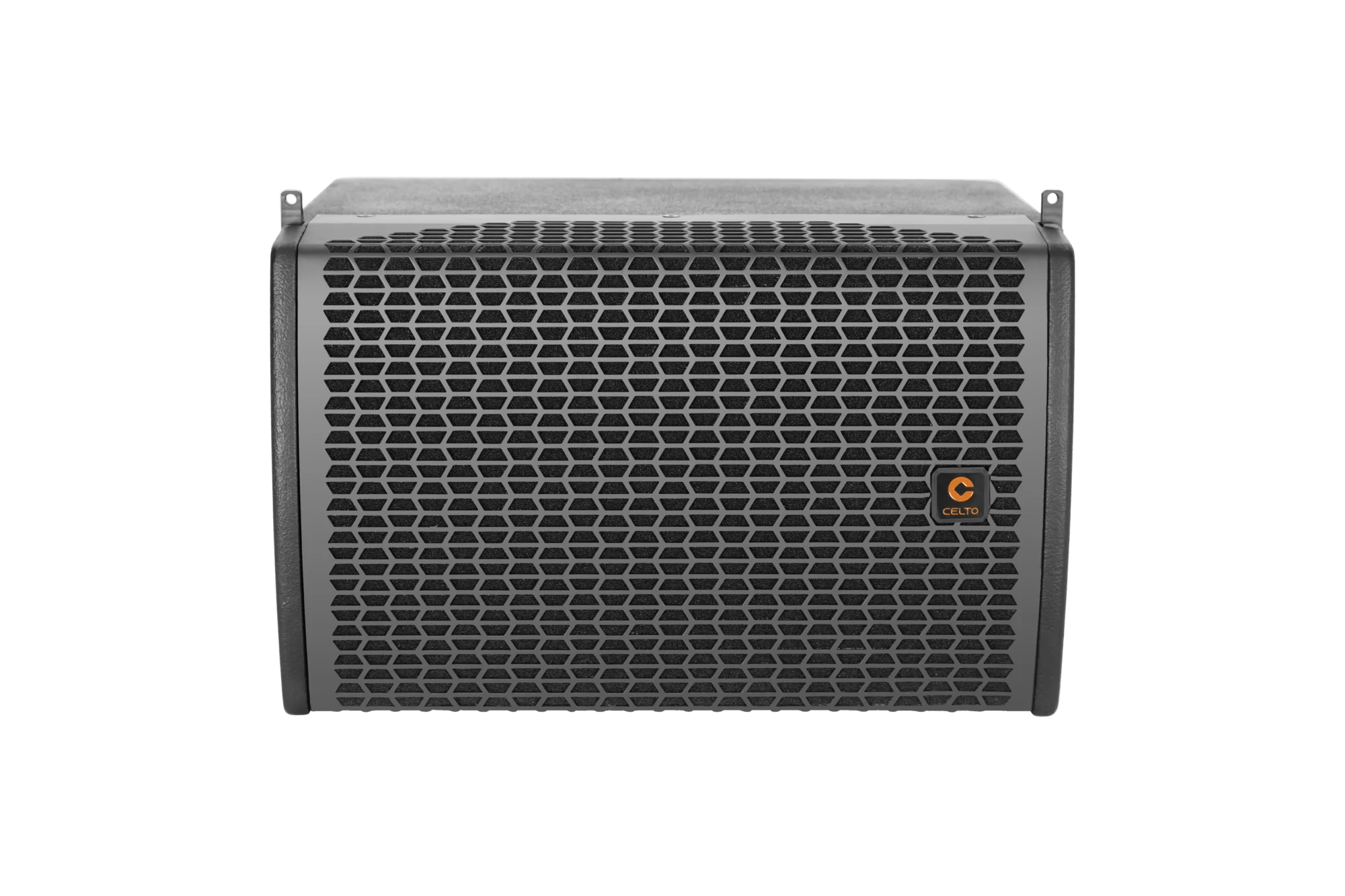

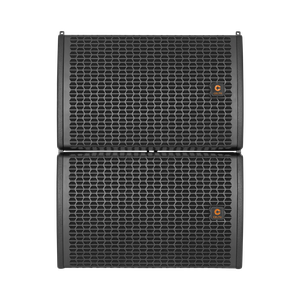

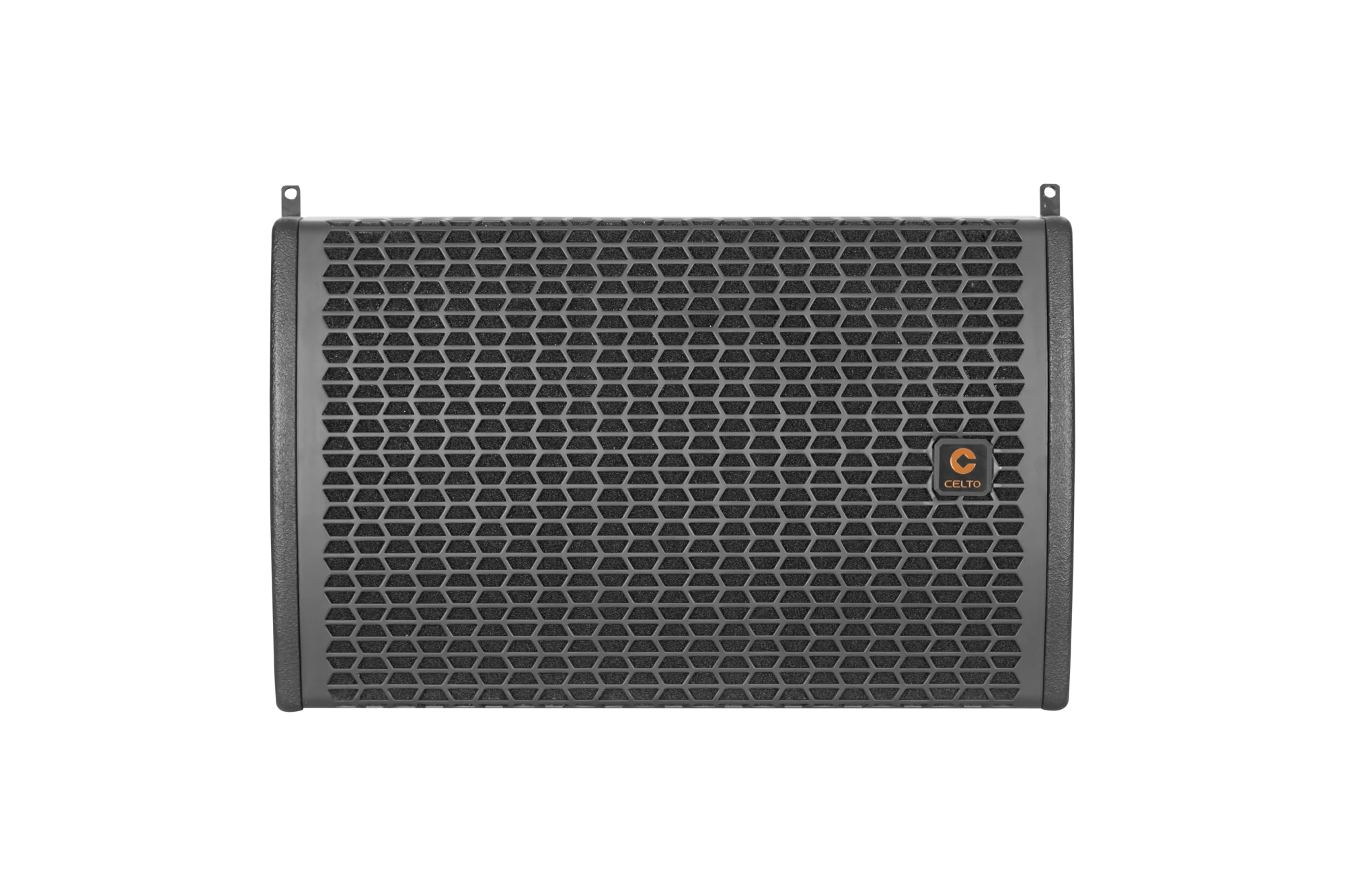

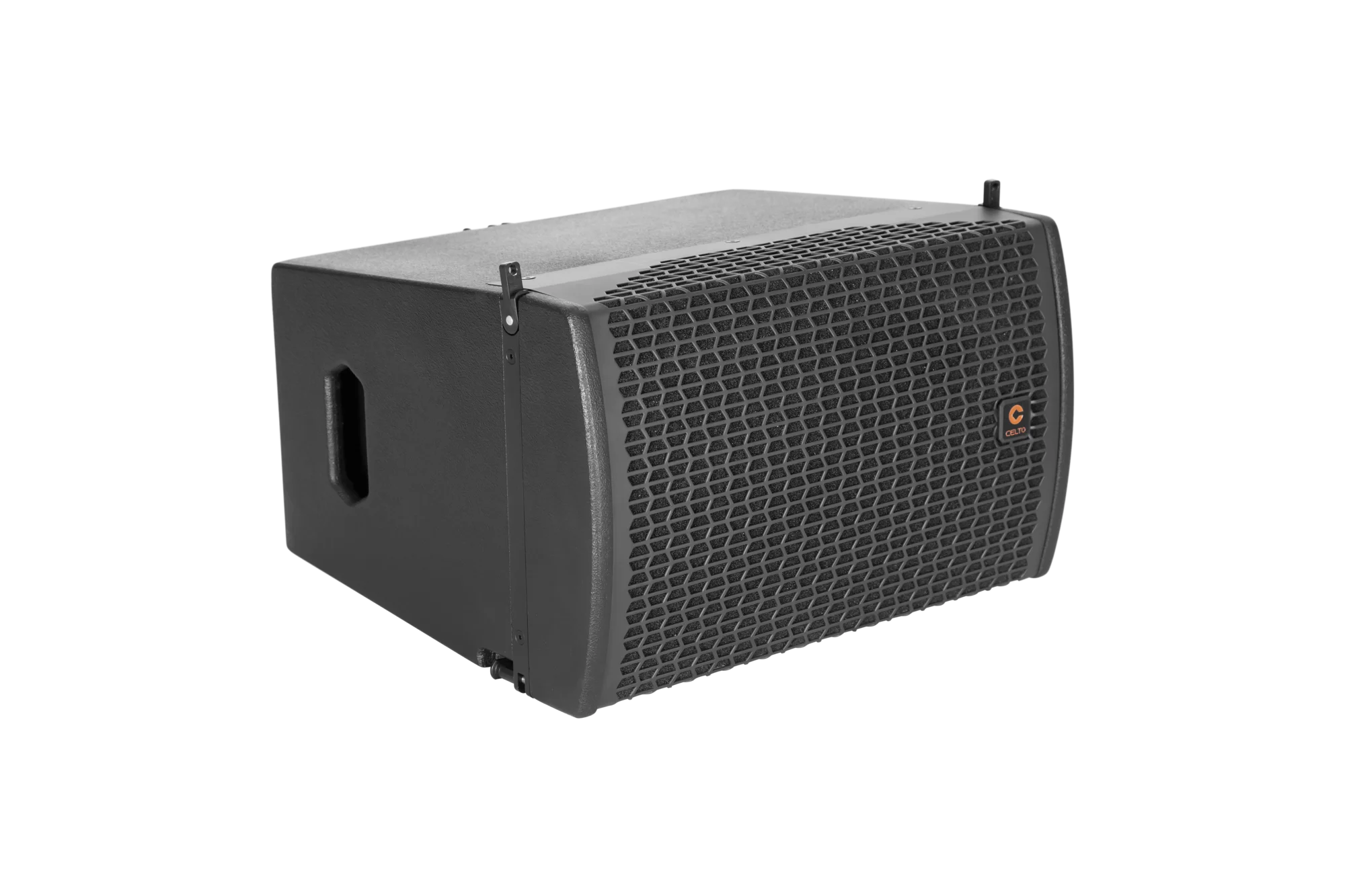

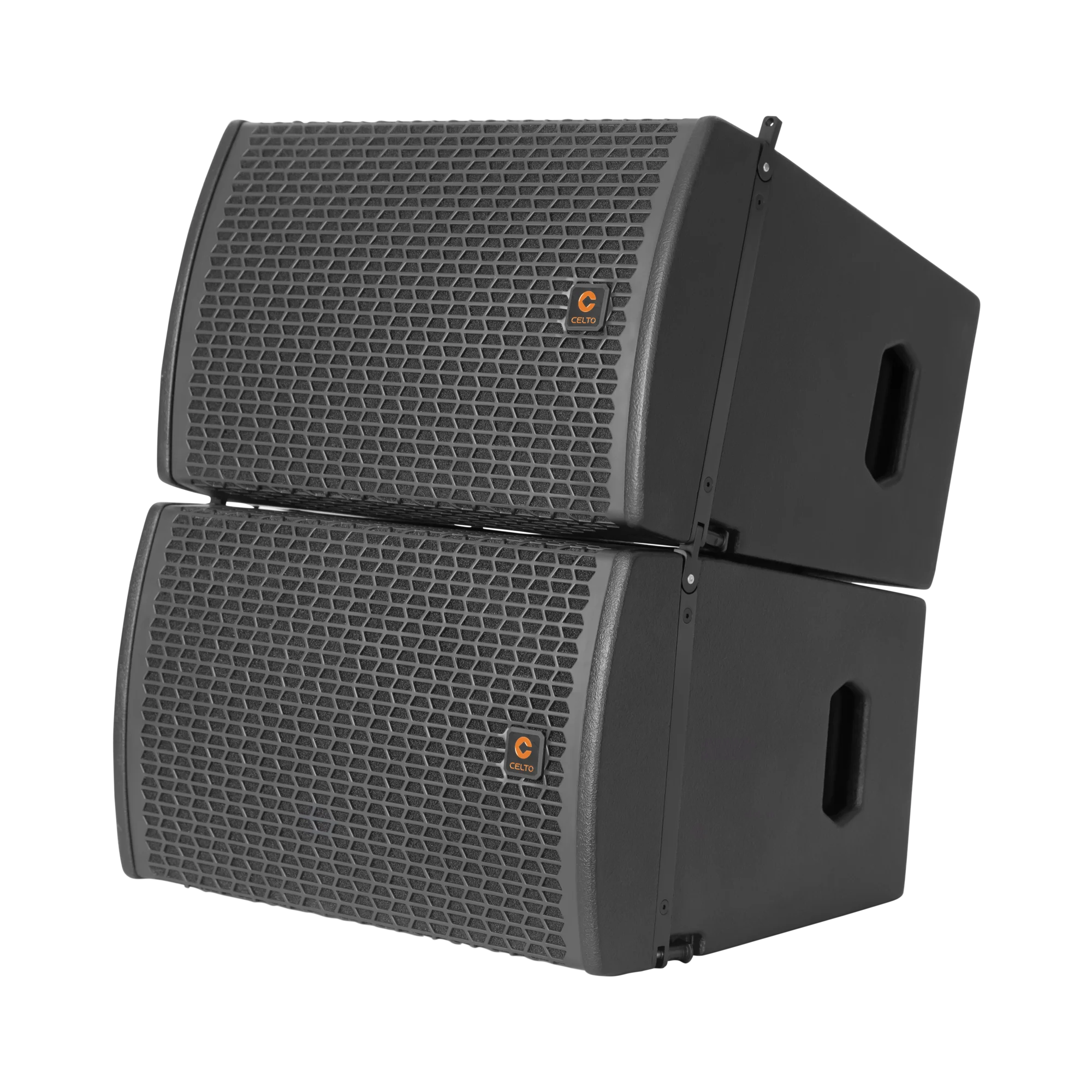

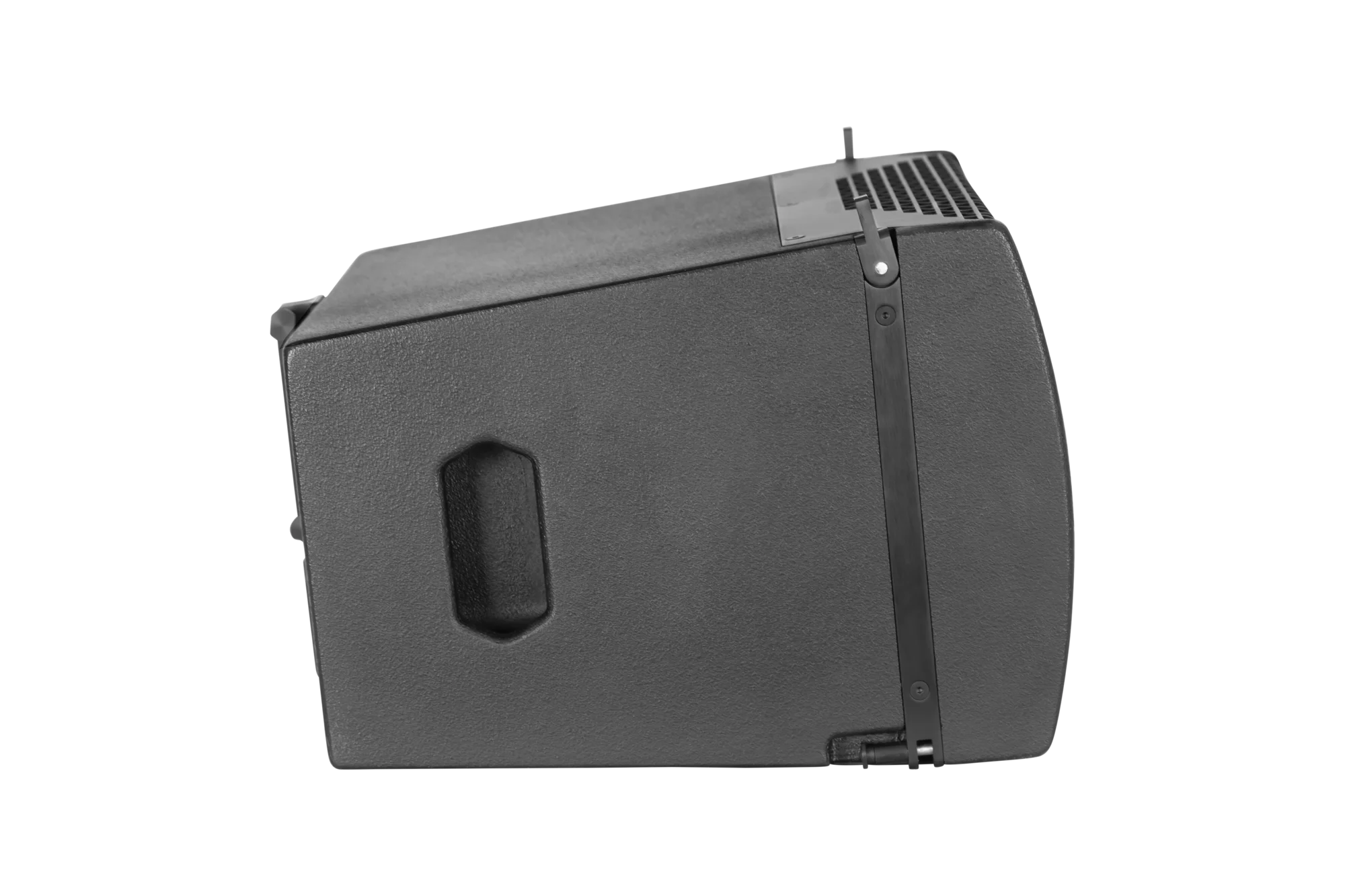

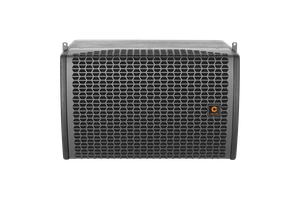

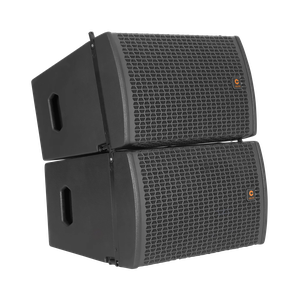

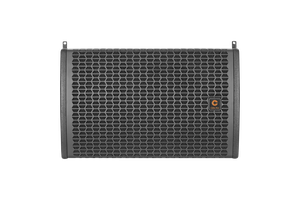

The ACS10 (M+P) is a Line Source Speaker.
ACS10 (M+P) is an ultra-compact line source speaker system designed for precision, power, and portability. Featuring our patented IsoTop™ coaxial waveguide, it delivers uniform coverage and exceptional clarity in a tiny A3 paper size format, achieving the performance of a traditional 2x8" line source at half the size and half the weight. The system comprises two models: ACS10M (Master) - active version with integrated amplification and DSP, and ACS10P (Passive) - powered via SpeakOn output from ACS10M. Optimized for use with the ACS218 subwoofer, the ACS10 system provides superior performance in portable and fixed applications.
Key Features

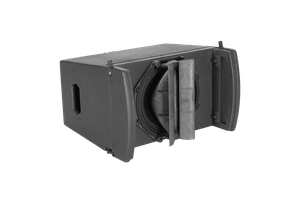

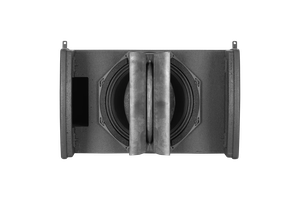

- Patented IsoTop™ waveguide for precise horizontal and vertical coverage
- All-Neodymium drivers ensure lightweight, high-output performance
- Integrated rigging for fast, secure deployment
- Up to 6 cabinets per array with 10 times safety
- Acve PFC + SMPS power supply for stable, efficient operation
- Class D amplifier with DSP processing for protection and audio opmization

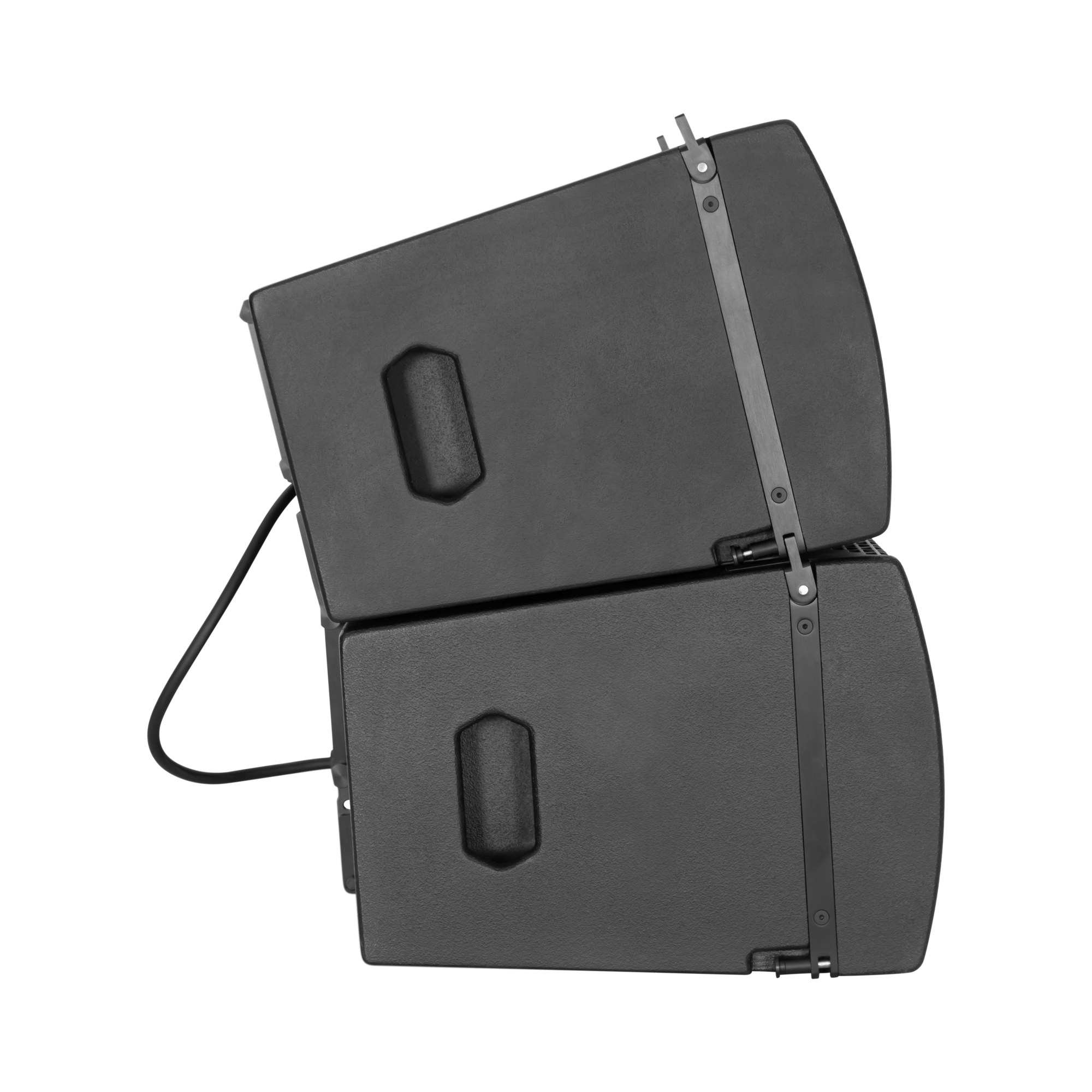

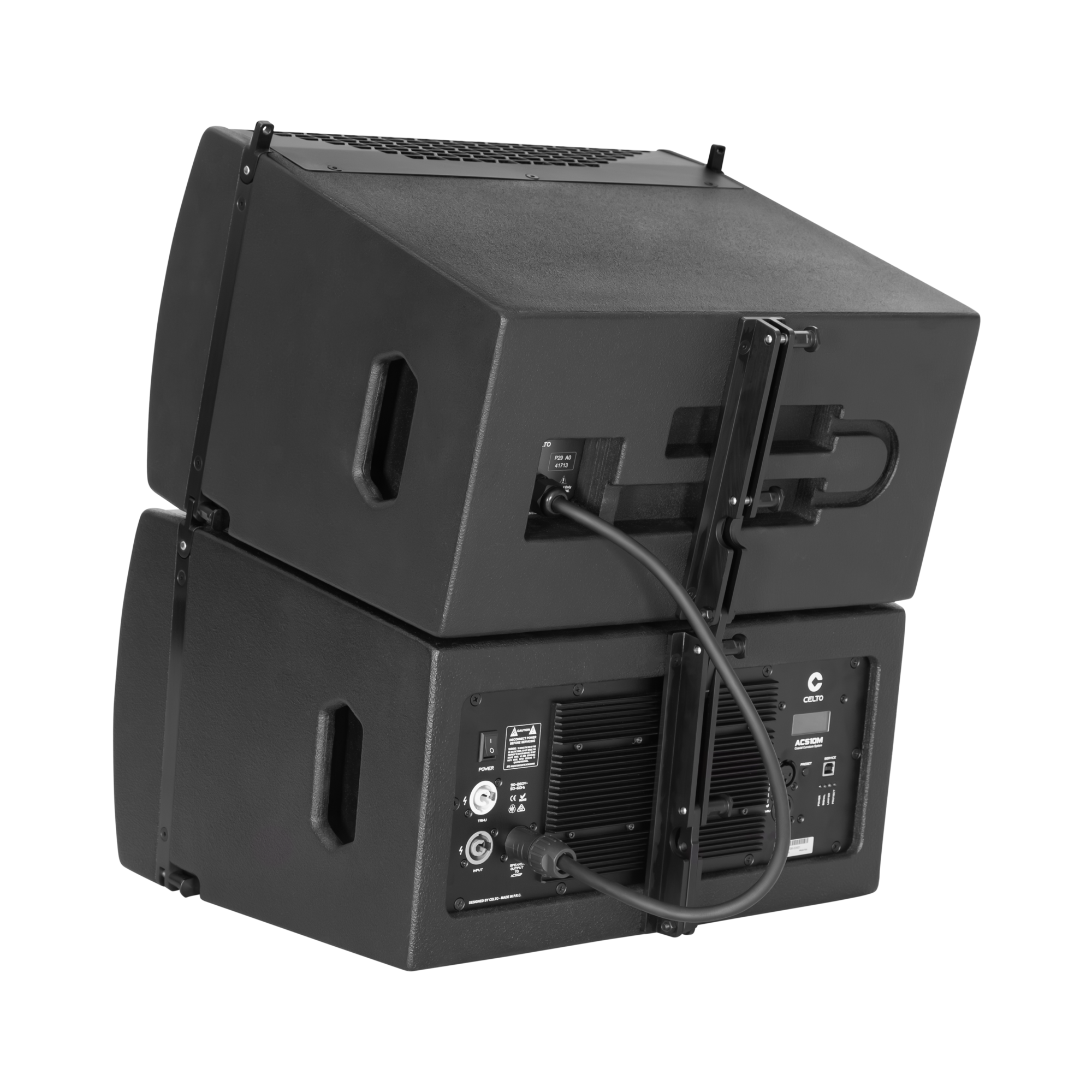

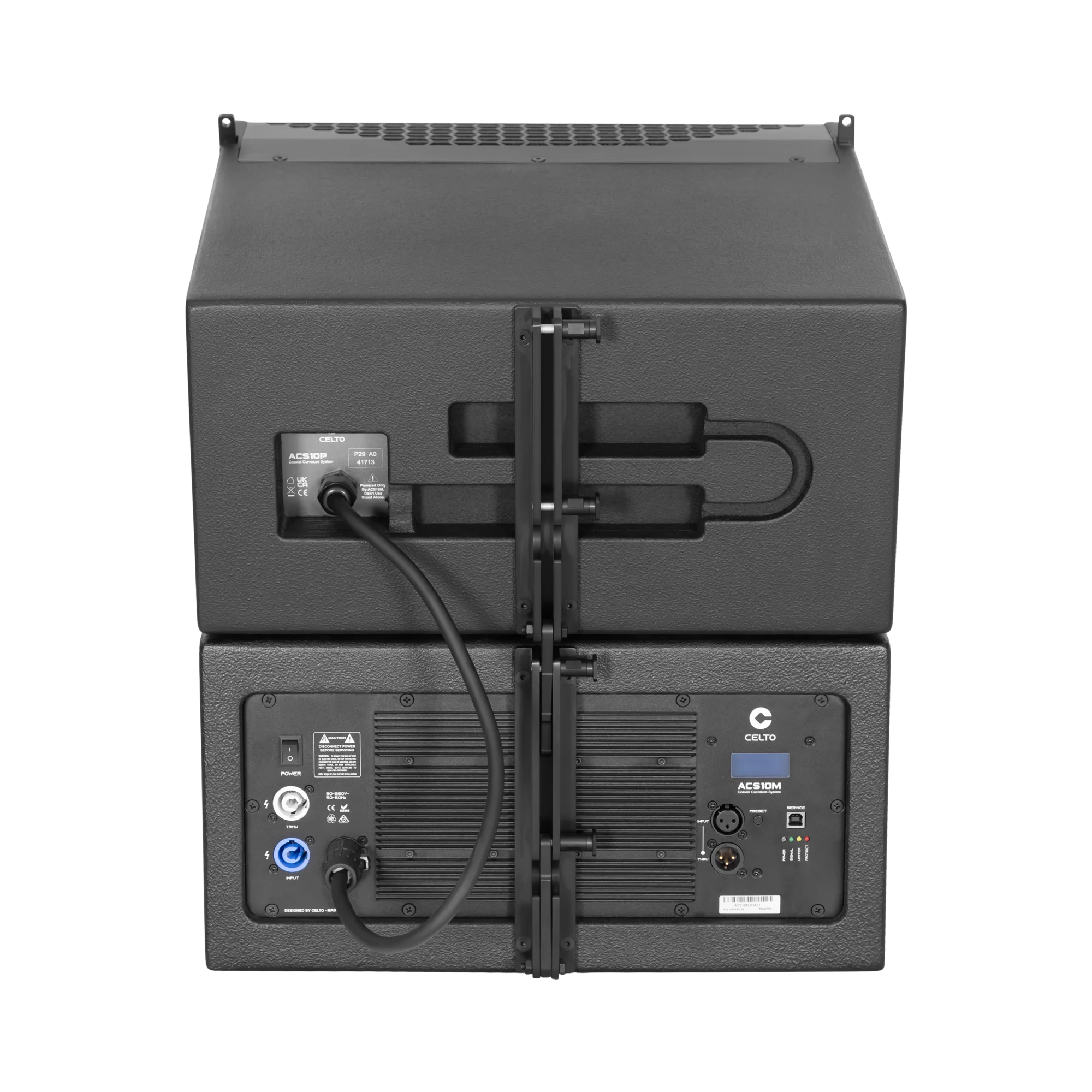

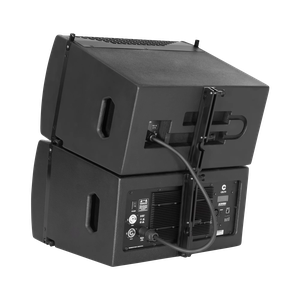

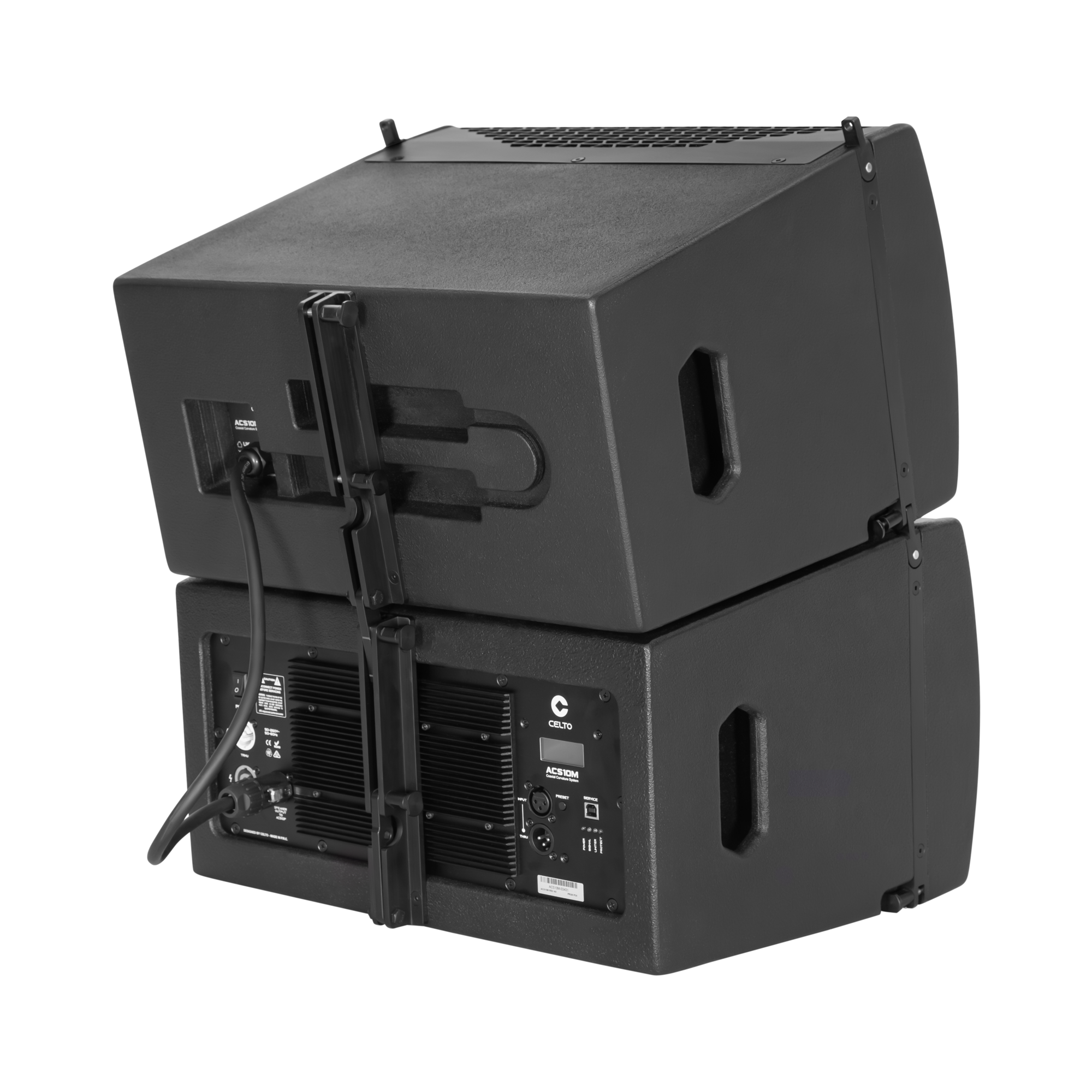

- ACS10M can power one ACS10P directly via SpeakOn connection
- Compact and transport-friendly system design
Description of expected application for the ACS Sytem
Technical specifications
| Speaker type | Self-powered Coaxial Line source Speaker System |
| Maximum SPL (calculated) | 136 dB Peak above 1 kHz |
| Frequency response (-6 dB no preset) | 95~22000 Hz |
| Nominal directivity (-6 dB) | 100° (H), Vertical is array dependant |

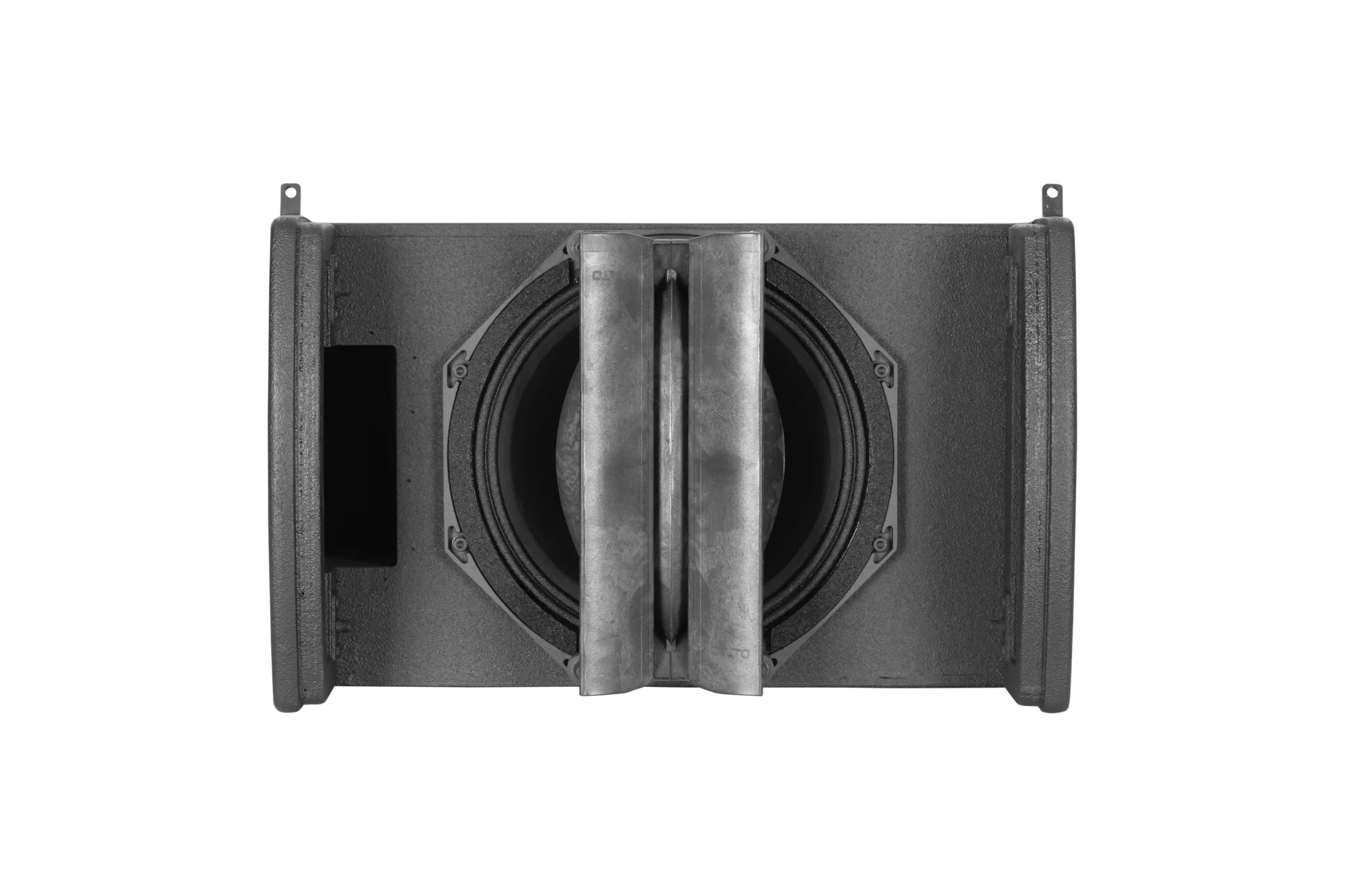

| Design | 2-way coaxial with IsoTop™ waveguide |
| Transducers | 10" LF + 1" exit Annular HF (All Neodymium) |
| Amplifier Module | CELTO SPM3000 with alumium heatsink |
| Power Supply | Active PFC + SMPS (universal mains 90~260V AC) |
| Amplifier Type | 4th Generation proprietary Class D |
| Power Output |
LF : 3000 W Peak / 1500 W RMS (total for 2 cabinets) HF : 1600 W Peak / 800 W RMS (total for 2 cabinets) |
| Preamplifier | -120 dB noise floor op-amps, Fine Gold capacitors |
| DSP Architecture | 115 dB AKM converters, 56-bit accumulators |
| DPS Control | Crossover, EQ, phase and protection |
| DPS Presets | Near / Mid / Far Field - Flat / Music |

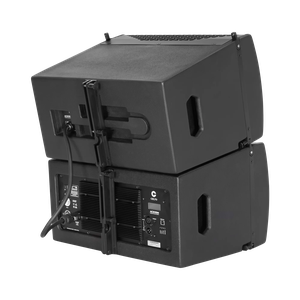

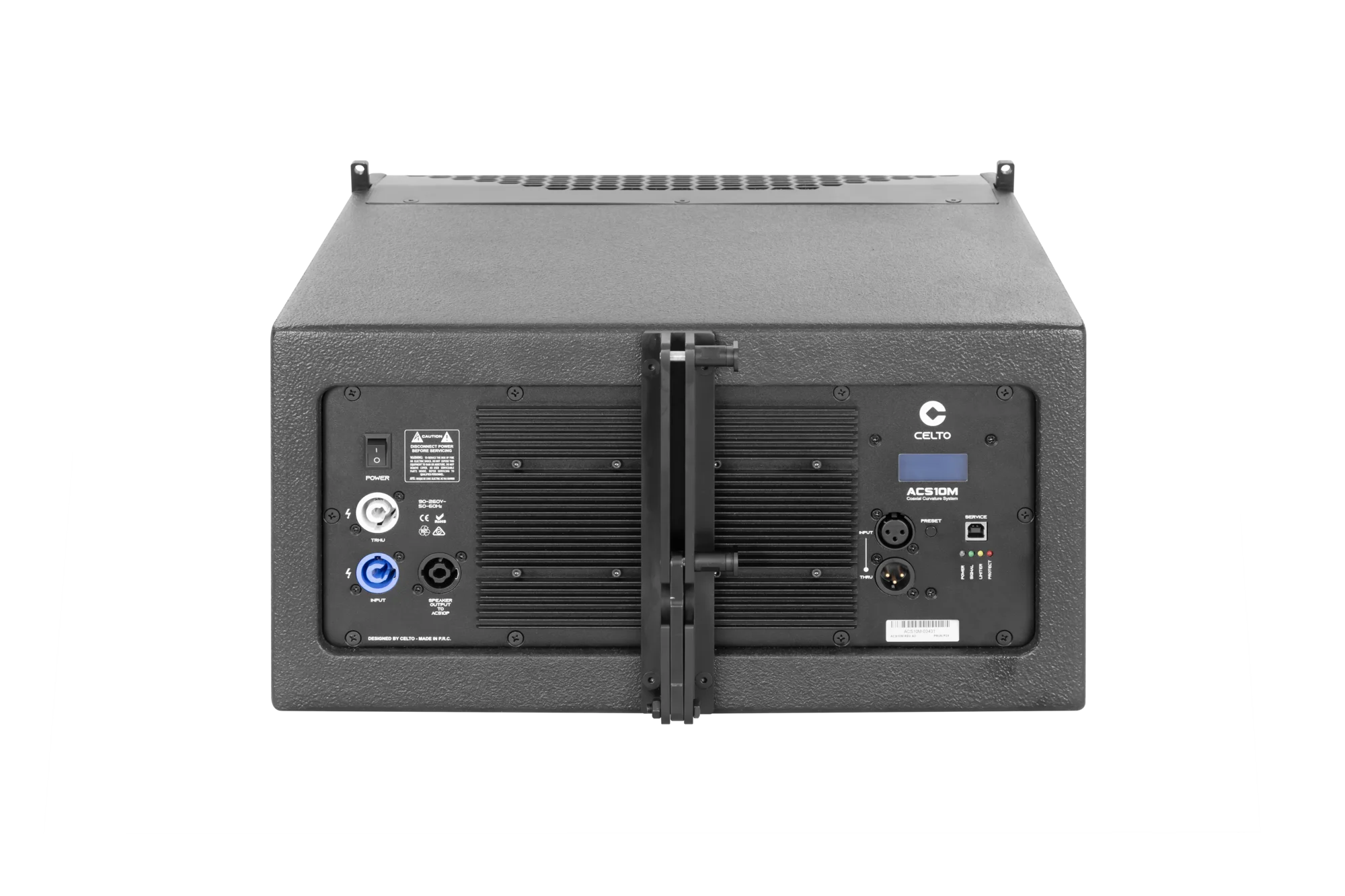

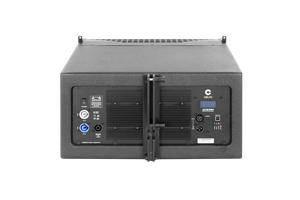

| Connectivity | ASC10M Balanced XLR input/thru + Speakon Output (Powers one ACS10P) + PowerCon In/Out |
| Enclosure | Exterior grade Birch Plywood |
| Cabinet finish |
Touring Grade Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill |
| Floor monitor use | Does not apply |
| Flying hardware |

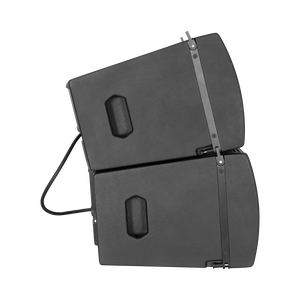

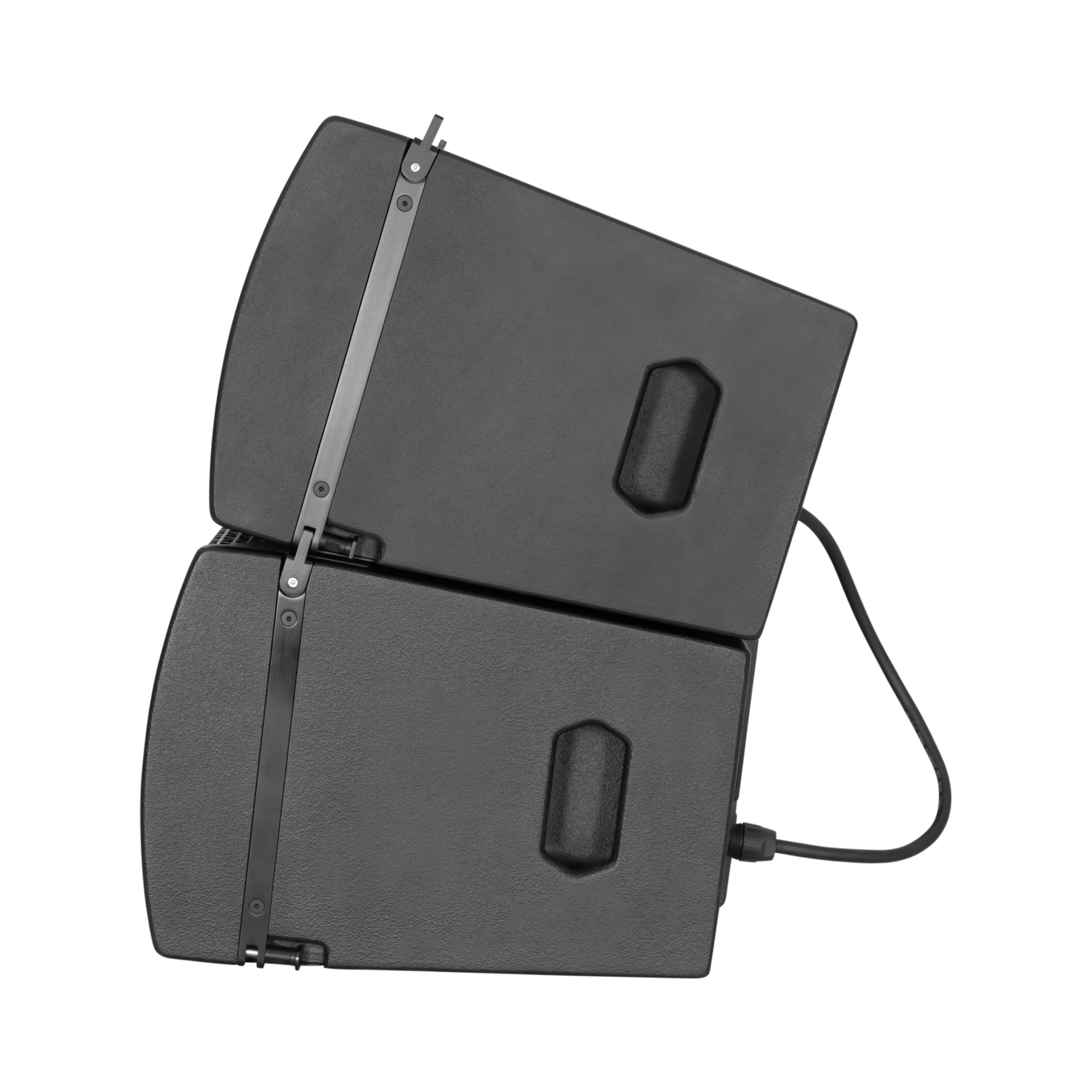

Fully integrated, cable-free, rigging > 0° / 5° / 10° angles |
| Mounting hardware | ACS-MA Mouting Adapter |
| LF |
10" coaxial CELTO ACOUSTIQUE 10CXN400LA |
| Woofer Chassis | Die Cast Aluminium |
| Woofer Voice coil diameter | 3" / 75 mm |
| HF |
CELTO ACOUSTIQUE ACDN44 loaded by IsoTop waveguide (in coaxial mounting) |
| HF RMS power (AES standard) | 80 W above 1.2 kHz |
| HF Exit | 1" / 25 mm |
| HF Voice coil diameter | 1.7" / 44 mm Silver loaded wire |
| HF Diaphragm | HSP Annular (High Strenght Polymer) |
| Speaker size (HxWxD) | 450 x 280 x 395 mm |
| Speaker Weight | ACS10M: 16 kg / ACS10P: 13 kg |
| Shipping information |
1x ACS10M + 1x ACS10P per single carton 37.5 kg 695 x 500 x 580 mm |
| Accessories |
ACS10-CB (Crossbow flying/stacking frame) ACS10-ZBAG (padded bag with Zip) CB700 (connection bar) ACS-MA (mounting adapter) |

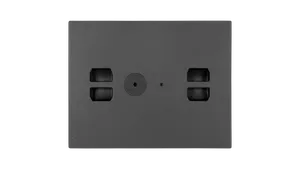

Related products
