Description

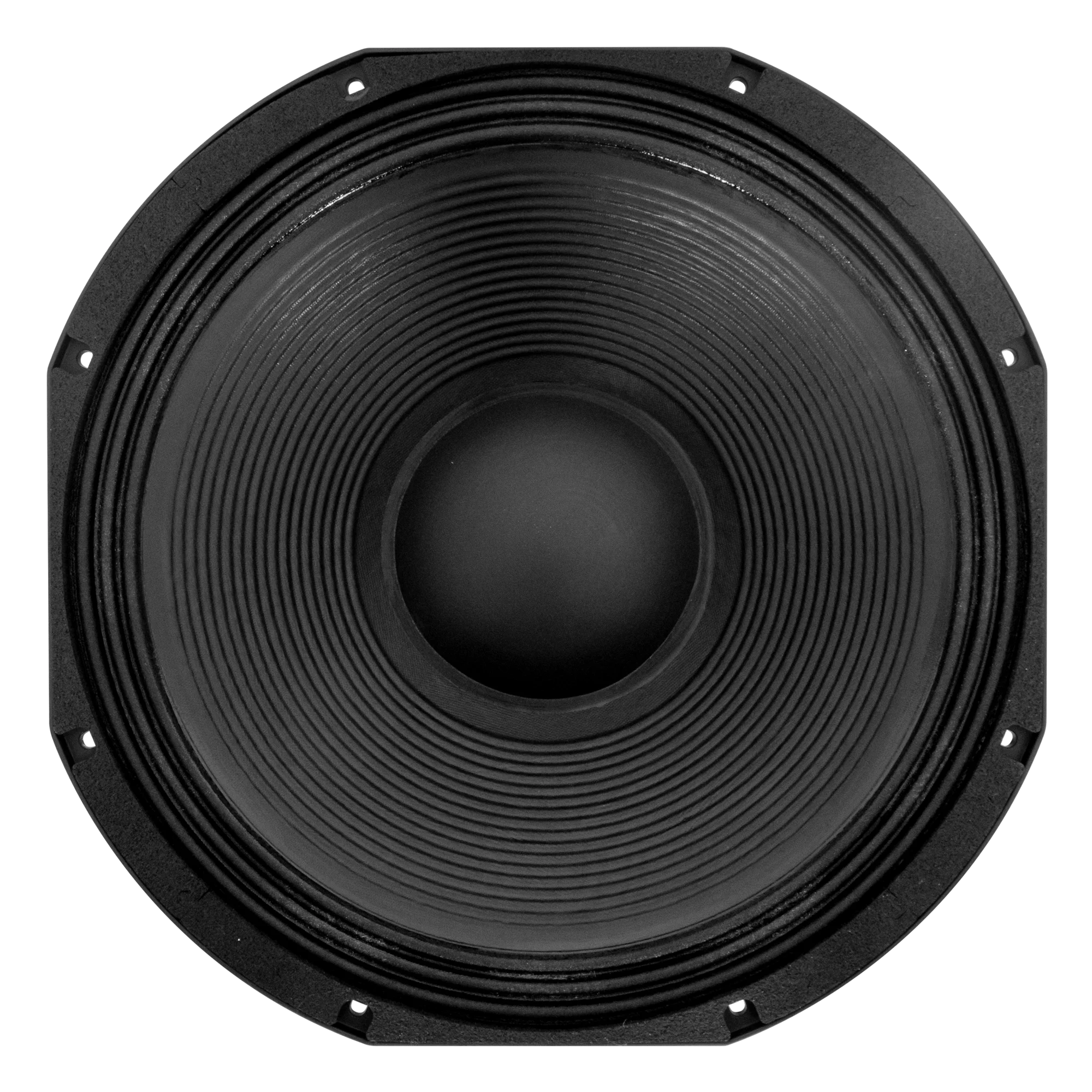

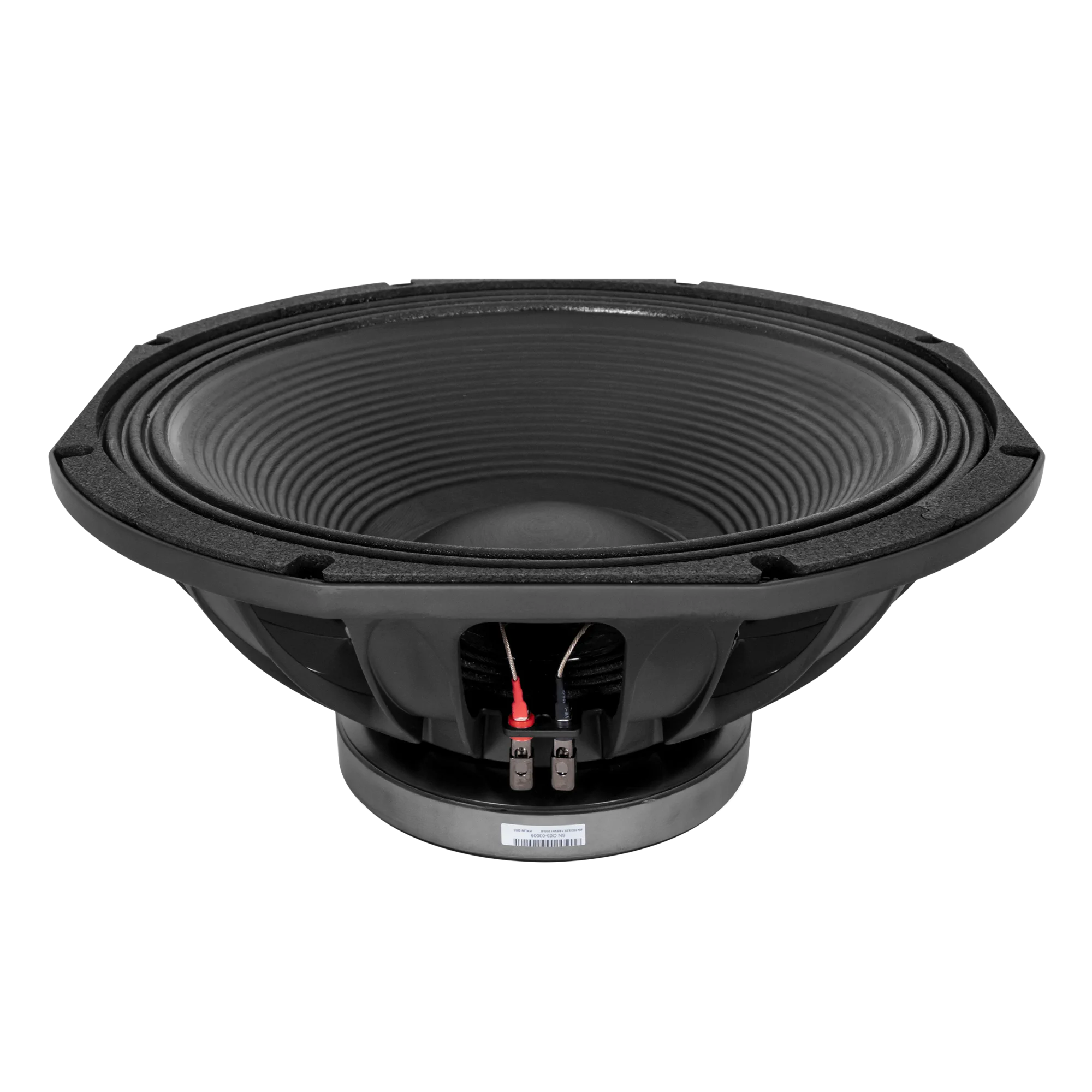

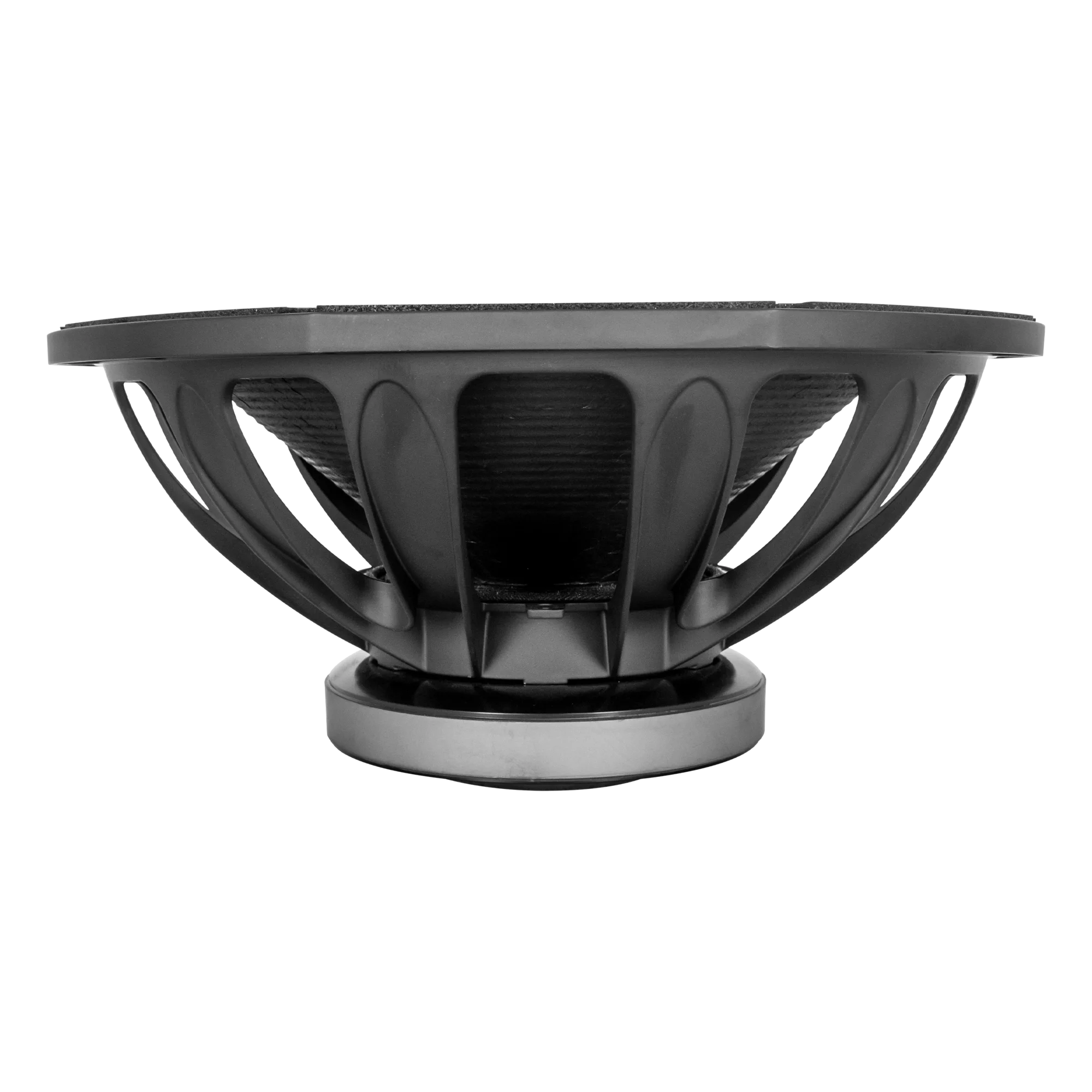

Premium sub refinement—the CELTO Acoustique 18SW1200-8 matches the NGW's power with added DCS cooling for sustained high-output performance. Long excursion and KEVLAR® cone deliver clean, articulate bass even under stress. Engineered for compact yet powerful vents in touring or fixed systems. The 18SW1200-8 elevates standard subwoofer expectations with thoughtful thermal management.
Key Features
- Long excursion, low distortion, DCS, KEVLAR® cone
Applications
Transducers
Where sound begins
Technical specifications
| Nominal Diameter | 18" (460mm) |
| Nominal Impedance | 8 Ω |
| Power Handling RMS (AES) | 1200 W |
| Sensitivity (1W/1m) | 97 dB |
| Voice Coil Diameter | 4" (100mm) |
| Fs (Hz) | 35 |
| Qms | 10.351 |
| Qes | 0.427 |
| Qts | 0.412 |
| Vas (liters) | 205 |
| Mms (g) | 215 |
| Rms (kg/s) | 4.568 |
| Sd (cm²) | 1225 |
| Re (Ω) | 5.7 |
| BL (Tm) | 25.1 |
| η0 (%) | 2.03 |
| Le (mH @1kHz) | 1.98 |
| Cms (mm/N) | 0.0962 |
| Xmax (±mm) | ±10 |
| Xmech (peak-peak mm) | 50 |
| Voice Coil Height (Hvc mm) | 26 |
| Voice Coil Air Gap (Hag mm) | 12 |
| Voice Coil Winding | 2 layers IN/OUT |
| Voice Coil Material | 240°C Copper |
| Voice Coil Former | DUPONT GFB fiberglass |
| Overall Diameter (mm) | 470 |
| Bolt Circle Diameter (mm) | 445 |
| Baffle Cutout Diameter (mm) | 422 |
| Flange/Gasket Thickness (mm) | 13 |
| Overall Depth (mm) | 212 |
| Net Weight (kg) | 13 |
