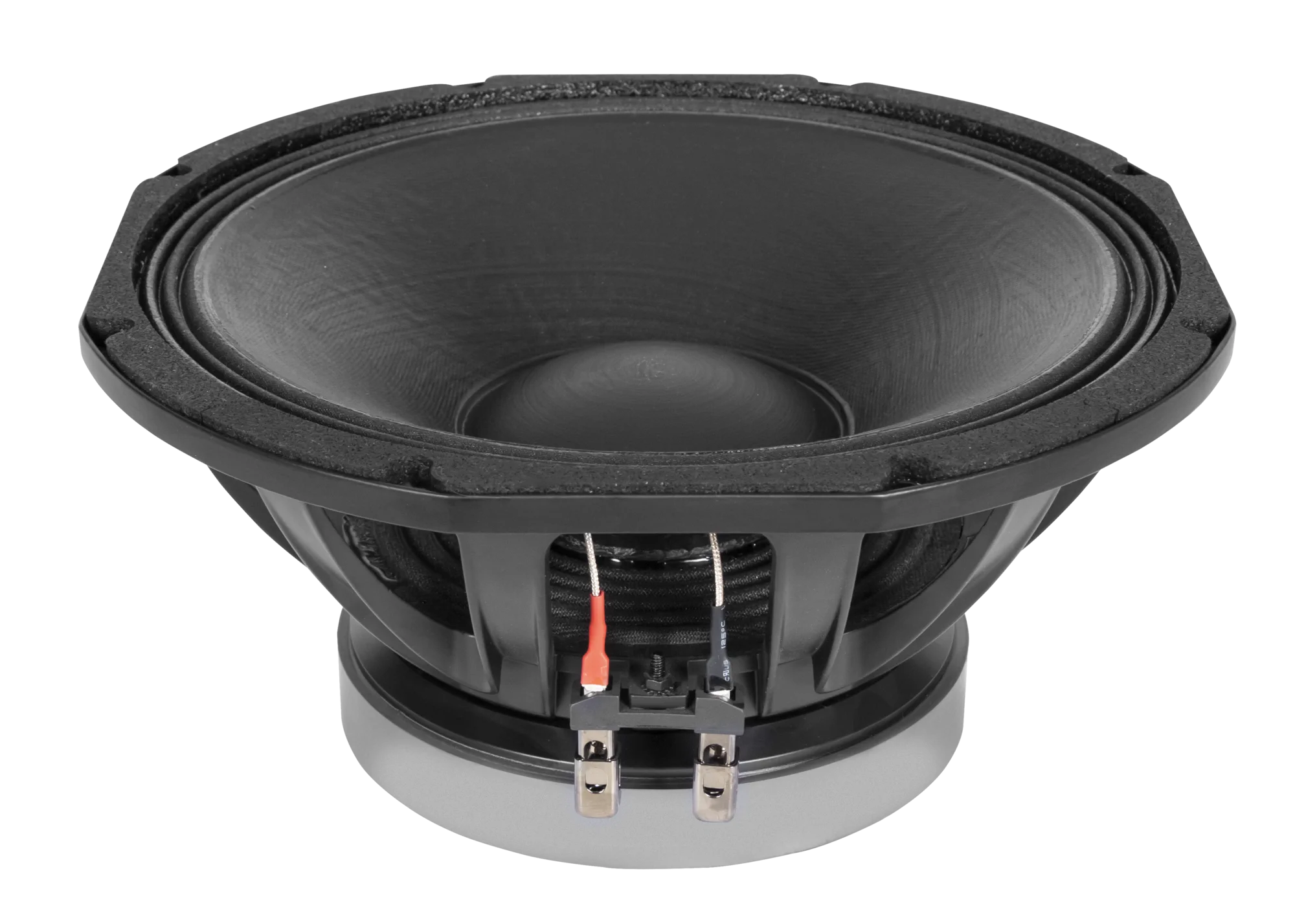

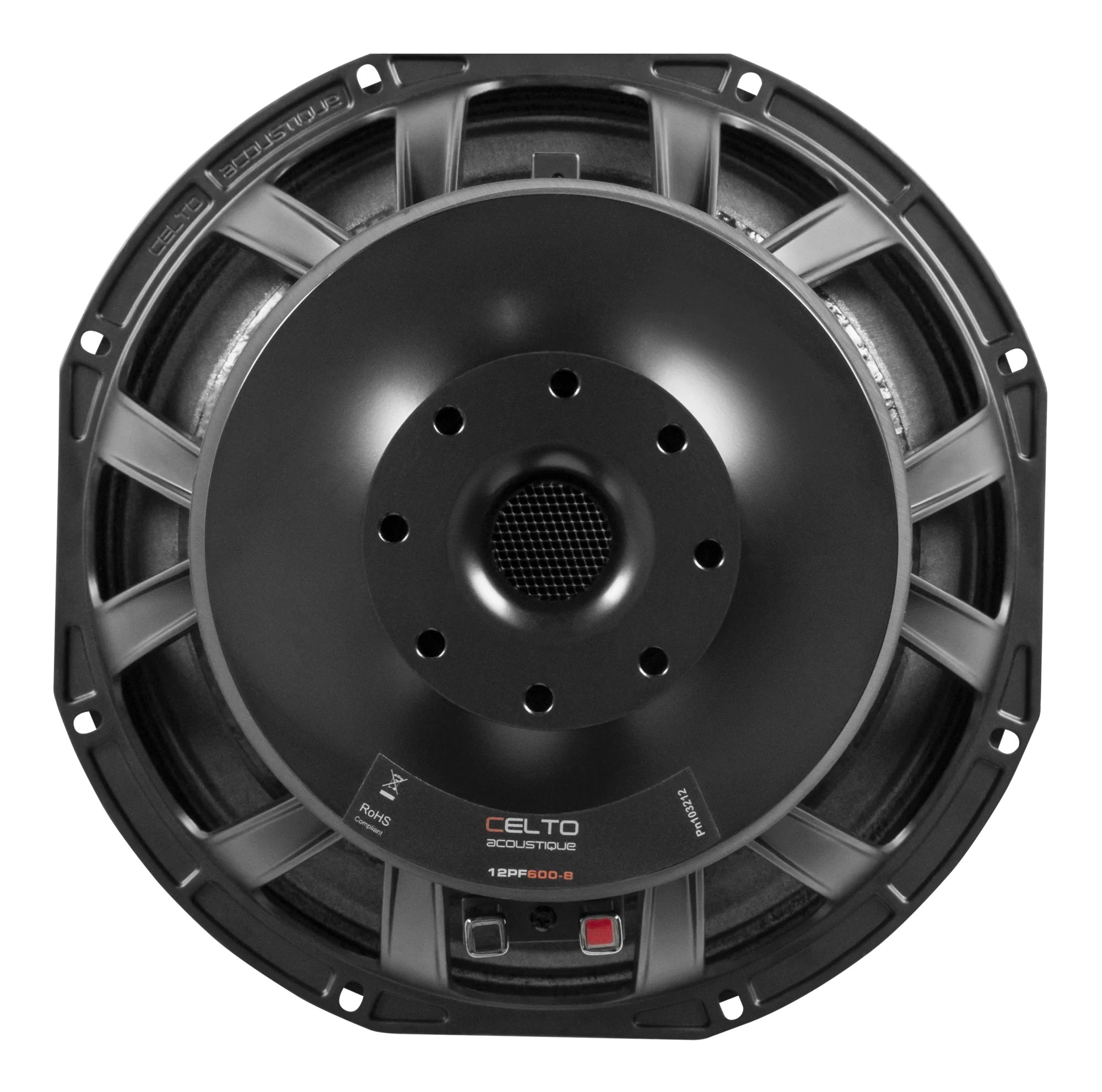

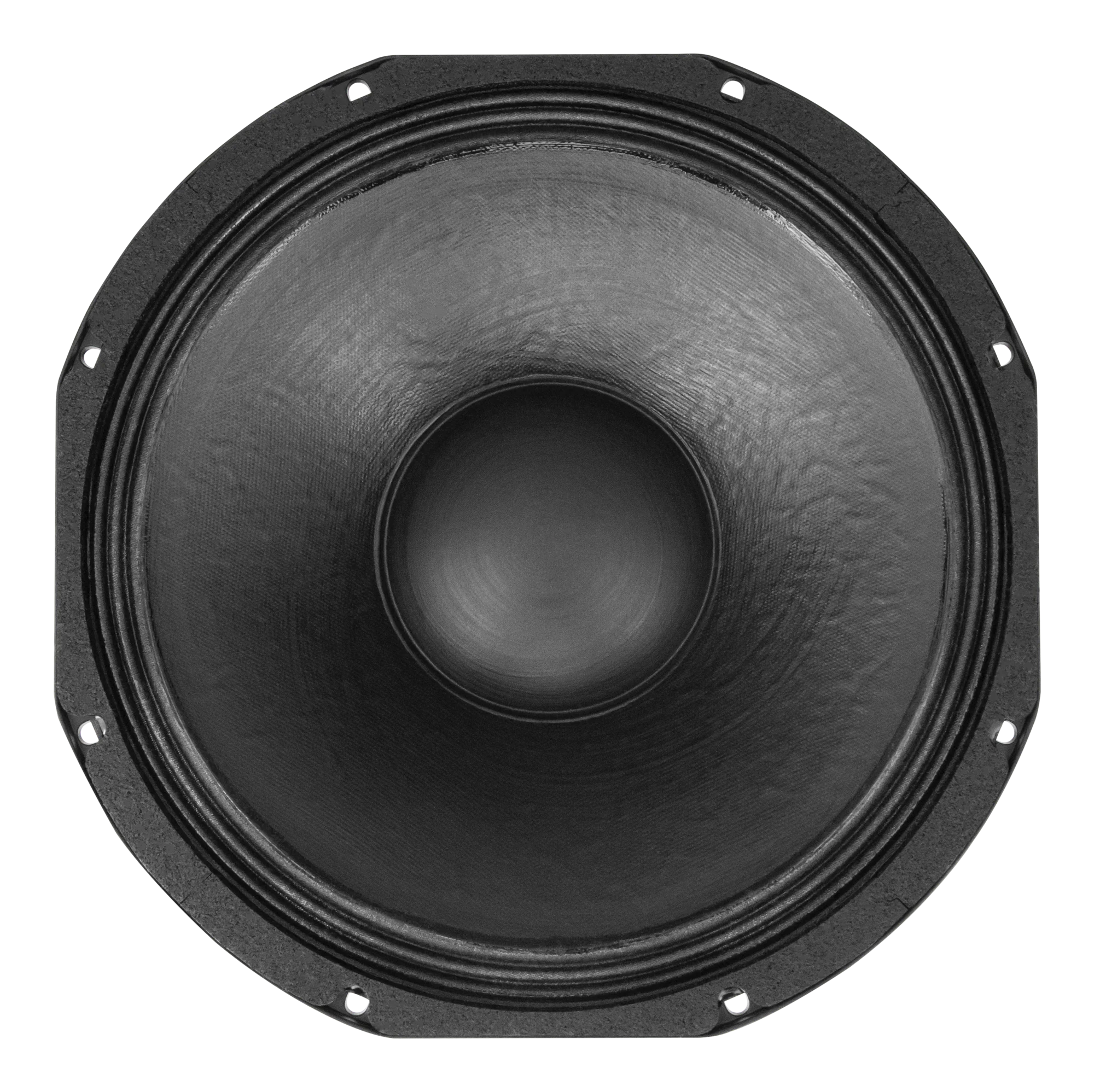

12PF600-8
KEVLAR® Precision. Compact Power.Natural Tone. High Sensitivity.
Description
Premium mid-bass refinement—the CELTO Acoustique 12PF600-8 steps up with 600W RMS handling and KEVLAR®-loaded cone for superior stiffness and durability. Designed for high-fidelity 2-way designs, it offers smooth response and excellent transient attack in compact enclosures. Perfect for demanding installations and touring systems needing articulate mids with minimal distortion. The 12PF600-8 shows that a touch of premium materials can elevate everyday sound to something truly engaging.
Key Features
- Balanced tonality, high efficiency, KEVLAR® cone
Applications
Transducers
Where sound begins
Technical specifications
| Nominal Diameter | 12" (320mm) |
| Nominal Impedance | 8 Ω |
| Power Handling RMS (AES) | 600 W |
| Sensitivity (1W/1m) | 97 dB |
| Voice Coil Diameter | 3" (75mm) |
| Fs (Hz) | 51 |
| Qms | 7.472 |
| Qes | 0.452 |
| Qts | 0.424 |
| Vas (liters) | 66 |
| Mms (g) | 64 |
| Rms (kg/s) | 2.74 |
| Sd (cm²) | 552 |
| Re (Ω) | 5.28 |
| BL (Tm) | 15.5 |
| η0 (%) | 1.9 |
| Le (mH @1kHz) | 1.08 |
| Cms (mm/N) | 0.152 |
| Xmax (±mm) | ±8.75 |
| Xmech (peak-peak mm) | 42 |
| Voice Coil Height (Hvc mm) | 22.5 |
| Voice Coil Air Gap (Hag mm) | 10 |
| Voice Coil Winding | 2 layers IN/OUT |
| Voice Coil Material | 240°C CCAW |
| Voice Coil Former | DUPONT GFB fiberglass |
| Overall Diameter (mm) | 315 |
| Bolt Circle Diameter (mm) | 302 |
| Baffle Cutout Diameter (mm) | 282 |
| Flange/Gasket Thickness (mm) | 10 |
| Overall Depth (mm) | 143 |
| Net Weight (kg) | 7 |
Product files
| Name | Category | Type | Size | |
|---|---|---|---|---|
|
CELTO_12PF600_A0_20250723_WEB_CAD
CELTO_12PF600_A0_20250723_WEB_CAD
|
CELTO_12PF600_A0_20250723_WEB_CAD | 126.8 KiB | Download |
